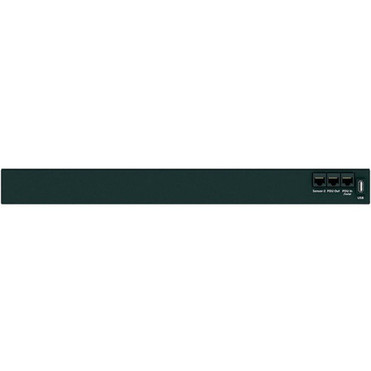

Panduit P08D09M Horizontal Intelligent Power Distribution Unit - Monitored - NEMA 5-15P - 8 x NEMA 5-20R - 120 V AC - 1U - Horizontal (P08D09M)
Write a Review
Panduit
Panduit P08D09M Horizontal Intelligent Power Distribution Unit - Monitored - NEMA 5-15P - 8 x NEMA 5-20R - 120 V AC - 1U - Horizontal (P08D09M)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
PDU Type: Monitored
Phase: Single Phase
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 8 x NEMA 5-20R
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Output Voltage Range: 120 V AC - 240 V AC
Power Rating (VA): 1.40 kVA
Input Current: 15 A
Remote Outlet Switching: No
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 1U
Height: 1.71" (43.43 mm)
Width: 17.46" (443.48 mm)
Depth: 10.60" (269.24 mm)
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 3 Year
- A device fitted with multiple outputs for the distribution of electric power
- Before critical input source become overloaded always be warned with monitored PDUs
[custom-specifications]
| Specifications | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P08D09M |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MI |
| Product Model | P08D09M |
| Product Name | P08D09M Horizontal Intelligent Power Distribution Unit |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Power Rating (VA) | 1.40 kVA |
| Input Current | 15 A |
| Management | |
| Remote Outlet Switching | No |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.71" (43.43 mm) |
| Width | 17.46" (443.48 mm) |
| Depth | 10.60" (269.24 mm) |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
3 Year
