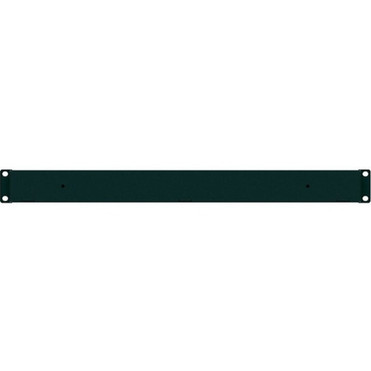

Panduit P12B01M Horizontal Basic PDU - 1. 40 kVA - 12 x NEMA 5-20R Outlets - 120 V AC - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on a single-phase power system with an input current of 16 A, delivering stable 120 V AC output across all 12 outlets. The output voltage range extends from 120 V AC to 240 V AC, offering flexibility for different power requirements. The unit does not support remote outlet switching, focusing instead on straightforward, reliable power distribution.
Built for horizontal mounting in standard 19-inch racks, the P12B01M features a durable construction that meets RoHS and REACH environmental compliance standards. Its basic design prioritizes simplicity and efficiency, with no advanced management features, making it a practical choice for environments where cost-effective power distribution is the primary goal.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Panduit P12B01M offers several advantages for IT professionals seeking efficient power distribution. Its high-density outlet configuration allows multiple devices to be powered from a single unit, reducing the need for additional power strips and simplifying cable management.
Cost-Effective Power Distribution
This basic PDU provides a budget-friendly way to deliver power to equipment racks without the complexity of managed PDUs, making it suitable for small to medium-sized deployments.
- No remote switching reduces cost
- Simple installation and operation
- Ideal for non-critical power needs
Rack-Optimized Design
With a 1U height and horizontal mounting orientation, this PDU fits seamlessly into standard server racks, maximizing space utilization while providing accessible power outlets.
- Compact 1U footprint
- Horizontal mounting saves space
- Standard 19-inch rack compatibility
Deployment / Use Cases
The Panduit P12B01M is well-suited for various deployment scenarios where reliable, basic power distribution is required. Its design makes it particularly effective in environments where advanced power management features are unnecessary, but organized power delivery is essential.
Common use cases include wiring closets where network switches and patch panels need centralized power, server rooms with multiple rack-mounted servers and storage devices, and equipment racks in small offices or retail locations. The unit's 12 outlets support a range of devices, from networking gear to surveillance systems, providing a streamlined power solution for growing IT infrastructure.
Server Room Power Distribution
Deploy this PDU in server racks to power multiple servers, switches, and storage units, reducing cable clutter and improving airflow management.
- Supports high-density equipment
- Enhances rack organization
- Facilitates efficient cooling
Wiring Closet Applications
Use in network wiring closets to provide power to switches, routers, and other networking hardware, ensuring reliable connectivity for business operations.
- Powers critical network devices
- Simplifies power setup
- Reduces need for multiple outlets
Physical Profile
The Panduit P12B01M features a compact design with dimensions of 1.60" (40.64 mm) in height, 17.50" (444.50 mm) in width, and 2" (50.80 mm) in depth, optimized for 1U rack mounting. Its horizontal orientation and rack-mountable construction ensure easy integration into standard server racks, while the slim profile minimizes space consumption. The unit is manufactured in the United States and is environmentally friendly, complying with RoHS and REACH standards for reduced hazardous substances.
- Width
- 17.50" (444.50 mm)
- Depth
- 2" (50.80 mm)
- Height
- 1U
Highlights
- 1.40 kVA power rating for reliable distribution
- 12 NEMA 5-20R outlets support multiple devices
- 120 V AC input and output voltage
- 1U rack-mountable design saves space
- Horizontal mounting orientation for easy installation
- Single-phase operation simplifies setup
- NEMA 5-15P input plug for standard connections
- 3-year limited warranty for peace of mind
- RoHS and REACH environmental compliance
- Made in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P12B01M |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | P12B01M |
| Product Name | P12B01M Horizontal Basic Power Distribution Unit |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 12 x NEMA 5-20R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Power Rating (VA) | 1.40 kVA |
| Input Current | 16 A |
| Management | |
| Remote Outlet Switching | No |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.60" (40.64 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 2" (50.80 mm) |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the Panduit P12B01M PDU?
The Panduit P12B01M has a power rating of 1.40 kVA (kilovolt-amperes), which indicates its capacity to deliver power to connected devices. This rating, combined with a 16 A input current, ensures it can handle the power demands of multiple rack-mounted equipment in server rooms or wiring closets efficiently.
How many outlets does this PDU have and what type are they?
This PDU features 12 NEMA 5-20R outlets, providing ample connections for various IT devices. The outlets are designed to accept NEMA 5-20P plugs, commonly used for equipment requiring up to 20 A, making it suitable for servers, switches, and other rack-mounted hardware.
What are the voltage specifications for input and output?
The input voltage is 120 V AC, and the output voltage is also 120 V AC, with an output voltage range extending from 120 V AC to 240 V AC. This ensures compatibility with standard North American power systems and offers flexibility for devices that may operate within a broader voltage range.
Is this PDU rack-mountable and what are its dimensions?
Yes, this PDU is rack-mountable with a 1U height, designed for horizontal mounting in standard 19-inch racks. Its dimensions are 1.60" (40.64 mm) in height, 17.50" (444.50 mm) in width, and 2" (50.80 mm) in depth, making it compact and space-efficient for rack installations.
Does this PDU support remote outlet switching or management features?
No, this is a basic PDU that does not include remote outlet switching or advanced management features. It focuses on straightforward power distribution without monitoring or control capabilities, making it a cost-effective choice for environments where simple, reliable power delivery is sufficient.
What warranty and environmental compliance does this product offer?
The Panduit P12B01M comes with a 3-year limited warranty, providing coverage for defects in materials and workmanship. It is environmentally friendly, complying with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, and is manufactured in the United States.
What power capacity is listed for this UPS?
The listed power specification is 1.40 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes No, which helps buyers understand how many connected devices it can support in its intended deployment.
