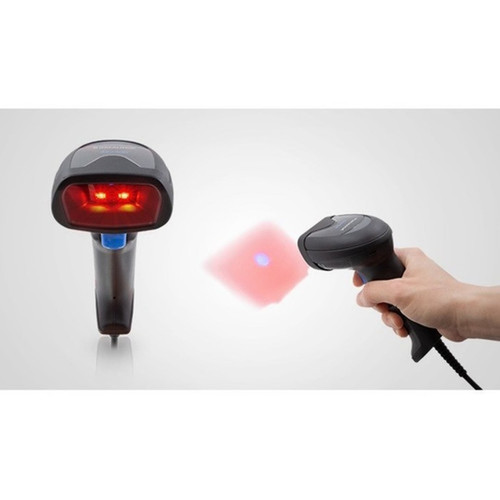

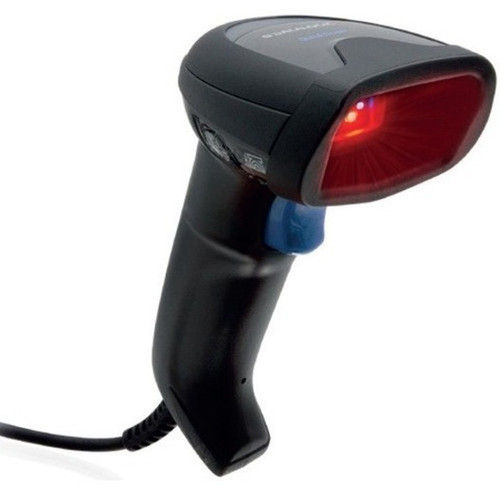

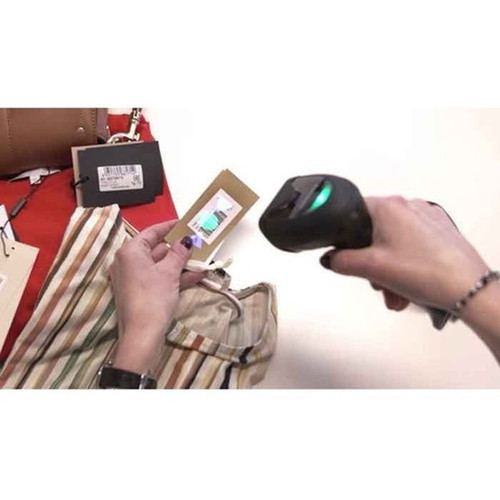

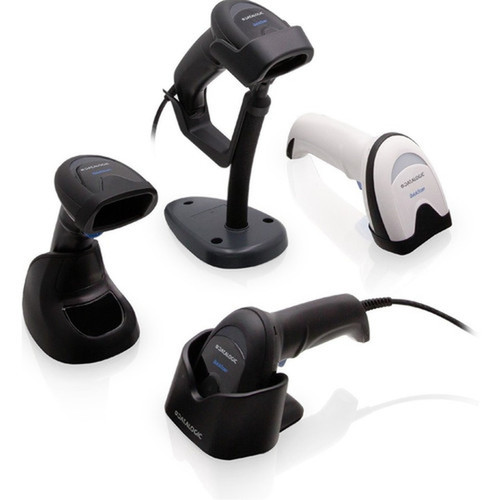

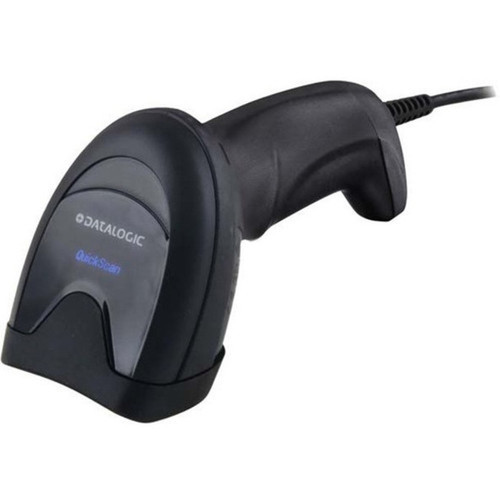

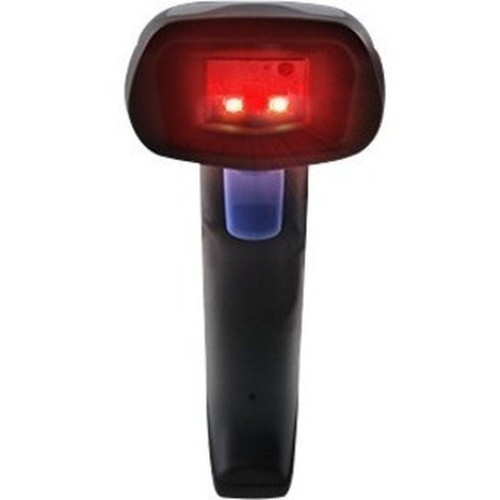

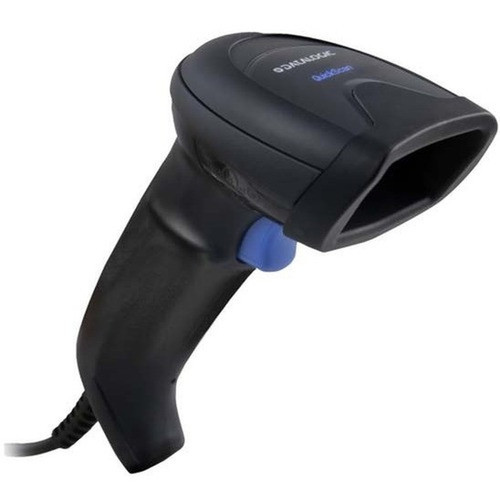

Datalogic QuickScan QBT2500 Barcode Scanner Kit - Cable Connectivity - 1D, 2D - LED - Imager - Omni-directional - Bluetooth, Radio - - (QBT2500-BK-BTK1)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
- Dot code
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composite
- Digimarc Barcodes (QD2500, QM2500, QBT2500 only)
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D:
2D:
Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Image Formats: JPEG,TIFF
Maximum Ambient Light: 110000 lux
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Bluetooth: Yes
Radio Frequency: Yes
Host Interface: Serial,USB
Form Factor: Handheld
Color Family: Black
Product Color: Black
Weight (Approximate): 5.11 oz (145 g)
Ingress Protection (IP) Rating: IP52
Application/Usage: Smartphone,Retail,Commercial Service,Healthcare,Hospitality,Government,Light/Clean Manufacturing,Industrial,Ticketing,Transportation,Laboratory,Pharmacy
- Laser-free design provides high-performance scanning without the risk of eye injury
- Wired connectivity makes this scanner ideal for retail and desktop applications
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | QBT2500-BK-BTK1 |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | QuickScan |
| Product Series | 2500 |
| Product Model | QBT2500 |
| Product Name | QuickScan QBT2500 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Image Formats | JPEG,TIFF |
| Maximum Ambient Light | 110000 lux |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | Serial,USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 5.11 oz (145 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Smartphone,Retail,Commercial Service,Healthcare,Hospitality,Government,Light/Clean Manufacturing,Industrial,Ticketing,Transportation,Laboratory,Pharmacy |
