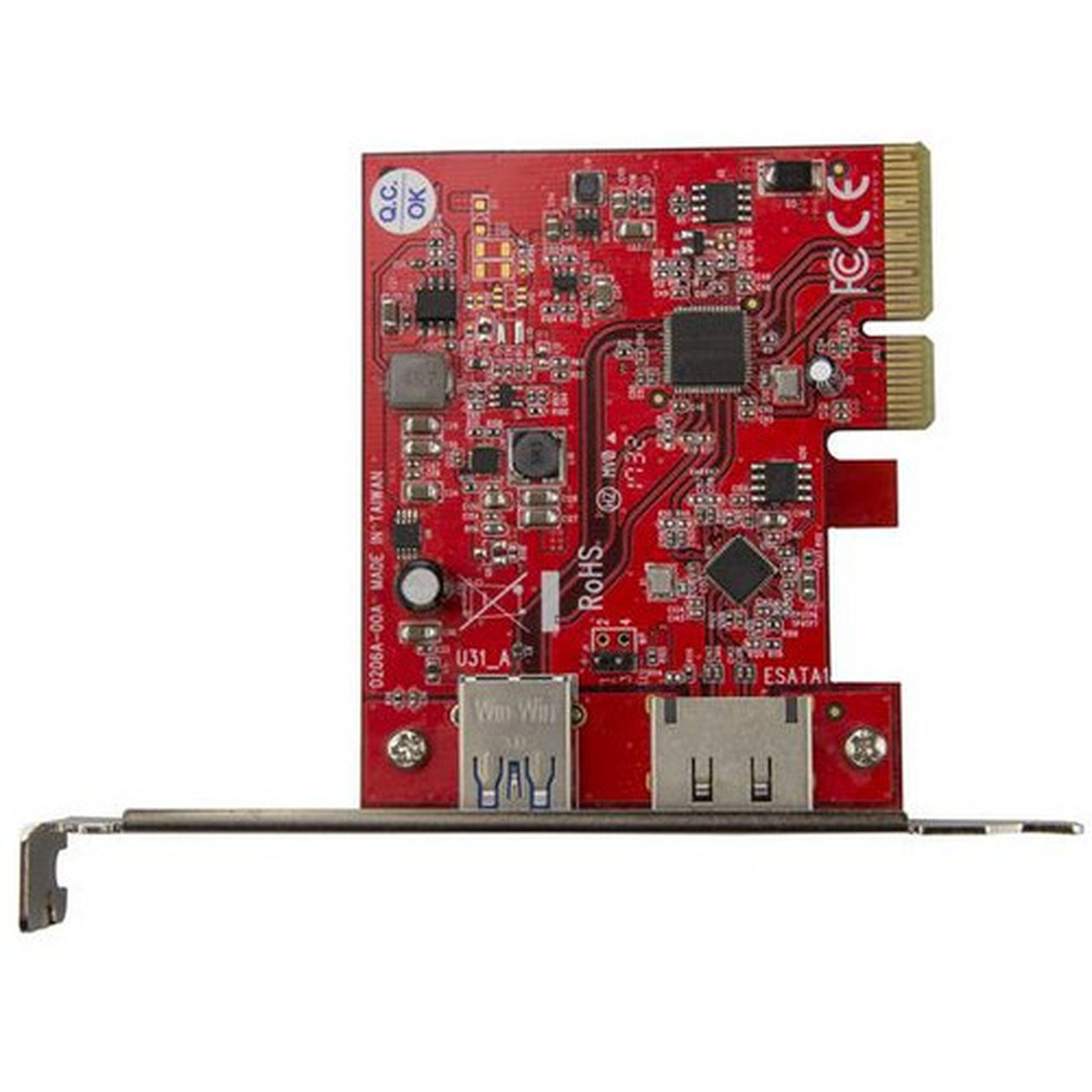

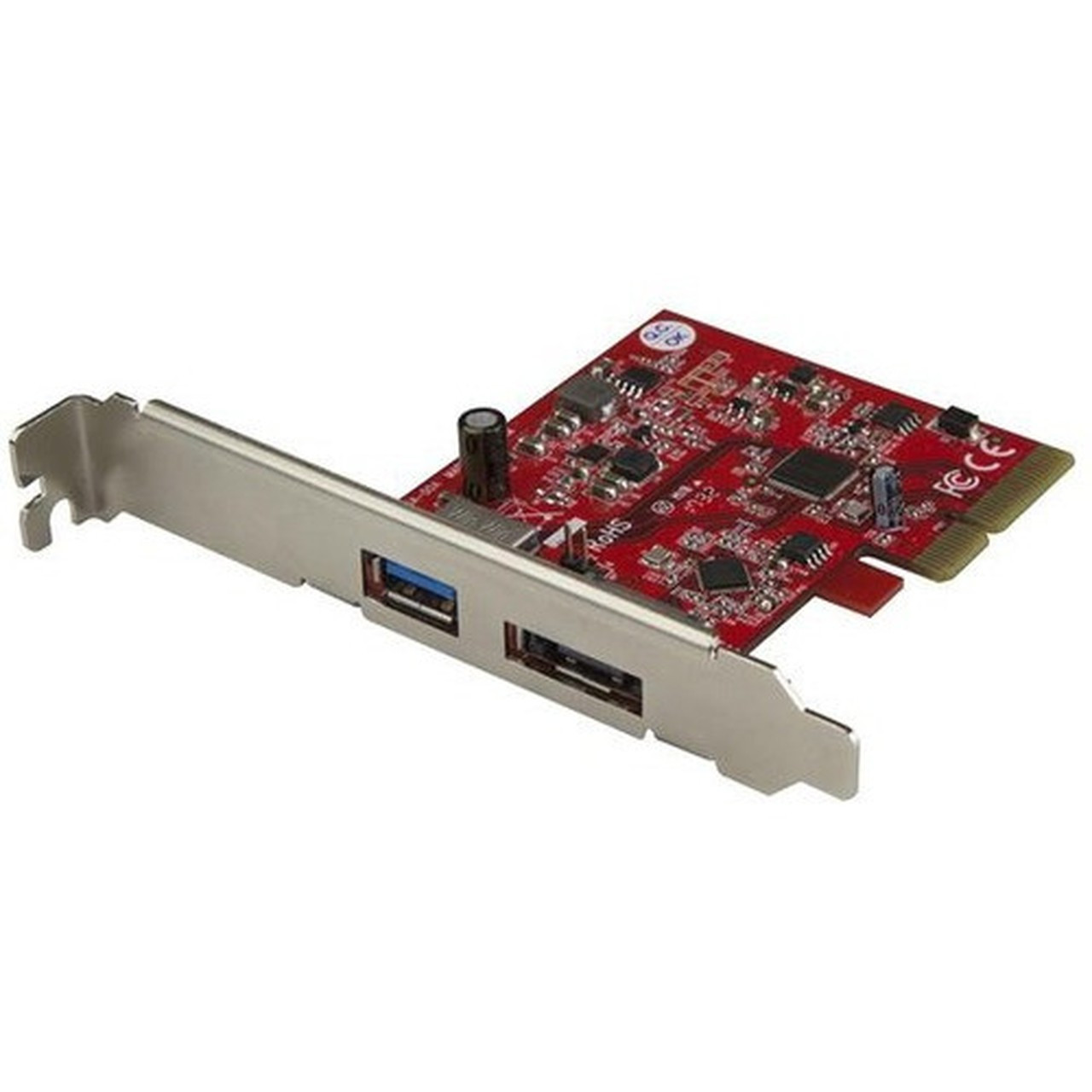

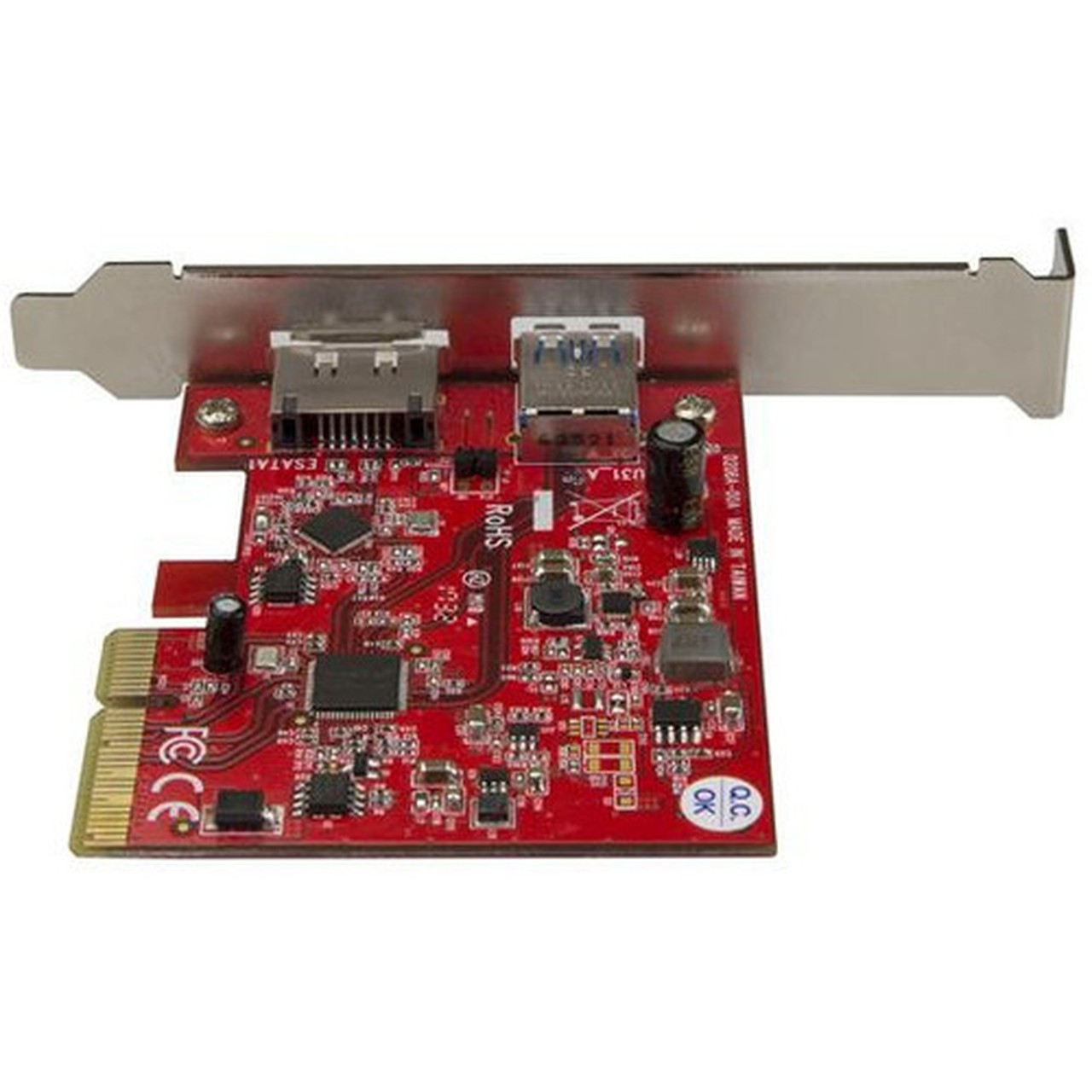

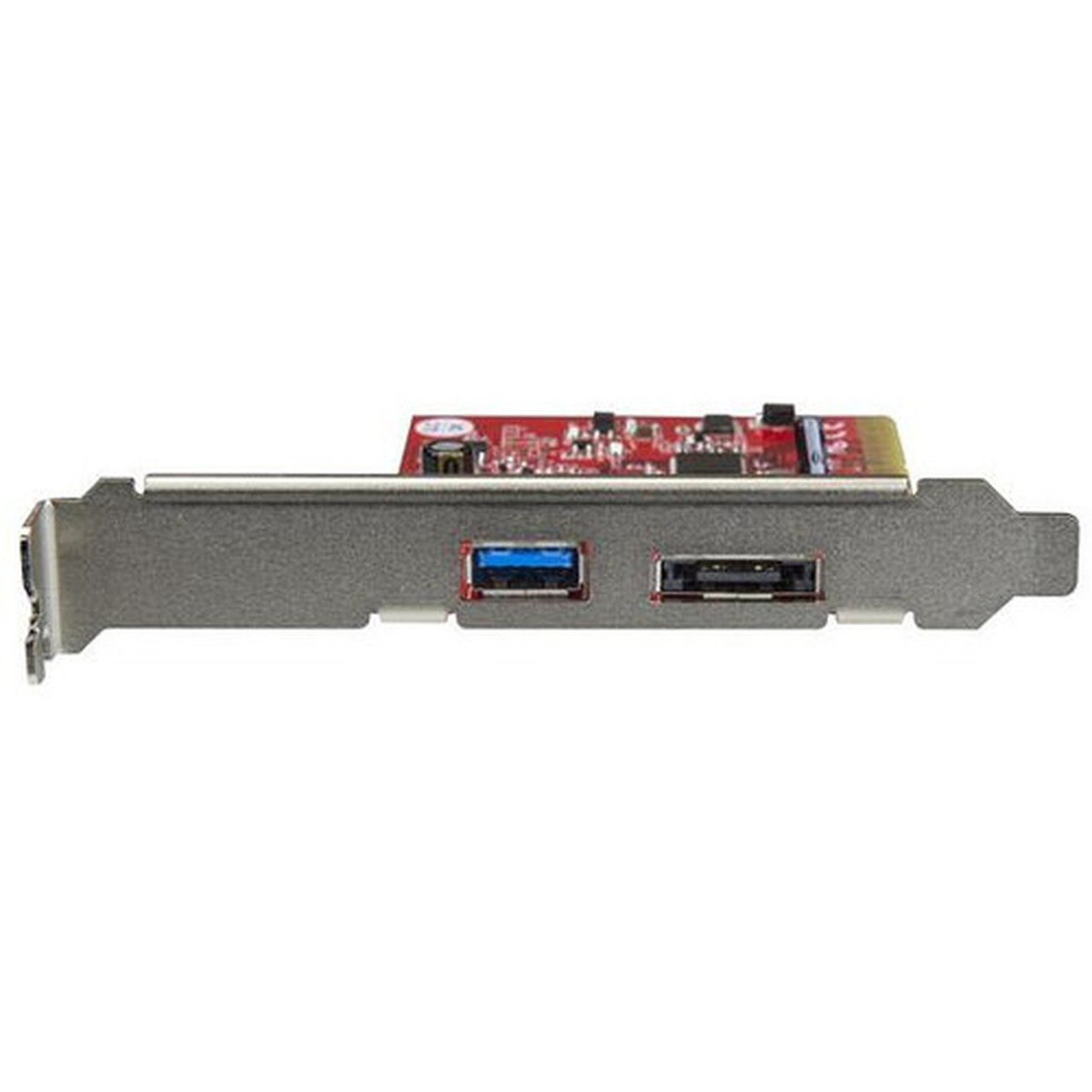

StarTech.com 2 Port USB 3.1 (10Gbps) + eSATA PCI Express Card - 1x USB-A + 1x eSATA - USB 3.1 PCIe Card & eSATA Card - USB 3.1 Card - (PEXUSB311A1E)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
- 2-Port USB 3.1 (10Gbps) and eSATA PCIe Card - 1x USB-A and 1x eSATA
- 1 x Low-profile Bracket
- 1 x Quick-start Guide
Marketing Information:
This combination PCI Express controller card lets you add both a USB 3.2 Gen 2 port and an eSATA port to your desktop PC, through a single PCIe slot. The versatile controller card offers a cost-effective way to add high-performance connectivity to your computer, with support for newer USB 3.2 devices as well as eSATA hard drives.
At up to 10Gbps, the USB 3.2 PCIe card delivers the speed you need for seamless performance from your compatible devices. It's also backward compatible with previous versions of USB, so you can connect your existing USB 3.2 Gen 1 / 2.0 / 1.1 equipment.
The controller card also connects your computer to an eSATA device, providing a hot-pluggable, high-speed storage solution for backing up or archiving data. With support for SATA I, II and III hard drives, and data transfer speeds of up to 6Gbps, the controller card offers reliable performance for your external SATA storage applications.
For added versatility, the controller card is equipped with a standard-profile bracket and includes a low-profile bracket for installation in small form-factor computers.
The PEXUSB311A1E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Host Interface: PCI Express x4
UASP Support: Yes
Total Number of USB Ports: 1
Number of USB 3.2 Ports: 1
Number of eSATA/USB Combo Ports: 1
Operating System Supported: Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012,Windows Server 2016,Windows Server 2008 R2,Windows Server 2019,Linux
Product Color: Red
Form Factor: Plug-in Card
Height: 3.90" (99.06 mm)
Width: 3.10" (78.74 mm)
Length: 3.70" (93.98 mm)
Weight (Approximate): 45.4 g
Package Contents:
Platform Supported: Linux,PC
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 2 Year
- Enhance your connectivity by adding one USB 3.1 Gen 2 and one eSATA port to your computer, through a single PCIe slot
- Supports USB 3.1 data rates up to 10Gbps
- Supports SATA I, II, and III up to 6Gbps
- PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0
- Backward compatible with USB 3.0, USB 2.0 and USB 1.0/1.1 devices
- Includes a low-profile/half-height installation bracket
[custom-specifications]
Specifications | |
Manufacturer | StarTech.com |
Manufacturer Part Number | PEXUSB311A1E |
Manufacturer Website Address | http://www.startech.com |
Brand Name | StarTech.com |
Product Name | 2-Port USB 3.1 (10Gbps) and eSATA PCIe Card - 1x USB-A and 1x eSATA |
Packaged Quantity | 1 |
Product Type | USB/eSATA Combo Adapter |
Technical Information | |
Host Interface | PCI Express x4 |
Media & Performance | |
UASP Support | Yes |
Interfaces/Ports | |
Total Number of USB Ports | 1 |
Number of USB 3.2 Ports | 1 |
Number of eSATA/USB Combo Ports | 1 |
Software | |
Operating System Supported | Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012,Windows Server 2016,Windows Server 2008 R2,Windows Server 2019,Linux |
Physical Characteristics | |
Product Color | Red |
Form Factor | Plug-in Card |
Height | 3.90" (99.06 mm) |
Width | 3.10" (78.74 mm) |
Length | 3.70" (93.98 mm) |
Weight (Approximate) | 45.4 g |
Miscellaneous | |
Package Contents |
|
Platform Supported | Linux,PC |
Country of Origin | Taiwan |
TAA Compliant | Yes |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Warranty | |
Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
Product | StarTech.com 6 ft Shielded eSATA to SATA Cable - Connect eSata devices to a standard SATA port |
SKU | SATA2ESATA6 |
Sale Price | $14.29 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Infomartion
2 Year
