StarTech. com N6PATCH25YL 25ft CAT6 Ethernet Patch Cable - Yellow Snagless UTP 650MHz 10Gb/s 100W PoE - RJ45 Male to RJ45 Male
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6 patch cable meets ANSI/TIA-568-2.D specifications and has been ETL verified for compliance. The 4-pair UTP construction with ANSI/T568B wiring supports backward compatibility with CAT5e and earlier standards while delivering enhanced performance for modern network demands.
The cable's 24 AWG copper wiring with UL Rated Wiring (E132276-A) ensures efficient power delivery for PoE applications up to IEEE 802.3bt standards. The high-quality PVC jacket provides durability and bend resistance, while the molded strain relief design minimizes stress at connector termination points.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable combines high-performance networking capabilities with durable construction for long-term reliability in demanding environments. The gold-plated connectors and quality materials ensure consistent performance while reducing maintenance requirements.
PoE Ready Design
Supports up to 100W Power over Ethernet for devices like VoIP phones, security cameras, and wireless access points without separate power cables.
- IEEE 802.3bt compliant
- Reduced cable heating
- UL Rated Wiring E132276-A
Durable Construction
Built with damage-resistant materials including a high-quality PVC jacket, molded strain relief boots, and corrosion-resistant gold-plated connectors.
- Snagless molded boots
- 50-micron gold plating
- Bend resistant design
Deployment / Use Cases
This 25-foot CAT6 patch cable is ideal for connecting network devices in office environments, data centers, and commercial installations. The yellow color allows for departmental color coding, making cable management and identification straightforward in complex network setups.
Common applications include connecting workstations to wall outlets, linking hubs to distribution panels, and providing connections for network devices in server rooms. The cable's length and flexibility make it suitable for routing through wiring conduits while maintaining reliable connections for both data and power delivery.
Office Network Infrastructure
Connect computers, printers, and network equipment in business environments with reliable 10Gb/s performance.
PoE Device Installation
Power and connect VoIP phones, security cameras, and wireless access points with a single cable solution.
Physical Profile

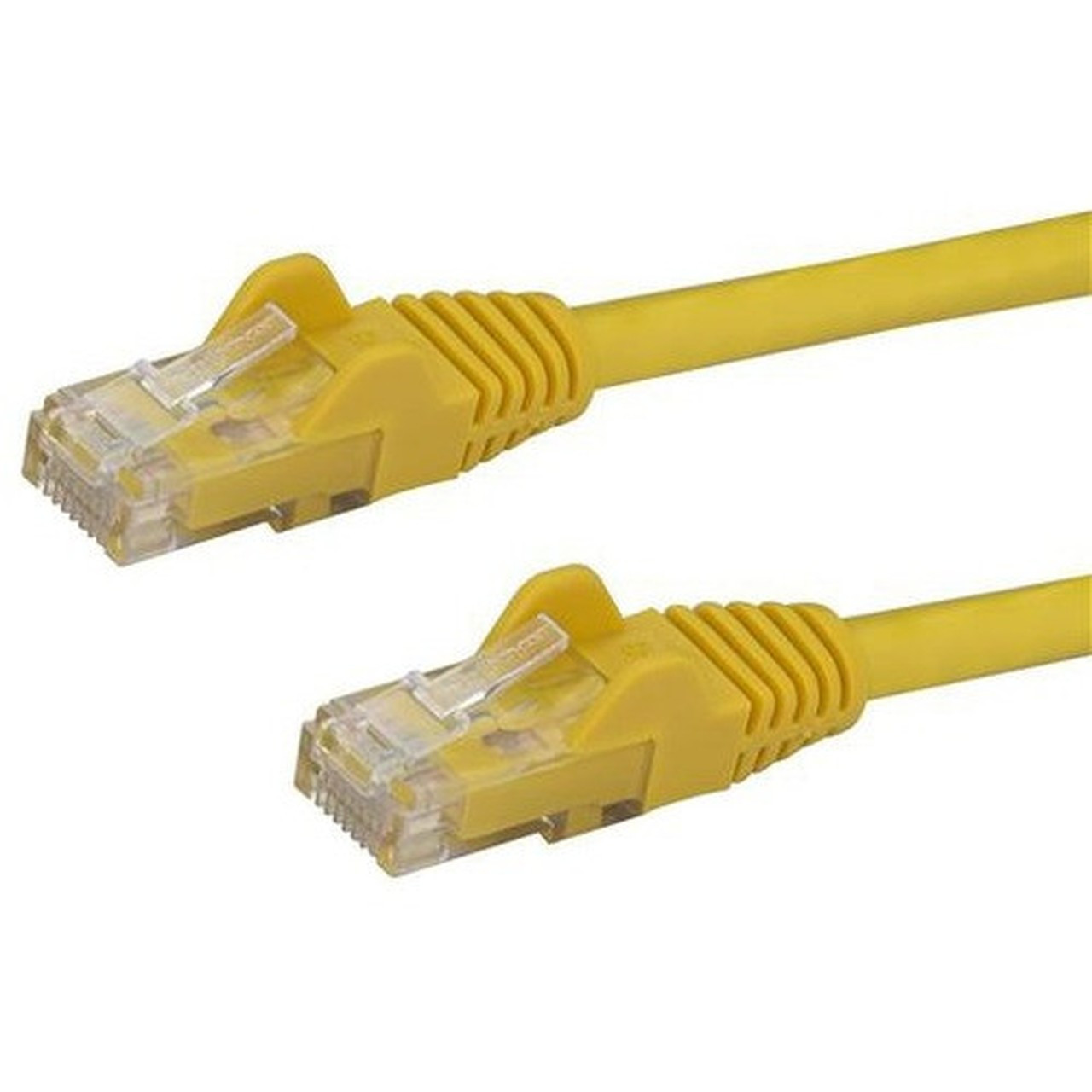

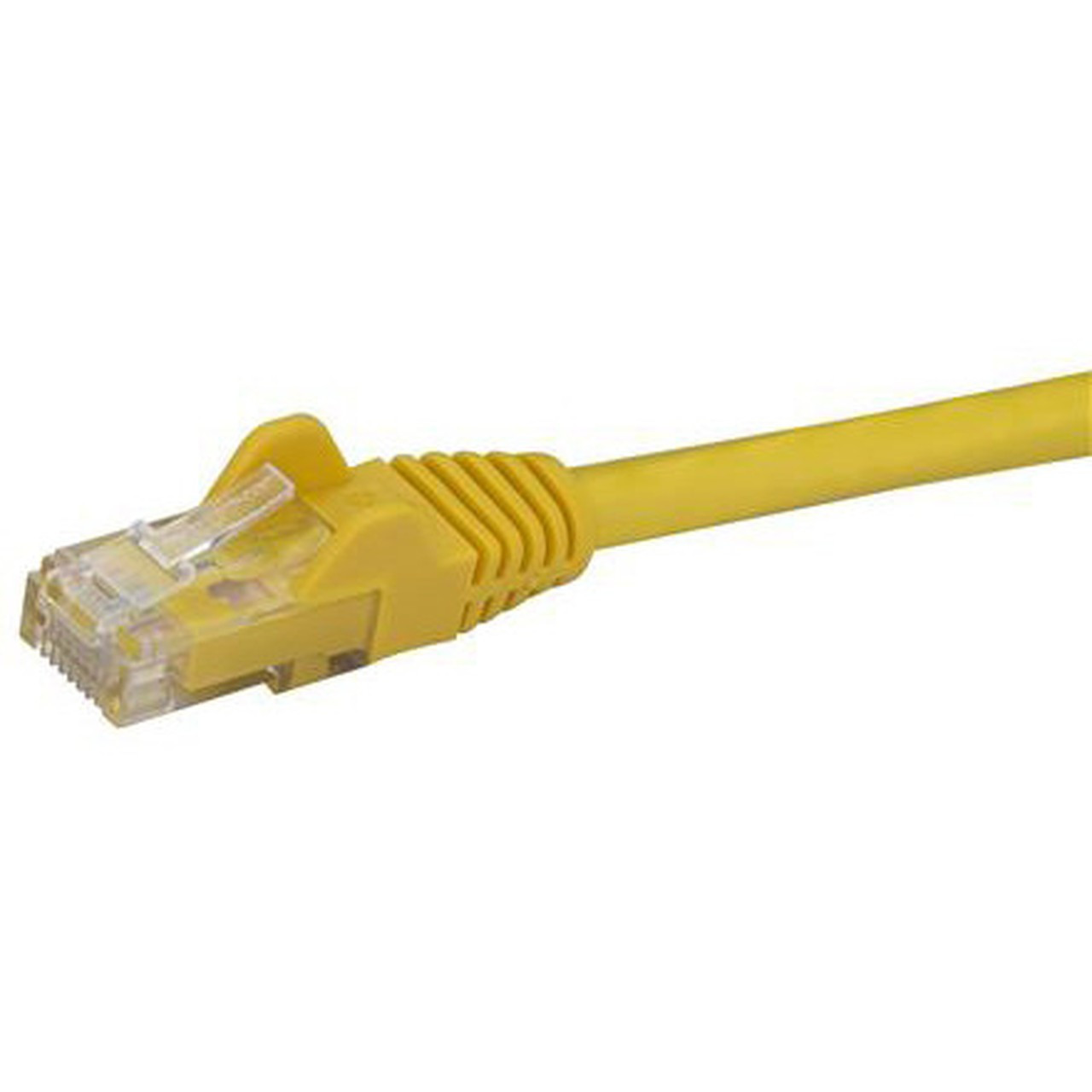

The cable features a bright yellow PVC jacket that provides both visual identification and physical protection. The snagless molded boots at each end prevent the cable from catching on obstacles during installation and removal, while the strain relief design minimizes bending stress at the connector interface. The 25-foot length offers flexibility for various installation scenarios without excessive cable management challenges.
- Weight
- 11.50 oz (326.02 g)
- Length
- 25 ft (7.62 m)
Highlights
- 25-foot CAT6 Ethernet patch cable with RJ45 male connectors on both ends
- Supports 10Gb/s data transfer rates up to 650MHz frequency
- 100W Power over Ethernet (PoE) capability for connected devices
- Snagless molded boots with strain relief for easy installation
- Gold-plated connectors for corrosion resistance and reliable connections
- 24 AWG stranded copper conductors with UL Rated Wiring
- ETL verified and compliant with ANSI/TIA-568-2.D standards
- Bright yellow color for easy identification and departmental coding
- Backward compatible with CAT5e and earlier network standards
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PATCH25YL |
| Brand Name | StarTech.com |
| Product Model | N6PATCH25YL |
| Product Name | 25 ft Yellow Snagless Cat6 UTP Patch Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 25 ft (7.62 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Shielding | No |
| Jacket Type | CMG |
| Device Supported | Network Device,Workstation,Hub,Wall Outlet,Distribution Panel |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Molded,Snagless |
| Features | Strain Relief,Damage Resistant,Corrosion Resistant,Stranded,PoE,Bend Resistant |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 11.50 oz (326.02 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer speed of this CAT6 cable?
This StarTech.com CAT6 patch cable supports data transfer rates up to 10 Gbit/s (10Gb/s). It maintains this high-speed performance while being backward compatible with CAT5e and earlier standards, making it suitable for both current multi-gigabit networks and legacy equipment upgrades.
Does this Ethernet cable support Power over Ethernet (PoE)?
Yes, this cable fully supports Power over Ethernet up to 100W. It features 24 AWG stranded copper conductors with UL Rated Wiring (E132276-A) that complies with IEEE 802.3bt standards. This makes it ideal for powering PoE devices like VoIP phones, security cameras, and wireless access points without requiring separate power cables.
What type of connectors does this cable have on each end?
Both ends of this patch cable feature RJ-45 Network male connectors with 50-micron gold plating. The connectors are designed for reliable network connections with corrosion-resistant contacts that maintain signal integrity over time. The snagless molded boots provide strain relief and prevent damage during installation.
Is this cable shielded or unshielded?
This is an unshielded twisted pair (UTP) cable with no additional shielding. The 4-pair UTP construction meets Category 6 specifications and performs reliably in typical office and commercial environments without requiring special grounding considerations that shielded cables often need.
What certifications does this Ethernet cable have?
This cable is ETL verified and complies with ANSI/TIA-568-2.D Category 6 standards. It also carries UL certification for its wiring and meets environmental compliance standards including RoHS, WEEE, and REACH. These certifications ensure the cable meets industry standards for performance, safety, and environmental responsibility.
What is the warranty coverage for this patch cable?
StarTech.com provides a lifetime warranty for this CAT6 patch cable. This warranty covers defects in materials and workmanship for the life of the product, offering long-term reliability assurance for network installations where consistent performance is essential for business operations.
