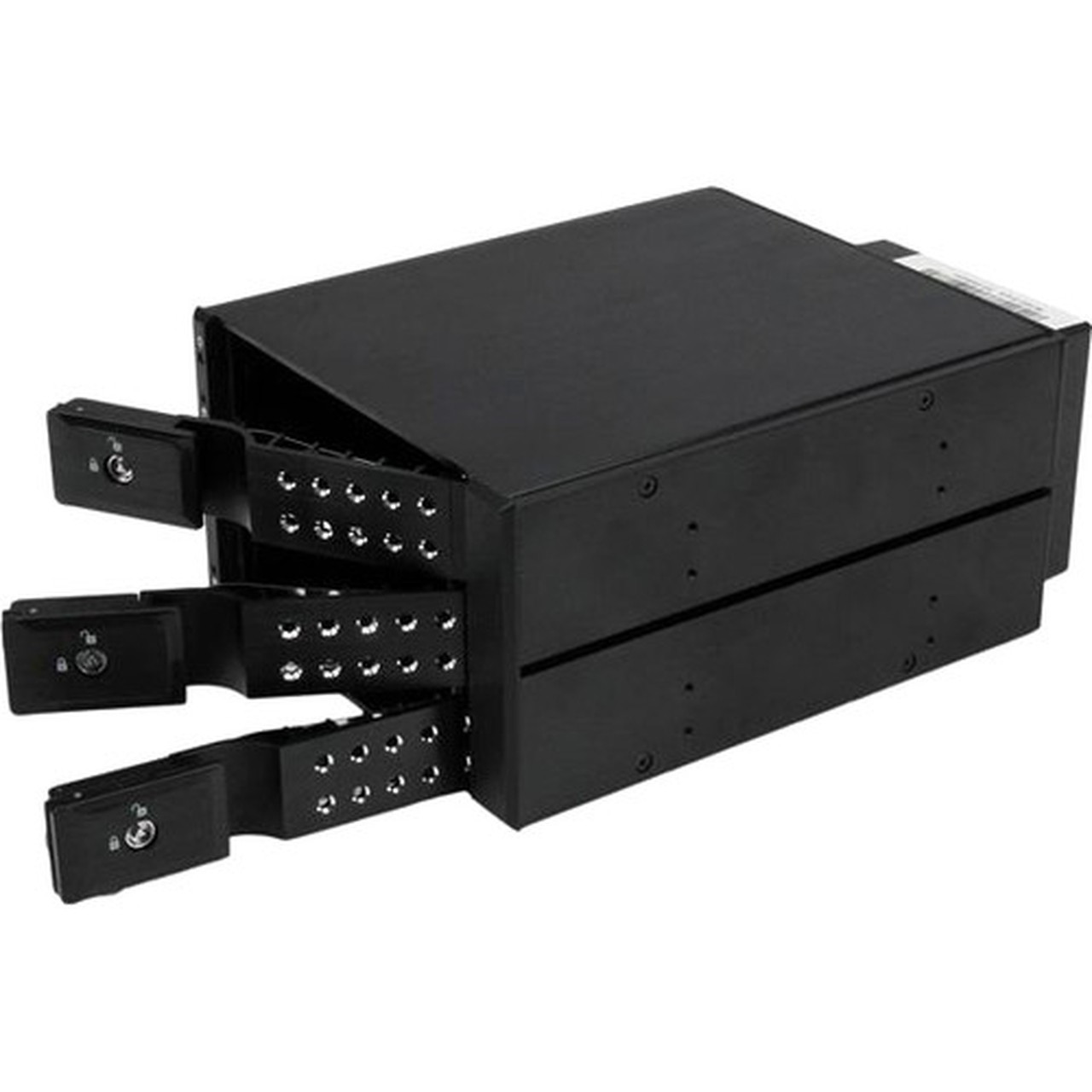

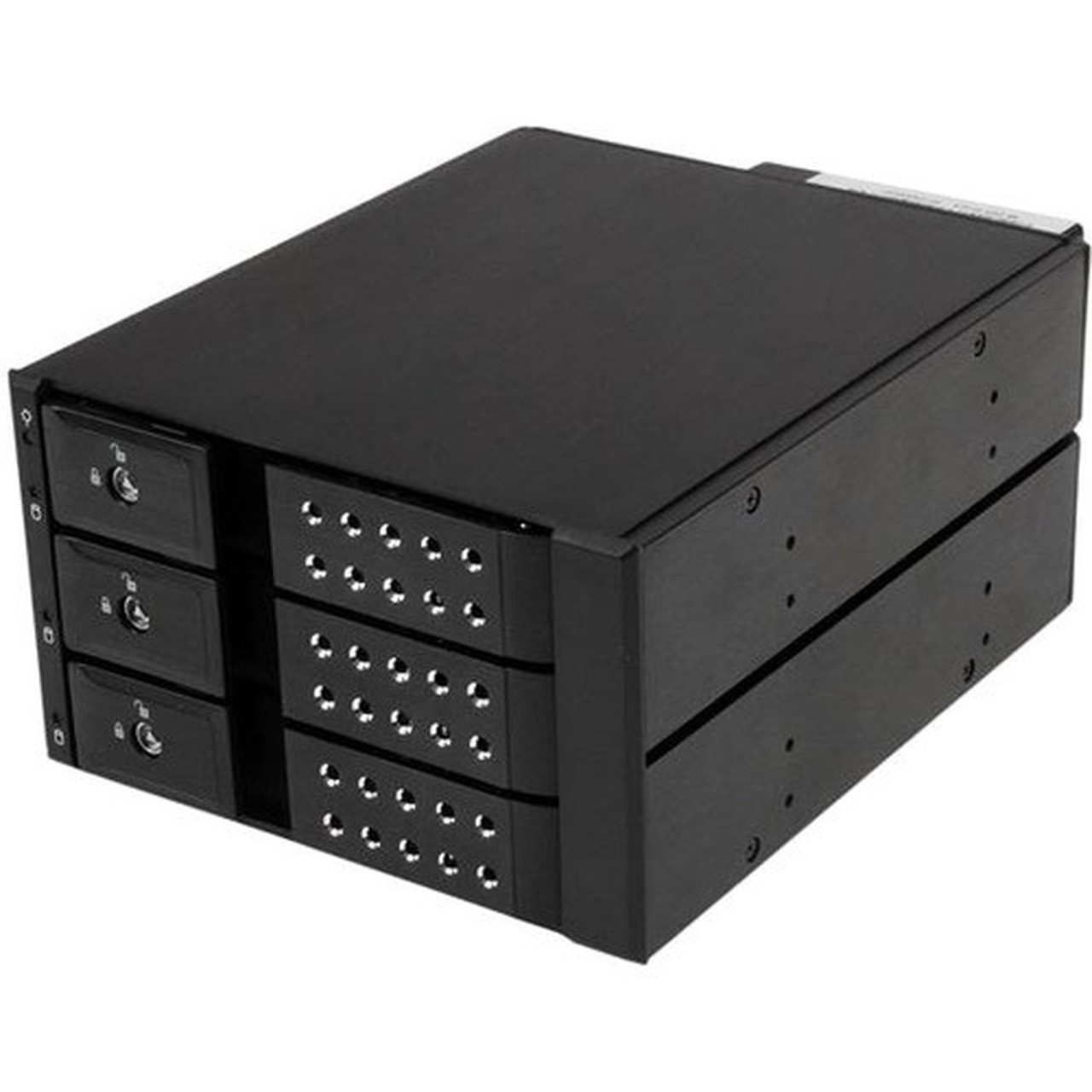

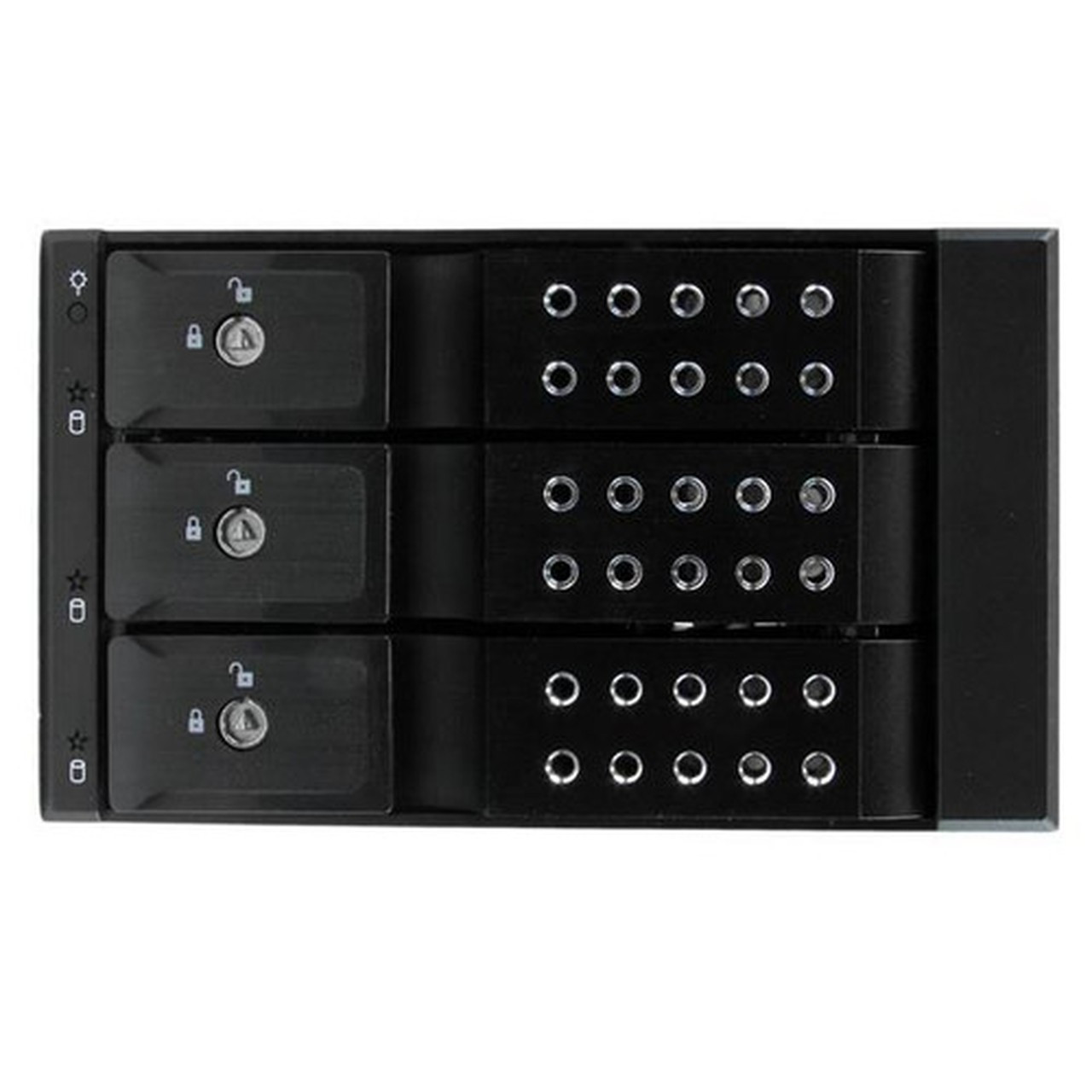

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD - 3 x HDD Supported - 3 x - (HSB3SATSASBA)

(No reviews) Write a Review
$121.93
$111.93
SKU: HSB3SATSASBA
UPC: 65030855297
Availability: Toronto
Weight: 2.40 LBS
Adding to cart… The item has been added
  • Solid aluminum construction
  • Key lock design
  • Built-in fan
  • 3 drive bay design
  • Installs in two 5.25" drive bays
  • Trayless design for hot swap support
    Marketing Information:

    The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD).

    For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

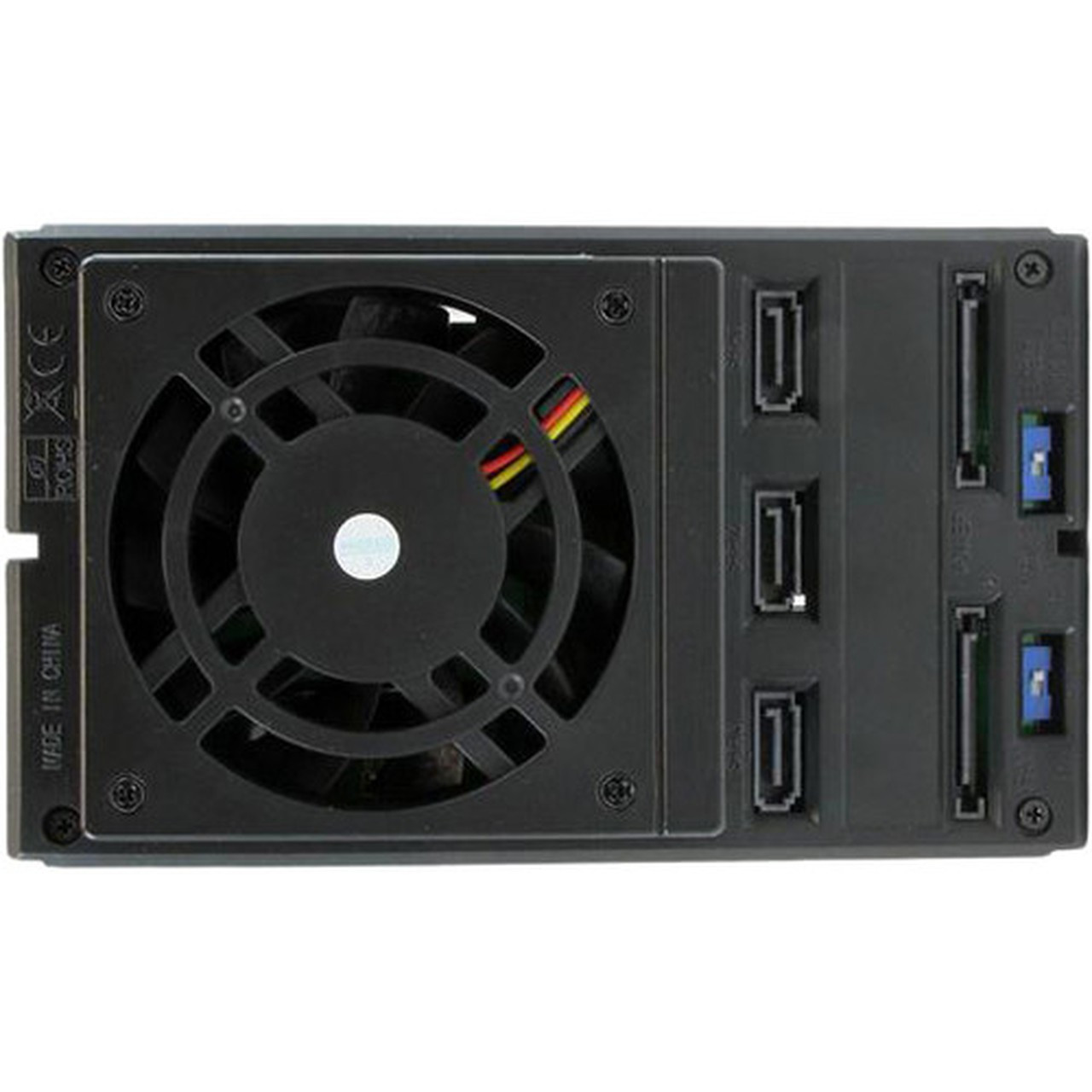

    For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

    The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.


    Number of Hard Drives Supported: 3
    Number of Hard Drives Installed: No
    Number of Total Expansion Bays: 3
    Number of 3.5" Bays: 3
    Wireless LAN: No
    Host Interface: Serial ATA/600
    Color: Black
    Material: Aluminum
    Cooling Fan: Yes
    Form Factor: Internal
    Compatible Drive Bay Width: 5.25"
    Height: 4.30" (109.22 mm)
    Width: 5.70" (144.78 mm)
    Depth: 7.60" (193.04 mm)
    Weight (Approximate): 1.22 kg
    Package Contents:
    • 3 SATA HDD Backplane
    • 1 x Installation Screw Kit
    • 1 x Instruction Manual
    • 2 x Bay Key s
    • 3 x 18" SATA Cables

    Environmentally Friendly: Yes
    Environmental Certification:
    • RoHS
    • REACH
    • WEEE

    Limited Warranty: 2 Year

[custom-specifications]

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: HSB3SATSASBA
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 3 SATA HDD Backplane
Packaged Quantity: 1
Product Type: Drive Enclosure
Technical Information
Number of Hard Drives Supported: 3
Number of Hard Drives Installed: No
I/O Expansions
Number of Total Expansion Bays: 3
Number of 3.5" Bays: 3
Network & Communication
Wireless LAN: No
Interfaces/Ports
Host Interface: Serial ATA/600
Physical Characteristics
Color: Black
Material: Aluminum
Cooling Fan: Yes
Form Factor: Internal
Compatible Drive Bay Width: 5.25"
Height: 4.30" (109.22 mm)
Width: 5.70" (144.78 mm)
Depth: 7.60" (193.04 mm)
Weight (Approximate): 1.22 kg
Miscellaneous
Package Contents:
  • 3 SATA HDD Backplane
  • 1 x Installation Screw Kit
  • 1 x Instruction Manual
  • 2 x Bay Key s
  • 3 x 18" SATA Cables

Environmentally Friendly: Yes
Environmental Certification:
  • RoHS
  • REACH
  • WEEE

Warranty
Limited Warranty: 2 Year

[/custom-specifications]

[custom-options]











[/custom-options]

[custom-user-manual]

User Manual

[/custom-user-manual]
2 Year
