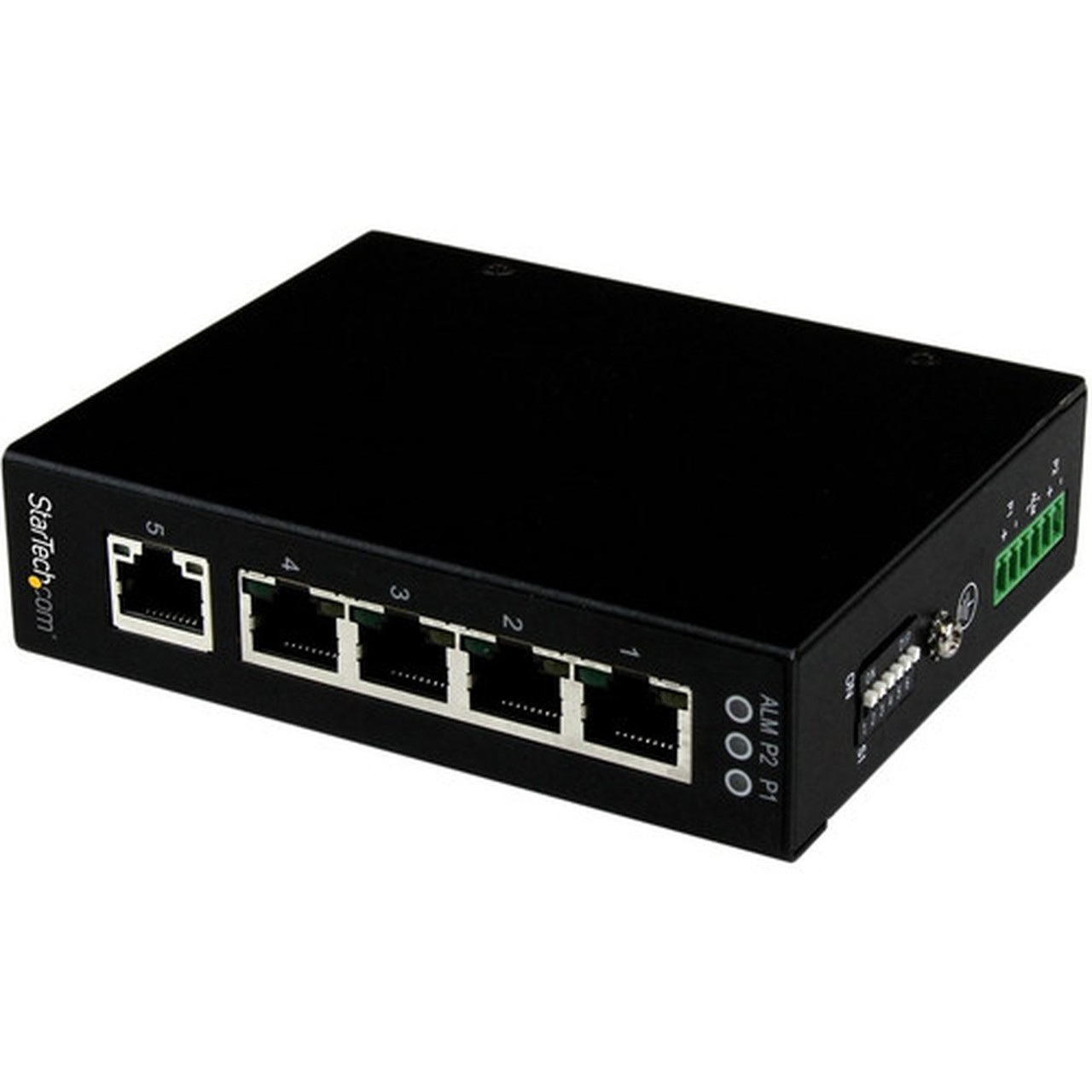

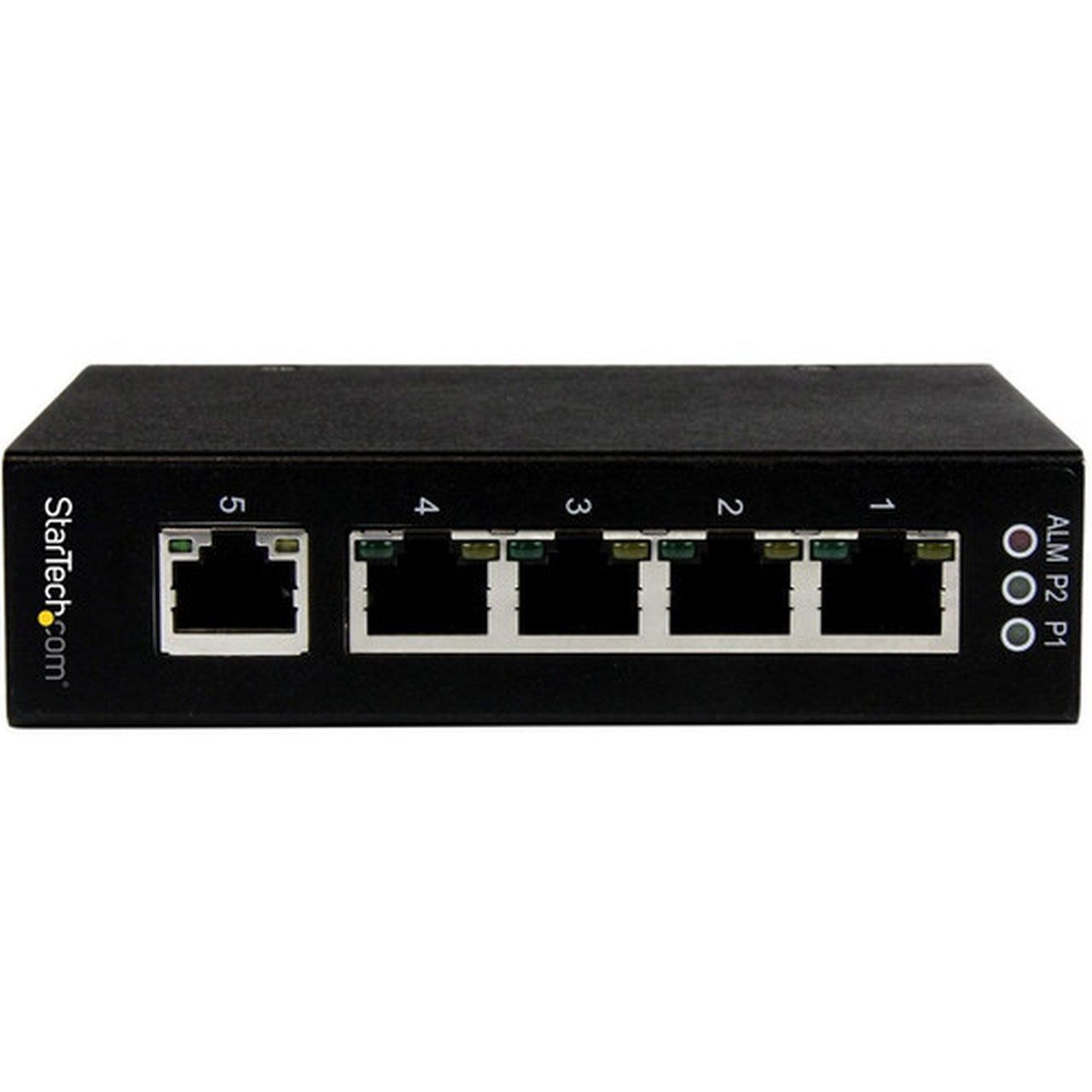

StarTech.com IES51000 5-Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable - 10/100/1000Base-T
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 switch delivers full wire-speed switching across all five Gigabit Ethernet ports, with each port supporting auto-negotiation for speed and duplex settings along with auto-MDIX detection to eliminate crossover cable requirements. The switch supports jumbo frames up to 9K for improved efficiency in data-intensive applications and implements IEEE 802.3x flow control to prevent packet loss during network congestion.
Power is supplied through a wide-range redundant DC power system with two 12-58V terminal block inputs, providing flexibility for various industrial power sources. The switch includes overcurrent and reverse polarity protection to safeguard against power irregularities, along with an alarm relay for remote monitoring of power status. With a power consumption of 62W and compliance with IEEE 802.3az Energy-Efficient Ethernet, it balances performance with power efficiency.
Key Product Advantages
The IES51000 combines industrial-grade durability with plug-and-play simplicity, eliminating the complexity of managed switches while delivering the robustness required for harsh environments. Its dual mounting options provide installation flexibility for diverse industrial layouts.
Industrial Durability
The steel IP30-rated enclosure protects against dust and moisture, while the extended temperature range ensures operation in extreme conditions where commercial switches would fail.
- IP30 protection rating
- Steel construction
- -40°C to 75°C operating range
Flexible Power Options

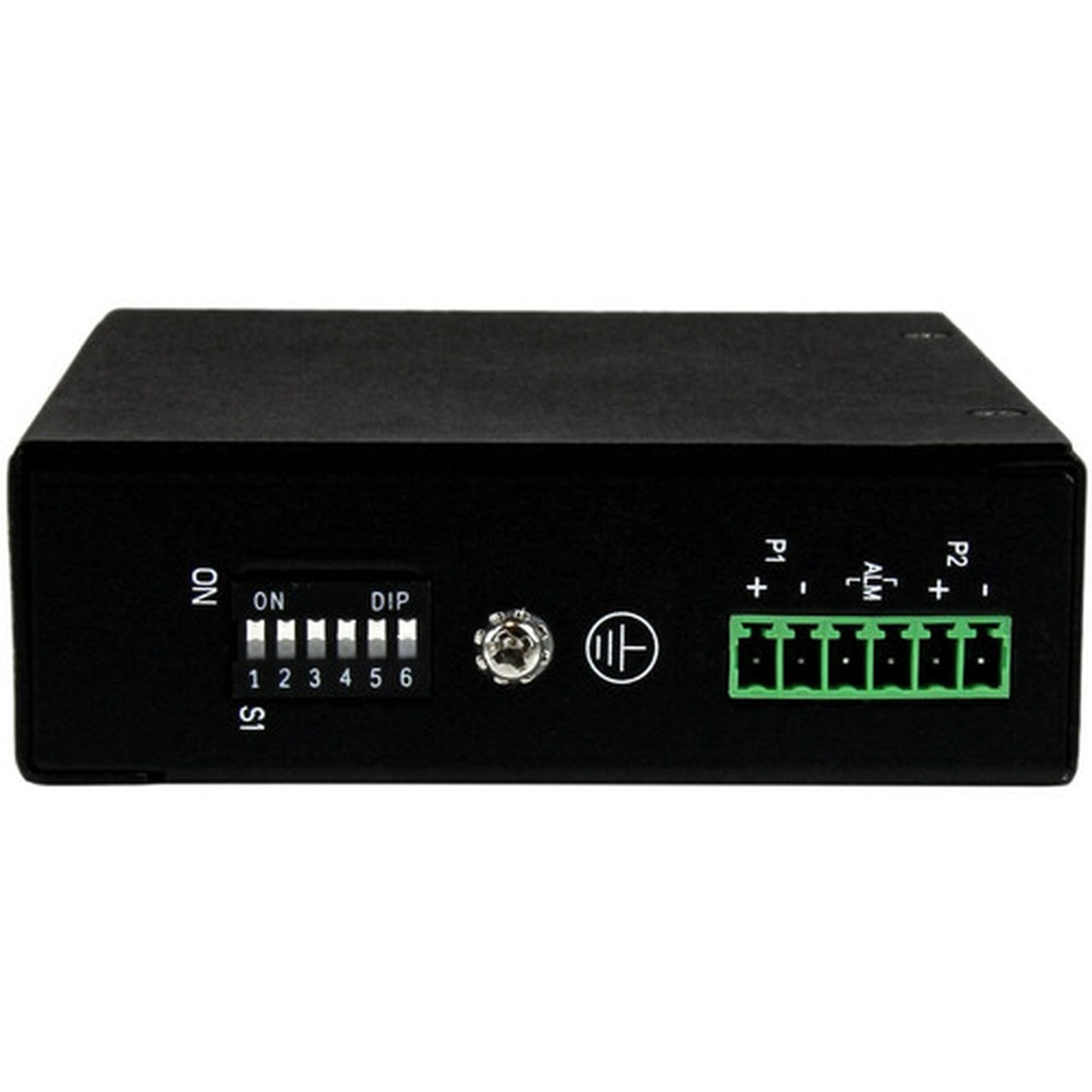

Dual 12-58V DC terminal block inputs support redundant power configurations and various industrial power sources, with built-in protection against overcurrent and reverse polarity.
- Wide-range DC input
- Redundant power support
- Overcurrent protection
Simplified Deployment
As an unmanaged switch, it requires no configuration while offering auto-negotiation, auto-MDIX, and flow control for reliable out-of-the-box operation.
- Plug-and-play operation
- Auto-negotiation on all ports
- Auto-MDIX detection
Deployment / Use Cases
This industrial Ethernet switch is specifically designed for environments where commercial networking equipment would be inadequate. Its rugged construction and wide temperature tolerance make it ideal for manufacturing facilities, where it can connect machinery, sensors, and control systems on the factory floor without requiring climate-controlled enclosures.
The DIN rail mounting capability allows for clean integration into industrial control panels and electrical cabinets, while wall-mounting options support deployment in transportation hubs, utility substations, and outdoor telecommunications enclosures. The switch's compact dimensions (1.10" H × 3.50" W × 4.40" D) enable installation in space-constrained locations where standard rack-mounted switches would not fit.
Industrial Automation
Connect PLCs, HMIs, sensors, and industrial cameras on manufacturing lines with reliable Gigabit connectivity that withstands vibration, temperature extremes, and electrical noise.
Outdoor & Harsh Environments
Deploy in transportation systems, utility facilities, and agricultural settings where the switch must operate reliably despite dust, moisture, and temperature fluctuations.
Physical Profile
The switch features a compact steel enclosure measuring 1.10" (27.94 mm) in height, 3.50" (88.90 mm) in width, and 4.40" (111.76 mm) in depth, with a weight of approximately 11.60 oz (328.85 g). This small footprint allows installation in tight spaces within control panels or enclosures. The IP30 rating provides basic protection against dust and moisture ingress, while the steel construction offers durability against physical impacts common in industrial environments.
- Width
- 3.50" (88.90 mm)
- Depth
- 4.40" (111.76 mm)
- Height
- 1.10" (27.94 mm)
- Weight
- 11.60 oz (328.85 g)
What's in the Box
The switch comes complete with all necessary hardware for flexible installation in industrial settings.
Highlights
- 5 Gigabit Ethernet ports with 10/100/1000Base-T support
- Industrial-grade steel enclosure with IP30 protection rating
- DIN rail and wall-mounting options for flexible installation
- Wide operating temperature range (-40°C to 75°C)
- Wide-range redundant DC power (12-58V) with terminal block inputs
- Overcurrent and reverse polarity protection for power reliability
- Auto-negotiation and auto-MDIX on all ports
- Supports jumbo frames up to 9K for efficient data transfer
- IEEE 802.3az Energy-Efficient Ethernet compliance
- 2-year limited warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IES51000 |
| Brand Name | StarTech.com |
| Product Name | 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable |
| Packaged Quantity | 1 Each |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | Power Adapter |
| Power Consumption | 62 W |
| Physical Characteristics | |
| Product Material | Steel |
| Form Factor | Rail-mountable,Wall Mountable |
| Height | 1.10" (27.94 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 4.40" (111.76 mm) |
| Weight (Approximate) | 11.60 oz (328.85 g) |
| Miscellaneous | |
| Package Contents | 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable 2 x Wall-Mount Brackets 1 x DIN-Rail Clip 4 x Screws 1 x Terminal Block 1 x Instruction Manual |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
How many devices can I connect to this industrial Ethernet switch?
The StarTech.com IES51000 provides five Gigabit Ethernet ports, allowing you to connect up to five network devices directly. Each port supports 10/100/1000 Mbps auto-negotiation, making it compatible with various Ethernet devices including industrial computers, PLCs, sensors, cameras, and other networked equipment commonly found in industrial environments.
Can this switch be mounted in an industrial control panel?
Yes, the switch is specifically designed for industrial mounting with both DIN rail and wall-mounting capabilities. It includes a DIN-rail clip and wall-mount brackets in the package, along with all necessary screws for installation. The compact steel enclosure measures just 1.10" × 3.50" × 4.40", making it suitable for space-constrained control panels and electrical cabinets.
What power source does this industrial switch require?
The switch uses a wide-range redundant DC power system with two 12-58V terminal block inputs, providing flexibility for various industrial power sources. It includes overcurrent and reverse polarity protection to safeguard against power irregularities. The switch consumes 62W of power and complies with IEEE 802.3az Energy-Efficient Ethernet standards for improved power efficiency.
What temperature range can this switch operate in?
This industrial switch is designed for extreme environments with an extended operating temperature range of -40°C to 75°C. This wide temperature tolerance allows deployment in unheated outdoor enclosures, manufacturing facilities without climate control, transportation systems, and other harsh environments where standard commercial switches would fail due to temperature extremes.
Does this switch support Power over Ethernet (PoE)?
No, the IES51000 does not provide Power over Ethernet capabilities. It is a standard Gigabit Ethernet switch without PoE support on any of its five ports. If you require PoE for connected devices such as IP cameras or wireless access points, you would need to use separate PoE injectors or consider a different switch model with integrated PoE functionality.
What networking standards does this switch support?
The switch complies with multiple IEEE standards including 802.3af, 802.3u, 802.3ab, 802.3x, and 802.3. It supports auto-negotiation for speed and duplex settings on all ports, auto-MDIX detection to eliminate crossover cable requirements, IEEE 802.3x flow control to prevent packet loss, and IEEE 802.3az Energy-Efficient Ethernet for reduced power consumption during periods of low network activity.
