StarTech.com 50cm Internal Serial Attached SCSI Mini SAS Cable - SFF8087 to 4x SFF8482 - 1 x SFF-8087 Male Mini-SAS - 4 x Male SATA 4 (SAS808782P50)
Marketing Information:

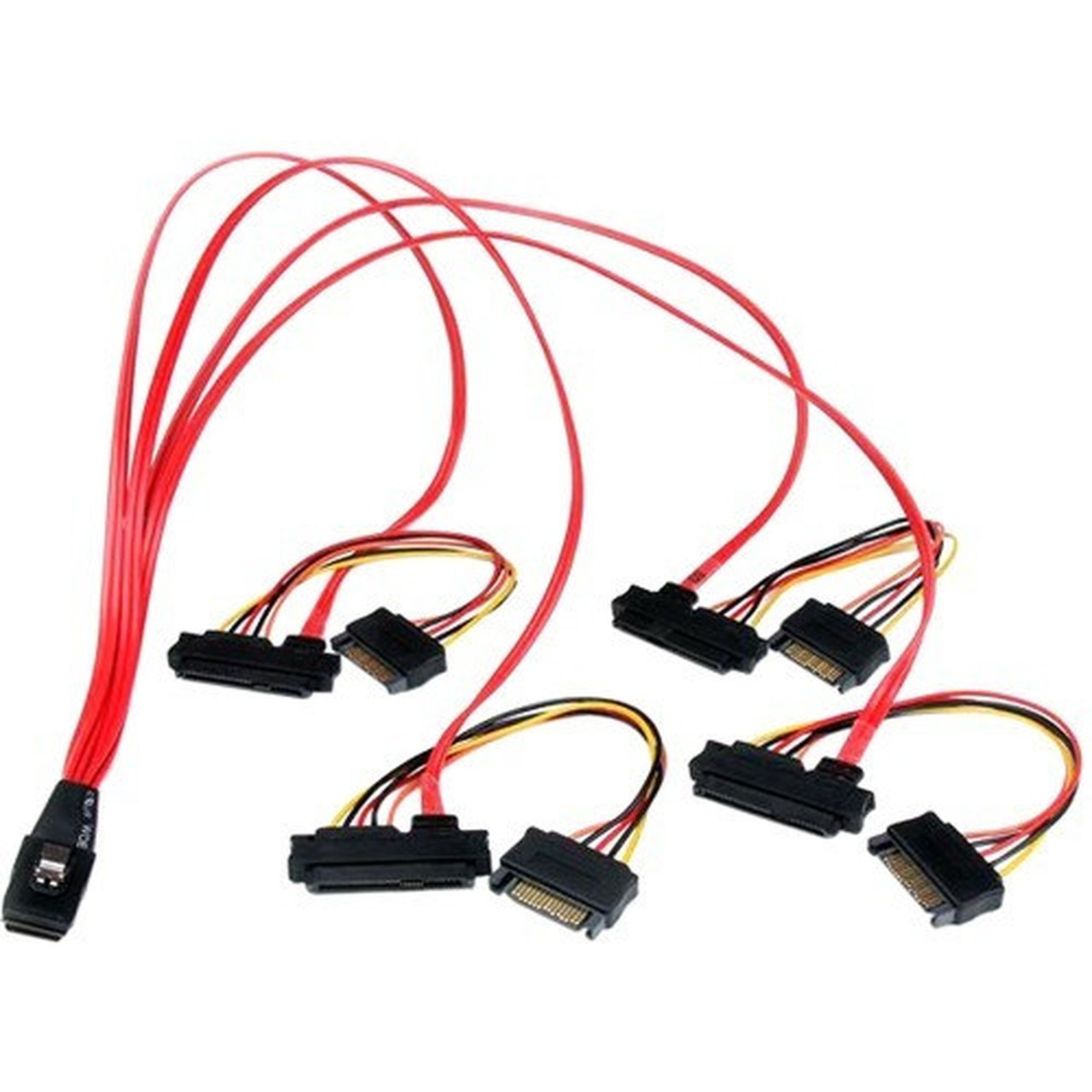

The SAS808782P50 Mini SAS to SAS cable (50cm) features one 36-pin SFF-8087 plug, which fans out to four individual 29-pin SFF-8482 receptacles, providing a reliable solution for connecting multiple SAS HDD drives (with both data and power) to a single mini SAS controller connection.
This high quality internal Mini SAS to SAS cable is designed for long-lasting dependability and reliable performance and is backed by our lifetime warranty.
Cable Type: SAS/SATA
Cable Length: 1.6 ft
Connector Type on First End: SFF-8087 Mini-SAS - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 36-pin SFF-8087 Mini-SAS - Male
Connector Type on Second End: SATA - Male,SFF-8482
Connector Gender on Second End: Male
Connector on Second End Details: 4 x 15-pin SATA - Male,4 x 29-pin SFF-8482
Device Supported: Hard Drive,SAS Controller,Storage Device
American Wire Gauge: 30 AWG
Product Color: Red
Weight (Approximate): 93.6 g
Environmentally Friendly: Yes
Country of Origin: China
Limited Warranty: Lifetime
- Supports up to 6Gbps throughput per channel
- 4x SFF-8482 connections, each with data and power
- 1x SFF-8087 connector
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SAS808782P50 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 50cm Internal Serial Attached SCSI Mini SAS Cable - SFF8087 to 4x SFF8482 |
| Packaged Quantity | 1 |
| Product Type | Data Transfer Cable | Technical Information |
| Cable Type | SAS/SATA |
| Cable Length | 1.6 ft |
| Connector Type on First End | SFF-8087 Mini-SAS - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 36-pin SFF-8087 Mini-SAS - Male |
| Connector Type on Second End | SATA - Male,SFF-8482 |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 4 x 15-pin SATA - Male,4 x 29-pin SFF-8482 |
| Device Supported | Hard Drive,SAS Controller,Storage Device |
| American Wire Gauge | 30 AWG | Physical Characteristics |
| Product Color | Red |
| Weight (Approximate) | 93.6 g | Miscellaneous |
| Environmentally Friendly | Yes |
| Country of Origin | China | Warranty |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
Lifetime
