StarTech.com
StarTech.com 50cm SFF-8087 to 4x SATA - Internal Mini SAS to SATA Reverse Cable - SAS/SATA for Motherboard, Storage Equipment - 50cm - (SAS8087S4R50)

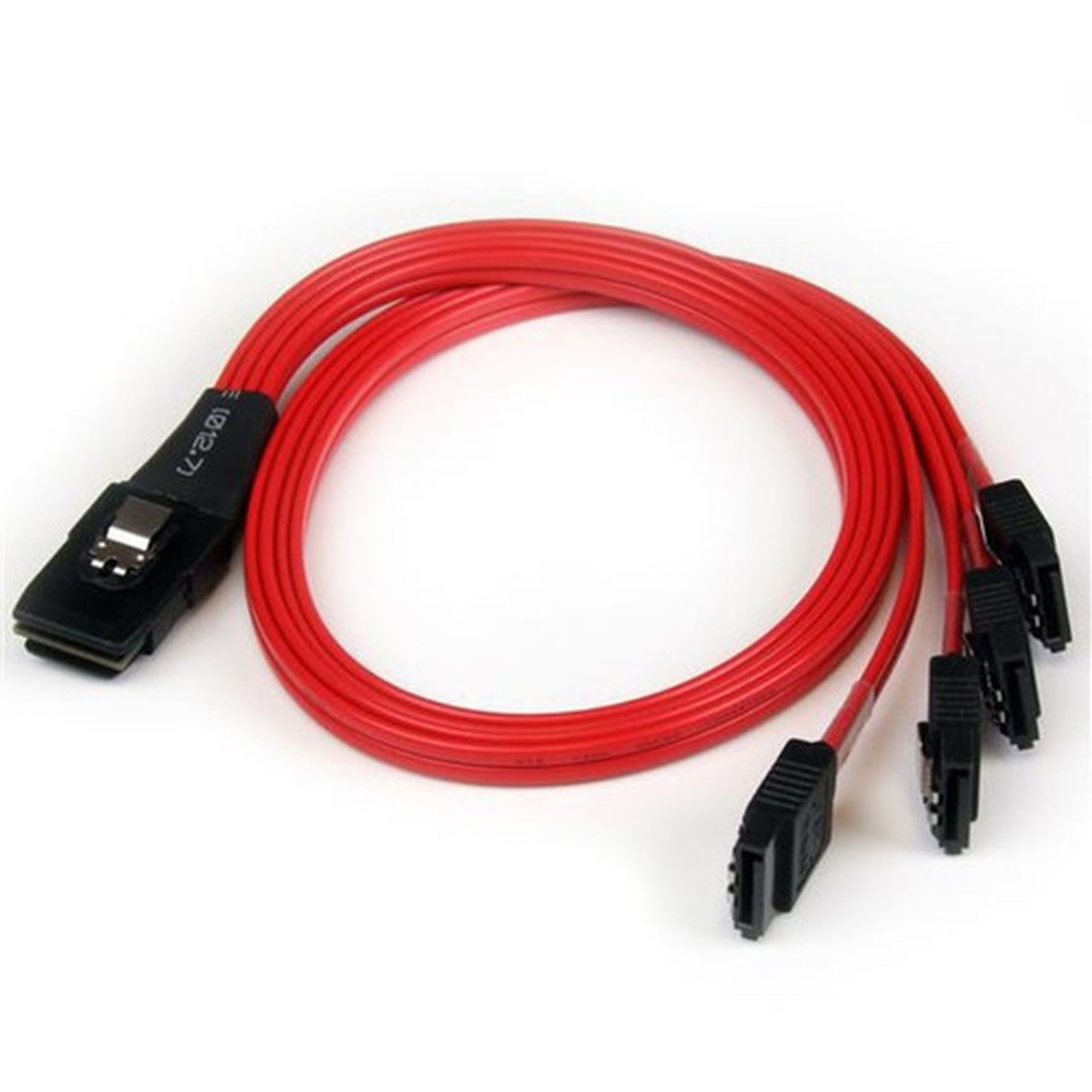

Marketing Information: The SAS8087S4R50 SFF-8087 to 4x SATA Reverse cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting a Mini SAS backplane to a SAS / SATA RAID controller or motherboard. Designed for long-lasting dependability and reliability, the Mini SAS to SATA cable is backed by StarTech.com's lifetime warranty.
Cable Type: SAS/SATA
Cable Characteristic: Fan-out Cable
Cable Length: 1.6 ft
Connector Type on First End: SFF-8087 Mini-SAS - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 36-pin SFF-8087 Mini-SAS - Male
Connector Type on Second End: SATA 3.0 - Female
Connector Gender on Second End: Female
Connector on Second End Details: 4 x 7-pin SATA 3.0 - Female
Device Supported: Motherboard,Storage Equipment,SAS Controller,RAID Controller
American Wire Gauge: 30 AWG
Data Transfer Rate: 6 Gbit/s
Features: Reversible,Locking Latch,Latching Connector
Color Family: Red
Product Color: Red
Weight (Approximate): 45.4 g
Environmentally Friendly: Yes
Country of Origin: China
Limited Warranty: Lifetime
- 6Gbps bandwidth per channel
- 4x latching SATA connectors
- Multi-lane design
- Equivalent to Promise 3Ware CBL-SFF8087OCR-05M
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SAS8087S4R50 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 50cm SFF-8087 to 4x SATA - Internal Mini SAS to SATA Reverse Cable |
| Packaged Quantity | 1 |
| Product Type | Data Transfer Cable | Technical Information |
| Cable Type | SAS/SATA |
| Cable Characteristic | Fan-out Cable |
| Cable Length | 1.6 ft |
| Connector Type on First End | SFF-8087 Mini-SAS - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 36-pin SFF-8087 Mini-SAS - Male |
| Connector Type on Second End | SATA 3.0 - Female |
| Connector Gender on Second End | Female |
| Connector on Second End Details | 4 x 7-pin SATA 3.0 - Female |
| Device Supported | Motherboard,Storage Equipment,SAS Controller,RAID Controller |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 6 Gbit/s |
| Features | Reversible,Locking Latch,Latching Connector | Physical Characteristics |
| Color Family | Red |
| Product Color | Red |
| Weight (Approximate) | 45.4 g | Miscellaneous |
| Environmentally Friendly | Yes |
| Country of Origin | China | Warranty |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
Lifetime
