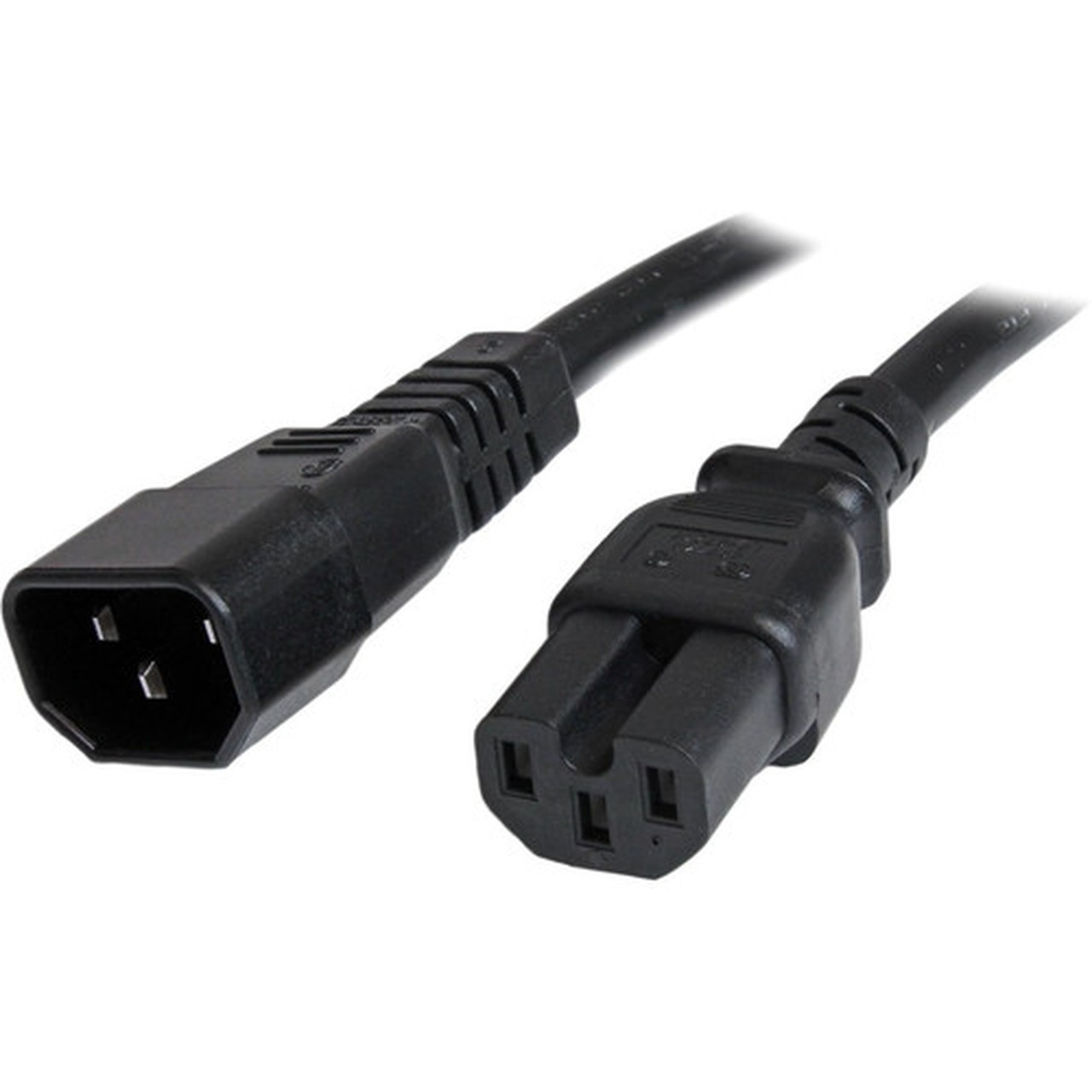

StarTech.com PXTC14C156 6ft Heavy Duty Power Extension Cord - IEC C14 to C15 - 14AWG - 15A 250V - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This power extension cord utilizes IEC 60320 C14 and C15 connectors, which are standard interfaces for computer and server power supplies. The 14AWG cable gauge ensures minimal voltage drop over the 6-foot length, maintaining efficient power delivery to connected devices. With a voltage rating of 250V AC and current capacity of 15A, it supports high-power equipment commonly found in data centers and office environments.
The cable construction includes three conductors made from 100% copper wire, providing excellent conductivity and heat dissipation. The SJT-type PVC jacket offers both flexibility and durability, with a fire rating of VW-1 for enhanced safety. The cable outer diameter measures 0.36 inches (9.14mm), making it compatible with standard cable management systems.
Relevant factors for this section include First End Connector Type, First End Connector Detail, Second End Connector Type, Voltage Rating. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This heavy-duty extension cord combines professional-grade construction with practical features that benefit IT infrastructure deployments. The fully molded strain relief prevents connector damage from frequent movement or tension, extending the cable's operational life in dynamic environments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Safety Certified, Durable Construction.
Safety Certified
UL listed under standards UL62 and UL817, with VW-1 fire rating and RoHS compliance for environmental safety.
- UL62 & UL817 Certified
- VW-1 Fire Rating
- RoHS Compliant
Durable Construction
Heavy 14AWG gauge with 100% copper conductors and PVC jacket designed for long-term reliability in professional settings.
- 14AWG Heavy Gauge
- 100% Copper Conductors
- PVC Jacket
Deployment / Use Cases
This extension cord serves multiple roles in IT infrastructure, from basic cable extension to critical power distribution applications. Its IEC C14 to C15 configuration makes it particularly valuable in server rooms and data centers where power distribution units require extended reach to equipment racks.
For office environments, the cable enables flexible positioning of computers, monitors, and printers without requiring outlet relocation. IT professionals can use it as a replacement cord for existing equipment or as an extension solution when original power cables fall short of required distances. The black color blends seamlessly with most office and data center aesthetics.
Server Room Applications
Extend connections between PDUs and servers in rack-mounted configurations where standard cables are insufficient.
- PDU to Server Connections
- Rack Mount Compatibility
- Data Center Use
Office Equipment Extension
Provide additional reach for desktop computers, monitors, and printers in workstation setups.
- Computer Workstations
- Monitor Power
- Printer Connections
Physical Profile
The 6-foot length provides practical extension capability without excessive cable management challenges. The black PVC jacket maintains a professional appearance while offering flexibility for routing around equipment. With an approximate weight of 11 ounces (311.84 grams), the cable remains manageable for installation and repositioning. The 0.36-inch outer diameter ensures compatibility with cable organizers and raceways commonly used in IT environments.
- Weight
- 11 oz (311.84 g)
- Length
- 6 ft (1.83 m)
Highlights
- 6-foot heavy-duty power extension cord with IEC C14 to IEC C15 connectors
- Rated for 15A at 250V with 14AWG heavy-gauge copper conductors
- UL listed (UL62 & UL817) with VW-1 fire rating for safety compliance
- Fully molded strain relief on connectors for enhanced durability
- Black PVC jacket with temperature range of 37°F to 221°F (3°C to 105°C)
- Compatible with PDUs, servers, desktop computers, monitors, and printers
- RoHS compliant with EU environmental certifications
- Backed by lifetime warranty with 24/5 multilingual technical support
- SJT jacket type with 0.36-inch outer diameter for easy cable management
- 100% copper wire construction for optimal conductivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PXTC14C156 |
| Brand Name | StarTech.com |
| Product Name | 6 ft 14 AWG Computer Power Cord - IEC C14 to IEC C15 |
| Packaged Quantity | 1 Each |
| Product Type | Power Extension Cord |
| Technical Information | |
| First End Connector Type | IEC 60320 C14 |
| First End Connector Detail | 1 x IEC 60320 C14 |
| Second End Connector Type | IEC 60320 C15 |
| Second End Connector Detail | 1 x IEC 60320 C15 |
| Device Supported | PDU,Server,Desktop Computer,Monitor,Printer |
| Power Description | |
| Voltage Rating | 250 V AC |
| Current Rating | 15 A |
| Physical Characteristics | |
| Cord Length | 6 ft (1.83 m) |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 11 oz (311.84 g) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What devices are compatible with this IEC C14 to C15 extension cord?
This extension cord is compatible with power distribution units (PDUs), servers, desktop computers, monitors, and printers that use standard IEC C14 or C15 power connectors. The C14 connector typically plugs into PDUs or power strips, while the C15 end connects to equipment requiring higher temperature ratings. It serves as both an extension cable and replacement cord for various IT hardware components.
What is the power rating of this 14AWG extension cord?
The cord is rated for 250 volts AC at 15 amps maximum current. The 14AWG gauge ensures efficient power transmission over the 6-foot length with minimal voltage drop. This rating makes it suitable for powering multiple devices or high-draw equipment commonly found in server rooms and office environments while maintaining safety margins.
Does this cable have any safety certifications?
Yes, the cable is UL listed under standards UL62 and UL817, which cover power supply cords and cord sets. It also carries a VW-1 fire rating for flame resistance and complies with EU RoHS (Restriction of Hazardous Substances) regulations. These certifications ensure the cable meets rigorous safety standards for electrical performance and environmental compliance.
What is the construction of this heavy-duty extension cord?
The cord features three conductors made from 100% copper wire within a 14AWG heavy-gauge configuration. The PVC jacket is SJT type with fully molded strain relief on both IEC connectors. This construction provides durability against physical stress, excellent conductivity, and flexibility across a temperature range of 37°F to 221°F (3°C to 105°C).
What warranty supports this StarTech.com power extension cord?
StarTech.com provides a lifetime limited warranty for this extension cord. The warranty covers manufacturing defects and includes access to free 24/5 multilingual technical assistance. This comprehensive support reflects the product's design for professional IT environments where reliability and long-term performance are essential considerations.
Can this cable be used in rack-mounted server installations?
Yes, the 6-foot length and IEC C14 to C15 configuration make it ideal for rack-mounted server installations. It can extend connections between PDUs mounted in racks and servers that require additional reach. The 0.36-inch outer diameter allows for clean cable management within rack enclosures, while the black color maintains a professional appearance in data center environments.
