StarTech.com 8 C13 Outlet Horizontal 1U Rack Mount PDU Power Strip for Server Racks - Surge Protection - 16A - 10ft NEMA 5-20P Power - (PDU08C13H)
Write a Review
StarTech.com
StarTech.com 8 C13 Outlet Horizontal 1U Rack Mount PDU Power Strip for Server Racks - Surge Protection - 16A - 10ft NEMA 5-20P Power - (PDU08C13H)
Have questions?
1-844-836-8268
Ask an Experts-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server ready
-
Canada Delivery
UPS, FedEx, Purolator

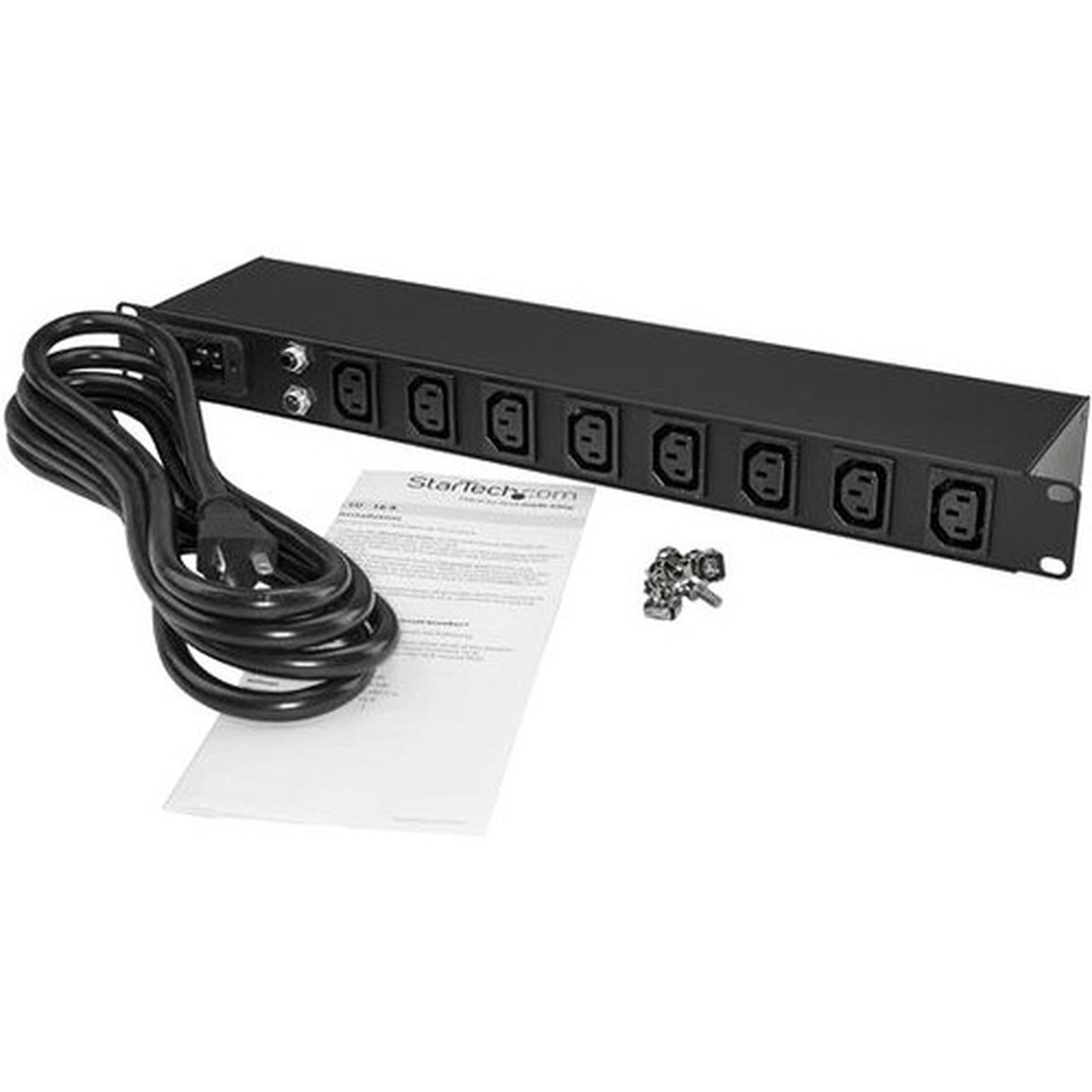

- 8-Outlet PDU
- 1 x 10 ft [3 m] C19 to NEMA5x20p Power Cord
- 4 x M5 Screws
- 4 x M5 Cage Muts
- 1 x Instruction Manual
Phase: Single Phase
Plug/Connector Type: IEC 60320 C20
Plug/Connector Detail: 1 x IEC 60320 C20
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Protection Type: Circuit Protection,Surge Protection
Input Voltage: 120 V AC,230 V AC
Input Voltage Range: 110 V AC - 240 V AC
Output Voltage: 240 V AC
Output Voltage Range: 110 V AC - 240 V AC
Power Rating (VA): 1.92 kVA
Input Current: 20 A
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 18.90" (480.06 mm)
Length: 3.90" (99.06 mm)
Weight (Approximate): 4.90 lb (2222.60 g)
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- 8 POWERFUL NEMA C13 OUTLETS: Rack mount PDU provides up to 16A/120V (1920VA) or 20A/240V (4800 VA) for servers & equipment; 1U rack space for easy accessibility; 10ft/3m C19 to NEMA5-20p cord incl.
- 3600 JOULE CIRCUT PROTECTION: Built-in resettable circuit breaker that acts as a surge protector or shields from unintentional overloads in data center; Safety listed for performance and peace of mind
- CONFIGURABLE EIA-310D COMPLIANT DESIGN: Installable in standard 19in. 2 or 4 post rack using incl. cage nuts/screws; C20 power cord allows any local plug config for 120 or 240 V single phase in/out
- SPECS: 1U 19in. Horizontal PDU
- 8x IEC C13 Pwr out
- C20 Pwr input (1 phase)
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PDU08C13H |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 8-Outlet PDU |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Technical Information | |
| Phase | Single Phase |
| Plug/Connector Type | IEC 60320 C20 |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Protection Type | Circuit Protection,Surge Protection |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 110 V AC - 240 V AC |
| Output Voltage | 240 V AC |
| Output Voltage Range | 110 V AC - 240 V AC |
| Power Rating (VA) | 1.92 kVA |
| Input Current | 20 A |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.90" (480.06 mm) |
| Length | 3.90" (99.06 mm) |
| Weight (Approximate) | 4.90 lb (2222.60 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
2 Year
