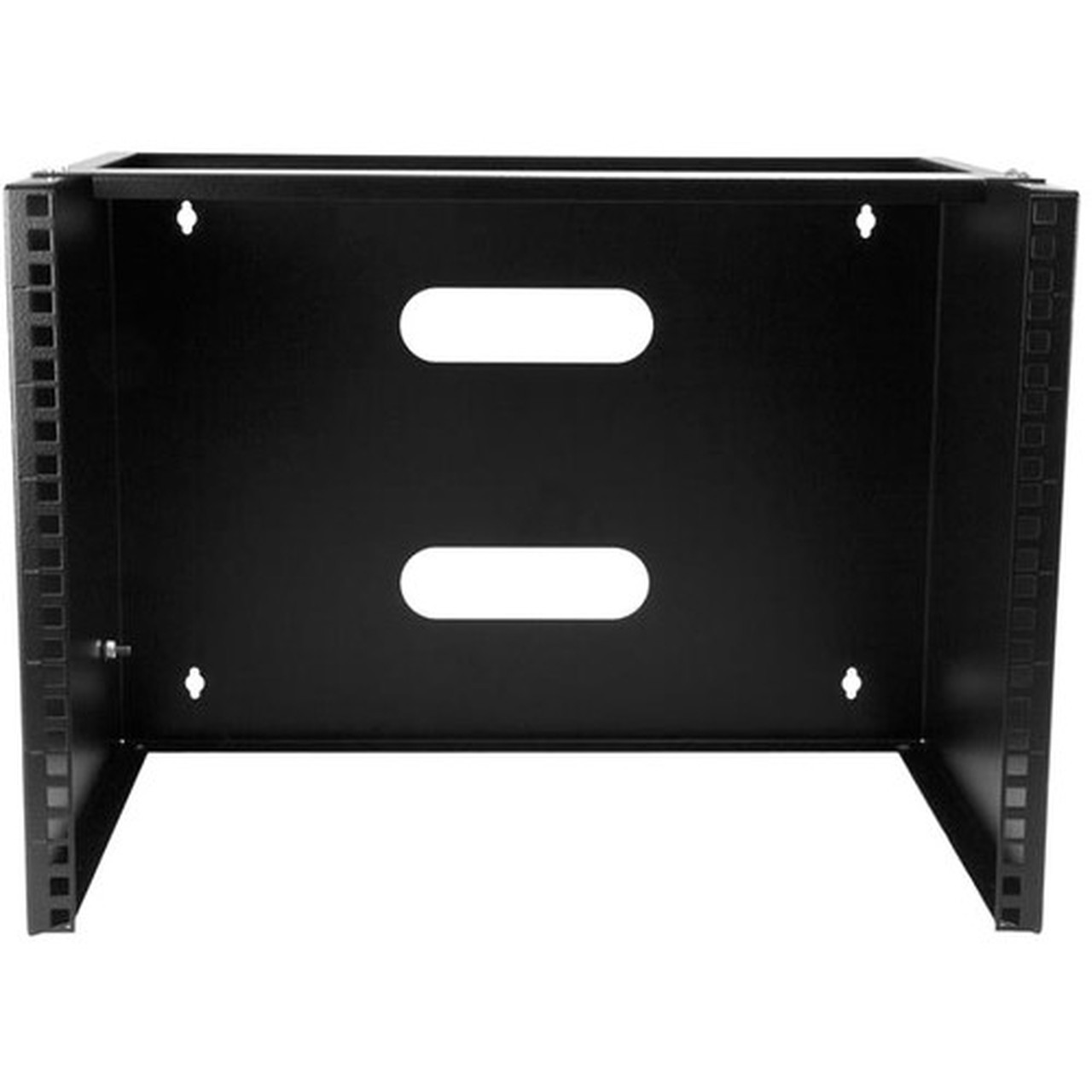

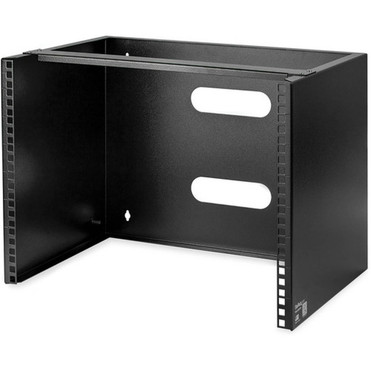

StarTech. com WALLMOUNT8 8U Wall Mount Rack - 14in Deep - 19 Inch Network Rack Bracket for Patch Panel/Switch - Solid Steel
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This wall-mount bracket features precise 19-inch rack width compatibility with standard EIA spacing for mounting network equipment. The 16-inch width between wall mounting holes aligns with typical drywall stud frameworks, simplifying installation in common office environments.
The rear access panel facilitates organized cable management, helping maintain clean installations while providing accessibility for maintenance. With no assembly required, the WALLMOUNT8 arrives ready for immediate deployment, supported by comprehensive hardware inclusion and clear mounting guidelines.
This section brings together practical product details such as Application/Usage, Form Factor, Color Family, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The WALLMOUNT8 delivers practical advantages through thoughtful engineering that addresses common installation challenges. The included cage nuts and screws eliminate the need for separate hardware purchases, while the rear cable access panel maintains organization without compromising equipment accessibility.
Robust Construction
Solid steel design provides exceptional rigidity and durability for mission-critical equipment mounting, ensuring long-term reliability in demanding environments.
- 80.2 lb maximum weight capacity
- Industrial-grade steel material
- Lifetime warranty backing
Installation Efficiency
Pre-drilled mounting holes spaced at standard 16-inch intervals match conventional wall stud frameworks, reducing installation time and complexity.
- No assembly required
- Includes all necessary hardware
- Clear mounting documentation
Deployment / Use Cases
The WALLMOUNT8 serves as a space-efficient solution for environments where traditional floor-standing racks are impractical due to space constraints or budget considerations. Its shallow 12-inch depth accommodates most standard networking equipment while maintaining a minimal wall projection.
This bracket proves particularly valuable in retrofit installations where adding equipment to existing spaces requires creative mounting solutions. The TAA compliance and Canadian origin make it suitable for government and institutional procurement where sourcing requirements must be met.
Network Closet Organization
Ideal for mounting patch panels and switches in telecommunications rooms where floor space is limited but wall space is available for vertical equipment arrangement.
Small Office IT Infrastructure
Perfect for supporting networking equipment in office environments where dedicated server racks are impractical but professional equipment mounting is necessary.
Physical Profile
The black steel construction measures 14.30 inches in height, 16 inches in width, and 13.70 inches in length, with the rack space itself providing 8U of vertical mounting space at 17.70 inches wide. The 12-inch rack depth accommodates shallow equipment while the overall 17.86-pound weight ensures manageable installation without compromising structural integrity.
The finish resists corrosion and maintains appearance in typical indoor environments, while the standardized dimensions ensure compatibility with a wide range of rack-mount equipment designed for 19-inch rack systems.
- Width
- 16" (406.40 mm)
- Depth
- 12" (304.80 mm)
- Height
- 14.30" (363.22 mm)
- Weight
- 80.20 lb (36378.11 g)
- Length
- 13.70" (347.98 mm)
What's in the Box
The WALLMOUNT8 includes all necessary components for immediate deployment:
Highlights
- 8U wall-mount rack bracket for shallow network equipment
- Solid steel construction with 80.2 lb weight capacity
- 12-inch depth accommodates standard shallow-depth gear
- Wall mounting holes spaced 16 inches for drywall stud alignment
- Includes 24 cage nuts and screws for immediate installation
- Rear access panel for organized cable management
- No assembly required - ready for immediate deployment
- TAA compliant with Canadian origin
- EU RoHS environmental certification
- Lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | WALLMOUNT8 |
| Brand Name | StarTech.com |
| Product Name | Wall-Mount Bracket for Shallow Rack-Mount Equipment - Solid Steel - 8U |
| Packaged Quantity | 1 Each |
| Product Type | Rack Mount Bracket |
| Technical Information | |
| Application/Usage | Patch Panel,LAN Switch |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Maximum Weight Capacity | 80.20 lb (36378.11 g) |
| Height | 14.30" (363.22 mm) |
| Width | 16" (406.40 mm) |
| Length | 13.70" (347.98 mm) |
| Rack Height | 8U |
| Rack Width | 17.70" (449.58 mm) |
| Rack Depth | 12" (304.80 mm) |
| Weight (Approximate) | 17.86 lb (8100 g) |
| Miscellaneous | |
| Package Contents | 1 x Wall-Mount Bracket 24 x M5 Cage Nuts 24 x M5 Screws 1 x M6 K-Nut 6 x Wood Screws 1 x User Manual |
| Assembly Required | No |
| Country of Origin | Canada |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What equipment is compatible with the WALLMOUNT8 bracket?
The WALLMOUNT8 is designed for shallow-depth rack-mount equipment including patch panels, LAN switches, and other IT gear that fits within 12 inches of depth. It supports standard 19-inch rack width equipment and provides 8U of vertical mounting space for multiple devices or larger single units.
What is the maximum weight capacity of this wall mount rack?
This solid steel bracket supports up to 80.20 pounds (36,378 grams) of distributed weight. The robust construction ensures secure mounting of mission-critical networking equipment while maintaining structural integrity over long-term use in office or server room environments.
Does the WALLMOUNT8 include all necessary mounting hardware?
Yes, the package contains comprehensive hardware for immediate installation: 24 M5 cage nuts, 24 M5 screws, 1 M6 K-Nut, 6 wood screws, and a detailed user manual. This complete hardware set eliminates the need for additional purchases and ensures proper mounting according to manufacturer specifications.
What are the environmental certifications for this product?
The WALLMOUNT8 carries EU RoHS certification and complies with Restriction of Hazardous Substances (RoHS) 2 and Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) standards. It is manufactured in Canada and marked as environmentally friendly with TAA compliance for government procurement scenarios.
How does the rear access panel benefit installation?
The rear access panel facilitates organized cable management by providing a dedicated space for routing and securing network cables. This feature helps maintain clean installations, improves airflow around equipment, and allows easier access for maintenance without requiring complete disassembly of mounted devices.
What warranty coverage does StarTech.com provide for this bracket?
StarTech.com backs the WALLMOUNT8 with a lifetime limited warranty, providing long-term assurance of product quality and durability. This warranty reflects the robust steel construction and reliable design intended for continuous use in professional IT environments.
