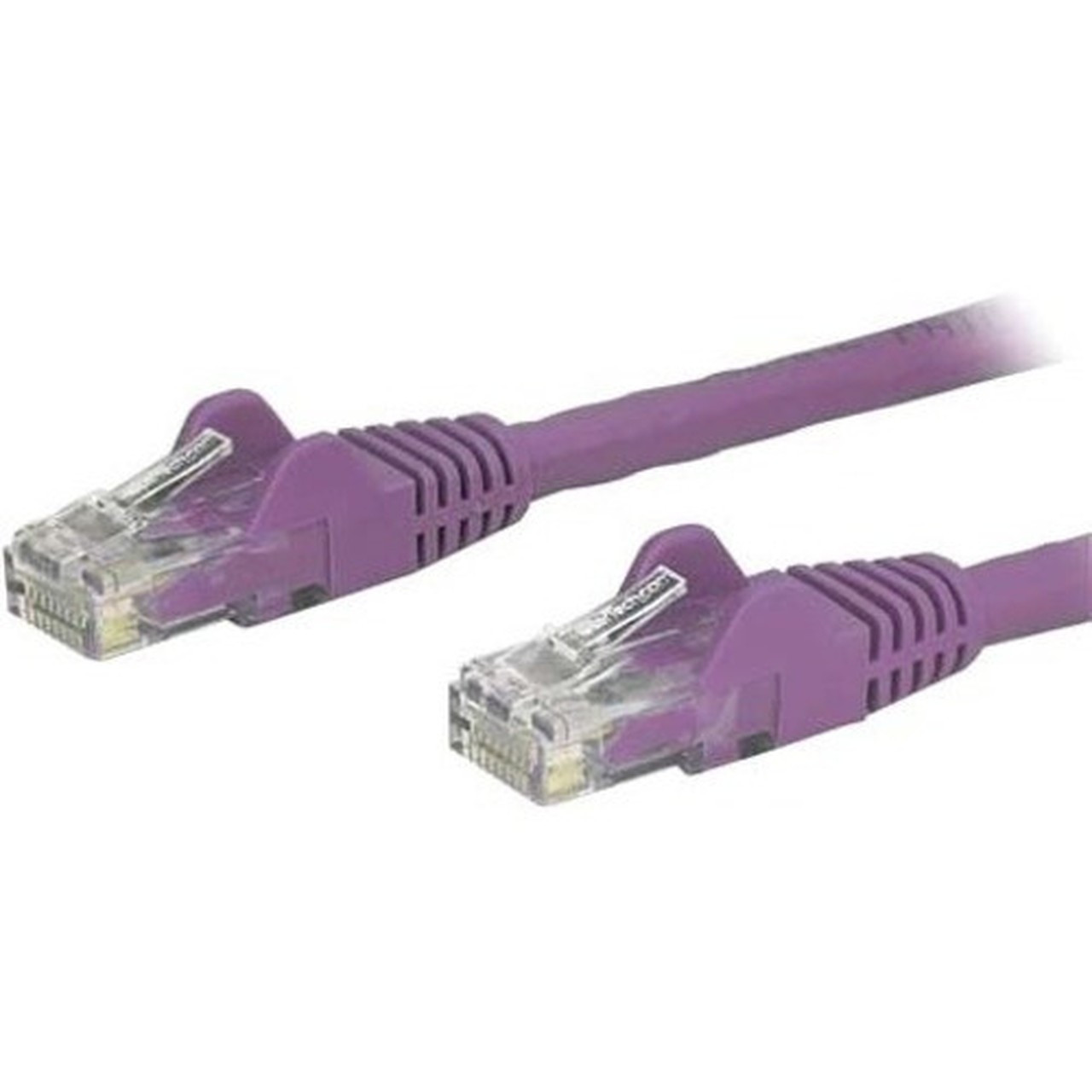

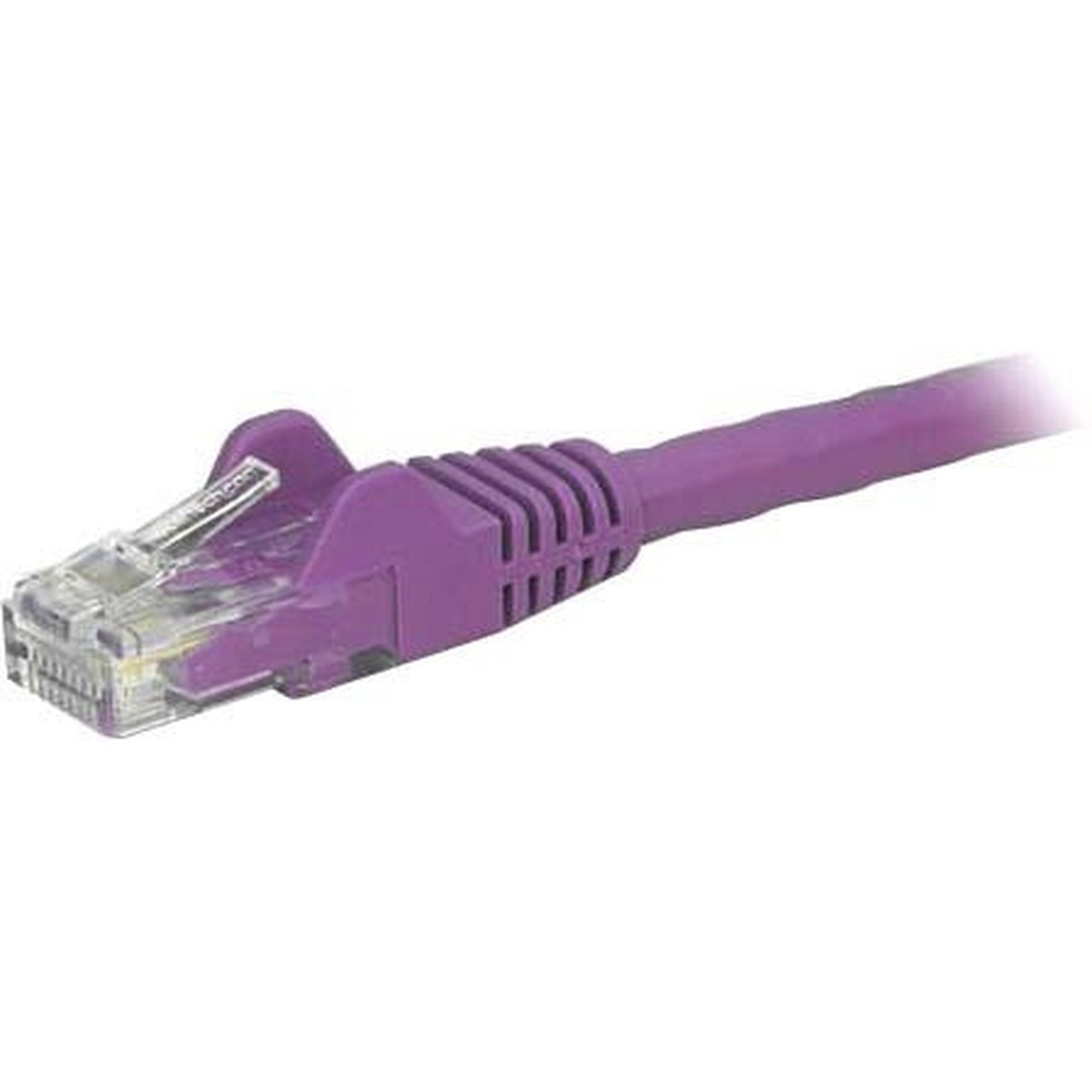

StarTech. com N6PATCH20PL 20ft CAT6 Ethernet Patch Cable - Purple Snagless RJ45 UTP 650MHz 10Gbps 100W PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6 patch cable operates at a 650 MHz frequency and complies with ANSI/TIA-568-2.D Category 6 specifications, verified through Fluke patch cord testing. The 100% copper wiring ensures minimal signal loss and error-free transmission for demanding applications like video streaming, large file transfers, and VoIP communications.
Power over Ethernet support is a key feature, with UL Rated Wiring (E132276-A) that delivers up to 100W of power in compliance with IEEE 802.3bt and DTE power standards. This capability reduces cable heating and safely powers PoE++ devices such as VoIP phones, wireless access points, and security cameras without separate power adapters.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
Durability and longevity are engineered into every aspect of this patch cable. The 50-micron gold-plated RJ45 connectors resist corrosion and rust, maintaining reliable electrical contact over time to prevent network downtime. The high-quality PVC jacket is flexible yet resistant to bending, fraying, and environmental damage, ensuring the cable withstands daily use in office, data center, or industrial settings.
Enhanced Reliability
Stranded copper conductors and strain relief boots provide flexibility and durability, while heat-resistant materials maintain performance in varied temperatures.
- Gold-plated contacts prevent oxidation
- Molded snagless boots protect connectors
- CMG-rated jacket for in-wall use
Certified Performance
Independent verification ensures this cable meets industry standards for performance and safety, giving installers confidence in its specifications.
- Fluke-tested for CAT6 compliance
- ETL and UL certifications
- ANSI/T568B wiring standard
Deployment / Use Cases
This 20-foot CAT6 patch cable is ideal for connecting network devices within server racks, workstations, and networking equipment. Its length provides flexibility for routing around obstacles or across desks, while the snagless design prevents accidental disconnection in crowded patch panels.
Common applications include linking computers to switches, connecting VoIP phones to PoE-enabled switches, extending network connections for security cameras, and integrating hubs or printers into office networks. The purple color allows for easy cable identification and organization in multi-cable installations, simplifying maintenance and troubleshooting.
Office Networking
Connect workstations, printers, and VoIP phones with reliable Gigabit or Multi-Gigabit speeds for seamless daily operations.
- Supports 1/2.5/5/10 Gbps speeds
- PoE for VoIP and wireless APs
- Snagless boots for easy management
IT Infrastructure
Use in data centers, server rooms, or network closets to link switches, routers, and patch panels with certified performance.
- 20ft length for flexible routing
- CMG jacket for conduit use
- Lifetime warranty for long-term reliability
Physical Profile
The cable features a distinctive purple PVC jacket that provides both visual identification and physical protection. With an approximate weight of 8.80 oz (249.48 g), it is lightweight yet robust, featuring a flexible design that resists kinking and bending damage. The snagless molded boots on each RJ45 connector add strain relief and protect the locking tab from snagging during installation or removal.
- Weight
- 8.80 oz (249.48 g)
- Length
- 20 ft (6.10 m)
Highlights
- 20-foot CAT6 Ethernet patch cable with purple PVC jacket
- Snagless molded boots on both RJ45 connectors for easy installation
- Supports 10 Gbps data transfer and 100W PoE (IEEE 802.3bt)
- 24 AWG stranded copper conductors with 650 MHz frequency rating
- Gold-plated contacts resist corrosion and ensure reliable connections
- ETL verified and UL certified for performance and safety
- Backward compatible with CAT5e and earlier Ethernet standards
- CMG-rated jacket suitable for in-wall use in conduits
- RoHS, WEEE, and REACH environmental compliance
- Lifetime warranty for long-term reliability and peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PATCH20PL |
| Brand Name | StarTech.com |
| Product Name | Cat. 6 Network Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 20 ft (6.10 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Shielding | No |
| Jacket Type | CMG |
| Device Supported | Network Device,Workstation,Hub |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Features | Heat Resistant,Stranded,Strain Relief,Corrosion Resistant,Damage Resistant,Rust Resistant,Fray Resistant,PoE++,Bend Resistant,Flexible |
| Physical Characteristics | |
| Color Family | Purple |
| Product Color | Purple |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 8.80 oz (249.48 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed supported by this CAT6 cable?
This StarTech.com CAT6 patch cable supports data transfer rates up to 10 Gbps (10 Gigabit per second) over distances up to 160 feet. It is also fully capable of handling Multi-Gigabit speeds like 1, 2.5, and 5 Gbps, making it suitable for modern network upgrades and high-bandwidth applications such as video streaming, large file transfers, and VoIP systems.
Does this cable support Power over Ethernet (PoE)?
Yes, this cable supports Power over Ethernet up to 100W, compliant with IEEE 802.3bt (PoE++) and DTE power standards. The 24 AWG stranded copper conductors and UL Rated Wiring (E132276-A) ensure safe and efficient power delivery to PoE devices like VoIP phones, wireless access points, and security cameras, reducing cable heating and eliminating the need for separate power adapters.
What type of connectors does this Ethernet cable have?
Both ends of the cable feature standard RJ-45 male connectors with 50-micron gold plating. The connectors are designed with snagless molded boots that provide strain relief and prevent the locking tab from catching on other cables or equipment during installation or removal, making them ideal for use in crowded patch panels or wiring conduits.
Is this cable shielded or unshielded?
This is an unshielded twisted pair (UTP) cable, meaning it does not have additional foil or braid shielding around the internal conductors. UTP cables like this one are commonly used in office and commercial environments where electromagnetic interference is minimal, offering a cost-effective and flexible solution for most Ethernet applications without the need for grounding.
What certifications does this CAT6 cable have?
The cable is ETL verified and UL certified, ensuring it meets industry standards for performance and safety. It complies with ANSI/TIA-568-2.D Category 6 specifications and has been tested with Fluke equipment to validate its 650 MHz frequency rating. Additionally, it adheres to environmental regulations including RoHS, WEEE, and REACH, and comes with a lifetime warranty for added reliability.
Can this cable be used in-wall or in conduits?
Yes, the cable features a CMG-rated PVC jacket, which is suitable for in-wall use when installed in conduits as per local electrical codes. This rating indicates the jacket material is resistant to fire and smoke propagation, making it safe for residential and commercial building installations where cables may be routed through walls, ceilings, or raised floors.
