StarTech. com N6PATCH20YL CAT6 Ethernet Cable - 20ft Yellow Snagless Patch Cord - 10Gb/s 650MHz UTP 24 AWG 100W PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6 patch cable operates at 650MHz bandwidth and complies with ANSI/TIA-568-2.D Category 6 standards, verified through Fluke patch cord testing. The 4-pair UTP construction with 24 AWG copper wiring supports data rates from 1Gb/s to 10Gb/s over distances up to 160 feet for 10Gb/s applications.
The cable features UL-rated wiring (E132276-A) and ETL verification, ensuring safety and performance consistency. It supports IEEE 802.3bt PoE standards for powering devices like VoIP phones, security cameras, and wireless access points without separate power cables.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable combines robust construction with practical features for demanding network environments. The high-quality PVC jacket resists bending, fraying, and environmental damage while maintaining flexibility for easy routing through conduits and cable management systems.
Durable Construction
Features 50-micron gold-plated connectors that prevent rust and corrosion, along with strain relief and stranded conductors for enhanced durability.
- Rust resistant
- Corrosion resistant
- Heat resistant
- Damage resistant
Certified Performance
ETL and UL certified with compliance to industry standards, ensuring reliable performance and safety in network installations.
- ETL verified
- UL rated wiring
- ANSI/TIA-568-2.D compliant
- Fluke tested
Deployment / Use Cases
This yellow CAT6 patch cable is versatile for various networking scenarios where color coding aids cable management and identification. The 20-foot length provides ample reach for connecting devices across standard office spaces, server rooms, and commercial installations.
Ideal for connecting network switches to workstations, linking VoIP phones with PoE switches, interconnecting security system components, and establishing connections between network devices and hubs. The cable maintains backward compatibility with Cat5e and earlier standards, ensuring seamless integration into existing network infrastructures.
Office Networking
Connect workstations to network switches with reliable 10Gb/s throughput for data-intensive applications and cloud services.
PoE Device Power
Deliver both data and power to VoIP phones, wireless access points, and security cameras using IEEE 802.3bt compliant Power over Ethernet.
Physical Profile
The cable features a bright yellow PVC jacket (CMG rated) that provides easy visual identification in cable bundles and racks. Weighing approximately 8.80 oz (249.48 g), it offers a balanced combination of durability and manageable weight for installation. The flexible design allows for smooth routing around corners and through cable management systems without compromising performance.
- Weight
- 8.80 oz (249.48 g)
- Length
- 20 ft (6.10 m)
Highlights

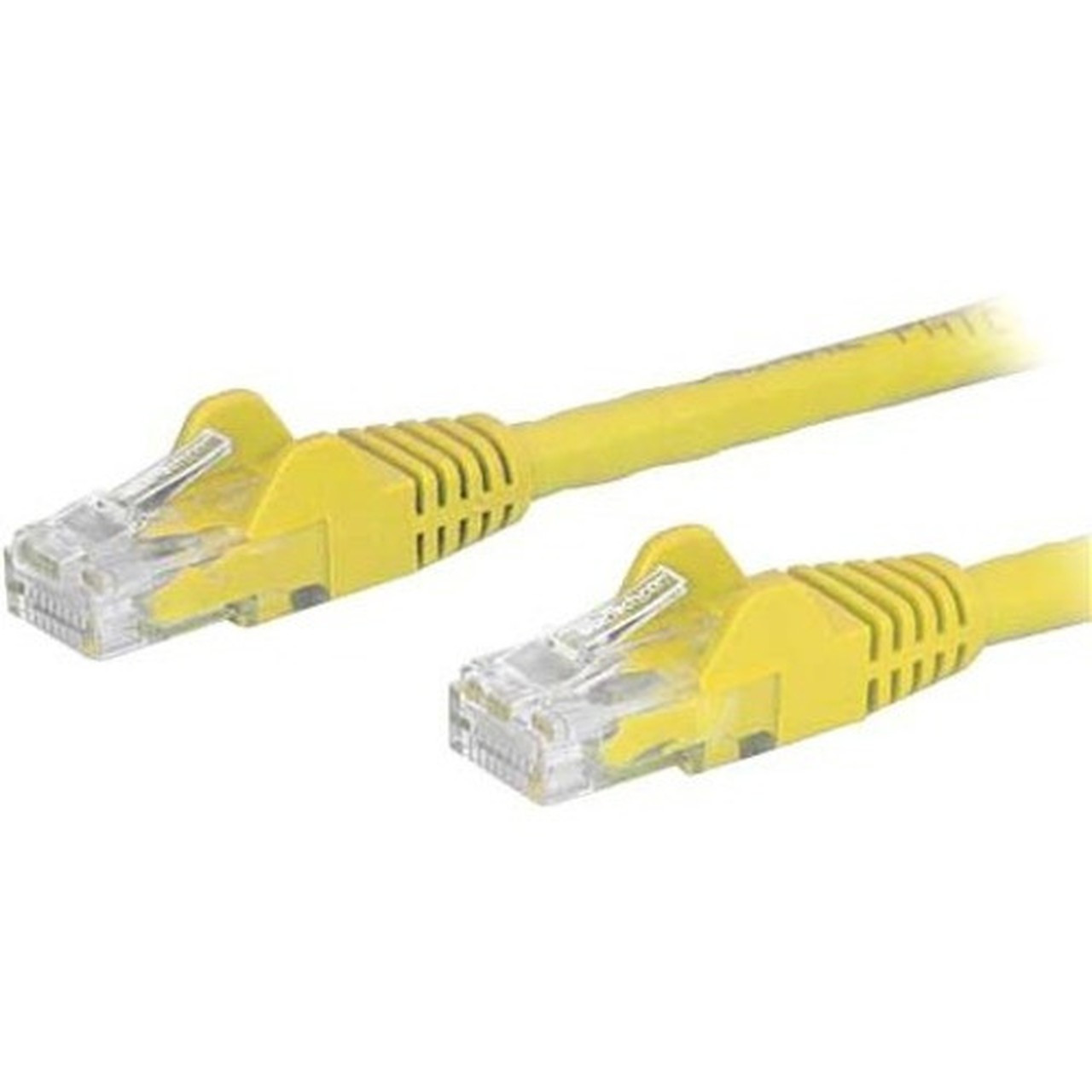

- 20-foot Category 6 Ethernet patch cable with RJ45 connectors on both ends
- Supports data transfer rates up to 10Gb/s with 650MHz bandwidth
- 24 AWG stranded copper conductors with UTP construction

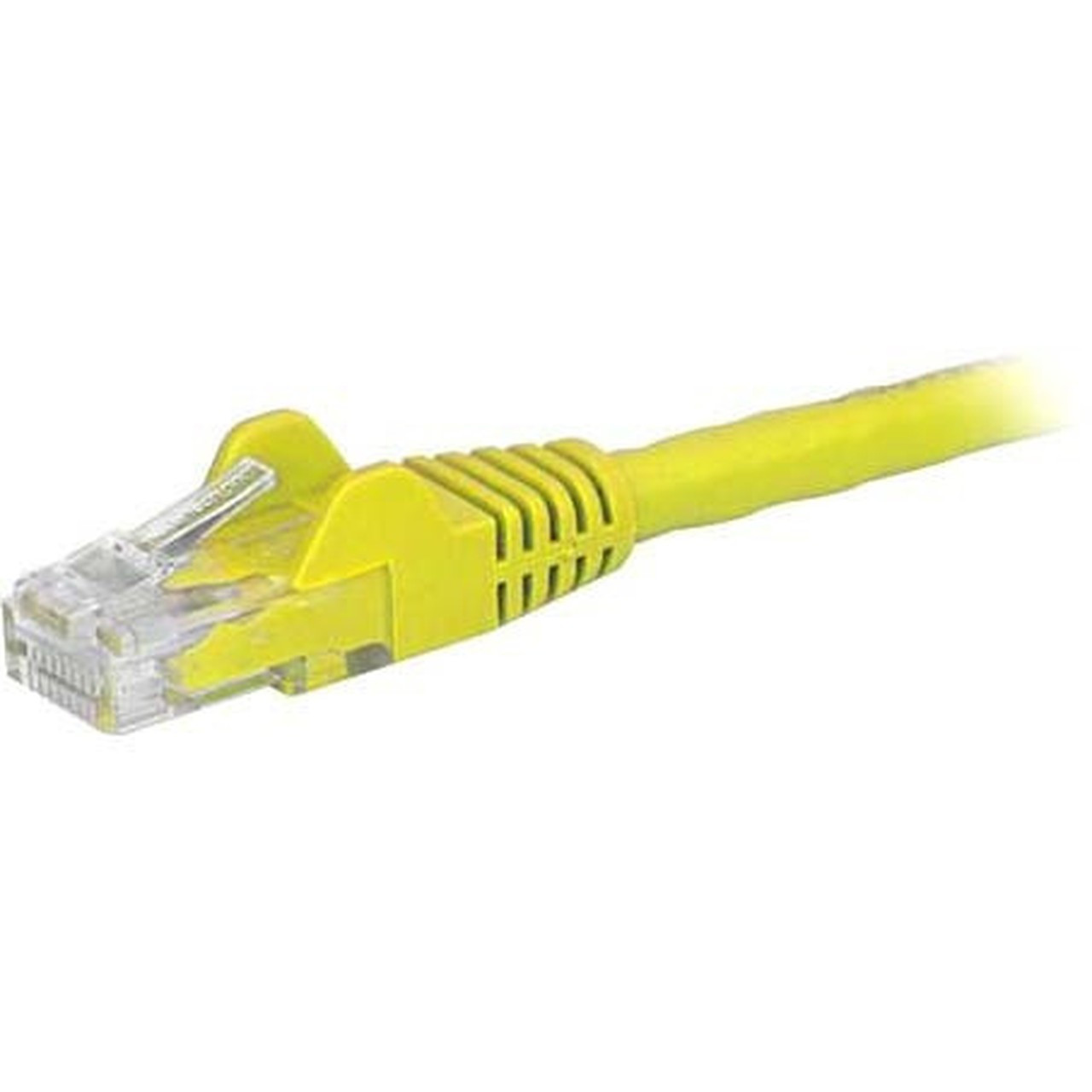

- Gold-plated connectors with snagless molded boots
- Supports Power over Ethernet (PoE) up to 100W (IEEE 802.3bt)
- UL rated wiring (E132276-A) and ETL verified for safety
- Bright yellow PVC jacket for easy identification
- Backward compatible with Cat5e and earlier standards
- Environmental compliance with RoHS, WEEE, and REACH
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PATCH20YL |
| Brand Name | StarTech.com |
| Product Name | Cat. 6 Network Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 20 ft (6.10 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Shielding | No |
| Jacket Type | CMG |
| Device Supported | Network Device,Workstation,Hub |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Molded,Snagless |
| Features | Stranded,Strain Relief,PoE,Damage Resistant,Bend Resistant,Fray Resistant,Rust Resistant,Corrosion Resistant,Heat Resistant,Flexible |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 8.80 oz (249.48 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer speed this CAT6 cable supports?
This StarTech.com CAT6 Ethernet cable supports data transfer rates up to 10 gigabits per second (10Gb/s). It delivers multi-gigabit performance for 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s network connections, making it suitable for high-bandwidth applications and future network upgrades.
Does this cable support Power over Ethernet (PoE) devices?
Yes, this cable fully supports Power over Ethernet applications up to 100W. It features 24 AWG stranded copper conductors with UL-rated wiring (E132276-A) that complies with IEEE 802.3bt PoE standards, making it ideal for powering VoIP phones, security cameras, wireless access points, and other PoE devices without separate power cables.
What are the connector types on this Ethernet cable?
Both ends of this cable feature standard RJ-45 network connectors with male gender. The connectors have 50-micron gold plating for optimal conductivity and corrosion resistance, along with snagless molded boots that prevent accidental disconnections in tight spaces and cable management systems.
Is this cable shielded or unshielded?
This is an unshielded twisted pair (UTP) cable without additional shielding. The 4-pair UTP construction provides reliable performance for most office and commercial environments while maintaining flexibility and easier installation compared to shielded alternatives.
What certifications does this Ethernet cable have?
This cable is ETL verified and features UL-rated wiring (E132276-A). It complies with ANSI/TIA-568-2.D Category 6 standards and has been tested with Fluke patch cord testing equipment. The cable also meets environmental compliance standards including RoHS, WEEE, and REACH regulations.
What is the warranty coverage for this network cable?
StarTech.com provides a lifetime warranty for this CAT6 Ethernet patch cable. This comprehensive warranty covers manufacturing defects and ensures long-term reliability for your network infrastructure investments, providing peace of mind for commercial and professional installations.
