Product Features
Technical Overview
This Cat6 patch cable operates at 650 MHz and complies with ANSI/TIA-568-2.D Category 6 specifications, verified through Fluke patch cord testing. The 4-pair UTP construction with ANSI/T568B wiring provides error-free data transmission for 1/2.5/5Gbps connections, making it suitable for demanding network environments.
The cable's 50-micron gold-plated connectors prevent corrosion and rust, ensuring consistent electrical contact over time. The CMG-rated PVC jacket offers flexibility while resisting bending, fraying, and damage from environmental factors. The snagless boot design prevents accidental disconnection in wiring conduits and constrained spaces.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This Ethernet cable combines performance, durability, and compliance certifications for enterprise-grade reliability. The construction prioritizes long-term network stability with features that reduce maintenance requirements and prevent costly downtime.
Power over Ethernet Ready
Supports IEEE 802.3bt and DTE power compliance with UL Rated Wiring (E132276-A) for up to 100W PoE applications. The 24 AWG stranded copper conductors minimize cable heating while delivering stable power to connected devices.
- IEEE 802.3bt compliant
- Reduced cable heating
- Stable power delivery
Quality Construction
ETL and UL certified with heat-resistant, stranded conductors and strain relief features. The high-quality PVC jacket resists bending, fraying, corrosion, and rust while maintaining flexibility for easy installation.
- ETL & UL certified
- Corrosion resistant
- Flexible yet durable
Deployment / Use Cases
This 30-foot patch cable is ideal for connecting network equipment across moderate distances in office environments, data centers, and commercial installations. The length provides flexibility for routing around obstacles while maintaining signal integrity for high-speed connections.
Common applications include connecting VoIP phones and security cameras that require both data and power, linking workstations to network switches in open office layouts, and extending connections between network racks in server rooms. The white color blends discreetly with office decor while the snagless design prevents accidental disconnection in cable management systems.
Office Network Expansion
Connect workstations to central switches across cubicles or open office spaces. The 30-foot reach accommodates flexible desk arrangements while maintaining 10Gbps capability for bandwidth-intensive applications.
PoE Device Installation
Power and connect VoIP phones, wireless access points, and security cameras from centralized switches. The cable's 100W PoE support eliminates the need for separate power adapters at each device location.
Physical Profile

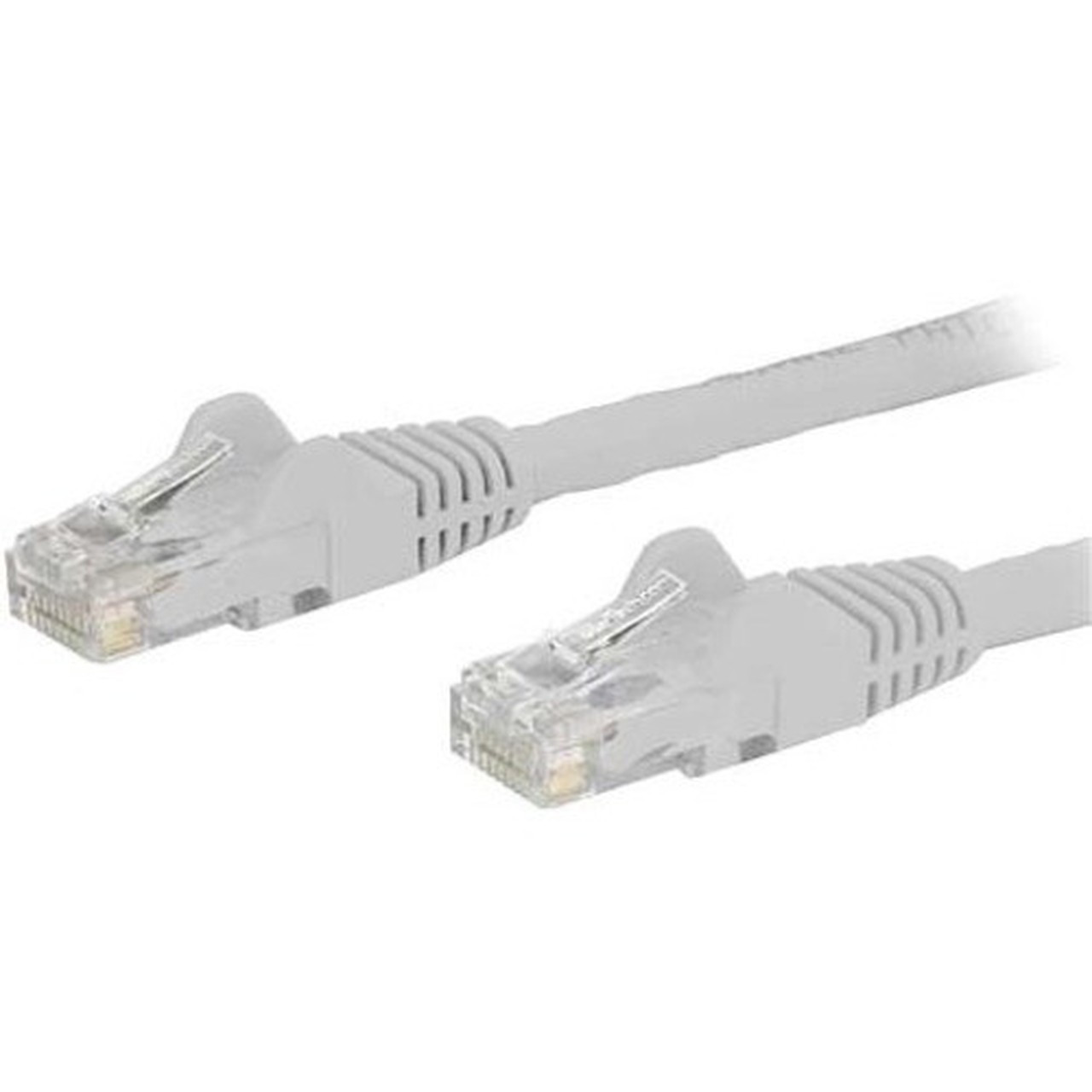

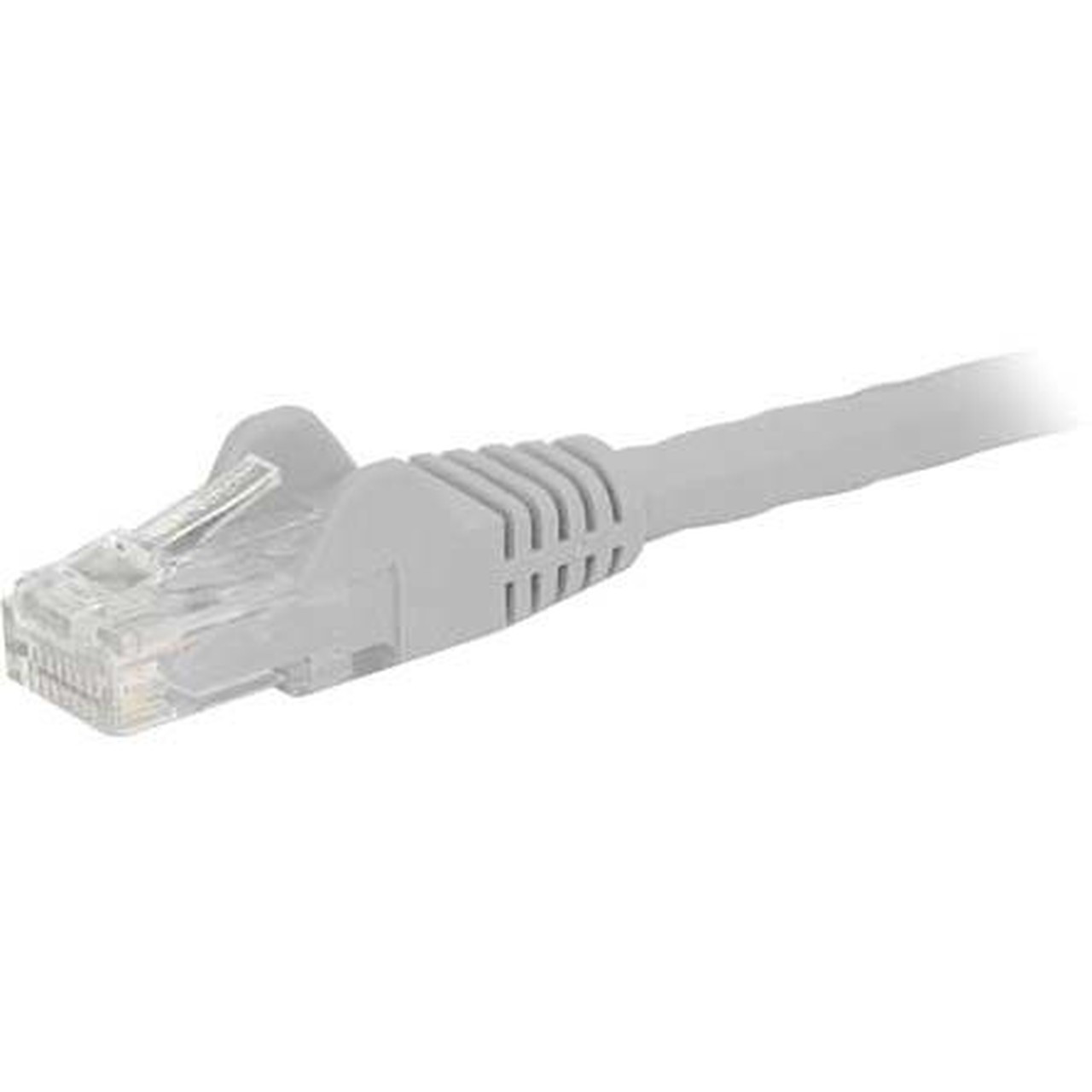

The cable features a clean white PVC jacket that measures 30 feet (9.14 meters) in length with a weight of approximately 13.20 ounces (374.21 grams). The snagless molded boots on both RJ45 connectors provide strain relief and prevent the retention clips from catching on other cables or equipment during installation and maintenance.
- Weight
- 13.20 oz (374.21 g)
- Length
- 30 ft (9.14 m)
Highlights
- 30-foot Category 6 Ethernet patch cable with white PVC jacket
- Snagless molded boots on both RJ45 connectors for easy installation
- Supports 10Gbps data transfer up to 160 feet
- 100W Power over Ethernet (PoE) support for connected devices
- 24 AWG stranded copper conductors with gold-plated contacts
- 650 MHz rating with ANSI/TIA-568-2.D Category 6 compliance
- ETL verified and UL certified for quality assurance
- Backward compatible with Cat5e and earlier standards
- CMG-rated jacket with heat and damage resistance
- Lifetime warranty with RoHS, WEEE, and REACH compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PATCH30WH |
| Brand Name | StarTech.com |
| Product Name | Cat. 6 Network Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 30 ft (9.14 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Shielding | No |
| Jacket Type | CMG |
| Device Supported | Network Device,Workstation,Hub |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Features | Heat Resistant,Stranded,Strain Relief,PoE,Flexible,Damage Resistant,Corrosion Resistant,Rust Resistant,Bend Resistant,Fray Resistant |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 13.20 oz (374.21 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed this Cat6 cable supports?
This StarTech.com Cat6 patch cable supports data transfer rates up to 10 Gbps (10 Gigabit per second) for distances up to 160 feet. It maintains backward compatibility with lower-speed standards including 1Gbps, 2.5Gbps, and 5Gbps Ethernet, making it suitable for both current high-speed networks and legacy equipment.
Does this Ethernet cable support Power over Ethernet?
Yes, this cable fully supports Power over Ethernet with up to 100W power delivery. It features 24 AWG stranded copper conductors with UL Rated Wiring (E132276-A) that complies with IEEE 802.3bt and DTE power standards. This makes it ideal for powering VoIP phones, security cameras, wireless access points, and other PoE devices without separate power adapters.
What are the connector types on each end of the cable?
Both ends feature standard RJ-45 male connectors with 50-micron gold plating for optimal conductivity and corrosion resistance. The connectors have snagless molded boots that prevent the retention clips from catching during installation while providing strain relief. This design ensures reliable connections in wiring conduits and constrained spaces.
Is this cable shielded or unshielded?
This is an unshielded twisted pair (UTP) cable with no additional shielding. The 4-pair UTP construction with CMG-rated PVC jacket provides sufficient protection for most office and commercial environments while maintaining flexibility. For installations requiring shielded cables in high-interference areas, consider StarTech.com's shielded Cat6 options.
What certifications does this Ethernet cable have?
The cable is ETL verified and UL certified, with Fluke patch cord testing confirming compliance with ANSI/TIA-568-2.D Category 6 specifications. It also meets environmental standards including RoHS, WEEE, and REACH compliance. These certifications ensure the cable meets industry standards for performance, safety, and environmental responsibility.
How does the snagless boot design benefit installation?
The snagless molded boots prevent the RJ45 connector retention clips from catching on other cables, ports, or equipment during installation and removal. This design reduces the risk of damaged connectors and accidental disconnections, particularly in crowded patch panels and wiring conduits. The boots also provide strain relief to protect the cable termination points.
