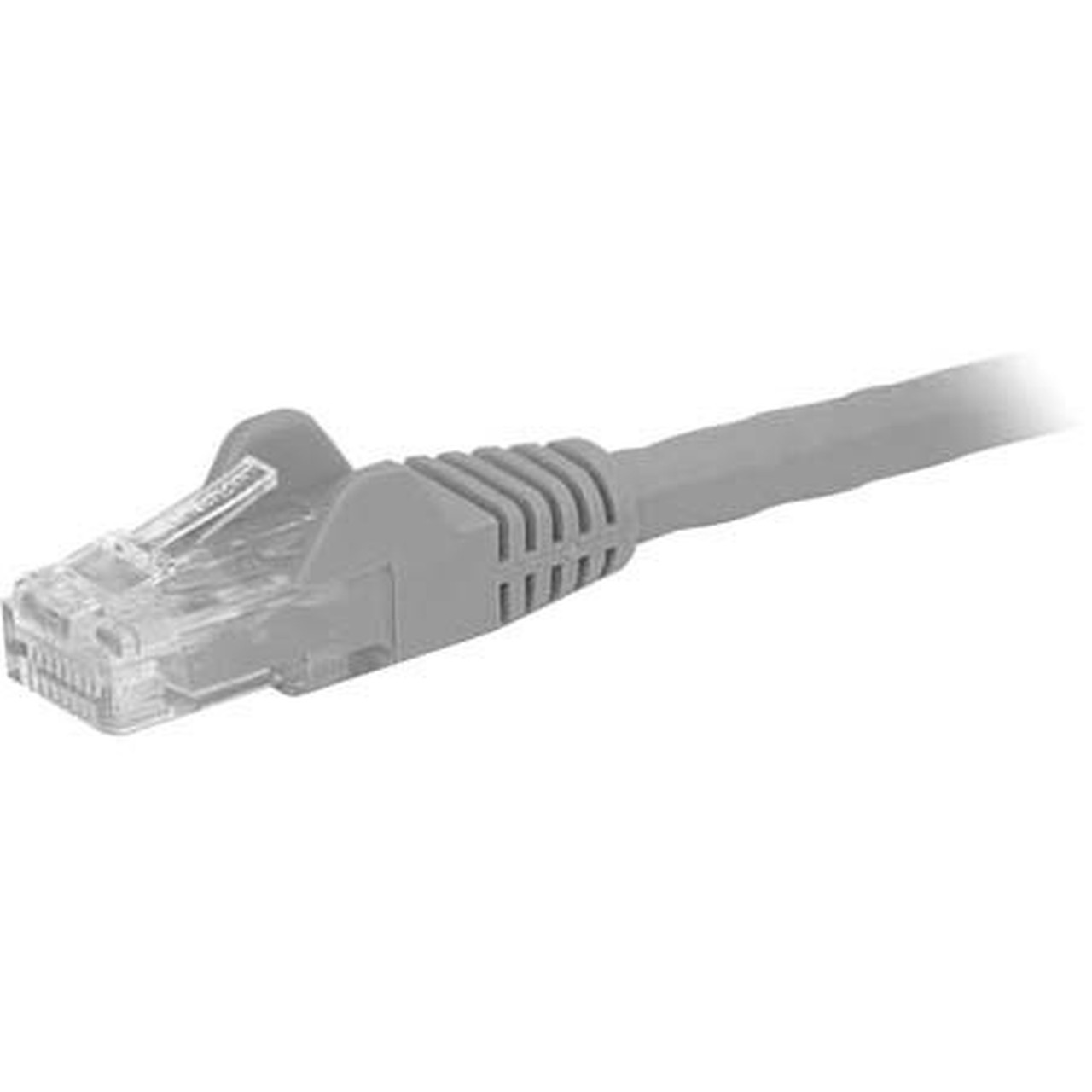

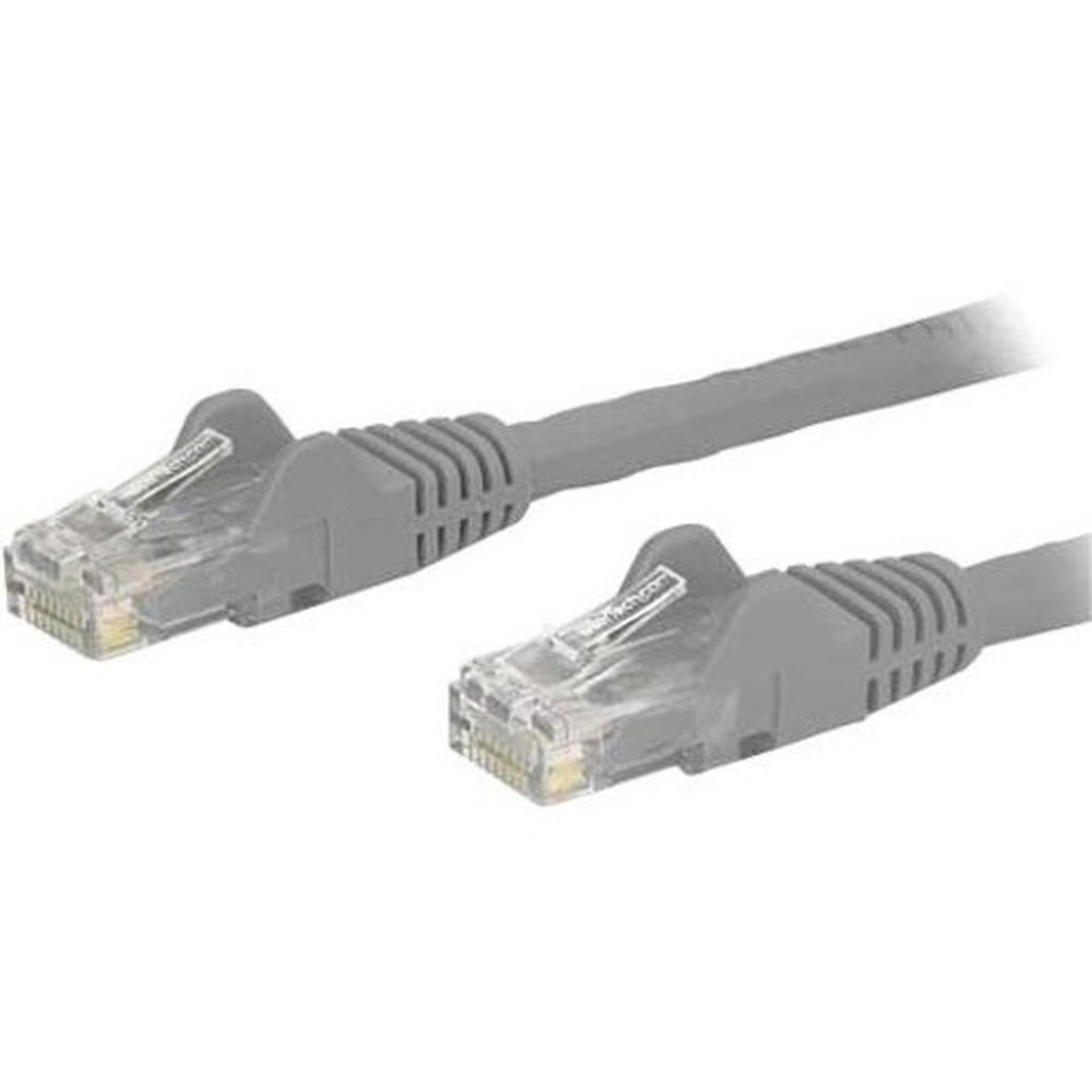

StarTech. com N6PATCH6INGR 6in Gray CAT6 Ethernet Patch Cable - Snagless RJ45 10Gbps 100W PoE UTP 650MHz
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Cat6 patch cable utilizes 100% copper wiring with a 24 AWG gauge, providing low resistance and efficient power delivery for PoE applications up to IEEE 802.3bt and DTE power compliance standards. The 50-micron gold-plated RJ45 connectors resist corrosion and maintain reliable electrical contact, while the molded strain relief boots protect the cable termination points from bending and fraying damage.
The UTP design with CMG-rated PVC jacket offers flexibility and durability in commercial installations. ETL verification and UL Rated Wiring (E132276-A) certification confirm the cable meets industry standards for performance and safety. The cable is backward compatible with Cat5e and earlier Ethernet standards, making it suitable for network upgrades and mixed-environment deployments.
Key Product Advantages
This patch cable combines high-performance networking with rugged construction for demanding IT environments. The snagless boot design allows easy insertion and removal in crowded patch panels without catching on adjacent ports, reducing installation time and preventing accidental disconnections.
PoE Ready
Supports up to 100W Power over Ethernet for devices like VoIP phones, wireless access points, and security cameras without separate power cables.
- IEEE 802.3bt compliant
- Reduced cable heating
- 24 AWG stranded copper
Durable Construction
Features a high-quality PVC jacket that resists bending, fraying, and damage, with corrosion-resistant gold-plated connectors for long-term reliability.
- Molded strain relief
- Rust resistant
- ETL & UL certified
Deployment / Use Cases
The short 6-inch length makes this cable ideal for connecting equipment in rack-mounted configurations, such as linking switches to patch panels, routers to modems, or servers to KVM switches. Its compact form factor minimizes cable clutter in server rooms, network closets, and data centers while maintaining full 10Gbps performance.
This patch cable is suitable for connecting workstations, hubs, wall outlets, distribution panels, and IP phones in office environments. The PoE capability allows it to power devices like VoIP phones and security cameras directly through the Ethernet connection, simplifying installations and reducing cable runs. The gray color provides neutral aesthetics that blend with most equipment and office decor.
Physical Profile
This lightweight patch cable weighs approximately 0.60 oz (17.01 g) and features a flexible PVC jacket that allows easy routing in confined spaces. The gray color provides clear identification in cable management systems, while the snagless molded boots offer protection without adding bulk. The cable's compact 6-inch length makes it perfect for short-run connections where excess cable would create clutter or impede airflow in equipment racks.
- Weight
- 0.60 oz (17.01 g)
- Length
- 6" (152.40 mm)
Highlights
- 6-inch gray Cat6 Ethernet patch cable with snagless RJ45 connectors
- Supports 10Gbps data transfer speeds and 100W Power over Ethernet (PoE)
- 24 AWG stranded copper conductors with UTP construction and 650MHz rating
- Gold-plated contacts resist corrosion for reliable network connections
- Molded boots provide strain relief and prevent snagging in tight spaces
- ETL verified and complies with ANSI/TIA-568-2.D Category 6 standards
- CMG-rated PVC jacket offers flexibility and durability
- Backward compatible with Cat5e and earlier Ethernet standards
- RoHS, WEEE, and REACH environmental compliance
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PATCH6INGR |
| Brand Name | StarTech.com |
| Product Name | Cat6 Patch Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 6" (152.40 mm) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Shielding | No |
| Jacket Type | CMG |
| Device Supported | Network Device,Workstation,Hub,Wall Outlet,Distribution Panel,IP Phone |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Features | Molded,Stranded,Strain Relief,Rust Resistant,Stress Resistant,Fray Resistant,Damage Resistant,Corrosion Resistant,PoE,Flexible |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Gray |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 0.60 oz (17.01 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the length of this Ethernet cable?
This StarTech.com patch cable measures 6 inches (152.40 mm) in length, making it ideal for short connections between adjacent equipment in racks, patch panels, or desktop setups where minimal cable management is desired.
Does this cable support Power over Ethernet (PoE)?
Yes, this Cat6 patch cable supports Power over Ethernet up to 100W, compliant with IEEE 802.3bt standards. The 24 AWG stranded copper conductors efficiently deliver power to PoE devices like VoIP phones, wireless access points, and security cameras while reducing cable heating.
What data transfer speeds does this cable support?
This cable supports data transfer rates up to 10 Gbps (10 Gigabit per second) and is backward compatible with Multi-Gigabit 1/2.5/5Gbps networks. The 650MHz rating and Category 6 compliance ensure reliable high-speed performance for demanding network applications.
Are the connectors on this cable snagless?
Yes, both RJ45 connectors feature snagless molded boots that prevent the cable from catching on adjacent ports in crowded patch panels. This design allows for easy insertion and removal while protecting the cable termination points from strain and damage.
What type of shielding does this Ethernet cable have?
This cable uses UTP (Unshielded Twisted Pair) construction without additional shielding. The twisted pair design provides sufficient noise rejection for most office and data center environments while maintaining flexibility and cost-effectiveness.
Is this cable certified or verified for performance?
Yes, this cable is ETL verified and complies with ANSI/TIA-568-2.D Category 6 standards. It also features UL Rated Wiring (E132276-A) certification and has been tested to ensure reliable performance in network installations.
