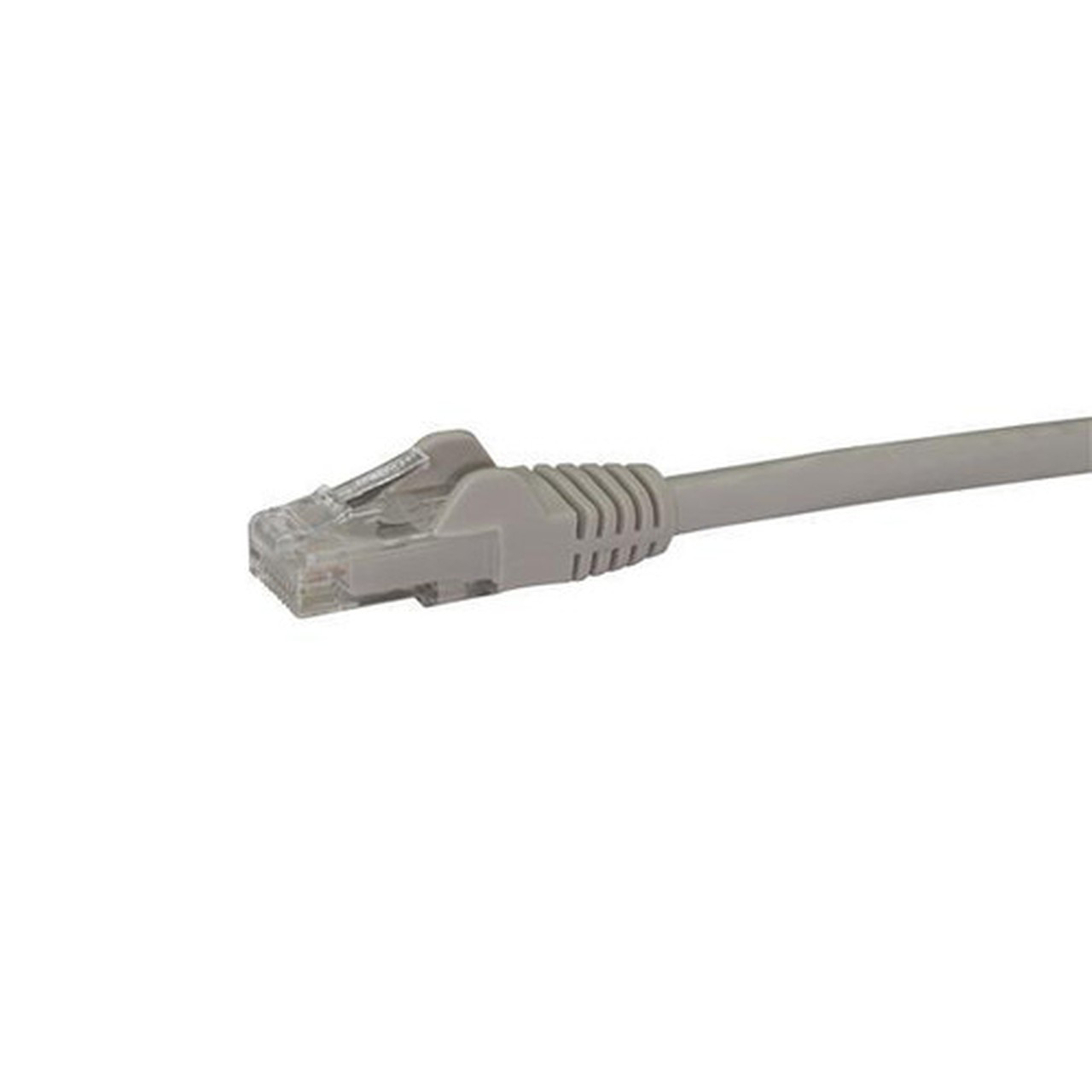

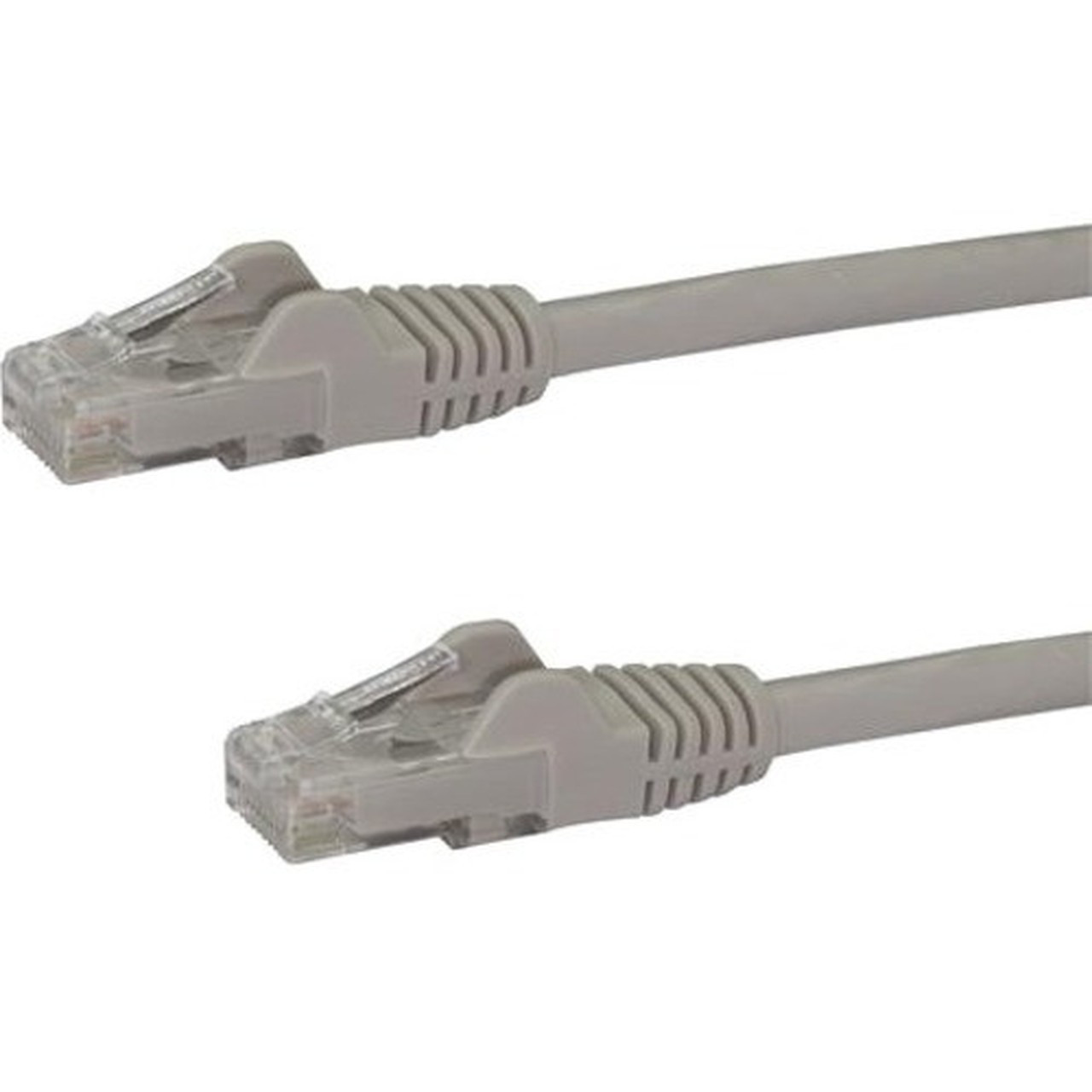

StarTech. com N6PATCH8GR Cat6 Ethernet Patch Cable - 8ft Gray Snagless RJ45 UTP 650MHz 10Gb/s 100W PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Cat6 patch cable utilizes unshielded twisted pair (UTP) construction with four pairs of 24 AWG solid copper conductors. The 50-micron gold-plated RJ45 connectors ensure optimal signal integrity and corrosion resistance, while the CMG-rated PVC jacket provides flexibility and durability in various installation environments. The cable is rated for 650 MHz bandwidth and supports 10GBASE-T Ethernet up to 160 feet, though this 8-foot length is optimized for patch panel and device connections.
Power over Ethernet compliance includes IEEE 802.3bt (PoE++) and DTE power standards, delivering up to 100W for connected devices such as VoIP phones, wireless access points, and security cameras. The UL Rated Wiring (E132276-A) and stranded conductor design minimize cable heating during high-power PoE operation. Near End Crosstalk (NEXT) performance meets Category 6 requirements for reduced interference in dense network environments.
Key Product Advantages
This Cat6 patch cable combines high-performance networking with robust physical construction. The snagless molded boots prevent accidental disconnections and cable damage during routine maintenance, while the fray-resistant PVC jacket withstands repeated bending and environmental stress. Gold-plated contacts maintain reliable electrical connections over time, reducing network downtime and maintenance costs.
PoE Ready Design
Supports IEEE 802.3bt PoE++ for up to 100W power delivery to connected devices, with UL-rated wiring that minimizes heat generation during continuous operation.
- IEEE 802.3bt compliant
- UL Rated Wiring (E132276-A)
- Reduced cable heating
Durable Construction
Built with 24 AWG stranded copper conductors and a high-quality PVC jacket that resists bending, fraying, rust, and corrosion for long-term reliability.
- Stranded copper conductors
- Corrosion-resistant materials
- Molded strain relief
Deployment / Use Cases
This 8-foot Cat6 patch cable is ideal for connecting network devices in office, data center, and commercial environments. Its length makes it suitable for patch panel to switch connections, workstation to wall outlet links, and device-to-device networking in rack-mounted equipment. The snagless design is particularly valuable in high-density installations where cable management and quick reconfiguration are priorities.
Common applications include connecting VoIP phones, IP cameras, wireless access points, desktop computers, notebooks, docking stations, and network switches. The cable's PoE support enables single-cable solutions for power and data delivery to compatible devices, simplifying installation and reducing clutter. Compatibility with Cat5e and earlier standards ensures seamless integration into existing network infrastructure during upgrades or expansions.
Physical Profile
This gray patch cable features a uniform Polyvinyl Chloride (PVC) jacket with CMG rating for general purpose use. The cable weighs approximately 3.60 ounces (102.06 grams) and maintains flexibility for routing through cable management systems. The molded boots provide strain relief at both connector ends, protecting the cable termination points from damage during installation and removal.
- Weight
- 3.60 oz (102.06 g)
- Length
- 8 ft (2.44 m)
Highlights
- 8-foot Category 6 Ethernet patch cable with RJ45 connectors
- Supports 10 Gb/s data transfer rates and 650 MHz bandwidth
- 100W PoE++ compliant for powering connected devices
- 24 AWG stranded copper conductors with gold-plated contacts
- Snagless molded boots prevent accidental disconnections
- UTP construction with CMG-rated PVC jacket
- Compatible with Cat5e and earlier network standards
- ETL verified and meets ANSI/TIA-568-2.D specifications
- RoHS, WEEE, and REACH environmental compliance
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PATCH8GR |
| Brand Name | StarTech.com |
| Product Name | Cat6 Patch Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 8 ft (2.44 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Shielding | No |
| Jacket Type | CMG |
| Device Supported | Network Device,Workstation,Hub,Notebook,Docking Station,Desktop Computer,IP Phone,Distribution Panel,Wall Outlet |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Features | Molded,Stranded,Strain Relief,Fray Resistant,Rust Resistant,Corrosion Resistant,Damage Resistant,Bend Resistant,Stress Resistant,PoE++,PoE,Snag Resistant,Break Resistant,Near End Cross Talk (NEXT),Heat Resistant |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Gray |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 3.60 oz (102.06 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer speed supported by this Cat6 cable?
This Cat6 patch cable supports data transfer rates up to 10 Gbit/s (10GBASE-T) over distances up to 160 feet, though this specific 8-foot length is optimized for patch panel and device connections. It also supports Multi-Gigabit Ethernet at 1, 2.5, and 5 Gbps speeds, providing flexibility for various network equipment and future upgrades.
Does this Ethernet cable support Power over Ethernet (PoE)?
Yes, this cable supports Power over Ethernet up to 100W, compliant with IEEE 802.3bt (PoE++) standards. The 24 AWG stranded copper conductors and UL Rated Wiring (E132276-A) are designed to handle high-power PoE applications while minimizing cable heating. This makes it suitable for powering devices like VoIP phones, wireless access points, and security cameras through a single cable connection.
What type of connectors does this patch cable use?
This cable features standard RJ45 connectors on both ends, both male connectors with 50-micron gold plating for optimal conductivity and corrosion resistance. The connectors have snagless molded boots that prevent accidental disconnection and provide strain relief. The uniform RJ45-to-RJ45 configuration makes it compatible with most network equipment, switches, routers, and network interface cards.
Is this cable shielded or unshielded?
This is an unshielded twisted pair (UTP) cable, meaning it does not have additional foil or braid shielding around the wire pairs. The UTP design is suitable for most office and commercial environments where electromagnetic interference is minimal. The cable meets Category 6 specifications for crosstalk performance without requiring shielding, making it easier to install and terminate than shielded alternatives.
What devices are compatible with this Ethernet cable?
This Cat6 patch cable is compatible with network devices, workstations, hubs, notebooks, docking stations, desktop computers, IP phones, distribution panels, and wall outlets. It works with any equipment featuring standard RJ45 ports and supports Ethernet standards from 10/100/1000BASE-T to 10GBASE-T. The cable is also backward compatible with Cat5e and earlier Category cables for seamless integration into existing networks.
What warranty comes with this Ethernet cable?
StarTech.com provides a lifetime warranty for this Cat6 patch cable, covering defects in materials and workmanship for the product's usable life. The cable is ETL verified and meets ANSI/TIA-568-2.D Category 6 specifications, ensuring reliable performance. Environmental compliance includes RoHS, WEEE, and REACH standards, reflecting the product's quality construction and manufacturing standards.
