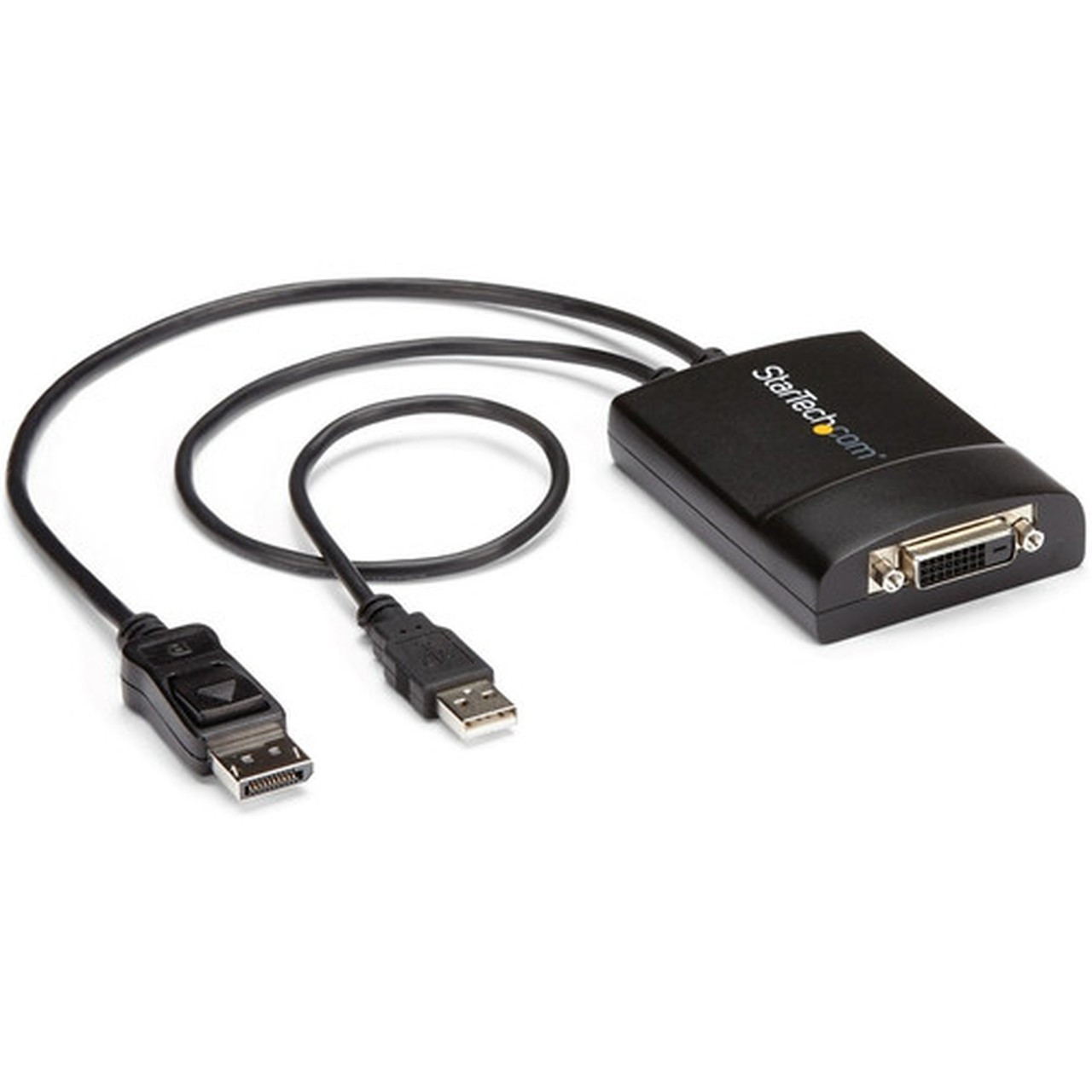

StarTech.com DisplayPort to DVI Dual Link Active Adapter, DisplayPort to DVI-D Adapter/Video Converter 2560x1600 60Hz, DP to DVI - 1.2 (DP2DVID2)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connector Type on First End: DisplayPort Digital Audio/Video - Male,USB Type A - Male
Connector on First End Details: 1 x 20-pin DisplayPort Digital Audio/Video - Male,1 x 4-pin USB Type A - Male
Connector Type on Second End: DVI-D (Dual-Link) Digital Video - Female
Connector on Second End Details: 1 x 19-pin DVI-D (Dual-Link) Digital Video - Female
Connector Plating: Nickel
Contact Plating: Gold
Features: Active,HDCP,Extended Display Identification Data (EDID),Screw Lock
Color Family: Black
Product Color: Black
Height: 0.90" (22.86 mm)
Width: 2.50" (63.50 mm)
Weight (Approximate): 5.60 oz (158.76 g)
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D dual-link adapter connects a DVI display supporting 2560x1600 60Hz (dual-link) or 1920x1200/1080p 120Hz (single-link); HDCP compliant;
15" (37cm) attached cable
USB-Powered
EDID pass-through - COMPATIBILITY: Active video converter supports DP (single mode) or DP++ (multi-mode) source including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation
Compact design
Tested w/ DVI cables up to 25ft
Supports widescreen/ultrawide & Apple Cinema Display HD
Ideal for digital signage - LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching nickel-plated DP connector with gold-plated contacts ensure a solid host connection
Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection
18" (46cm) USB cable - EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS; DisplayPort male to DVI female adapter dongle
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP2DVID2 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | DisplayPort to DVI Adapter |
| Packaged Quantity | 1 Each |
| Product Type | Video Adapter |
| Technical Information | |
| Connector Type on First End | DisplayPort Digital Audio/Video - Male,USB Type A - Male |
| Connector on First End Details | 1 x 20-pin DisplayPort Digital Audio/Video - Male,1 x 4-pin USB Type A - Male |
| Connector Type on Second End | DVI-D (Dual-Link) Digital Video - Female |
| Connector on Second End Details | 1 x 19-pin DVI-D (Dual-Link) Digital Video - Female |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Features | Active,HDCP,Extended Display Identification Data (EDID),Screw Lock |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 0.90" (22.86 mm) |
| Width | 2.50" (63.50 mm) |
| Weight (Approximate) | 5.60 oz (158.76 g) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf2
Additional-pdf1
[/custom-user-manual]
