StarTech. com DVIVGAMFBK DVI to VGA Cable Adapter - Black - 6ft - DVI-I Male to VGA Female
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

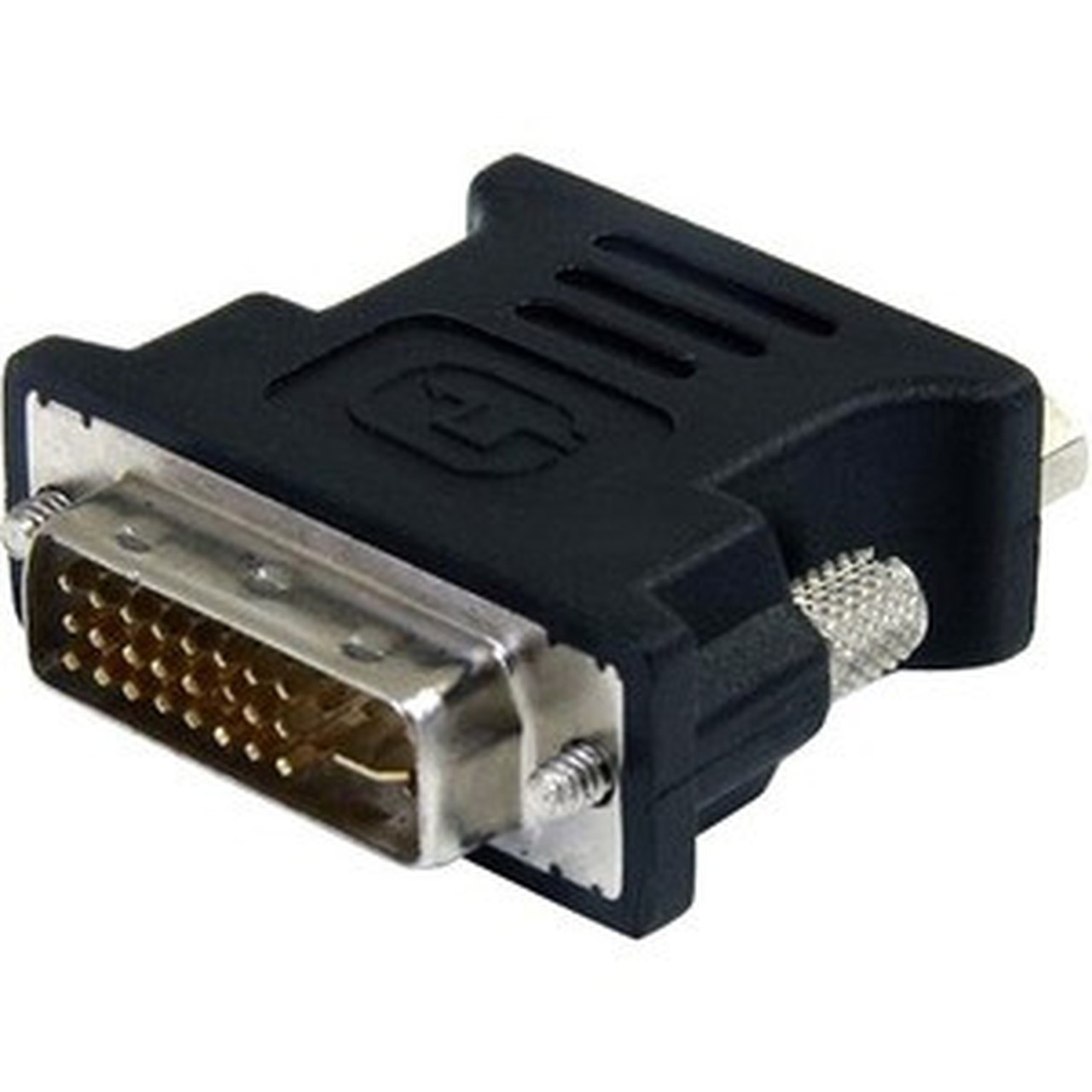

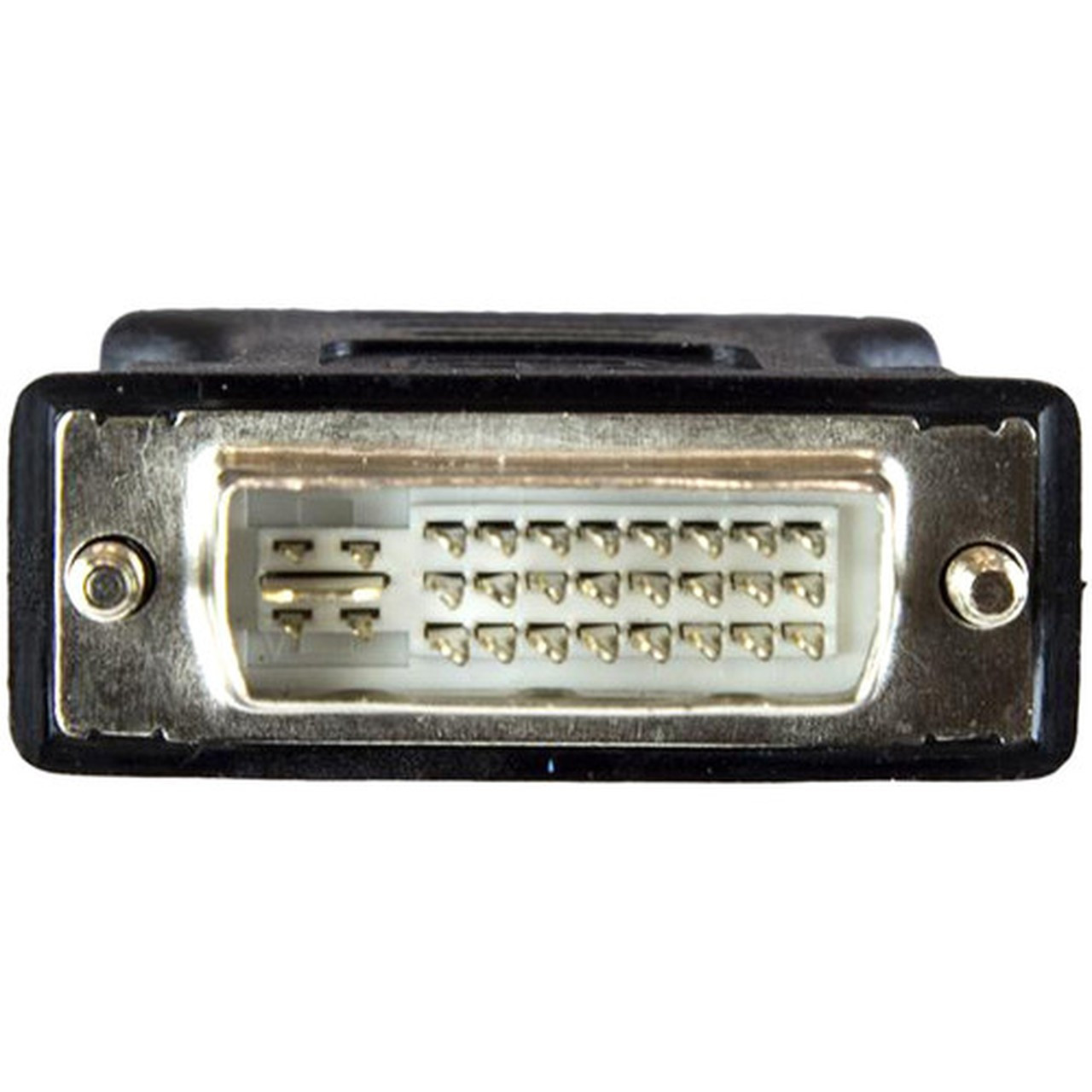

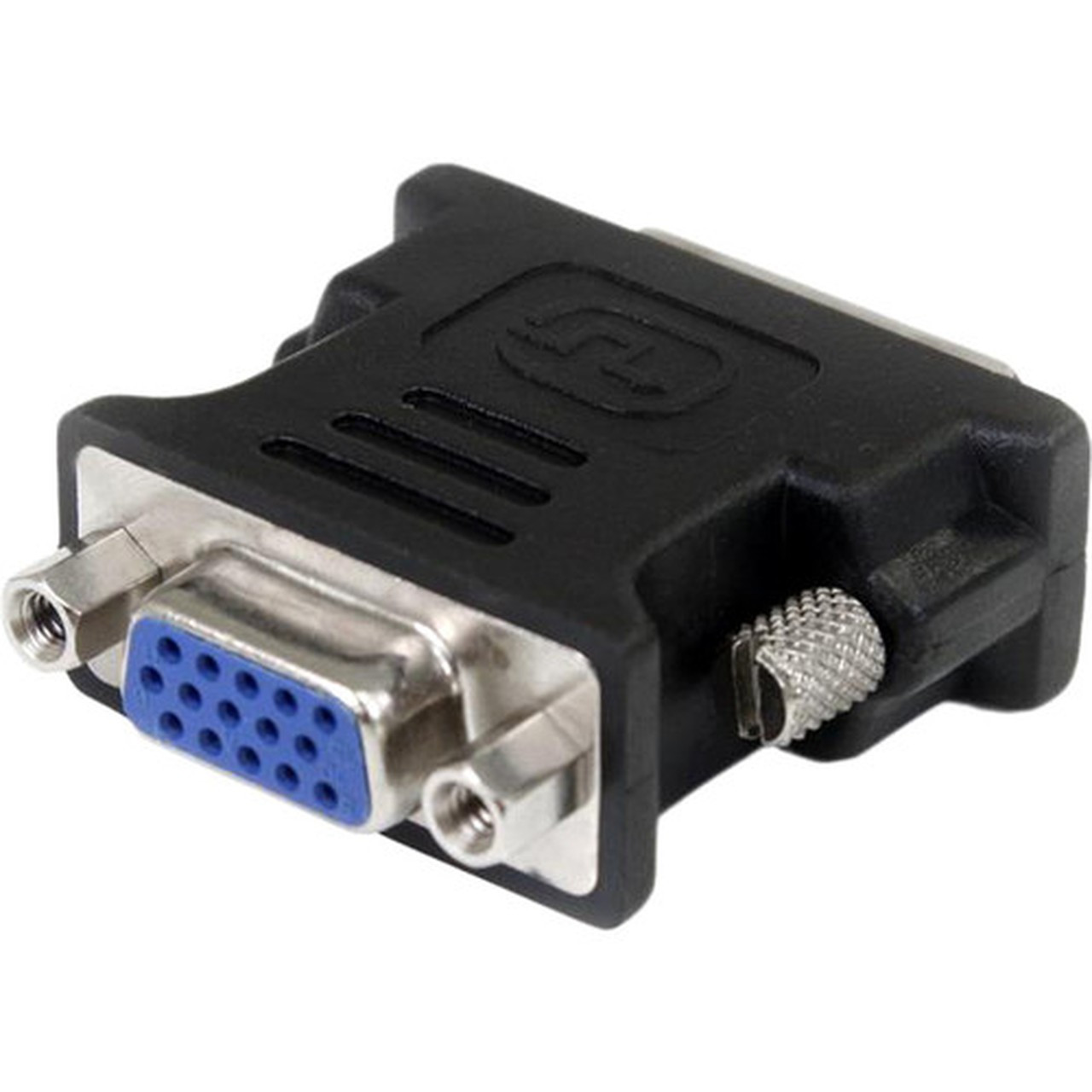

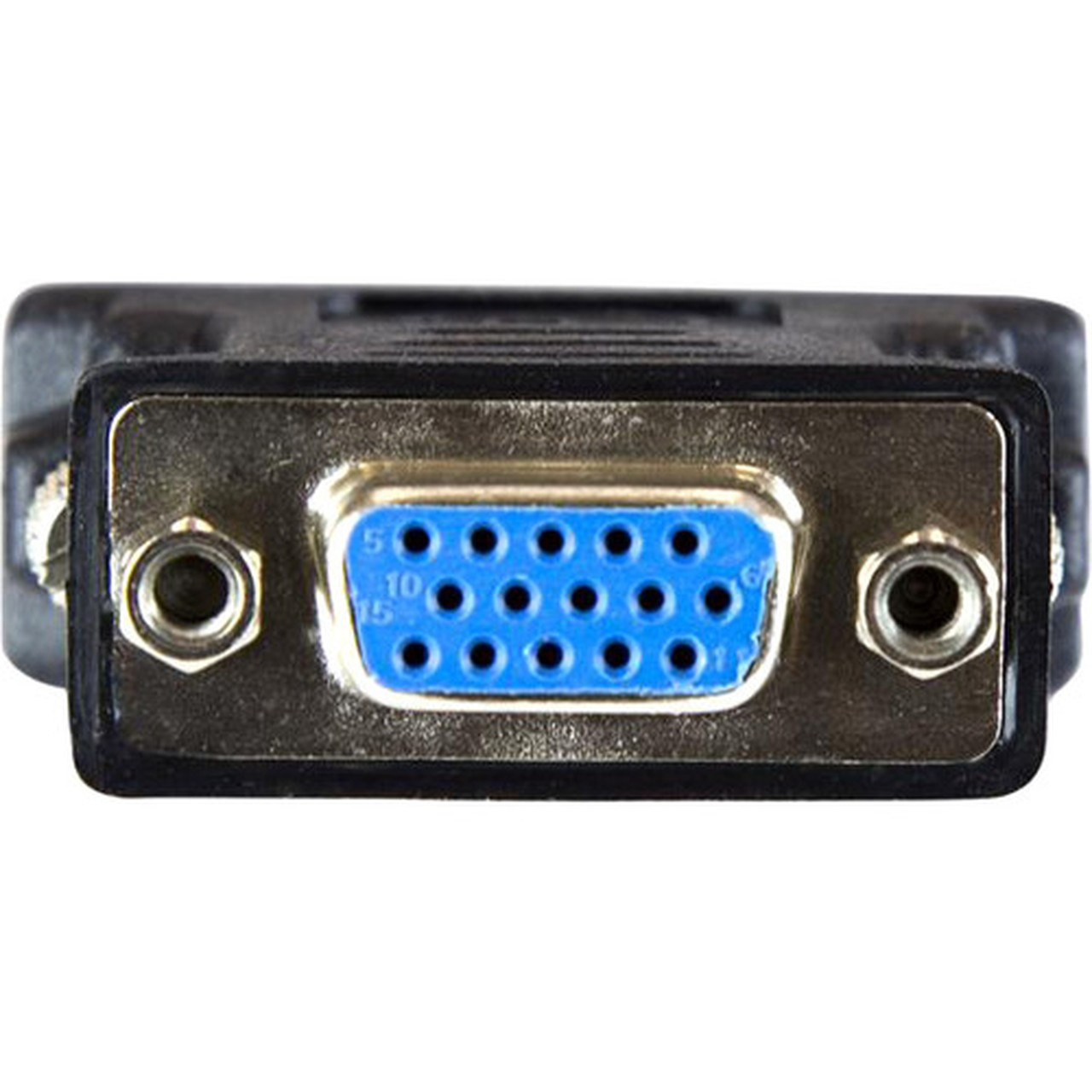

This DVI to VGA adapter converts DVI-I (Dual-Link) digital video signals to analog VGA output, specifically designed for DVI-I sources that carry both digital and analog signals. The adapter utilizes a 29-pin DVI-I male connector on the source end and a standard 15-pin HD-15 VGA female connector on the display end, providing a direct physical and electrical conversion between these two common video interfaces.
The adapter requires no additional drivers, software, or configuration settings, offering plug-and-play functionality that works immediately upon connection. This simplicity makes it accessible for users of all technical levels while ensuring reliable video transmission for everyday computing tasks, presentations, and general display applications.
This section brings together practical product details such as Adapter Type, Connector Type on First End, Connector on First End Details, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This adapter delivers immediate value through its straightforward design and reliable performance characteristics. The molded construction with integrated thumbscrews provides durable physical protection while ensuring connections remain secure during regular use, reducing the risk of signal interruption or connector damage.
Compatibility Assurance
Specifically engineered for DVI-I sources, this adapter correctly handles the analog component of DVI-I signals that many basic DVI-D adapters cannot process, ensuring compatibility with a wider range of graphics cards and integrated video outputs.
- Works with DVI-I sources only
- Converts analog signal component
- Not compatible with DVI-D only sources
Installation Simplicity
The adapter requires no technical configuration or software installation, making it immediately functional upon connection. The screw-lock mechanism provides tactile feedback when properly secured, giving users confidence in their setup without requiring specialized knowledge.
- No drivers required
- No software configuration
- Thumbscrew security feedback
Deployment / Use Cases
This DVI to VGA adapter serves as an essential connectivity tool in environments where display equipment spans multiple generations. It enables organizations to extend the useful life of existing VGA monitors and projectors by connecting them to newer computers and workstations equipped with DVI-I outputs, providing a cost-effective alternative to complete display replacement.
Common deployment scenarios include corporate offices maintaining legacy presentation equipment, educational institutions with mixed-vintage computer labs, and home offices where users need to connect older secondary monitors to modern primary systems. The adapter also proves valuable in retail POS systems, industrial control rooms, and healthcare settings where specific display equipment must remain in service despite upstream hardware upgrades.
Legacy Display Integration
Connect older VGA monitors, projectors, or large-format displays to modern computers with DVI-I outputs, preserving existing display investments while upgrading computing hardware.
Multi-Monitor Setups
Add secondary VGA displays to systems with limited video outputs by utilizing the DVI-I port alongside other video interfaces, expanding workspace without requiring matching display technologies.
Physical Profile
The adapter features a compact design with dimensions of 1.60" × 1.60" × 0.60" (40.64 mm × 40.64 mm × 15.24 mm) at the connector interface, maintaining a low profile that minimizes desk clutter and fits comfortably behind computers or within cable management systems. The black PVC construction provides durability while blending discreetly with most office and home environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.60" (15.24 mm), 1.60" (40.64 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 1.60" (40.64 mm)
- Height
- 0.60" (15.24 mm)
- Length
- 1.60" (40.64 mm)
Highlights
- Converts DVI-I signals to VGA for legacy display connectivity
- Molded connectors with thumbscrews for secure attachment
- 6-foot cable length provides flexible placement options
- Plug-and-play operation requires no software or drivers
- Black PVC construction for durability and discreet appearance
- Specifically designed for DVI-I sources with analog signals
- Lifetime warranty for long-term reliability assurance
- EU RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DVIVGAMFBK |
| Brand Name | StarTech.com |
| Product Name | DVI to VGA Cable Adapter - Black - M/F |
| Packaged Quantity | 1 Each |
| Product Type | Video Adapter |
| Technical Information | |
| Adapter Type | DVI/VGA |
| Connector Type on First End | DVI-I (Dual-Link) Digital Video - Male |
| Connector on First End Details | 1 x 29-pin DVI-I (Dual-Link) Video Male |
| Connector Type on Second End | HD-15 - Female |
| Connector on Second End Details | 1 x 15-pin HD-15 VGA Female |
| Features | Molded,Screw Lock |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Polyvinyl Chloride (PVC) |
| Height | 0.60" (15.24 mm) |
| Width | 1.60" (40.64 mm) |
| Length | 1.60" (40.64 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of DVI source does this adapter work with?
This adapter is specifically designed for DVI-I (Dual-Link) sources that include both digital and analog signal components. It will not work with DVI-D only sources, as those lack the analog pins necessary for VGA conversion. The adapter utilizes the 29-pin DVI-I connector to extract the analog signal for conversion to VGA output.
Does this adapter require any software or drivers to work?
No, this is a completely passive adapter that requires no software, drivers, or configuration. It functions as a plug-and-play device that works immediately upon connection. The adapter performs a physical and electrical conversion between the DVI-I and VGA interfaces without requiring any operating system recognition or driver installation.
What is the cable length of this adapter?
The adapter features a 6-foot (approximately 1.8 meter) cable, providing sufficient length for flexible placement between computers and displays. This length accommodates typical desk configurations, allowing the display to be positioned at comfortable viewing distances while maintaining a clean cable management setup.
How secure are the connections with this adapter?
The adapter features molded connectors with integrated thumbscrews that provide secure mechanical attachment. The thumbscrews tighten against the corresponding connectors on both the source and display ends, preventing accidental disconnection and ensuring stable signal transmission even in environments with occasional cable movement or vibration.
What warranty comes with this DVI to VGA adapter?
StarTech.com provides a lifetime warranty for this adapter, offering long-term protection against manufacturing defects and material failures. This warranty reflects the product's durable construction and reliable performance, giving users confidence in their purchase for extended periods of regular use.
Is this adapter environmentally compliant?
Yes, this adapter is EU RoHS compliant and meets Restriction of Hazardous Substances standards. It also complies with REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) and WEEE (Waste Electrical and Electronic Equipment Directive) requirements, ensuring responsible material usage and end-of-life disposal considerations.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
What input or connectivity options are listed?
Connectivity options include DVI-I (Dual-Link) Digital Video - Male, helping the product integrate into common office or home setups.
