StarTech. com MPO8LCPL10M MTP/MPO to 8x LC Duplex Breakout Fiber Optic Cable - 10m (30ft) OM3 Multimode 50/125µm 40Gbps Plenum Rated
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

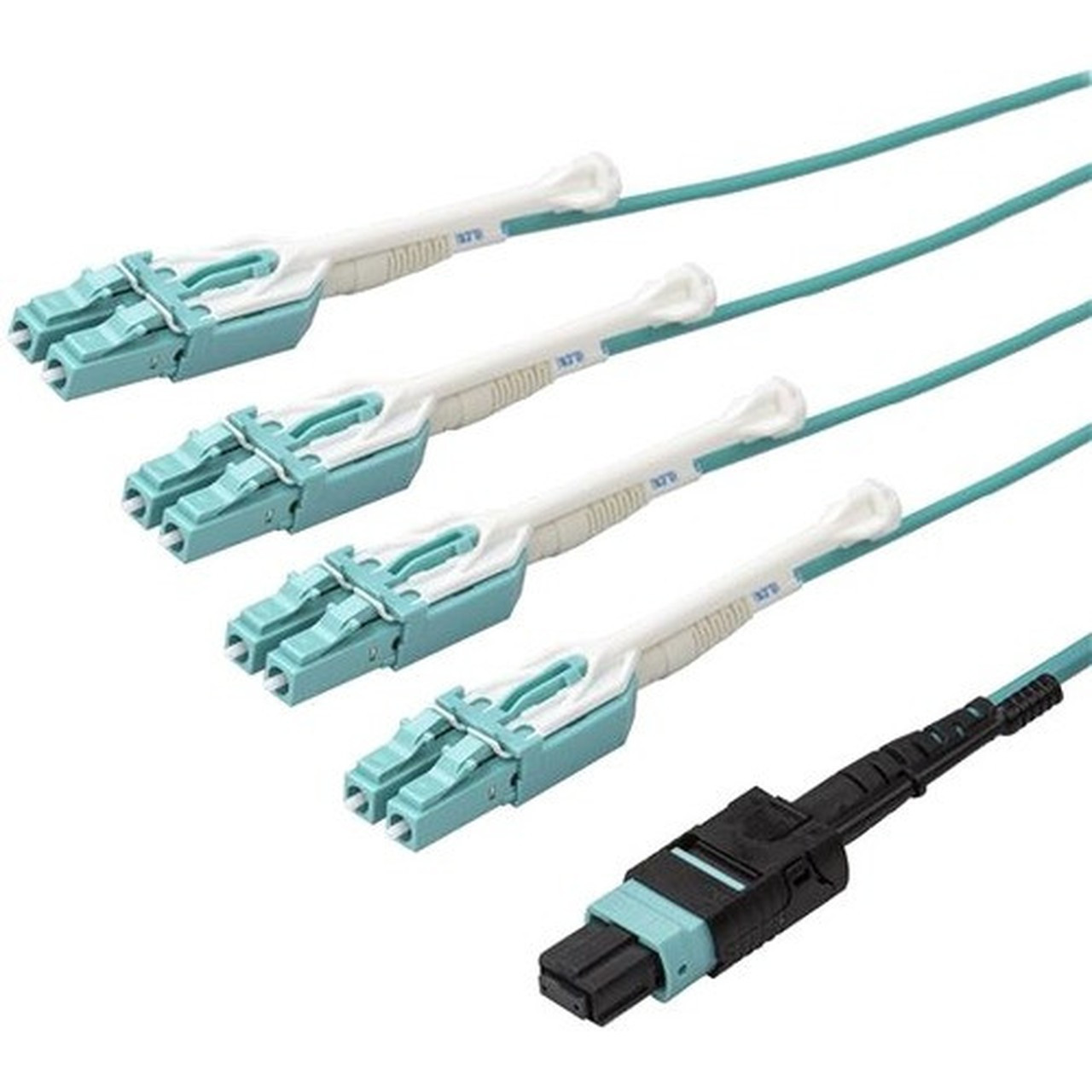

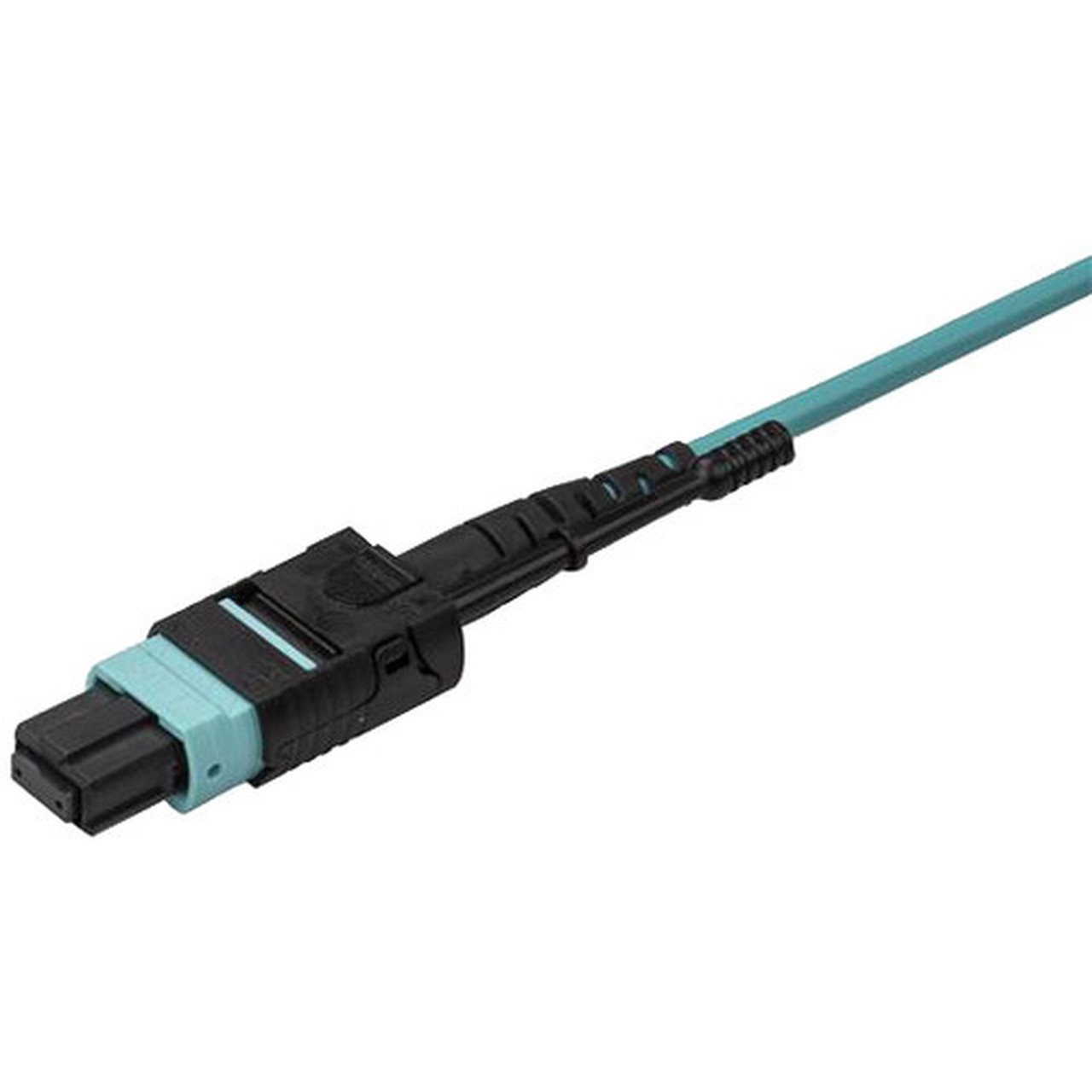

This breakout cable converts one MTP/MPO female connector to eight LC male connectors, effectively providing four duplex LC connections. The OM3 multimode fiber supports applications up to 40Gbps, with 50/125µm core/cladding specifications optimized for short to medium distance runs in data centers and enterprise networks.
Each cable includes a test report documenting insertion loss and return loss performance, ensuring optical performance meets specifications. The plenum-rated jacket complies with CMP and OFNP standards for reduced flame spread and low smoke generation in plenum spaces.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The breakout design eliminates the need for separate MTP-to-LC adapter modules, reducing points of failure and simplifying direct connections between MTP-equipped devices and LC-based equipment. The lifetime warranty provides long-term reliability assurance for critical network infrastructure.
High Port Density
Consolidates eight LC connections into one MTP/MPO interface, maximizing rack space efficiency in high-density network environments.
- Reduces cable clutter
- Simplifies patch panel management
Easy Installation

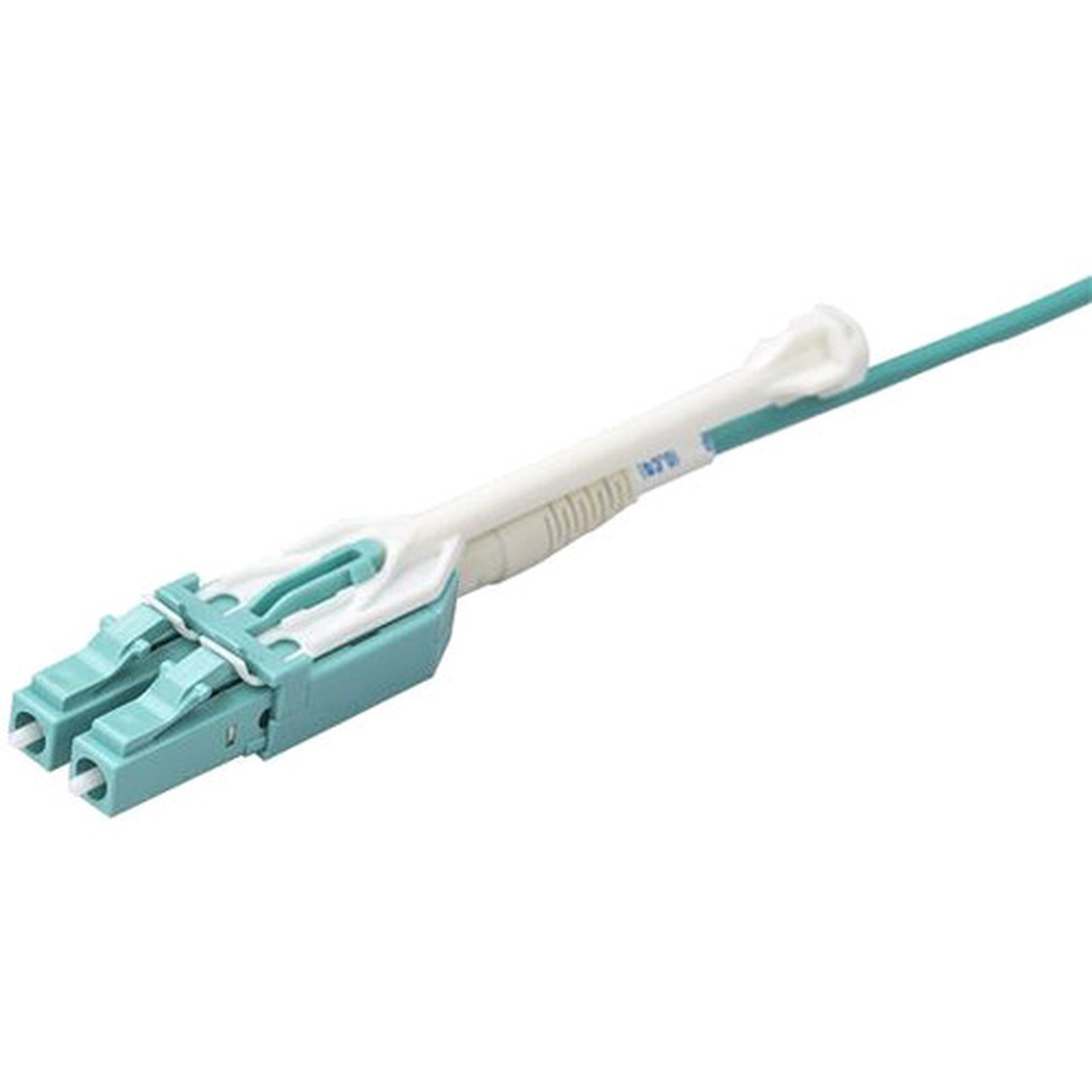

Push-pull tabs allow single-handed connector insertion and removal, while uniboot connectors minimize bulk for better cable routing.
- One-handed operation
- Slim profile design
Deployment / Use Cases
This cable is specifically designed for environments where MTP/MPO interfaces need to connect to multiple LC ports. Common applications include 40G Ethernet links, fiber channel storage networks, and high-speed data center interconnects where the breakout configuration provides direct connectivity without additional components.
The plenum rating makes it suitable for installation in raised floors, drop ceilings, and other air-handling spaces where standard riser-rated cables cannot be used. The aqua color provides immediate visual identification as OM3 multimode fiber, helping technicians quickly verify cable type during installations and troubleshooting.
Data Center Connectivity
Connect MTP/MPO backbone switches to LC-based servers, storage arrays, or network appliances in high-density server racks.
Network Infrastructure
Deploy between MTP/MPO patch panels and LC-based media converters, routers, or switches in enterprise network closets.
Physical Profile
The cable features a durable aqua-colored plenum-rated jacket that provides both protection and clear fiber type identification. At 10 meters (32.8 feet) in length, it offers flexibility for various rack-to-rack or equipment-to-patch-panel distances while maintaining signal integrity. The lightweight design at 3.70 ounces minimizes stress on connectors during installation and reduces overall cable bundle weight in dense installations.
- Weight
- 3.70 oz (104.89 g)
- Length
- 32.8 ft (10 m)
Highlights
- Converts one MTP/MPO female to eight LC male connectors for high-density connectivity
- OM3 multimode 50/125µm fiber supports 40Gbps data transfer rates
- 10-meter (30-foot) length provides flexibility for various installation scenarios
- Plenum-rated (CMP/OFNP) jacket for installation in air-handling spaces
- Push-pull tabs enable single-handed connector insertion and removal
- Uniboot connectors reduce bulk for improved cable management
- Includes insertion loss and return loss test report for performance verification
- Lifetime warranty ensures long-term reliability
- Aqua color coding identifies OM3 multimode fiber type
- RoHS, WEEE, and REACH compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MPO8LCPL10M |
| Brand Name | StarTech.com |
| Product Name | Fiber Optic Patch Duplex Network Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Cable Length | 32.8 ft (10 m) |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 8 x LC Network - Male |
| Jacket Type | Plenum,CMP,OFNP |
| Device Supported | Network Device,Patch Panel,Hub,Switch,Media Converter,Router |
| Data Transfer Rate | 40 Gbit/s |
| Features | Uniboot Connector,Push-Pull Tab |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Weight (Approximate) | 3.70 oz (104.89 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of fiber does this cable use?
This cable uses OM3 grade multimode fiber with 50/125µm core/cladding specifications. OM3 multimode fiber is optimized for 10Gbps and 40Gbps applications over short to medium distances, typically using 850nm wavelength optics. The aqua jacket color is standard for identifying OM3 multimode fiber in network installations.
What devices is this cable compatible with?
The cable connects devices with MTP/MPO female interfaces to equipment with LC ports. It's compatible with network devices, patch panels, hubs, switches, media converters, and routers that support these connector types. The breakout design specifically addresses scenarios where one MTP/MPO port needs to connect to multiple LC-based devices or ports.
What does plenum rated mean for installation?
Plenum rated indicates the cable jacket meets CMP (Communications Plenum) and OFNP (Optical Fiber Nonconductive Plenum) fire safety standards. This rating allows installation in air-handling spaces like raised floors, drop ceilings, and ventilation shafts where standard riser-rated cables are prohibited. Plenum cables have reduced flame spread and lower smoke generation characteristics.
How does the push-pull tab feature work?
The push-pull tabs are integrated into the connector design, allowing technicians to insert or remove connectors using just one hand. Instead of gripping the connector body directly, you push or pull the tab, which provides better leverage in tight spaces and reduces the risk of damaging adjacent cables. This is particularly valuable in high-density patch panels where access is limited.
What is included with the cable?
Each cable comes with a test report documenting insertion loss and return loss measurements, verifying optical performance meets specifications. The cable itself features the MTP/MPO to LC breakout configuration with push-pull tabs and uniboot connectors. Protective caps are typically included to keep connectors clean during shipping and storage before installation.
What applications support 40Gbps speeds with this cable?
This cable supports 40 Gigabit Ethernet (40GbE) applications, particularly QSFP+ transceiver connections using parallel optics. It's suitable for data center interconnects, high-performance computing clusters, storage area networks (SAN), and backbone links between network switches. The OM3 multimode fiber supports 40Gbps up to 100 meters with appropriate transceivers.
