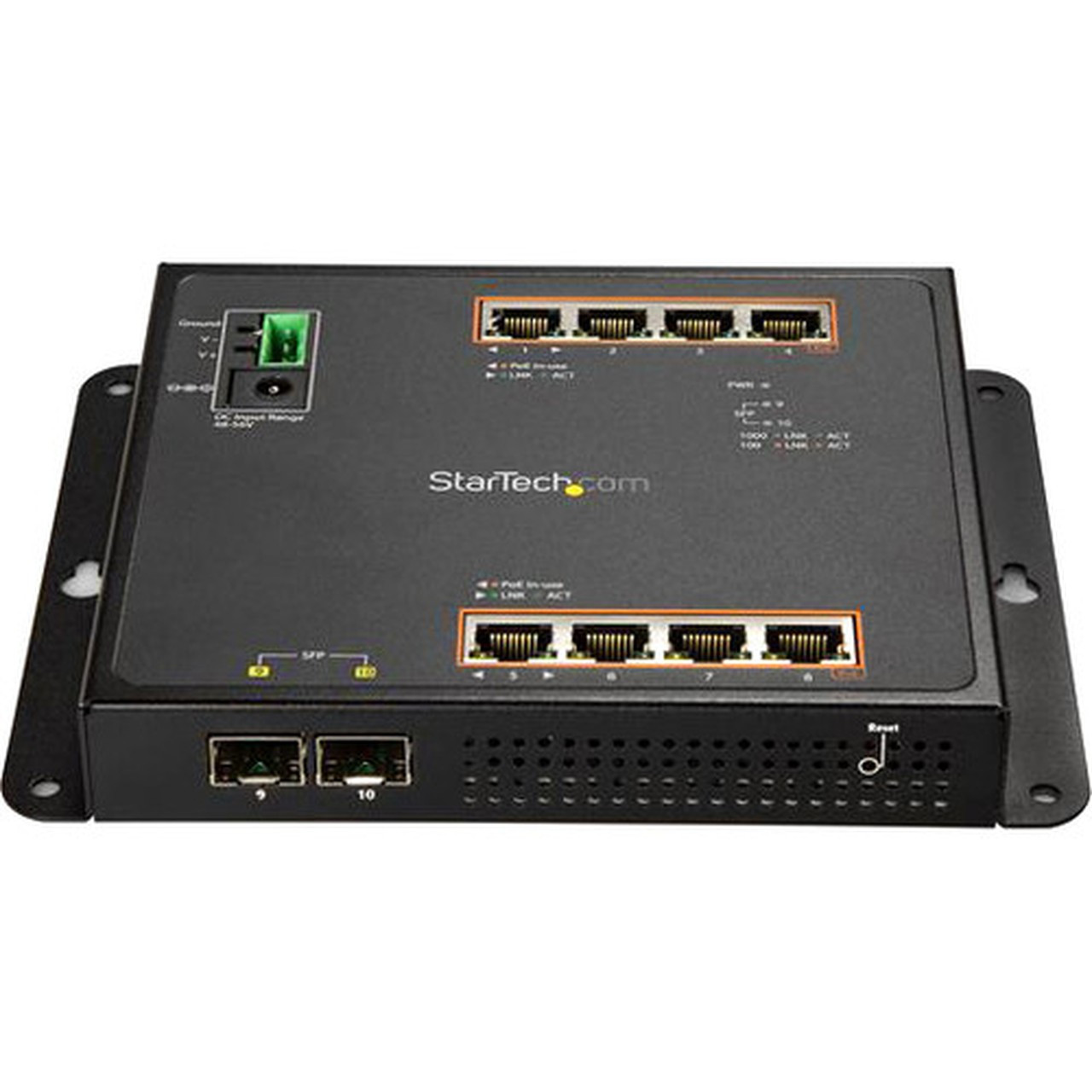

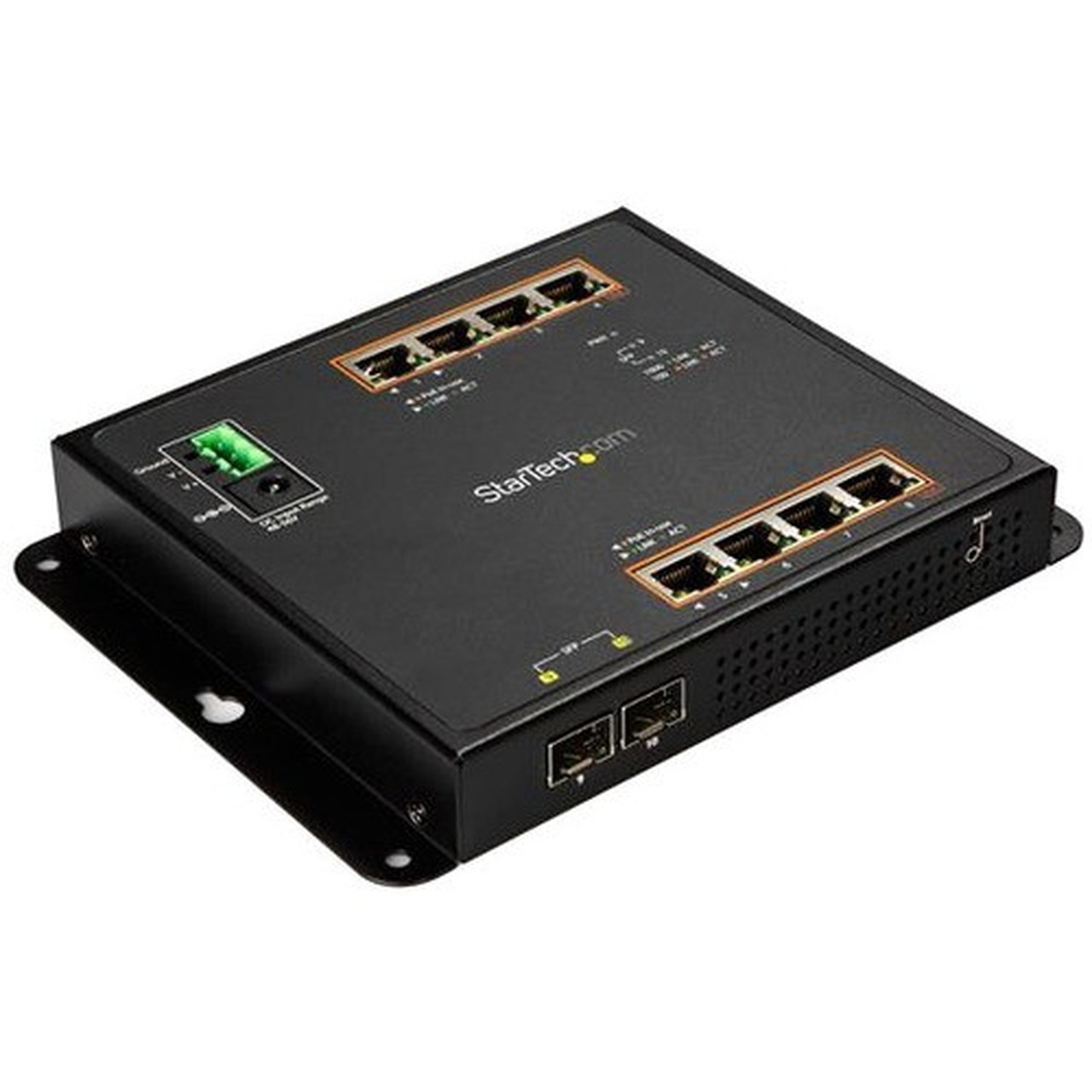

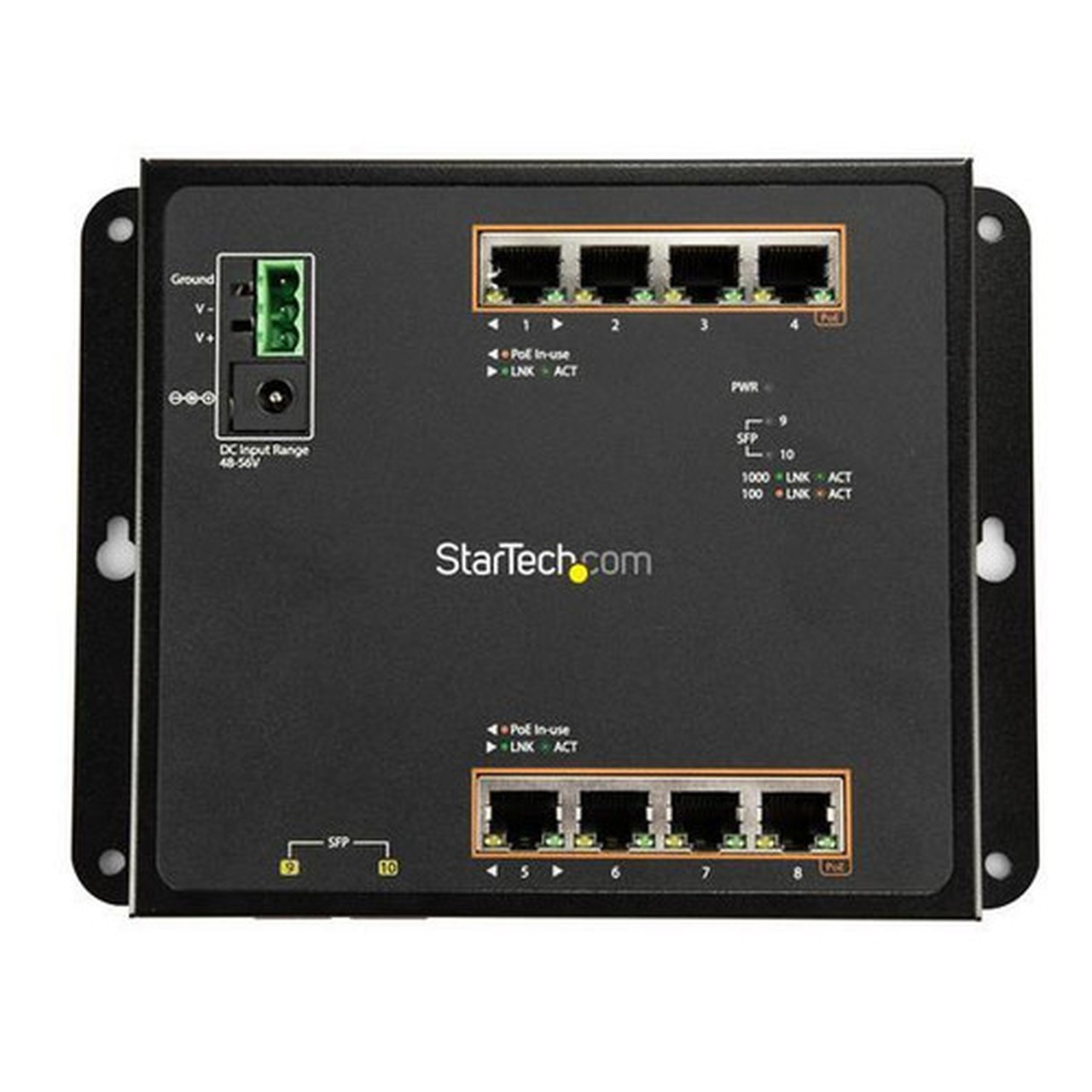

StarTech.com IES101GP2SFW Industrial 8-Port Gigabit PoE+ Managed Switch with 2 SFP Slots - Layer 2 - 30W per Port - 200W Budget
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This managed switch operates at Layer 2, supporting a comprehensive set of networking standards including IEEE 802.3ad for link aggregation, IEEE 802.1Q for VLANs, IEEE 802.1x for port-based authentication, and IEEE 802.1D/w/s for spanning tree protocols. It delivers Gigabit Ethernet speeds across all eight RJ-45 ports, with each PoE+ port capable of supplying up to 30W of power, compliant with IEEE 802.3af and 802.3at standards.
The switch features a total PoE budget of 200W, allowing simultaneous power delivery to multiple high-demand devices. Management is accessible through web-based GUI, Telnet, or SSH, enabling configuration of QoS, SNMP, port mirroring, and other advanced features. Redundant power inputs via a terminal block connector support 48-56VDC, enhancing reliability in critical applications.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch stands out with its industrial ruggedness and high-power PoE+ capabilities, offering a reliable solution for network deployments in challenging environments. Its compact design and versatile mounting options simplify installation in tight spaces, while the comprehensive management suite provides granular control over network traffic and security.
High-Power PoE+ Delivery
With 30W per port and a 200W total budget, this switch can power demanding PoE devices such as PTZ cameras, high-performance access points, and industrial sensors without external power supplies.
- IEEE 802.3af/at compliant
- Supports Cat5e or higher cables
Industrial Durability
The steel enclosure and IP-30 rating ensure protection against dust and low-pressure water jets, while vibration, shock, and free-fall ratings make it suitable for manufacturing floors, warehouses, or outdoor use.
- 6kV ESD protection
- Wide operating temperature range
Flexible Connectivity
Two open SFP slots support fiber optic modules for long-distance uplinks or high-bandwidth connections, complementing the eight copper Gigabit PoE+ ports for a hybrid network setup.
Deployment / Use Cases
The IES101GP2SFW is ideal for industrial automation, surveillance systems, and smart building applications where both data and power need to be delivered over Ethernet cabling. Its managed features allow for segmented network designs, prioritization of critical traffic, and enhanced security through VLANs and port authentication.
In retail or office environments, the switch can power VoIP phones, wireless access points, and security cameras while providing reliable Gigabit connectivity. The DIN rail mounting option makes it a fit for control panels or electrical cabinets, and the magnetic mount allows for temporary installations in vehicles or mobile units.
Surveillance and Security
Deploy this switch to power and connect multiple IP cameras, NVRs, and access control systems, using VLANs to isolate video traffic and QoS to ensure smooth streaming.
Industrial IoT Networks
Use in manufacturing or logistics to connect sensors, PLCs, and HMIs, with the rugged design withstands vibrations and temperature fluctuations common in industrial settings.
Physical Profile
The switch features a flat, compact steel enclosure measuring 5.30 inches in length, 7 inches in width, and 1 inch in height, with a weight of 1.36 pounds. This slim profile allows for easy integration into crowded racks, walls, or DIN rail systems. Front-access ports and LEDs facilitate troubleshooting and maintenance, while included RJ-45 and SFP dust caps protect unused ports from contaminants.
- Width
- 7" (177.80 mm)
- Height
- 1" (25.40 mm)
- Weight
- 1.36 lb (618.02 g)
- Length
- 5.30" (134.62 mm)
What's in the Box
The package includes all necessary hardware for flexible mounting and immediate deployment.
Highlights
- Industrial 8-port Gigabit PoE+ managed switch with 2 SFP uplink slots
- 30W per PoE+ port, 200W total budget for powering cameras, APs, and sensors
- Layer 2 managed with web GUI, Telnet, SSH for VLANs, QoS, link aggregation
- Rugged steel enclosure, IP-30 rated, vibration/shock resistant, 6kV ESD protection
- Flexible mounting: DIN rail, wall, or magnetic mount with included hardware
- Gigabit Ethernet speeds, supports twisted pair and optical fiber media
- Redundant 48-56VDC power input via terminal block for reliability
- Compliant with IEEE 802.3af/at, 802.1Q, 802.1x, and other networking standards
- Includes dust caps for all ports and comprehensive mounting accessories
- Backed by 2-year warranty and free lifetime technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IES101GP2SFW |
| Brand Name | StarTech.com |
| Product Name | 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections |
| Packaged Quantity | 1 Each |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-SX/LX |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3ad,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1x,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Physical Characteristics | |
| Product Material | Steel |
| Form Factor | Wall Mountable,Rail-mountable,Magnetic Mount |
| Height | 1" (25.40 mm) |
| Width | 7" (177.80 mm) |
| Length | 5.30" (134.62 mm) |
| Weight (Approximate) | 1.36 lb (618.02 g) |
| Miscellaneous | |
| Package Contents | 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections 1 x Terminal Block Connector 4 x Screw Anchors 4 x Screws 4 x Attaching Pins 4 x Locking Pins 4 x Washers 4 x Magnets 1 x DIN Rail 3 x DIN-rail Screws 8 x RJ45 Dust Caps 2 x SFP Dust Caps 1 x Quick-start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the total PoE budget of this switch, and how much power can each port deliver?
The StarTech.com IES101GP2SFW has a total PoE budget of 200W, with each of its eight PoE+ ports capable of delivering up to 30W of power. This allows the switch to simultaneously support multiple high-power devices like PTZ cameras, wireless access points, or industrial sensors without requiring separate power supplies, compliant with IEEE 802.3af and 802.3at standards.
How many SFP slots does this switch have, and what are they used for?
This switch includes two open SFP slots that support MSA-compliant fiber optic or copper SFP modules. These slots are used for uplink connections to extend network reach over longer distances, increase bandwidth with fiber links, or connect to other switches in a stack, providing flexibility beyond the eight built-in copper ports.
Is this switch manageable, and what management interfaces are supported?
Yes, this is a fully managed Layer 2 switch. It supports management through a web-based graphical user interface (GUI), Telnet, and SSH. These interfaces allow configuration of advanced features such as VLANs, link aggregation, Quality of Service (QoS), SNMP monitoring, and spanning tree protocols for network optimization and security.
What mounting options are available for this industrial switch?
The switch offers versatile mounting options including DIN rail, wall mount, and magnetic mount. All necessary hardware is included in the package, such as screw anchors, attaching pins, locking pins, washers, magnets, and a DIN rail with screws, making installation straightforward in industrial panels, walls, or mobile setups.
What environmental protections does this switch have for industrial use?
Designed for harsh environments, this switch features an IP-30 rating for protection against dust and low-pressure water, along with resistance to vibration, shock, and free fall. It also includes 6kV ESD protection to safeguard against electrostatic discharge, ensuring reliable operation in manufacturing, outdoor, or high-interference settings.
What is included in the warranty and support for this switch?
The StarTech.com IES101GP2SFW is backed by a 2-year limited warranty and includes free lifetime 24/5 multi-lingual technical assistance. This support ensures help is available for installation, configuration, or troubleshooting, providing peace of mind for IT professionals deploying the switch in critical applications.
