StarTech.com ST121SHD50 HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m) - 1080p Full HD - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This HDMI extender employs wired connectivity technology to maintain signal integrity over extended distances. It supports a maximum video resolution of 1920x1080 at 60Hz, delivering crisp Full HD content without compression artifacts. The system is designed for point-to-point extension, supporting one input device and one output device simultaneously through dedicated HDMI ports.

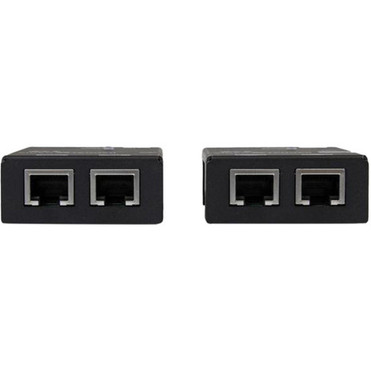

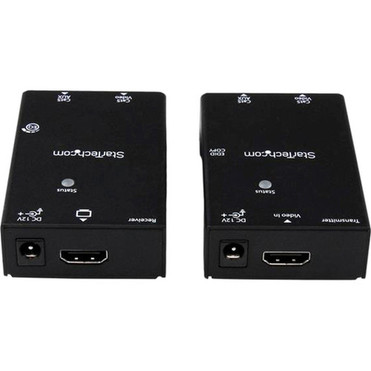

Four RJ-45 network ports on each unit facilitate the twisted-pair connection, with compatibility for both Cat5e and Cat6 cable standards. The extender handles standard HDMI signals including audio, making it suitable for extending content from media players, gaming consoles, computers, and set-top boxes to displays in remote locations.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Number of Output Devices Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ST121SHD50 distinguishes itself with practical features that address common installation challenges. The Power Over Cable technology eliminates the need for separate power supplies at both ends of the extension, reducing cost and complexity while improving reliability. This single-cable solution for both signal and power transmission minimizes points of failure and creates a cleaner installation.
Simplified Installation
No software or driver installation required. The plug-and-play design works immediately with compatible HDMI sources and displays, saving configuration time during deployment.
- Universal power adapter supports NA/EU/UK/AU outlets
- Includes mounting brackets and foot pads for flexible placement
- Clear instruction manual for straightforward setup
Professional-Grade Construction
Built for continuous operation in commercial environments with rack-mountable form factor and durable black housing. The compact design conserves space in equipment racks or behind displays.
- TAA compliant for government procurement
- RoHS, REACH, and WEEE environmental compliance
- Manufactured in Taiwan with quality components
Deployment / Use Cases
This HDMI extender is engineered for scenarios where display placement is constrained by distance limitations of standard HDMI cables. In corporate environments, it enables presentation systems in large conference rooms where the source equipment must remain secured at a central location while the display mounts on a distant wall. Educational institutions benefit from extending instructor workstation signals to multiple classroom displays without signal degradation.
Digital signage installations utilize these extenders to place media players in secure equipment rooms while transmitting content to displays in lobbies, retail spaces, or outdoor kiosks. Home theater enthusiasts can conceal AV components in cabinets or closets while delivering high-definition content to ceiling-mounted projectors or wall-mounted televisions across room boundaries. The 165-foot reach accommodates most residential and commercial floor plans while maintaining Full HD quality.
Conference Room Solutions
Extend laptop or media player signals to wall-mounted displays in large meeting spaces while keeping source equipment at the presentation podium for easy access.
Digital Signage Distribution
Centralize media players in secure equipment racks while distributing content to multiple displays throughout facilities using existing Cat5e/6 infrastructure.
What's in the Box
This complete kit includes everything needed for immediate deployment of the HDMI extension system.
Highlights
- Extends HDMI signals up to 165 feet (50 meters) over Cat5e or Cat6 cable
- Power Over Cable technology powers both units through a single Ethernet cable
- Supports 1080p Full HD resolution (1920x1080) with no compression
- Plug-and-play operation requires no software or drivers

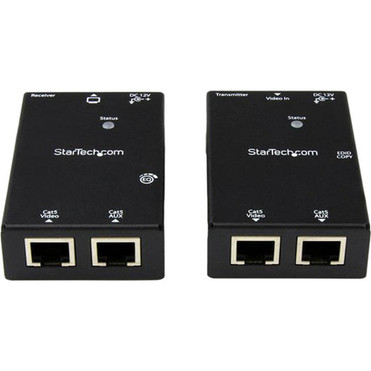

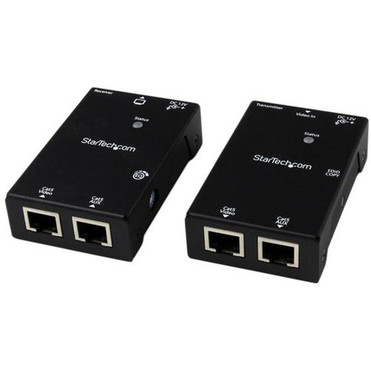

- Includes both transmitter (local) and receiver (remote) units
- Rack-mountable design with included mounting brackets
- Universal power adapter supports North American, European, UK, and Australian outlets
- TAA compliant for government procurement requirements
- RoHS, REACH, and WEEE environmental compliance
- 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST121SHD50 |
| Brand Name | StarTech.com |
| Product Name | HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m) |
| Packaged Quantity | 1 Kit |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 164.04 ft (50000 mm) |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 0.80" (20.32 mm) |
| Transmitter Width | 2" (50.80 mm) |
| Transmitter Depth | 3.10" (78.74 mm) |
| Receiver Height | 0.80" (20.32 mm) |
| Receiver Width | 2" (50.80 mm) |
| Receiver Depth | 3.10" (78.74 mm) |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 11.08 oz (314 g) |
| Receiver Weight (Approximate) | 11.08 oz (314 g) |
| Miscellaneous | |
| Package Contents | 1 x HDMI over CAT5e/6 UTP Transmitter 1 x HDMI over CAT5e/6 UTP Receiver 1 x Universal Power Adapter (NA / EU / UK / AU) 2 x Mounting Brackets 2 x Foot Pad Set 1 x Instruction Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum distance this HDMI extender can transmit signals?
The ST121SHD50 extends HDMI signals up to 164.04 feet (50 meters) when using quality Cat5e or Cat6 Ethernet cable. This distance accommodates most commercial and residential installation scenarios, allowing source equipment placement in secure locations while displaying content on remotely mounted screens.
Does this extender support 4K or higher resolutions?
No, this extender is designed for Full HD (1080p) content with a maximum resolution of 1920x1080. It maintains signal integrity for standard high-definition video and audio, making it suitable for extending content from most media players, computers, and set-top boxes that output 1080p signals.
What does 'Power Over Cable' mean for installation?
Power Over Cable allows both the transmitter and receiver units to receive power through the same Ethernet cable from a single universal power adapter. This eliminates the need for separate power supplies at each end of the extension, reducing cable clutter, installation complexity, and potential points of failure in the system.
Can I use existing Cat5e network cables for this extender?
Yes, the extender is compatible with both Cat5e and Cat6 twisted-pair Ethernet cables. You can utilize existing structured cabling infrastructure, though for optimal performance over the full 165-foot distance, we recommend using solid-core cable rated for the length of your installation rather than patch cables.
What mounting options are included with this kit?
The kit includes two mounting brackets for rack installation in standard 19-inch equipment racks, plus two sets of foot pads for tabletop placement. This flexibility allows installation in professional AV racks, on shelves, or behind displays depending on your space requirements and deployment scenario.
Is this HDMI extender compatible with audio signals?
Yes, the extender transmits both video and audio signals embedded in the HDMI stream. It supports standard HDMI audio formats, allowing you to extend content with synchronized sound to remote displays with built-in speakers or connected audio systems without requiring separate audio cabling.
