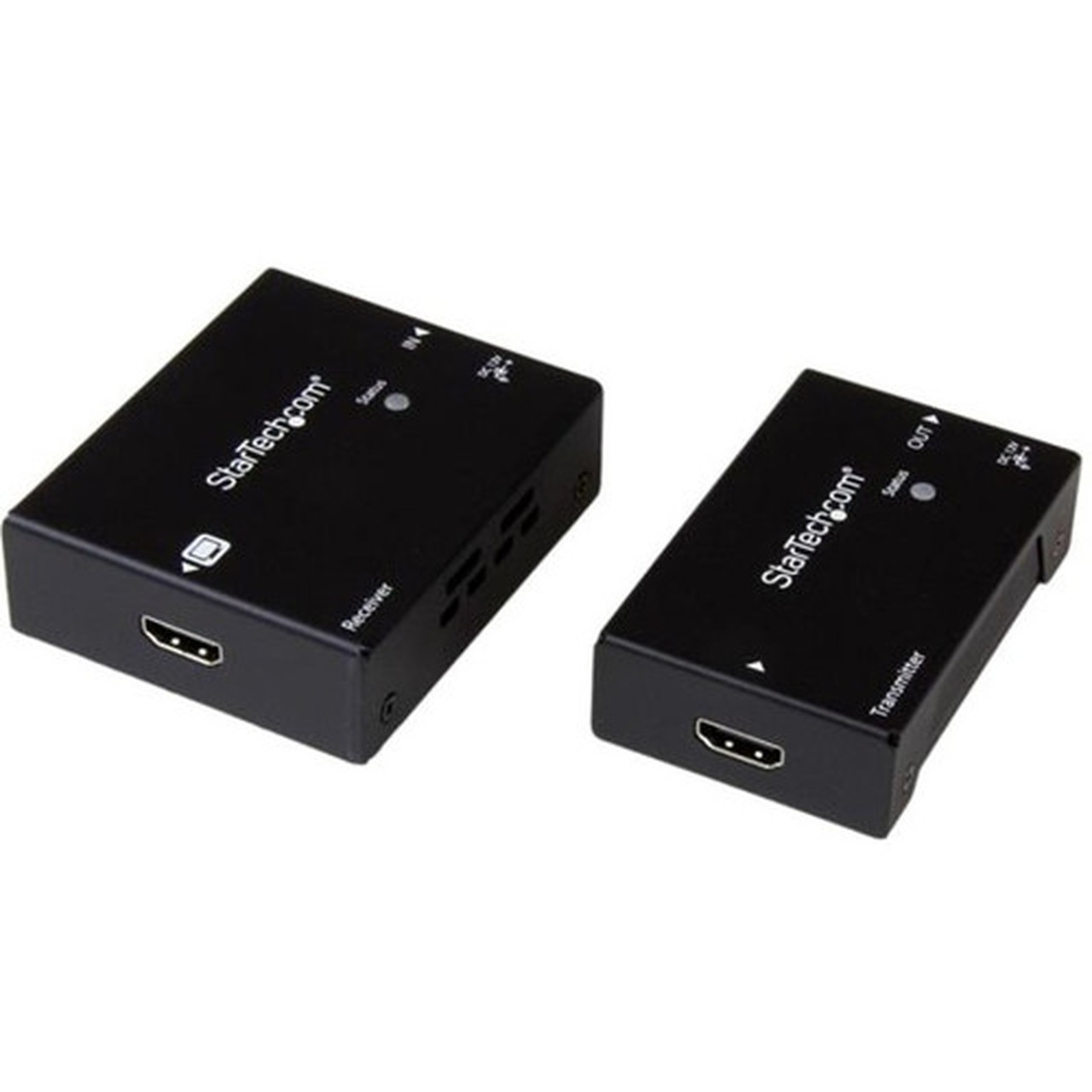

StarTech.com HDMI over CAT5 HDBaseT Extender - Power over Cable - Ultra HD 4K - Extend HDMI up to 330ft over CAT 5 / CAT 6 cable, only (ST121HDBTPW)

Marketing Information:

This HDBaseT extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.

What is HDBaseT?

HDBaseT is a standardized, zero latency, video distribution technology that's revolutionizingHDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio andvideo, along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.

Extend More than Video with HDBaseT

For greater versatility than a traditional HDMI extender or HDMI cabling alone, this HDBaseT extender offers HDMI + Power Over Cable in a single kit. The added benefit of power over cable means you'll only need one power source at either side of your extension, great for extending to areas where power outlets may be limited.

Astonishing 4K picture quality from an impressive distance

With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.With support for 4K you'll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 330 feet away, you can comfortably use this extender to make any video source look great.

Hassle-free, Professional Installation with a Single Cable

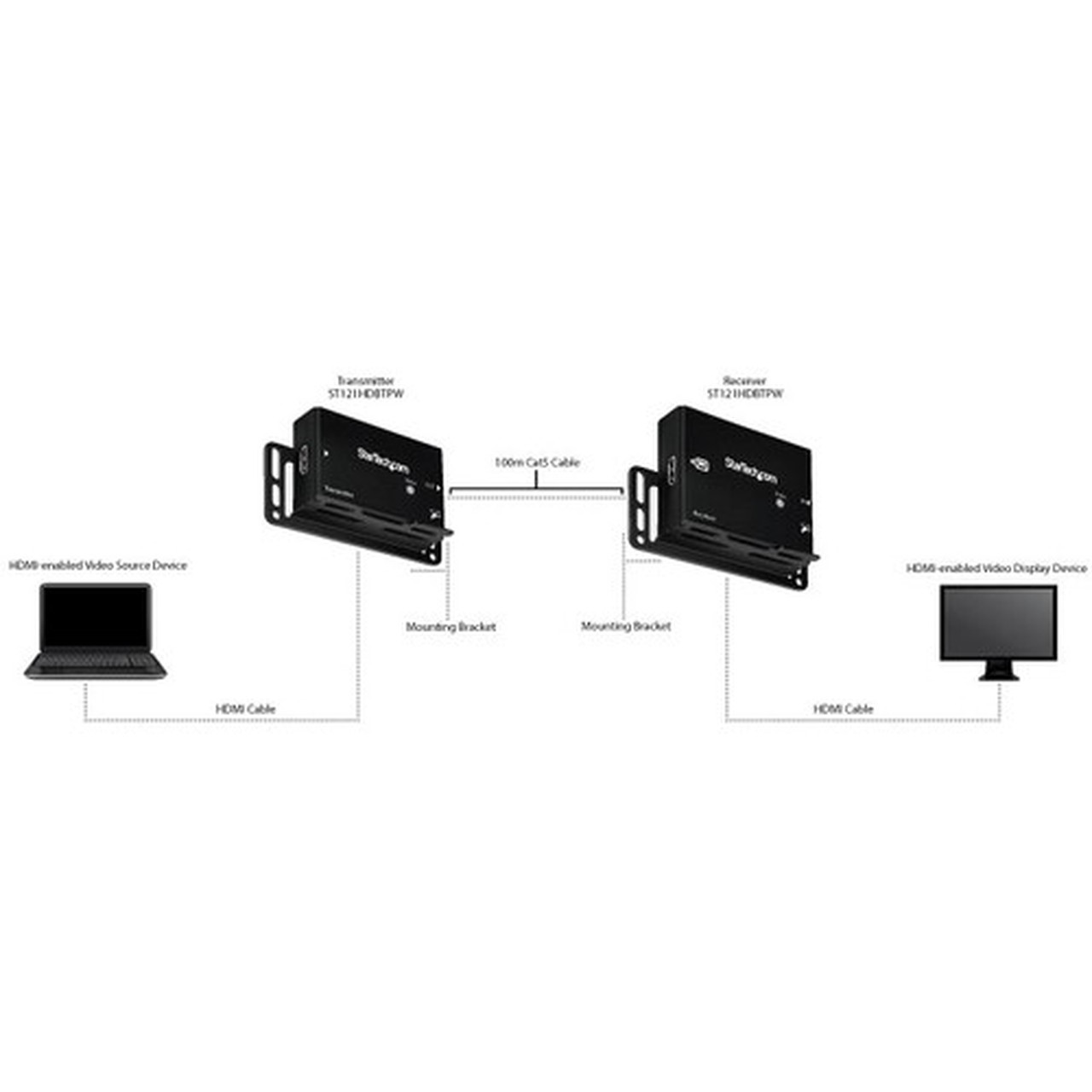

This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you'll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.

The ST121HDBTPW is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

More from the Manufacturer

Connectivity Technology: Wired

Number of Input Devices Supported: 1

Number of Output Devices Supported: 1

Maximum Operating Distance: 330 ft (100584 mm)

Graphics Modes: 4K

Maximum Video Resolution: 4096 x 2160

Network (RJ-45): Yes

HDMI In: Yes

HDMI Out: Yes

Number of Network (RJ-45) Ports: 2

Number of HDMI Inputs: 1

Number of HDMI Outputs: 1

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 6

Receiver Height: 0.98" (25 mm)

Receiver Width: 2.64" (67 mm)

Receiver Depth: 3.15" (80 mm)

Form Factor: Desktop

Receiver Weight (Approximate): 423 g

Package Contents:

• 1 x HDMI Extender
• 1 x HDMI Receiver
• 4 x Mounting Brackets
• 2 x Foot Pad Set
• 1 x Universal Power Adapter (NA / EU / UK / AU)
• 2 x Grounding Wires
• 1 x 4ft (1m) Cat5e Cable
• 2 x Screw Sets
• 1 x Instruction Manual

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Limited Warranty: 2 Year
