StarTech. com FPCEILPTBLP Ceiling TV Mount - Full-Motion Telescopic Pole for 32"-75" Displays - Height Adjustable 8. 2' to 9. 8' - 110 lb Capacity
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

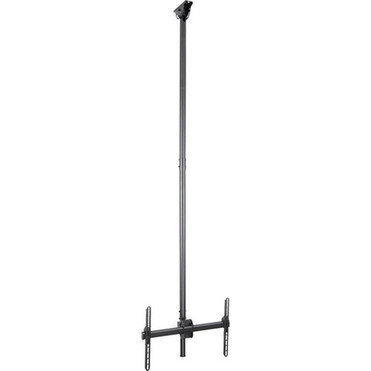

This ceiling mount features a telescopic pole design that extends from 8.2' to 9.8' (2.5m to 3.0m) with secure locking mechanisms at multiple height positions. The full-motion articulation includes 180° swivel around the pole, -25° downward tilt, and ±60° pole adjustment for installation on sloped or angled ceilings. These adjustments ensure displays remain level regardless of ceiling irregularities.
The steel construction provides structural integrity for the 110.23 lb (50 kg) maximum load capacity, with reinforced brackets and industrial-grade fasteners. VESA compatibility spans patterns from 200x200mm to 600x400mm, covering most flat-panel displays including curved models. The hook-and-mount design simplifies installation while maintaining professional-grade security.
This section brings together practical product details such as Device Supported, Number of Displays Supported, Maximum Load Capacity, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The FPCEILPTBLP combines versatile adjustability with robust construction for reliable display mounting in demanding environments. The telescopic pole design provides height flexibility without compromising stability, while the full-motion articulation enables optimal viewing angles from any position in the room.
Versatile Ceiling Compatibility
Adjustable mounting bracket accommodates sloped, angled, or slanted ceilings up to ±60° from level, ensuring displays remain properly oriented regardless of ceiling irregularities.
- ±60° adjustment range
- Secure locking mechanism
- Leveling indicators
Comprehensive Hardware Inclusion
Includes all necessary mounting components for immediate installation: vertical and horizontal brackets, screws for various VESA patterns, concrete anchors, spacers, washers, and professional installation tools.
- Multiple screw sizes included
- Concrete anchors for solid ceilings
- Mounting template for precise placement
Deployment / Use Cases

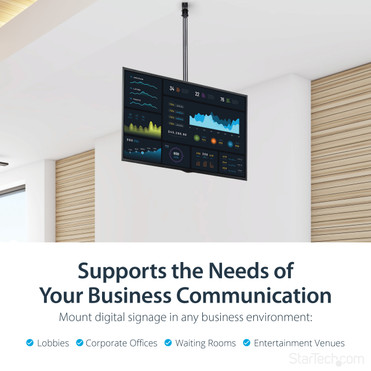

This ceiling mount excels in commercial and institutional settings where display positioning flexibility and professional aesthetics are paramount. The height-adjustable telescopic pole makes it ideal for spaces with varying ceiling heights or where displays need to be positioned at specific elevations for optimal visibility.
Digital signage applications benefit from the full-motion articulation, allowing displays to be angled toward high-traffic areas or adjusted for seasonal layout changes. Educational institutions can utilize the mount in classrooms and lecture halls, where the ability to tilt displays downward improves visibility from various seating positions. Retail environments leverage the clean cable management and professional appearance to maintain brand presentation standards while securely mounting promotional or informational displays.
Physical Profile
Constructed from black powder-coated steel, this mount maintains a professional appearance while providing structural integrity. The mount components measure 17.13" (435 mm) in width and 26.77" (680 mm) in length, with the telescopic pole extending from 8.2' to 9.8' (2.5m to 3.0m) in height. At approximately 22.05 lb (10 kg), the mount provides substantial weight for stability without being excessively heavy for installation.
- Width
- 17.13" (435 mm)
- Height
- Yes
- Weight
- 22.05 lb (10000 g)
- Length
- 26.77" (680 mm)
What's in the Box
The FPCEILPTBLP includes all components necessary for complete installation:
Highlights
- Telescopic pole adjusts from 8.2' to 9.8' (2.5m to 3.0m) for flexible height positioning
- Full-motion articulation with 180° swivel and -25° downward tilt for optimal viewing angles
- Supports displays from 32" to 75" with maximum load capacity of 110.23 lb (50 kg)
- Compatible with VESA patterns 200x200mm through 600x400mm for universal display support
- Adjustable mounting bracket accommodates sloped ceilings up to ±60° from level
- Black steel construction provides durability and professional appearance
- Integrated cable management keeps wiring organized and hidden
- Includes all mounting hardware and tools for complete installation
- 5-year limited warranty for long-term reliability assurance
- RoHS compliant for environmentally responsible manufacturing
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | FPCEILPTBLP |
| Brand Name | StarTech.com |
| Product Model | FPCEILPTBLP |
| Product Name | Ceiling TV Mount - 8.2' to 9.8' Long Pole |
| Packaged Quantity | 1 Each |
| Product Type | Ceiling Mount |
| Product Information | |
| Device Supported | Flat Panel Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 110.23 lb (50000 g) |
| Maximum Screen Size Supported | 75" |
| Height Adjustable | Yes |
| Features | Swivel,Tilt,Pivot,Adjustable,Full Motion |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Mounting Pattern | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Height | 10.56 ft (3218 mm) |
| Width | 17.13" (435 mm) |
| Length | 26.77" (680 mm) |
| Weight (Approximate) | 22.05 lb (10000 g) |
| Miscellaneous | |
| Package Contents | 1 x TV Mount 2 x Vertical Brackets 1 x Horizontal Bracket 2 x M8x55 mm Screws 2 x M8x60 mm Screws 4 x Nuts 1 x Wrench 1 x Hex Key 1 x Mounting Template 4 x M5x14 mm Screws 4 x M6x14 mm Screws 4 x M6x30 mm Screws 4 x M8x30 mm Screws 4 x M8x50 mm Screws 4 x Rectangular Washers 8 x Small Spacers 8 x Large Spacers 4 x Screws 4 x Concrete Anchors 4 x Circular Washers 1 x Instruction Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum screen size this ceiling mount supports?
The FPCEILPTBLP supports flat-panel displays up to 75 inches diagonally, including curved television models. This size range covers most commercial displays used in digital signage, presentation, and entertainment applications while maintaining the 110.23 lb (50 kg) weight capacity.
How does the height adjustment work on this telescopic pole mount?
The telescopic pole extends from 8.2 feet (2.5 meters) to 9.8 feet (3.0 meters) with multiple locking positions along the adjustment range. This allows precise height positioning to accommodate various ceiling heights and viewing requirements, with secure locking mechanisms that prevent accidental movement once set.
What VESA mounting patterns are compatible with this ceiling mount?
This mount supports VESA patterns including 200x200mm, 300x300mm, 400x200mm, 400x400mm, and 600x400mm. The comprehensive compatibility covers most flat-panel displays from small monitors to large televisions, with included screws and spacers to accommodate the various hole patterns.
Can this mount be installed on sloped or angled ceilings?
Yes, the adjustable mounting bracket allows the pole to be adjusted and secured at angles up to ±60 degrees from level. This feature ensures displays remain properly oriented on sloped, slanted, or irregular ceilings commonly found in commercial and architectural spaces.
What motion adjustments does this full-motion ceiling mount provide?
The mount offers 180-degree swivel rotation around the telescopic pole, allowing displays to be turned toward different viewing areas. It also provides -25 degrees of downward tilt for optimal viewing angles, with both adjustments achievable without tools once the display is mounted.
What is included in the package for installation?
The complete package includes the TV mount assembly, vertical and horizontal brackets, mounting template, various screws (M5, M6, M8 in multiple lengths), nuts, washers, spacers, concrete anchors, wrench, hex key, and instruction manual. All necessary components for professional installation are provided.
