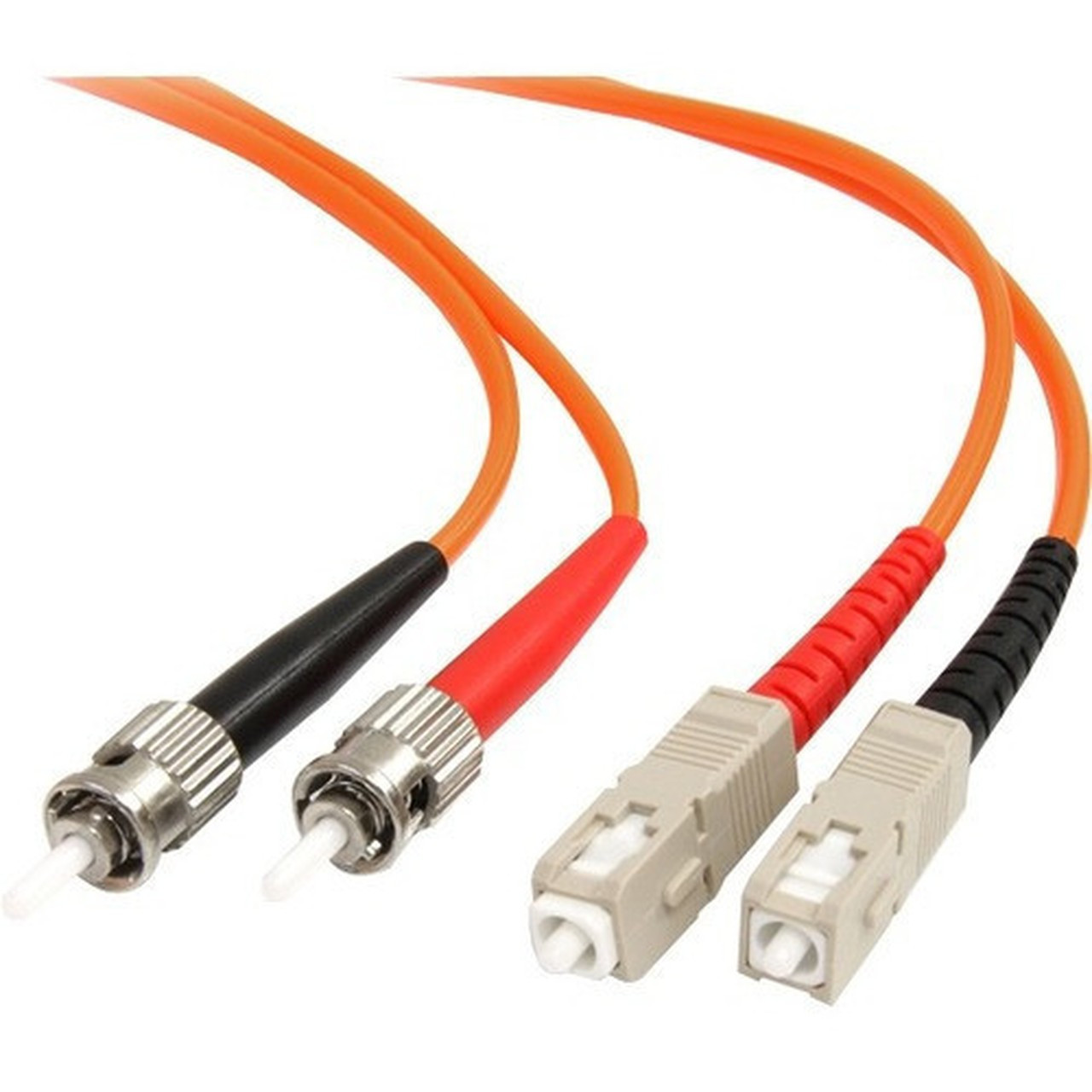

StarTech. com FIBSTSC3 3m Multimode Duplex Fiber Patch Cable - 62. 5/125 µm - ST to SC - LSZH Orange
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber optic patch cable utilizes multimode technology with a 62.5/125 µm core/cladding diameter, optimized for short to medium-distance data transmission. The cable length of 9.8 feet (3 meters) offers flexibility in rack-to-rack or device-to-patch panel setups.
The connectors are configured with two ST male connectors on one end and two SC male connectors on the other, providing a duplex connection for bidirectional data flow. The LSZH jacket material reduces smoke and toxic halogen emissions in case of fire, meeting safety standards for data centers and office installations.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable combines performance with safety, offering a robust solution for network infrastructure. The LSZH jacket ensures compliance with fire safety regulations, while the precise connector alignment minimizes signal loss.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Speed Data Transfer, Enhanced Safety Features.
High-Speed Data Transfer
Supports 10 Gbit/s data rates for efficient network performance.
- Ideal for backbone connections
- Reduces latency in data-intensive applications
Enhanced Safety Features
LSZH jacket reduces hazardous emissions, and halogen-free construction prevents corrosive gas release.
- Suitable for plenum spaces
- Flame-retardant for added protection
Deployment / Use Cases
The FIBSTSC3 cable is versatile for various networking scenarios, from data centers to office environments. Its ST to SC connector combination allows integration with different network equipment types.
Common applications include connecting switches to servers, linking fiber optic transceivers, and extending network segments in enterprise setups. The 3-meter length is ideal for rack-mounted configurations or short-distance runs between adjacent devices.
Data Center Use
Connects network switches and storage arrays in high-density racks.
- Supports high-bandwidth applications
- LSZH jacket for fire safety compliance
Office Network Expansion
Extends fiber optic networks between floors or buildings.
- Immune to electrical interference
- Corrosion-resistant for long-term reliability
Highlights
- 3-meter multimode duplex fiber optic patch cable
- ST to SC connectors for versatile network connections
- 62.5/125 µm core/cladding specification
- LSZH jacket for low-smoke, zero-halogen safety
- Supports data transfer rates up to 10 Gbit/s
- Orange color for easy cable identification
- Immune to electrical interference
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | FIBSTSC3 |
| Brand Name | StarTech.com |
| Product Name | 3m Multimode 62.5/125 Duplex Fiber Patch Cable ST - SC |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm |
| Cable Length | 9.8 ft (3 m) |
| Connector Type on First End | ST Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x ST Network - Male |
| Connector Type on Second End | SC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| Data Transfer Rate | 10 Gbit/s |
| Features | Corrosion Resistant,Flame Retardant,Halogen Free |
| Physical Characteristics | |
| Color Family | Orange |
| Product Color | Orange |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the length of this fiber optic cable?
The cable is 9.8 feet long, which is equivalent to 3 meters. This length is suitable for typical patch cable applications in data centers or office networks, providing enough reach for rack-to-rack or device-to-patch panel connections without excessive slack.
What types of connectors does this cable have?
This cable features ST connectors on one end and SC connectors on the other end, both in male configurations. It is a duplex cable with two connectors per end, allowing for bidirectional data transmission commonly used in fiber optic networking.
What does LSZH jacket mean?
LSZH stands for Low-Smoke, Zero-Halogen. This jacket material reduces smoke emission and eliminates halogen gases in the event of a fire, enhancing safety in enclosed spaces like data centers. It also provides corrosion resistance and flame-retardant properties.
What is the data transfer rate of this cable?
The cable supports data transfer rates up to 10 Gbit/s. This high-speed capability makes it suitable for backbone network connections, server links, and other applications requiring efficient data throughput in enterprise environments.
Is this cable immune to electrical interference?
Yes, as a fiber optic cable, it is completely immune to electrical interference. Unlike copper cables, fiber optics transmit data using light, which is not affected by electromagnetic interference, ensuring stable and reliable signal transmission in electrically noisy environments.
What warranty comes with this cable?
StarTech.com provides a lifetime warranty for this cable. This warranty covers defects in materials and workmanship for the life of the product, offering long-term reliability and peace of mind for network infrastructure investments.
