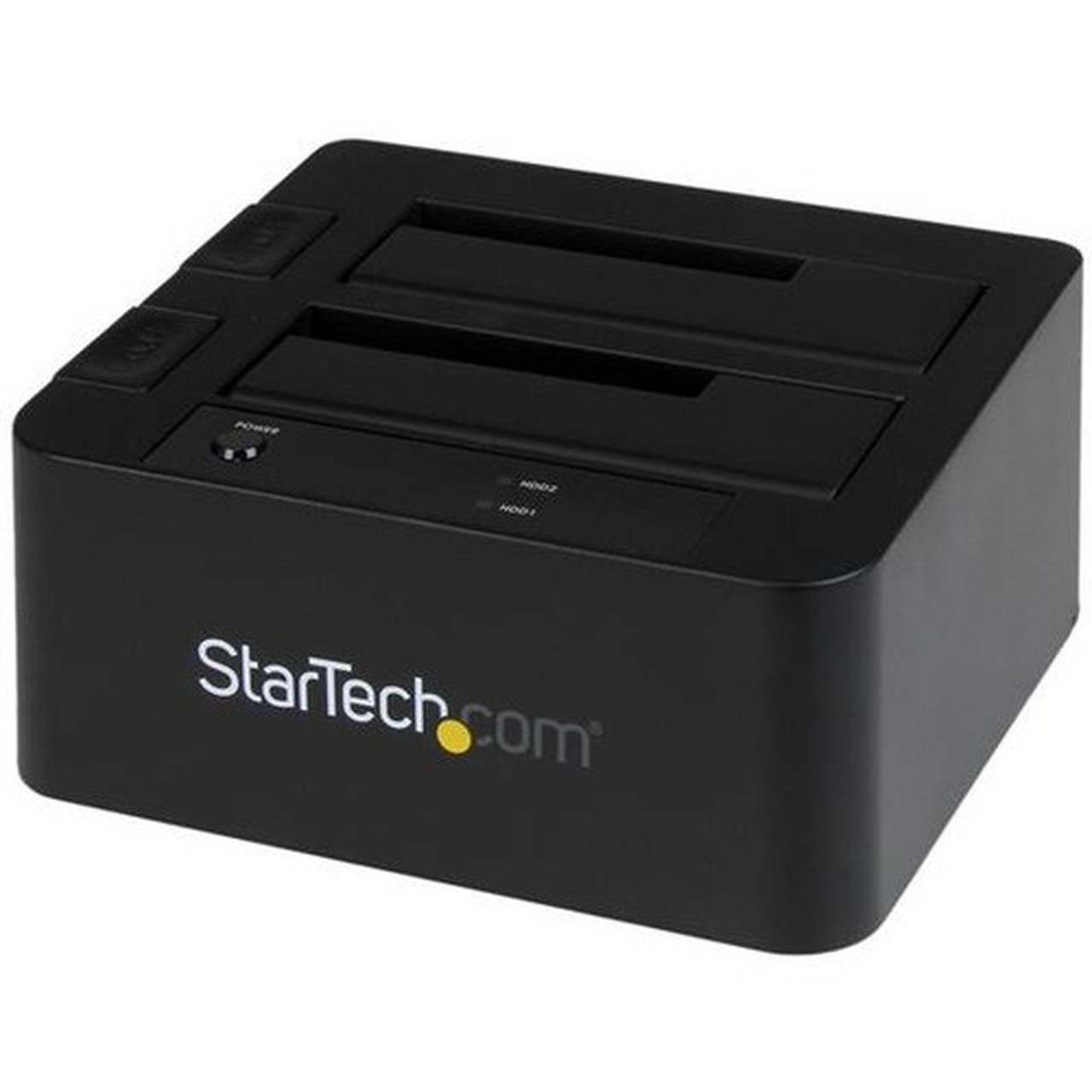

StarTech.com SDOCK2U33EB Dual-Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station - 2.5/3.5" SATA III SSD/HDD Top-Loading Dock
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for reliable SATA III (6 Gbps) performance, this docking station maintains full compatibility with SATA revision I, II, and III drives, ensuring broad support for both legacy and modern storage devices. Each of the two bays supports hot-swap operation, allowing drives to be inserted or removed without powering down the dock or host system—a critical feature for IT environments where drive rotation is frequent.
The dock's internal architecture handles simultaneous access to both drives when connected via eSATA, while USB 3.0 operation typically accesses one drive at a time. This distinction makes the eSATA connection particularly valuable for RAID configurations or when working with multiple drives concurrently. The universal power adapter included with the dock supports multiple regional voltage standards (NA/JP, EU, UK, ANZ), making it suitable for international deployment.
Key Product Advantages
This docking station excels in environments where storage flexibility, drive compatibility, and operational efficiency are paramount. The dual-bay design with top-loading slots and individual drive doors provides physical protection while maintaining easy access—superior to side-loading designs that can expose drives to dust and damage.
Broad Drive Compatibility
Supports both 2.5" and 3.5" form factors, including SSDs and HDDs, across all SATA revisions from 1.5 Gbps to 6 Gbps. This ensures compatibility with drives manufactured over the past decade.
- 2.5" laptop drives
- 3.5" desktop drives
- SATA I/II/III SSDs
- Enterprise-grade HDDs
Dual Host Interface Flexibility
Choose between USB 3.0 for universal connectivity or eSATA for dedicated storage performance. The USB 3.0 interface maintains backward compatibility with older USB standards, while eSATA provides a pure storage connection path.
- USB 3.0 (5 Gbps)
- eSATA for direct attachment
- Backward compatible USB 2.0/1.1
Professional-Grade Construction
Built with durable plastic housing and designed for continuous operation in IT environments. The top-loading design with drive doors protects inserted drives from accidental dislodgement and environmental contaminants.
- Drive doors for protection
- Stable desktop footprint
- Ventilated design for cooling
Deployment / Use Cases
The SDOCK2U33EB serves multiple roles in professional and small business environments where storage management is a recurring task. Its dual-bay capability makes it particularly valuable for drive cloning operations, where one bay holds the source drive and the other receives the cloned data—eliminating the need for multiple single-bay docks or internal drive installations.
Data recovery specialists benefit from the hot-swap capability and broad compatibility when diagnosing and recovering data from customer drives. IT departments can use the dock for drive imaging, system deployments, and temporary storage expansion during migrations. The dock also functions effectively as a backup station, allowing rotation of backup drives without opening computer cases or dealing with internal cabling.
Drive Cloning & Migration
Clone drives directly between bays or migrate data from old drives to new storage. The UASP support accelerates large file transfers during cloning operations.
Data Recovery & Diagnostics
Quickly connect suspect drives for diagnosis and data extraction without internal mounting. Hot-swap capability allows rapid testing of multiple drives.
Physical Profile
The dock features a compact desktop footprint measuring 5.20 inches wide by 5.60 inches deep, with a height of 2.80 inches that accommodates the top-loading drive slots. The black plastic construction provides durability while maintaining a professional appearance suitable for office environments. The design includes ventilation to prevent heat buildup during extended operation with high-performance drives.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.80" (71.12 mm), 5.20" (132.08 mm), 5.60" (142.24 mm), 1.16 lb (524.47 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.20" (132.08 mm)
- Depth
- 5.60" (142.24 mm)
- Height
- 2.80" (71.12 mm)
- Weight
- 1.16 lb (524.47 g)
What's in the Box
The package includes all necessary components for immediate deployment across multiple regions.
Highlights
- Dual-bay design supports two 2.5" or 3.5" SATA drives simultaneously
- USB 3.0 and eSATA host interfaces provide connectivity flexibility
- UASP support improves transfer speeds and reduces CPU utilization
- Hot-swappable bays allow drive changes without powering down
- Compatible with SATA I, II, and III drives (1.5/3.0/6.0 Gbps)
- Supports both hard disk drives (HDD) and solid-state drives (SSD)
- Top-loading design with protective drive doors
- Includes universal power adapter for multiple regions
- Backward compatible with USB 2.0 and 1.1 host ports
- 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SDOCK2U33EB |
| Brand Name | StarTech.com |
| Product Name | USB 3.0/eSATA to Dual 2.5/3.5in SATA Hard Drive Docking Station |
| Packaged Quantity | 1 Each |
| Product Type | Drive Dock |
| Technical Information | |
| Number of Hard Drives Supported | 2 |
| Number of Solid State Drive Supported | 2 |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of 2.5"/3.5" Bays | 2 |
| Hot Swappable Bays | Yes |
| Network & Communication | |
| Wireless LAN | No |
| UASP Support | Yes |
| Interfaces/Ports | |
| Drive Interface | SATA/600 |
| Host Interface | USB 3.0 Type B,eSATA |
| Software | |
| Operating System Supported | Windows 2000,Windows XP,Windows 2003,Windows Vista,Windows Server 2008 x64,Mac OS 9.0,Mac OS 9.1,Mac OS 9.2,Mac OS X 10.0 Cheetah,ChromeOS,Linux |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Plastic |
| Form Factor | External |
| Height | 2.80" (71.12 mm) |
| Width | 5.20" (132.08 mm) |
| Depth | 5.60" (142.24 mm) |
| Weight (Approximate) | 1.16 lb (524.47 g) |
| Miscellaneous | |
| Package Contents | USB 3.0/eSATA to Dual 2.5/3.5in SATA Hard Drive Docking Station 1 x USB 3.0 Cable 1 x eSATA Cable 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ) 1 x Instruction Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of drives are compatible with this docking station?
The SDOCK2U33EB supports both 2.5-inch and 3.5-inch SATA hard disk drives (HDDs) and solid-state drives (SSDs). It maintains full compatibility with SATA revision I (1.5 Gbps), SATA II (3.0 Gbps), and SATA III (6.0 Gbps) drives, ensuring you can use drives manufactured over the past decade. This includes laptop drives, desktop drives, enterprise storage, and consumer SSDs—making it a versatile solution for various storage management tasks.
Can I use both drive bays simultaneously?
Yes, both drive bays can be populated simultaneously. When connected via eSATA, the dock typically allows access to both drives concurrently, which is useful for RAID configurations or working with multiple drives. With USB 3.0 connection, the dock usually presents drives individually but still supports having two drives installed. The hot-swappable design means you can insert or remove drives from either bay without powering down the dock or your computer.
What is UASP support and why does it matter?
UASP (USB Attached SCSI Protocol) is an advanced data transfer protocol that improves performance over standard USB mass storage. When both your operating system and the dock support UASP, you'll experience faster file transfers, reduced CPU utilization during data operations, and improved efficiency for large file movements. This is particularly beneficial during drive cloning, backup operations, or when working with high-capacity drives where transfer speed directly impacts productivity.
What operating systems are supported?
This docking station supports a wide range of operating systems including Windows 2000 through Windows Server 2008, various versions of Mac OS from 9.0 through OS X 10.0, ChromeOS, and Linux distributions. The broad compatibility ensures the dock works in mixed-IT environments where different operating systems are in use. Most modern operating systems will recognize the dock automatically without requiring additional drivers when using the USB interface.
What's included in the package?
The package includes the docking station itself, a USB 3.0 cable for computer connection, an eSATA cable for alternative connectivity, a universal power adapter that supports North America/Japan, European Union, United Kingdom, and Australia/New Zealand voltage standards, and a comprehensive instruction manual. All necessary cables and adapters are provided for immediate use in most regions worldwide.
What are the physical dimensions and weight?
The dock measures 5.20 inches wide, 5.60 inches deep, and 2.80 inches high (132.08 mm × 142.24 mm × 71.12 mm), with a weight of approximately 1.16 pounds (524.47 grams). This compact footprint makes it suitable for desktop use without occupying excessive workspace. The design is stable enough to remain secure during drive insertion and removal operations while maintaining a professional appearance appropriate for office environments.
