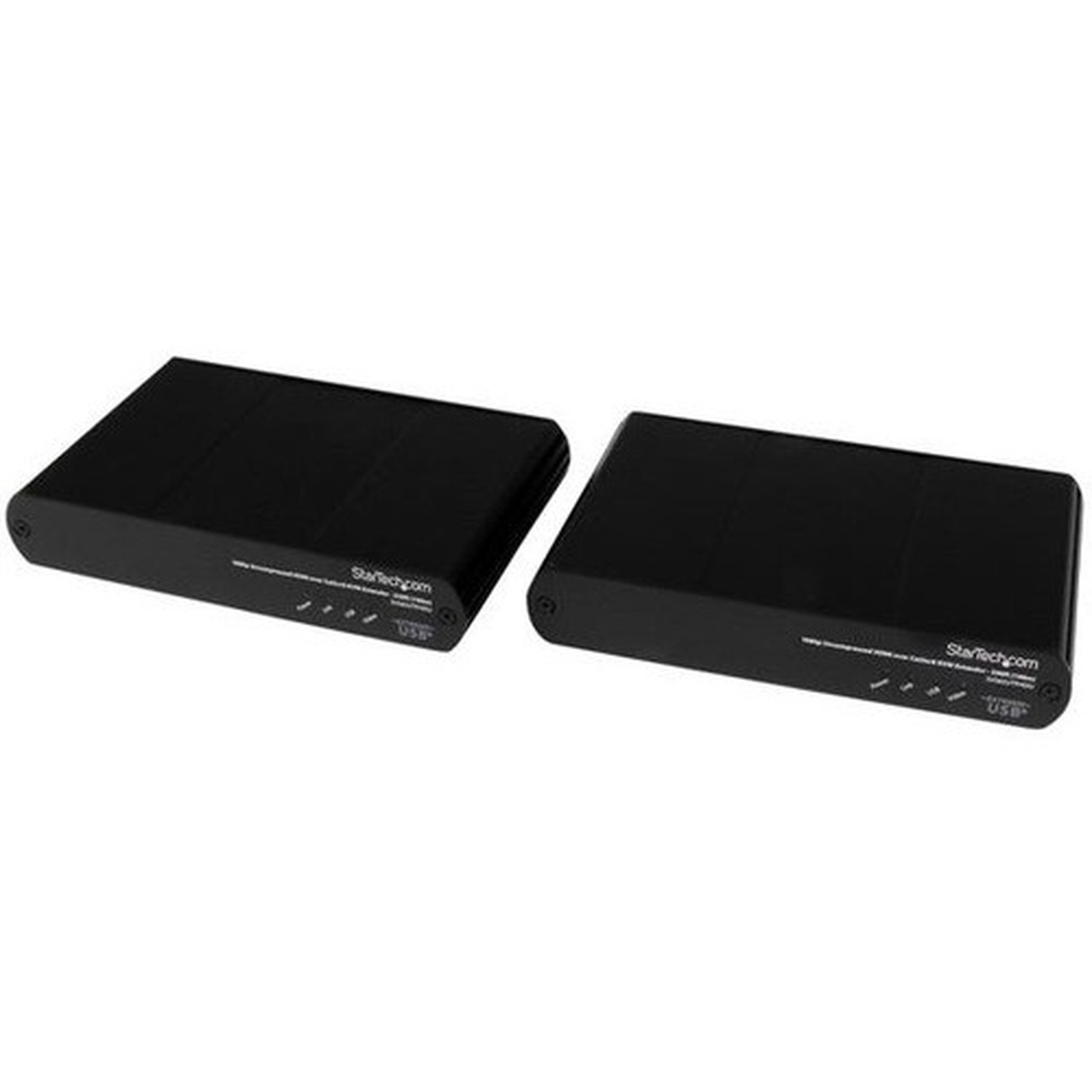

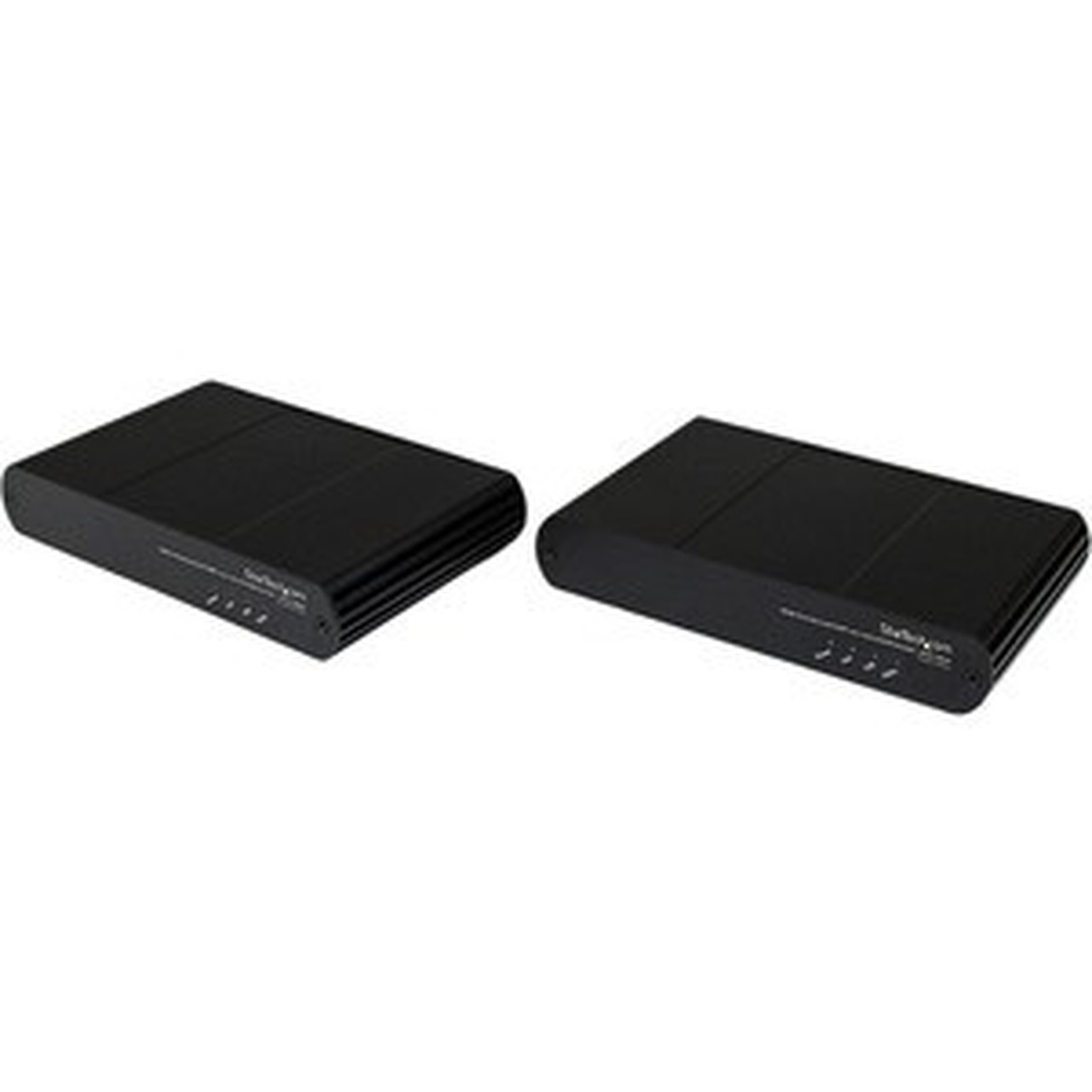

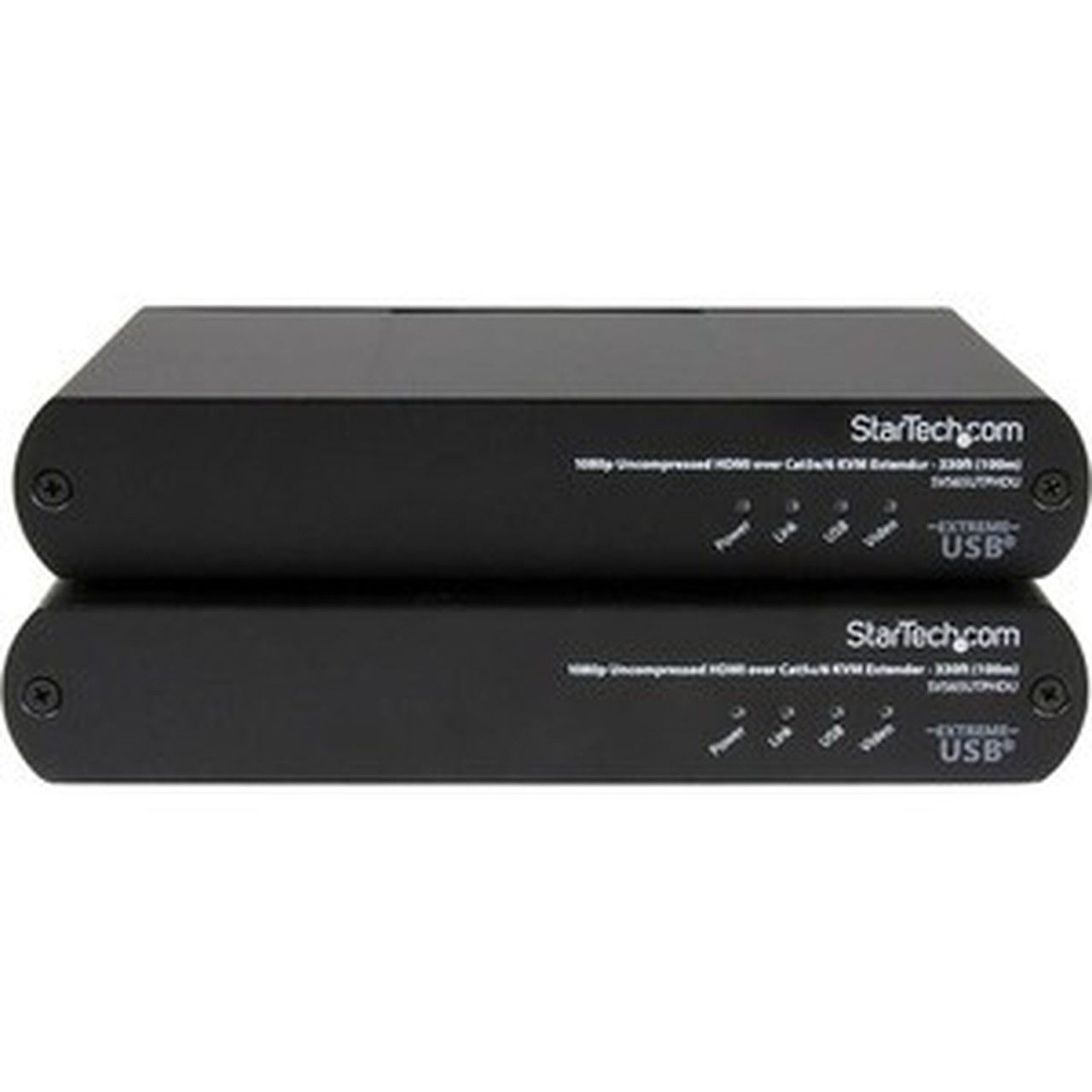

StarTech.com 330ft (100m) USB HDMI over CAT5e / CAT6 KVM Extender - 1080p Uncompressed HD Video - IT Grade KVM Console Extender for PC (SV565UTPHDU)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

(No reviews) Write a Review
MSRP: $1,223.99
$1,223.99
$1,207.22
Save: $16.77 (1.37%)
SKU: SV565UTPHDU
UPC: 65030853057
Availability: Ready to ship - Stock in Canada
Weight: 6.30 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

    The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.

    A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3Dsupport, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.

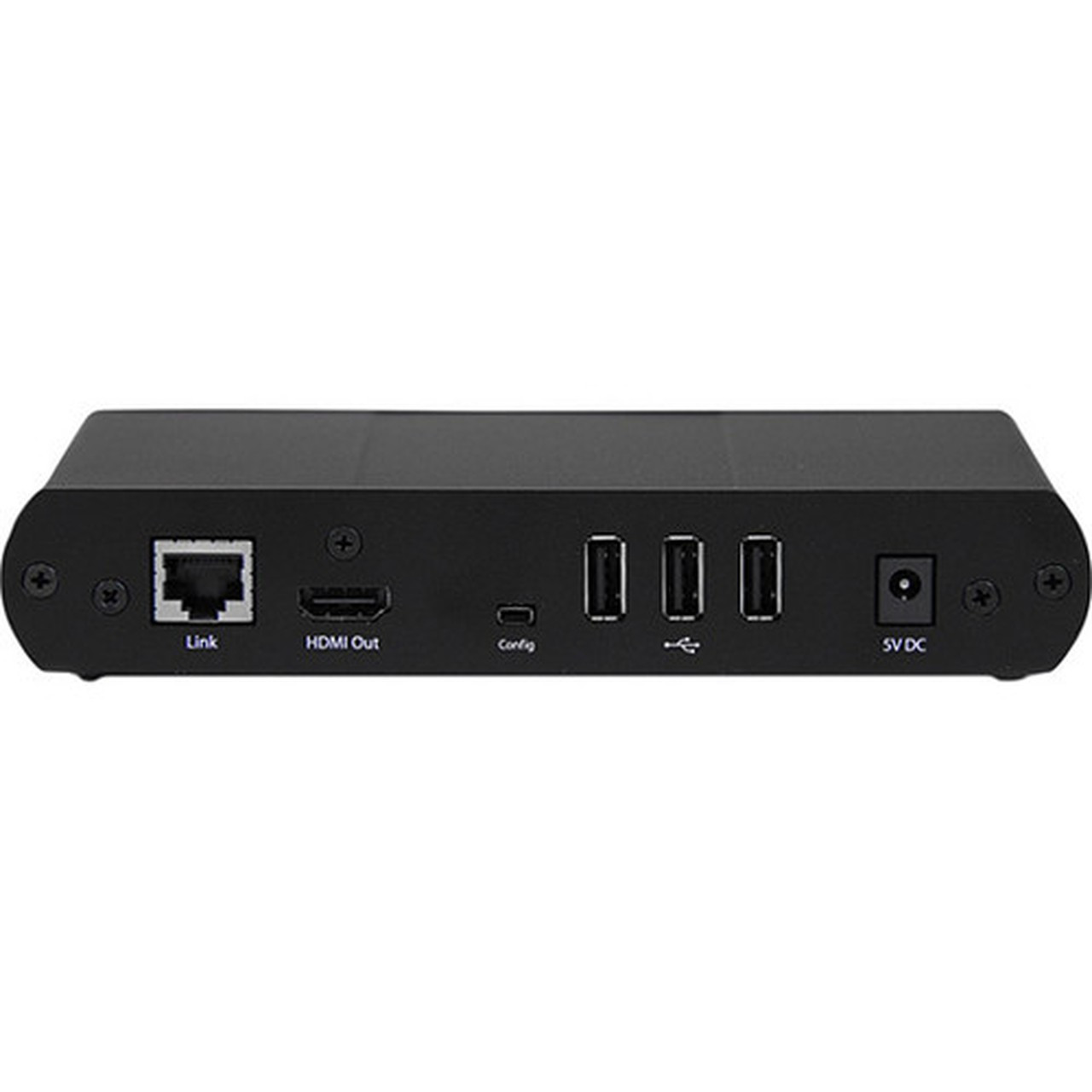

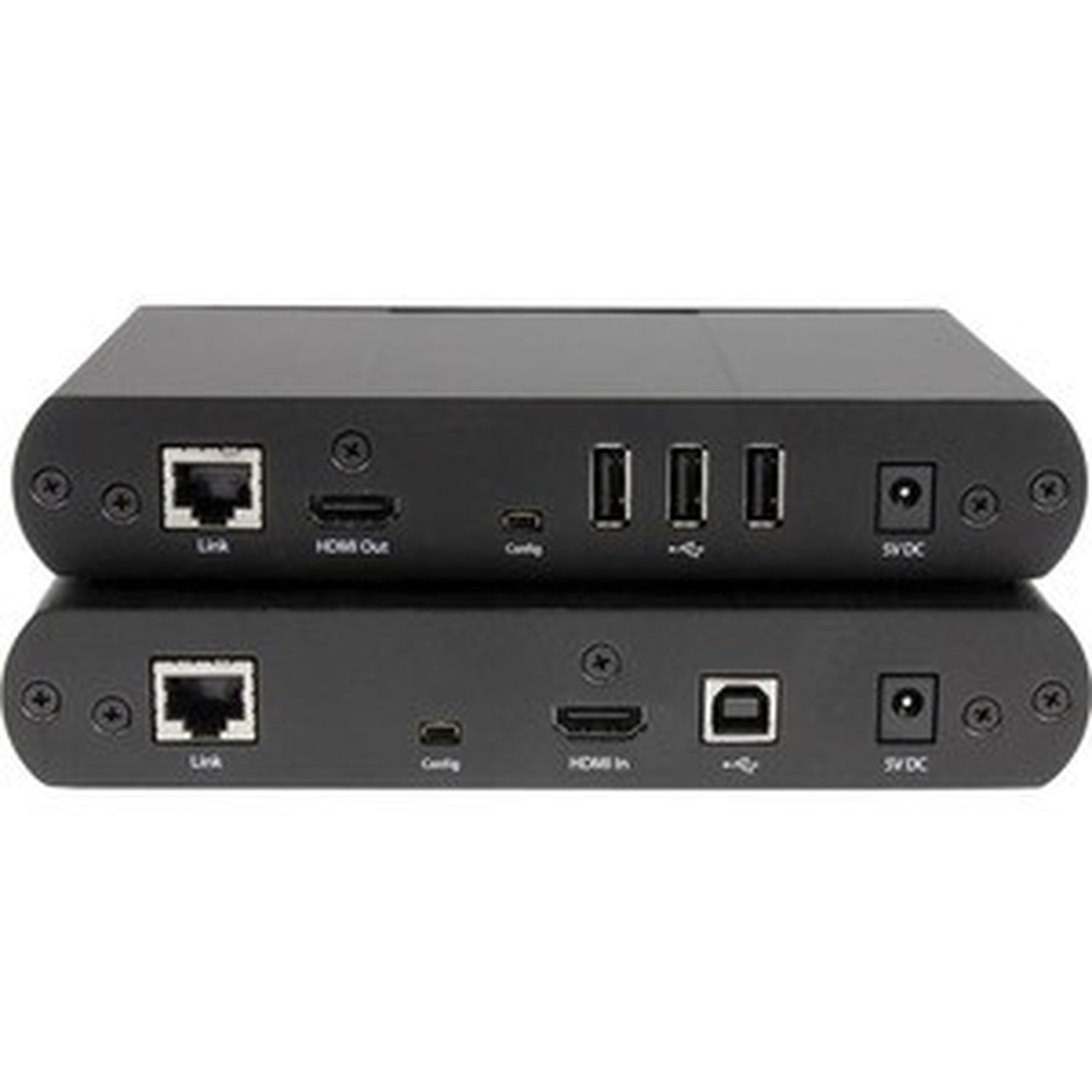

    This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.

    Backed by a StarTech.com 2-year warranty and free lifetime technical support.

    More from the Manufacturer

    Connectivity Technology: Wired

    Number of Computers Supported: 1

    Number of Local Users Supported: 1

    Maximum Operating Distance: 330 ft (100584 mm)

    Graphic Mode: WUXGA

    Maximum Video Resolution: 1920 x 1200

    Network (RJ-45): Yes

    USB: Yes

    HDMI: Yes

    Number of HDMI Ports: 2

    Number of Network (RJ-45) Ports: 2

    Number of USB Ports: 6

    Input Voltage: 120 V AC,240 V AC

    Input Voltage Range: 100V AC to 240V AC

    Power Consumption: 15 W

    Product Color: Black

    Transmitter Height: 1.20" (30.48 mm)

    Transmitter Width: 4.40" (111.76 mm)

    Transmitter Depth: 6.90" (175.26 mm)

    Receiver Height: 1.20" (30.48 mm)

    Receiver Width: 4.40" (111.76 mm)

    Receiver Depth: 6.90" (175.26 mm)

    Transmitter Weight (Approximate): 847 g

    Receiver Weight (Approximate): 847 g

    Package Contents:

    • 1 x Local Transmitter Unit
    • 1 x Remote Receiver Unit
    • 4 x Mounting Brackets
    • 1 x HDMI Cable
    • 1 x USB Cable
    • 2 x Universal Power Adapters (NA, EU ,UK)
    • 1 x Quick-start guide

    Environmentally Friendly: Yes

    Country of Origin: Canada

    Limited Warranty: 2 Year

[custom-highlights]
  • Uncompressed 1080p and 1920x1200 HD video extension
  • Extend up to 330 ft (100m) over a single Cat5e / Cat6 cable
  • HDCP, CEC and Lip Sync pass-through support
  • OS independent - no software or drivers required
  • 3 USB 2.0 ports with transfer rates up to 30Mbps
  • Supports connection to a single computer or cascading to an existing KVM switch
  • Supports most combo keyboard and mouse sets (including Wireless)
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberSV565UTPHDU
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameKVM Console/Extender
Packaged Quantity1
Packaged Quantity ConditionKit
Product TypeKVM Console/Extender
Technical Information
Connectivity TechnologyWired
Number of Computers Supported1
Number of Local Users Supported1
Maximum Operating Distance330 ft (100584 mm)
Video
Graphic ModeWUXGA
Maximum Video Resolution1920 x 1200
Interfaces/Ports
Network (RJ-45)Yes
USBYes
HDMIYes
Number of HDMI Ports2
Number of Network (RJ-45) Ports2
Number of USB Ports6
Power Description
Input Voltage120 V AC,240 V AC
Input Voltage Range100V AC to 240V AC
Power Consumption15 W
Physical Characteristics
Product ColorBlack
Transmitter Height1.20" (30.48 mm)
Transmitter Width4.40" (111.76 mm)
Transmitter Depth6.90" (175.26 mm)
Receiver Height1.20" (30.48 mm)
Receiver Width4.40" (111.76 mm)
Receiver Depth6.90" (175.26 mm)
Transmitter Weight (Approximate)847 g
Receiver Weight (Approximate)847 g
Miscellaneous
Package Contents
  • 1 x Local Transmitter Unit
  • 1 x Remote Receiver Unit
  • 4 x Mounting Brackets
  • 1 x HDMI Cable
  • 1 x USB Cable
  • 2 x Universal Power Adapters (NA, EU ,UK)
  • 1 x Quick-start guide
Environmentally FriendlyYes
Country of OriginCanada
Warranty
Limited Warranty2 Year

[/custom-specifications]

[custom-options]









[/custom-options]

[custom-user-manual]

Available Documentation:


User-Manual
Manufacturer-Brochure

[/custom-user-manual]

Warranty Infomartion

2 Year
