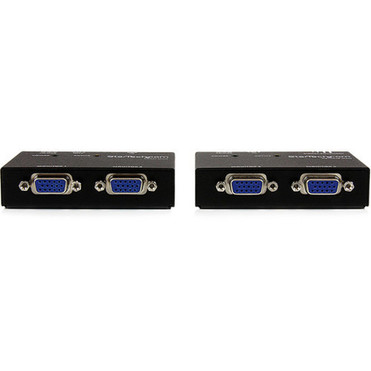

StarTech.com VGA Video Extender over Cat5 (ST121 Series) - 1 x 4 - SXGA - 500ft (ST121UTP)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Write a Review
MSRP: $154.74
$154.74
$153.33
You save $1.41
SKU: ST121UTP
UPC: 65030791236
Availability: Stock in Canada - Purolator or UPS
Weight: 2.55 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

    The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required.

    The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total.

    The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall, desk or cabinet.

    This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

    More from the Manufacturer

    Connectivity Technology: Wired

    Number of Input Devices Supported: 1

    Number of Output Devices Supported: 4

    Maximum Operating Distance: 500 ft (152400 mm)

    Graphics Modes: SXGA

    Maximum Video Resolution: 1280 x 1024

    Network (RJ-45): Yes

    Number of Network (RJ-45) Ports: 2

    Media Type Supported: Twisted Pair

    Twisted Pair Cable Standard: Category 5e

    Transmitter Height: 0.80" (20.32 mm)

    Transmitter Width: 3.30" (83.82 mm)

    Transmitter Depth: 2.40" (60.96 mm)

    Receiver Height: 0.80" (20.32 mm)

    Receiver Width: 3.30" (83.82 mm)

    Receiver Depth: 2.40" (60.96 mm)

    Transmitter Weight (Approximate): 335 g

    Receiver Weight (Approximate): 335 g

    Package Contents:

    • VGA Video Extender over CAT5 (ST121 Series)
    • 1 x Mounting Bracket for Receiver (w/ screws)
    • 2 x Sets Rubber Feet
    • 2 x Power Adapter
    • 1 x Instruction Manual

    Country of Origin: Taiwan

    TAA Compliant: Yes

    Environmentally Friendly: Yes

    Limited Warranty: 2 Year

[custom-highlights]
  • Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
  • Extends video cables by up to 500 ft. (150m)
  • Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
  • Included mounting brackets
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberST121UTP
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameVGA Video Extender over CAT5 (ST121 Series)
Product TypeVideo Extender Transmitter/Receiver
Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported4
Maximum Operating Distance500 ft (152400 mm)
Video
Graphics ModesSXGA
Maximum Video Resolution1280 x 1024
Interfaces/Ports
Network (RJ-45)Yes
Number of Network (RJ-45) Ports2
Media & Performance
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 5e
Physical Characteristics
Transmitter Height0.80" (20.32 mm)
Transmitter Width3.30" (83.82 mm)
Transmitter Depth2.40" (60.96 mm)
Receiver Height0.80" (20.32 mm)
Receiver Width3.30" (83.82 mm)
Receiver Depth2.40" (60.96 mm)
Transmitter Weight (Approximate)335 g
Receiver Weight (Approximate)335 g
Miscellaneous
Package Contents
  • VGA Video Extender over CAT5 (ST121 Series)
  • 1 x Mounting Bracket for Receiver (w/ screws)
  • 2 x Sets Rubber Feet
  • 2 x Power Adapter
  • 1 x Instruction Manual
Country of OriginTaiwan
TAA CompliantYes
Environmentally FriendlyYes
Warranty
Limited Warranty2 Year

[/custom-specifications]

[custom-options]











[/custom-options]

[custom-user-manual]

Available Documentation:


Additional-pdf1
Additional-pdf2

[/custom-user-manual]

Warranty Infomartion

2 Year
