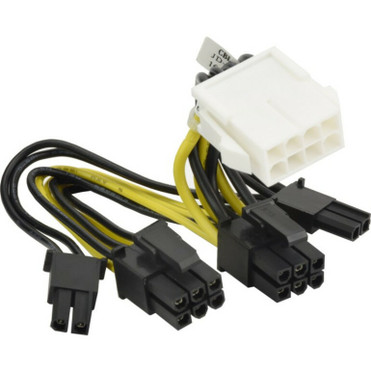

Supermicro CBL-PWEX-1040 Internal PCI-E Power Cord - 2" Yellow/Black - 8-pin Female to Dual 6+2pin PCI-E Male for GPU/Server/Motherboard
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This internal power cord features a precise connector configuration that matches modern PCI-E power requirements. The 8-pin female end connects to compatible power supplies or motherboard headers, while the dual 6+2pin PCI-E male connectors deliver power to graphics cards or other PCI-E devices that support supplemental power inputs.
The 2-inch length is optimized for short internal runs within server chassis or compact desktop builds, reducing cable clutter and improving airflow. The yellow and black color coding aids in visual identification during installation and maintenance.
This section brings together practical product details such as First End Connector Detail, Second End Connector Type, Second End Connector Detail, Cord Length, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The CBL-PWEX-1040 delivers reliable power connectivity for PCI-E devices in space-constrained environments. Its dual 6+2pin connectors provide flexibility for graphics cards that require one or two power inputs, while the short length maintains clean cable management.
Precision Connectors
8-pin female to dual 6+2pin PCI-E male configuration ensures proper power delivery to high-performance components.
- Secure connection design
- PCI-E standard compliance
Space Optimization
2-inch length fits tightly within chassis without excess cable slack, improving internal airflow and organization.
- Minimal footprint
- Reduced clutter
Deployment / Use Cases
This internal power cord is deployed in computing environments where additional PCI-E power is required beyond standard motherboard capabilities. It serves as a critical component in GPU-powered workstations, server expansions, and custom-built systems that incorporate high-performance graphics or specialized PCI-E cards.
Common use cases include connecting supplemental power to graphics processing units in rendering farms, machine learning servers, or gaming rigs; providing power to PCI-E storage controllers or network adapters in server configurations; and enabling motherboard power expansions in specialized computing applications.
GPU Power Delivery
Delivers stable power to graphics cards requiring 6-pin or 8-pin PCI-E connectors for intensive computational tasks.
Server Component Support
Enables power connections for PCI-E expansion cards in server environments where reliable power distribution is essential.
Highlights
- 8-pin female to dual 6+2pin PCI-E male connector configuration
- 2-inch short cable length for space-constrained installations
- Yellow and black color coding for visual identification
- Compatible with graphics processing units, servers, and motherboards
- Internal power cord designed for PCI-E device support
- Supermicro quality construction for reliable power delivery
- Ideal for GPU-intensive computing applications
- Supports server expansion and custom computing configurations
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | CBL-PWEX-1040 |
| Brand Name | Supermicro |
| Product Name | Internal Power Cord |
| Product Type | Internal Power Cord |
| Technical Information | |
| First End Connector Detail | 1 x 8-pin Female |
| Second End Connector Type | PCI-E |
| Second End Connector Detail | 2 x 6+2pin PCI-E Male |
| Device Supported | Graphics Processing Unit,Server,Motherboard |
| Physical Characteristics | |
| Cord Length | 2" |
| Product Color | Yellow,Black |
FAQ
What devices are compatible with the Supermicro CBL-PWEX-1040 power cord?
The CBL-PWEX-1040 is compatible with graphics processing units, servers, and motherboards that require supplemental PCI-E power. It connects 8-pin female power sources to dual 6+2pin PCI-E male connectors, supporting GPUs and other PCI-E expansion cards that need additional power beyond standard motherboard provisions.
What is the length of this internal power cord?
This power cord measures 2 inches in length, making it ideal for short internal runs within computer chassis, server enclosures, or compact builds. The short length minimizes cable clutter and improves airflow while providing sufficient reach for typical PCI-E power connections.
What connector types does the CBL-PWEX-1040 feature?
The cord features three connectors: one 8-pin female connector on the first end and two 6+2pin PCI-E male connectors on the second end. The 6+2pin design provides flexibility for graphics cards that require either 6-pin or 8-pin PCI-E power inputs, allowing compatibility with various GPU models.
Is this power cord designed for internal or external use?
The CBL-PWEX-1040 is specifically designed for internal use within computer cases, server chassis, or other enclosed computing environments. It connects internal power supply units or motherboard headers to PCI-E devices, and is not intended for external power connections between separate devices.
What are the color specifications of this power cord?
The power cord features yellow and black coloration, which aids in visual identification during installation and maintenance. This color coding helps distinguish it from other internal cables and aligns with common industry standards for power cable identification.
Can this power cord support multiple PCI-E devices simultaneously?
Yes, the dual 6+2pin PCI-E male connectors allow the cord to power two separate PCI-E devices or provide dual power inputs to a single high-performance graphics card. This configuration supports devices that require multiple power connections for stable operation under heavy loads.
