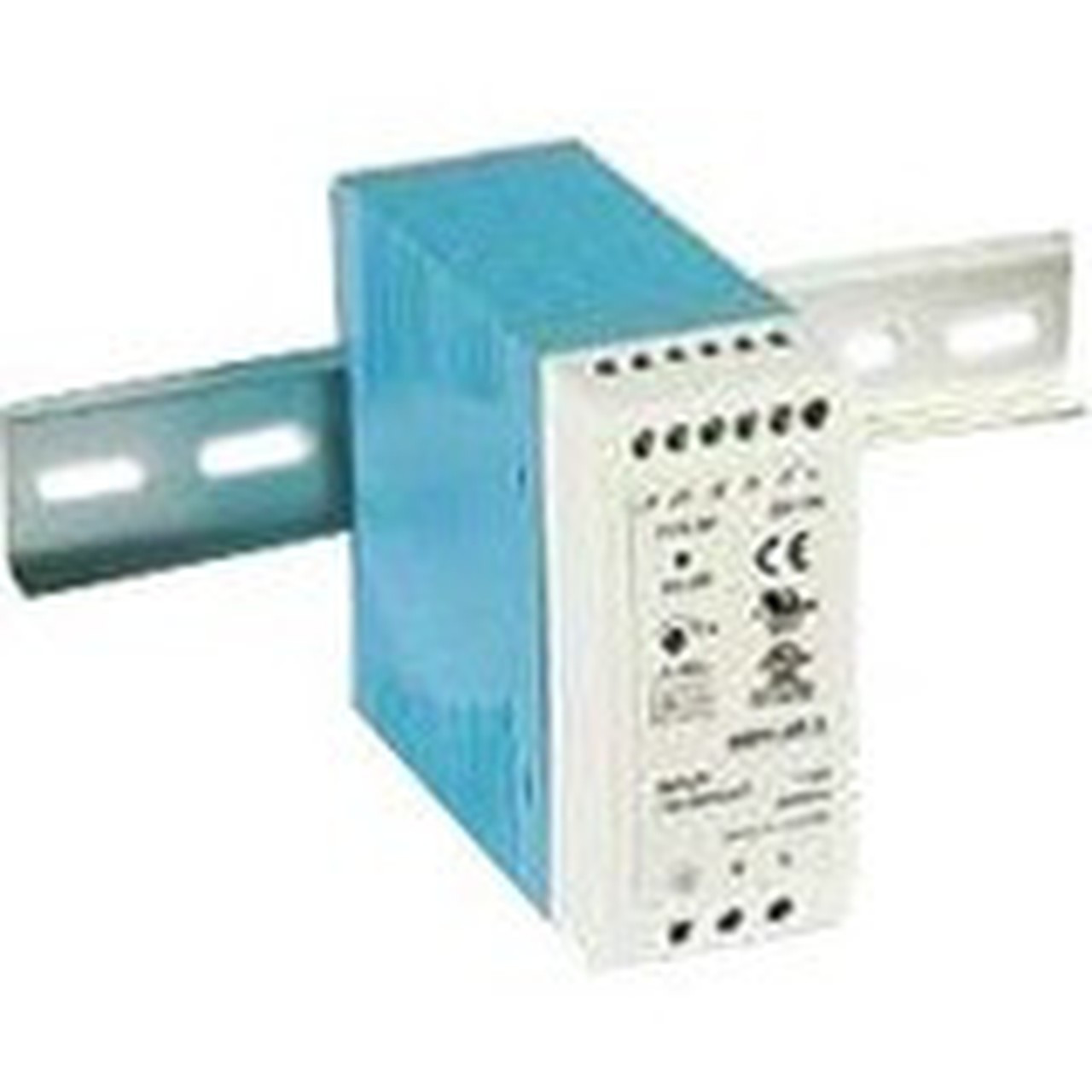

Transition Networks Industrial DIN Rail Mounted Power Supply - DIN Rail - 120 V AC, 230 V AC Input - 48 V DC Output - 39.80 W (25130)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Input Voltage: 120 V AC,230 V AC
Output Voltage: 48 V DC
Output Current: 830 mA
Output Power: 39.80 W
Form Factor: DIN Rail
Height: 3.54" (90 mm)
Width: 1.57" (40 mm)
Depth: 3.94" (100 mm)
Weight (Approximate): 300 g
Compatibility: Transition Networks SI-IES-111D-LRT Hardened PoE Media Converter
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
[custom-specifications]
Specifications | |
Manufacturer | Transition Networks, Inc |
Manufacturer Part Number | 25130 |
Manufacturer Website Address | http://www.transition.com |
Brand Name | Transition Networks |
Product Name | Industrial DIN Rail Mounted Power Supply |
Product Type | Proprietary Power Supply |
Power Description | |
Input Voltage | 120 V AC,230 V AC |
Output Voltage | 48 V DC |
Output Current | 830 mA |
Output Power | 39.80 W |
Physical Characteristics | |
Form Factor | DIN Rail |
Height | 3.54" (90 mm) |
Width | 1.57" (40 mm) |
Depth | 3.94" (100 mm) |
Weight (Approximate) | 300 g |
Miscellaneous | |
Compatibility | Transition Networks SI-IES-111D-LRT Hardened PoE Media Converter |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | Lifetime |
[/custom-specifications]
Warranty Infomartion
Lifetime
