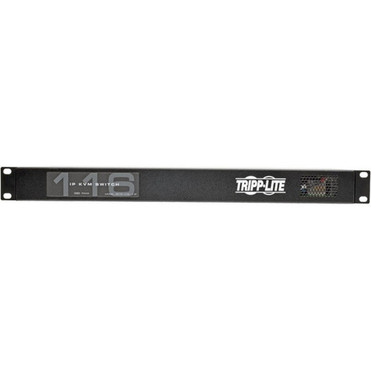

Tripp Lite by Eaton B072-016-1-IP Tripp Lite NetCommander 16-Port KVM Switch with IP - Cat5 - 1U Rack-mountable - 1920 x 1200100 ft
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This digital KVM switch operates with a maximum video resolution of 1920 x 1200 in UXGA graphic mode, supporting high-quality display output for server management tasks. The 20 network RJ-45 ports handle Cat5 connections, while 3 USB ports and 1 VGA port provide direct peripheral connectivity.
Power input accepts 120V to 230V AC, making it compatible with standard North American and international power systems. The switch measures 1.75" high, 17" wide, and 9" deep, fitting neatly into standard 19" rack enclosures with the included bracket kit. Environmental compliance includes RoHS and REACH standards, with TAA compliance for government purchasing.
Network & Protocol Support
Supports both IPv4 and IPv6 addressing, with remote authentication through RADIUS and LDAP/S for secure access control.
- Dual serial ports for PDU, firewall, and router management
- PDU control integration for power cycling connected devices
Key Product Advantages
Tripp Lite's NetCommander series delivers professional-grade KVM switching with robust remote access features. The free management software consolidates control of multiple B070 and B072 series IP KVMs through a single dashboard, simplifying large-scale deployments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Access & Control Features.
Access & Control Features
Simultaneous support for two users enables collaborative troubleshooting without interrupting ongoing operations.
- Patented Fast Virtual Media System (US Patent 9,417,720)
- Dual Ethernet ports for network redundancy
Deployment / Use Cases
This KVM switch is engineered for data centers, server rooms, and IT closets where centralized management of multiple servers is required. The 100-foot Cat5 extension capability allows flexible placement of equipment racks while maintaining direct console access.
Remote IP access enables off-site technicians to perform maintenance, updates, and troubleshooting without physical presence in the server room. This reduces downtime and travel costs for distributed IT teams managing infrastructure across multiple locations.
Relevant factors for this section include KVM Technology, Number of Computers Supported, Number of Local Users Supported, Graphic Mode. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Data Center Management
Ideal for managing server farms, virtualization hosts, and network appliances from a centralized console or remotely via secure IP connection.
Remote Office Support
Enables IT staff at headquarters to support branch office servers without travel, using the IP remote access feature over secure connections.
Physical Profile
The 1U rack-mountable design optimizes space in standard server racks, with dimensions of 1.75" H × 17" W × 9" D. The included rackmount bracket kit ensures secure installation in 19" rack enclosures. The compact form factor and 4.7-pound weight make it suitable for both permanent installations and temporary deployment scenarios.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17" (431.80 mm), 9" (228.60 mm), 4.70 lb (2130 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17" (431.80 mm)
- Depth
- 9" (228.60 mm)
- Height
- 1U
- Weight
- 4.70 lb (2130 g)
What's in the Box
The package includes all necessary components for immediate deployment in rack environments.
Highlights
- Controls up to 16 computers from a single interface
- Supports 1 local user and 1 remote user simultaneously
- Java-based web interface for remote access from any location
- Free management software for unified control of multiple Tripp Lite IP KVMs
- Dual Ethernet ports provide network redundancy
- PDU control integration for power management of connected devices
- Dual serial ports for managing PDU, firewall, and router devices
- 100-foot operating distance using Cat5 cabling
- 1920x1200 maximum video resolution in UXGA mode
- 3-year limited warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B072-016-1-IP |
| Brand Name | Tripp Lite series |
| Product Line | NetCommander |
| Product Model | B072-016-1-IP |
| Product Name | 16-Port Cat5 1+1 User 1U Rack-Mount VGA USB KVM Switch with IP Remote Access |
| Product Type | KVM Switchbox |
| Technical Information | |
| KVM Technology | Digital |
| Number of Computers Supported | 16 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 100 ft (30480 mm) |
| Video | |
| Graphic Mode | UXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 20 |
| Number of USB Ports | 3 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage Range | 120V AC to 230V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17" (431.80 mm) |
| Depth | 9" (228.60 mm) |
| Weight (Approximate) | 4.70 lb (2130 g) |
| Miscellaneous | |
| Package Contents | NetCommander B072-016-1-IP 16-Port KVM Over IP Switch 16-Port NetCommander 1U Rackmount Cat5 KVM over IP Switch Rackmount Bracket kit 6ft Power Cord 6ft Serial Cable |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can this KVM switch control simultaneously?
The Tripp Lite B072-016-1-IP NetCommander KVM switch supports up to 16 computers. You can connect 16 servers or workstations to the switch and control them from either the local console or remotely via IP connection. The switch manages keyboard, video, and mouse signals for all connected devices through a single interface.
What types of remote access does this KVM switch support?
This switch supports IP-based remote access through a Java-enabled web browser from any location with internet connectivity. It also offers a non-browser client available through the support section that bypasses browser-related Java security prompts. Remote authentication is supported via RADIUS and LDAP/S protocols for secure access control.
What is the maximum distance for KVM connections with this switch?
The maximum operating distance is 100 feet (30,480 mm) using Cat5 cabling. This allows flexible placement of servers in rack environments while maintaining reliable keyboard, video, and mouse signal transmission. The digital KVM technology ensures stable performance across this extended distance.
Can this KVM switch integrate with power distribution units (PDUs)?
Yes, the switch includes PDU control functionality. You can add IP PDUs as managed devices and assign individual KVM ports to specific PDU outlets. This enables remote power cycling or power on/off control for computers and servers connected to those ports, providing comprehensive out-of-band management capabilities.
What video resolution does this KVM switch support?
The switch supports a maximum video resolution of 1920 x 1200 in UXGA graphic mode. This high-resolution capability ensures clear display output for modern server configurations and management interfaces. The digital KVM technology maintains video quality across the 100-foot Cat5 extension.
What is included in the package with this KVM switch?
The package includes the NetCommander B072-016-1-IP 16-port KVM over IP switch, a rackmount bracket kit for 1U installation in standard 19" racks, a 6-foot power cord, and a 6-foot serial cable. These components provide everything needed for immediate deployment in rack environments without requiring additional purchases.
