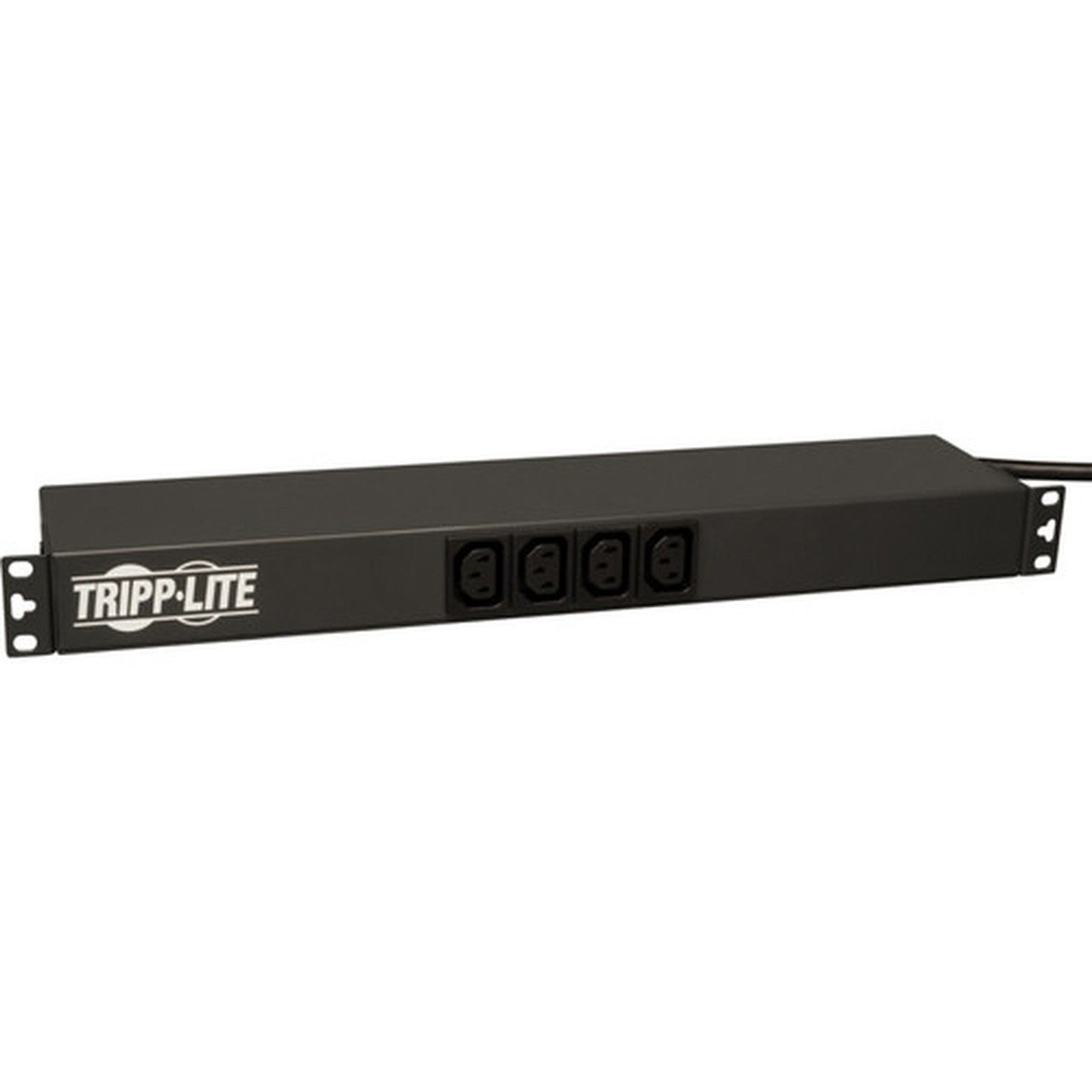

Tripp Lite by Eaton PDUH20HVL6 Basic PDU - 14 Outlets - 20A 208-240V - NEMA L6-20P - 1U Rack Mount - Horizontal/Vertical
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates as a basic power distribution unit, meaning it does not include remote monitoring, switching, or metering capabilities. It is built for environments where fundamental power distribution and outlet expansion are the primary requirements. The electrical specifications include a nominal input voltage of 230V AC, with an operating range of 208V to 240V AC, and a consistent output voltage of 240V AC to connected devices.

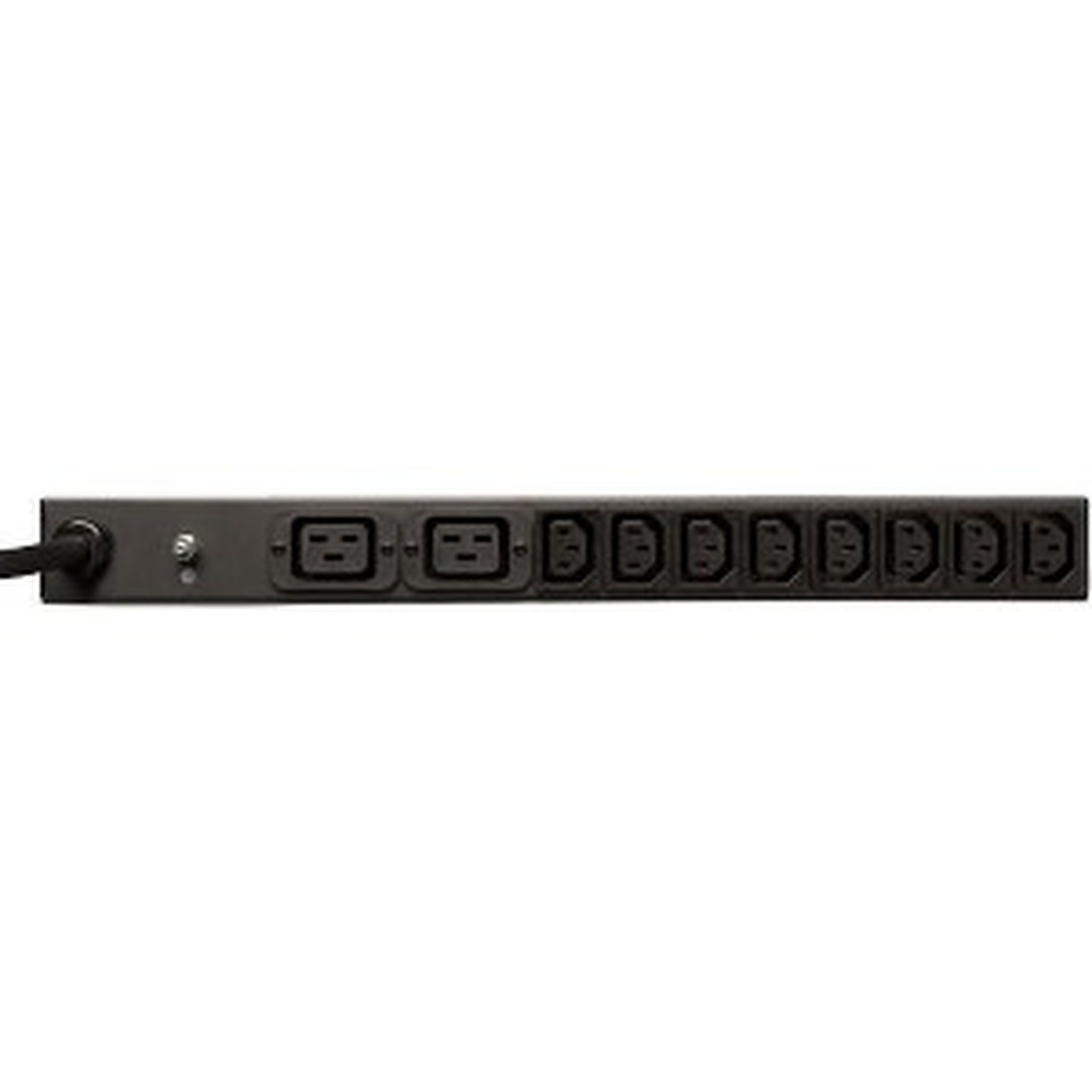

The outlet configuration is optimized for data center and server room use, with 2 C19 outlets supporting higher-power equipment and 12 C13 outlets for standard IT devices. This mix allows for flexible power allocation across different device types. The NEMA L6-20P input connector is a locking plug type commonly used in 208-240V applications, ensuring a secure connection to the power source.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Detail, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PDUH20HVL6 offers several advantages for rack-based power distribution, starting with its versatile mounting options. The horizontal/vertical orientation allows installation in various rack configurations, including front, rear, or side mounting, to suit specific cabinet layouts and cable management needs.
High-Density Outlet Layout
With 14 outlets in a 1U form factor, this PDU maximizes power distribution capacity within minimal rack space. The combination of C19 and C13 outlets supports both high-wattage servers and standard networking gear.
- 2 C19 outlets for high-power devices
- 12 C13 outlets for standard equipment
- Consolidates multiple power strips
Robust Construction and Compliance
Built to meet industry standards, this PDU features a durable metal housing and complies with RoHS environmental regulations. The 5-year limited warranty provides long-term reliability assurance for continuous operation.
- RoHS compliant
- 5-year warranty
- Metal construction for rack environments
Deployment / Use Cases
This Basic PDU is ideal for server rooms, network closets, and data centers where additional power outlets are needed for rack-mounted equipment. Its 1U profile makes it suitable for high-density environments where rack space is at a premium, allowing it to be installed alongside servers, switches, and storage arrays without consuming excessive vertical space.
Common deployment scenarios include providing power distribution for a rack of servers, supporting networking equipment in a telecom closet, or expanding outlet availability in a small business server cabinet. The horizontal/vertical mounting capability allows installation in racks with limited depth or unusual configurations, while the 15-foot power cord offers flexibility in positioning relative to the power source.
Server Rack Power Expansion
Adds 14 outlets to a standard server rack, replacing multiple power strips and reducing cable clutter. The 1U height minimizes space impact while providing ample power connections for a full rack of equipment.
Network Equipment Support
Powers switches, routers, and other networking gear in telecom rooms or data centers. The mix of C19 and C13 outlets accommodates both standard and high-power networking devices.
Physical Profile
The PDUH20HVL6 has a compact 1U rack height, measuring 1.75 inches (44.45 mm) tall, with a width of 17.25 inches (438.15 mm) and depth of 3.75 inches (95.25 mm). These dimensions align with standard 19-inch rack widths, ensuring compatibility with most server cabinets and racks. The unit weighs approximately 3.75 pounds (1700.97 grams), making it lightweight for easy installation and handling.
The horizontal/vertical mounting orientation provides installation flexibility, allowing the PDU to be mounted in the most convenient position for cable routing and access. The metal construction ensures durability in rack environments, while the slim profile minimizes obstruction of airflow and equipment access.
- Width
- 17.25" (438.15 mm)
- Depth
- 3.75" (95.25 mm)
- Height
- 1U
- Weight
- 3.75 lb (1700.97 g)
What's in the Box
The package includes the Basic PDUH20HVL6 14-Outlets PDU and the owner's manual. This ensures you have both the hardware and documentation needed for proper installation and use.
Highlights
- Basic single-phase 20A 208-240V PDU for straightforward power distribution
- 14 total outlets: 2 C19 and 12 C13 receptacles for mixed equipment support
- 1U rack height with horizontal/vertical mounting orientation flexibility
- NEMA L6-20P input plug with 15-foot (4.5m) line cord
- Input voltage range of 208-240V AC, output voltage of 240V AC
- Compact dimensions: 1.75"H x 17.25"W x 3.75"D (44.45 x 438.15 x 95.25 mm)
- Lightweight at approximately 3.75 lb (1700.97 g) for easy installation
- RoHS compliant and environmentally friendly
- 5-year limited warranty for reliability assurance
- Made in China with quality construction
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUH20HVL6 |
| Brand Name | Tripp Lite series |
| Product Line | Basic |
| Product Model | PDUH20HVL6 |
| Product Name | Basic PDUH20HVL6 14-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Detail | 14 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Output Voltage | 240 V AC |
| Physical Characteristics | |
| Mounting Orientation | Horizontal/Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 3.75" (95.25 mm) |
| Weight (Approximate) | 3.75 lb (1700.97 g) |
| Miscellaneous | |
| Package Contents | Basic PDUH20HVL6 14-Outlets PDU Owner's Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the input voltage range for this PDU?
The Tripp Lite by Eaton PDUH20HVL6 accepts input voltages from 208V AC to 240V AC, with a nominal rating of 230V AC. This range accommodates common single-phase power sources in data centers and server rooms, providing compatibility with standard 208V and 240V electrical circuits.
How many outlets does this PDU have and what types are they?
This PDU features 14 total outlets, consisting of 2 C19 outlets and 12 C13 outlets. The C19 outlets support higher-power equipment like servers and UPS units, while the C13 outlets are for standard IT devices such as switches, routers, and storage units. This mix allows flexible power distribution across different device types.
What rack mounting options are available?
The PDUH20HVL6 is designed for 1U rack mounting with horizontal or vertical orientation. This means it can be installed in standard 19-inch racks either horizontally along the rack rails or vertically on the side or rear of the cabinet. The mounting flexibility helps optimize space and cable management in various rack configurations.
What type of input plug does this PDU use?
This PDU uses a NEMA L6-20P locking plug for its power input. This plug type is commonly used for 208-240V applications and provides a secure, twist-lock connection to prevent accidental disconnection. The included line cord is 15 feet (4.5 meters) long for placement flexibility.
Does this PDU have any remote management or monitoring features?
No, the PDUH20HVL6 is a Basic PDU model, which means it does not include remote management, monitoring, switching, or metering capabilities. It functions as a straightforward power distribution unit, providing reliable outlet expansion without advanced features. This makes it ideal for environments where simple, dependable power distribution is sufficient.
What warranty coverage is provided with this PDU?
Tripp Lite by Eaton provides a 5-year limited warranty for the PDUH20HVL6. This warranty covers defects in materials and workmanship under normal use, offering long-term reliability assurance for your power distribution investment. The unit is also RoHS compliant, meeting environmental standards for hazardous substance restriction.
