Tripp Lite by Eaton B150-1A1-HDMI Tripp Lite Video Console/Extender - 1 x 1 HDMI Extender Over Cat6a - 150 ft Range - 1080p Full HD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This video extender transmits signals over two RJ-45 network ports using twisted-pair Cat6a cable, supporting distances up to 150 feet for 1080i signals and 125 feet for 1080p signals. It maintains signal integrity across its operating range, ensuring consistent video quality without compression artifacts or latency issues that can affect real-time applications.
The unit features one HDMI output port on the receiver side, two USB ports for peripheral extension, and supports DisplayPort connectivity. Its wired connectivity technology provides a stable, interference-resistant link suitable for permanent installations in commercial and institutional environments.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Number of Output Devices Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The B150-1A1-HDMI simplifies long-distance AV deployments by combining video, audio, and USB extension into a single, integrated solution. Its ability to use cost-effective Cat6a cable instead of expensive HDMI fiber optic cables reduces infrastructure costs while maintaining professional-grade performance.
Extended Reach Without Compromise
Delivers 1080p video up to 125 feet and 1080i up to 150 feet over standard network cable, preserving color accuracy and audio synchronization across the entire range.
- 24-bit True Color support
- Stereo audio pass-through
- No signal compression
Simplified Installation & Power
Includes all necessary cables for immediate deployment, with USB-powered units that eliminate separate power adapters and reduce cable clutter at both transmitter and receiver locations.
- Includes 2x USB Micro-B cables
- Plug-and-play operation
- No drivers required
Deployment / Use Cases
This extender is specifically designed for scenarios where HDMI source equipment must be positioned away from displays due to space constraints, security requirements, or aesthetic considerations. Its reliable performance makes it suitable for continuous operation in demanding environments.
Common applications include digital signage networks where media players are centralized in equipment racks, conference rooms with table-top inputs connected to wall-mounted displays, classroom lecterns linking to projection systems, and control rooms where operator consoles need video extension to monitoring screens. The TAA compliance ensures eligibility for government and educational procurement where domestic sourcing requirements apply.
Conference & Meeting Rooms
Extend laptop or media player signals from conference tables to large-format displays or projectors mounted on walls or ceilings, maintaining video quality for presentations and video conferences.
Digital Signage & Retail
Centralize media players in secure equipment rooms while distributing content to multiple displays throughout retail spaces, lobbies, or transportation hubs using cost-effective Cat6a infrastructure.
What's in the Box
The package includes all components necessary for immediate deployment of a complete extension system.
Highlights
- Extends HDMI signals up to 150 ft over Cat6a cable
- Supports 1080p Full HD resolution at 125 ft
- Delivers 24-bit True Color with stereo audio

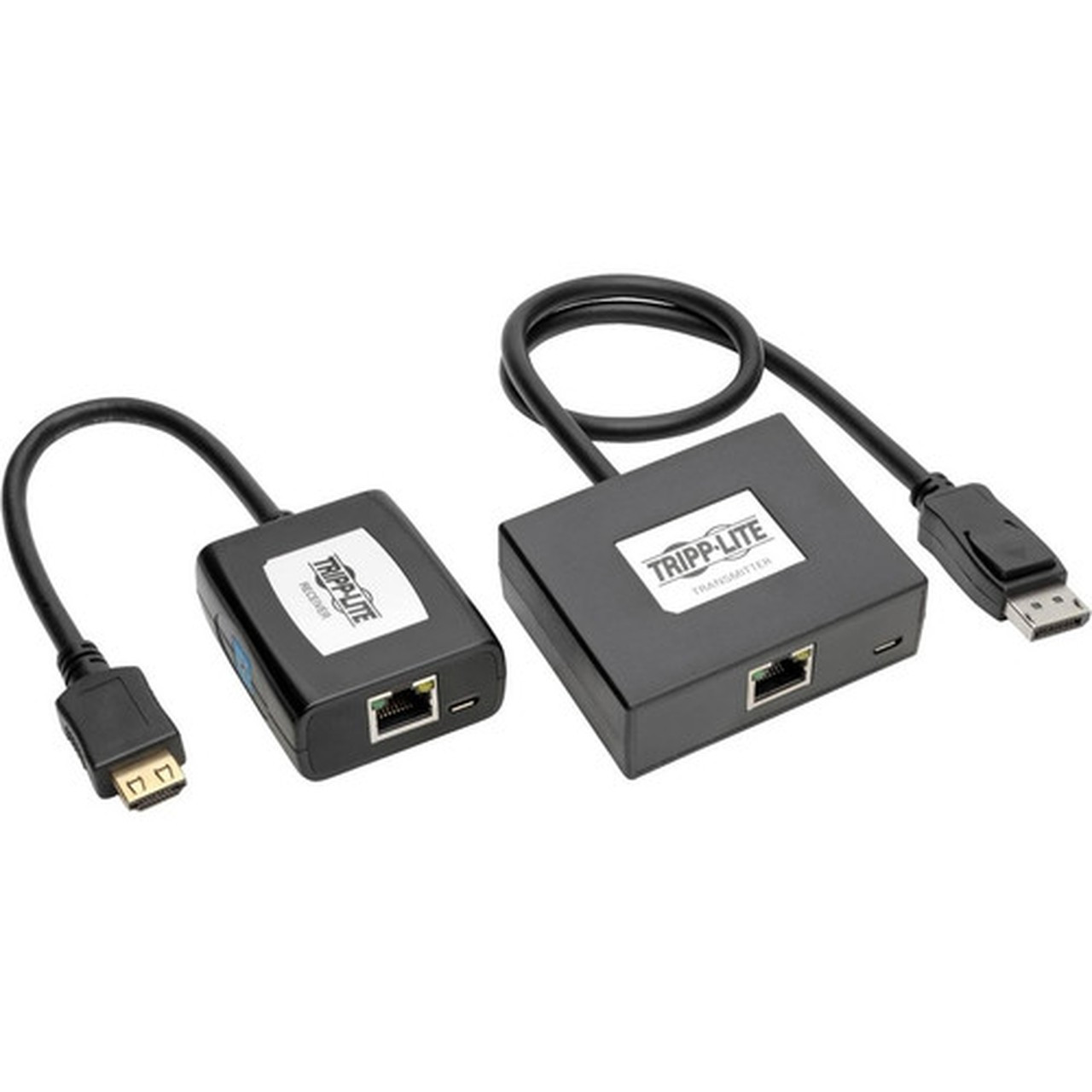

- Includes transmitter, receiver, and USB power cables
- Plug-and-play operation with no drivers required
- Works with all operating systems
- TAA compliant for government procurement
- RoHS environmental compliance
- 1-year limited warranty
- Black finish for professional installations
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B150-1A1-HDMI |
| Brand Name | Tripp Lite series |
| Product Model | B150-1A1-HDMI |
| Product Name | B150-1A1-HDMI Video Console/Extender |
| Packaged Quantity | 1 Each |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 150 ft (45720 mm) |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| USB | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Miscellaneous | |
| Package Contents | Transmitter Unit Receiver Unit 2 x USB Micro-B Cables, 3 ft. Owner's Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1-year limited warranty |
User Manual
FAQ
What is the maximum distance this extender supports?
The Tripp Lite B150-1A1-HDMI supports a maximum operating distance of 150 feet (45,720 mm) when using Category 6a twisted-pair cable. For 1080p Full HD signals, the reliable distance is 125 feet, while 1080i signals can reach the full 150-foot range. This makes it suitable for most room-scale installations without requiring signal boosters or repeaters.
What video resolution and quality does this extender support?
This extender supports Full HD 1080p resolution at 1920 x 1080 pixels with 24-bit True Color depth (8 bits per channel). It maintains color accuracy and detail across the entire operating range without compression artifacts, ensuring professional-grade video quality for presentations, digital signage, and video conferencing applications.
Does this extender require separate power adapters?
No, the transmitter and receiver units are powered through the included USB Micro-B cables. These cables supply power to both units, eliminating the need for separate power adapters at each location. This simplifies installation by reducing cable clutter and power outlet requirements at both the source and display ends of the extension.
What type of cable is required for installation?
The extender requires Category 6a twisted-pair Ethernet cable (Cat6a) for optimal performance. This standard network cable is widely available and cost-effective compared to specialized HDMI extension cables. Properly terminated Cat6a cable ensures reliable signal transmission across the extender's maximum 150-foot operating distance.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance indicates that this product meets U.S. government procurement requirements for domestic sourcing. The extender is manufactured in Taiwan, a TAA-designated country, making it eligible for purchase by federal agencies, educational institutions, and other organizations that must comply with government contracting regulations.
What screen size is listed?
Tripp Lite series B150-1A1-HDMI Video Console/Extender - 1 Input Device - 1 Output Device - 150 ft (45720 mm) Range - 2 x Network - 2 (B150-1A1-HDMI) is best judged through its screen, connectivity, and installation specifications, which help buyers confirm visual fit and deployment suitability.
