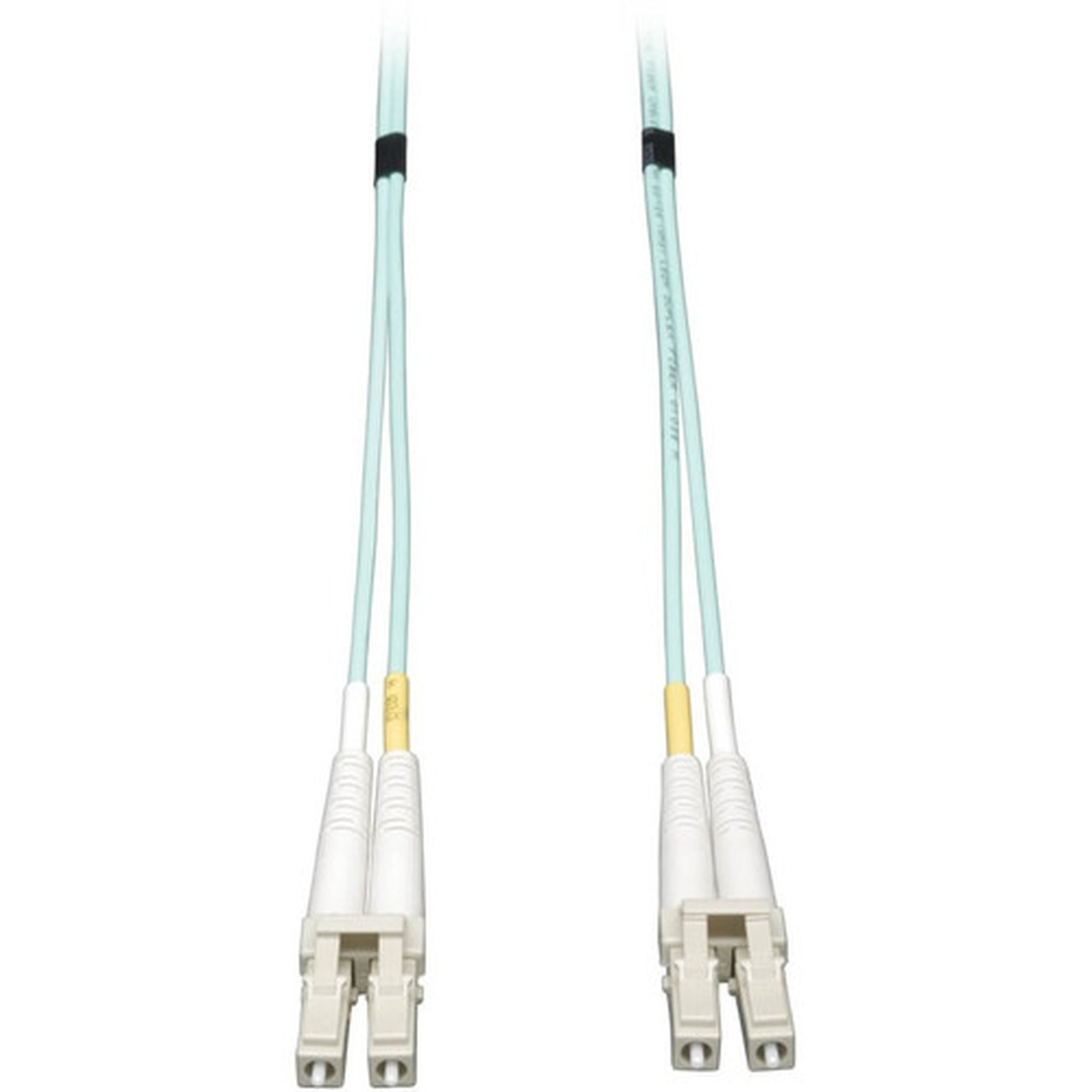

Tripp Lite by Eaton N820-02M Tripp Lite Fiber Optic Duplex Patch Cable - LC Male to LC Male - 2m - Aqua Blue - 50/125 µm Multimode OM3
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This OM3-rated multimode fiber patch cable utilizes 50/125 µm fiber core/cladding specifications optimized for high-speed data transmission. The cable supports maximum 10Gb distances of 300 meters at 850nm wavelengths, making it suitable for backbone connections, server-to-switch links, and storage area network deployments.
The LC connector interface provides a small-form-factor solution that saves space in high-density patch panels and network equipment. Each end features two LC male connectors in a duplex configuration, ensuring proper polarity alignment for bidirectional data flow.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Cable Core/Cladding Specification, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This fiber patch cable combines performance, safety, and durability for demanding network environments. The OM3 rating ensures reliable 10-Gig Ethernet performance while the LSZH jacket provides enhanced fire safety characteristics.
High-Speed Performance
Designed specifically for 10-Gig Ethernet applications with OM3 certification, supporting data rates up to 10Gbps over distances up to 300 meters.
- OM3 rated for 10Gb Ethernet
- 300m maximum distance @850nm
- Backward compatible with 50/125 fiber
Enhanced Safety Features
The Low-Smoke, Zero Halogen (LSZH) jacket minimizes toxic emissions and smoke production in the event of fire, making it suitable for enclosed spaces and areas with limited ventilation.
- LSZH jacket material
- Reduced toxic fume emission
- Improved fire safety characteristics
Reliable Connectivity
LC male connectors provide secure, low-loss connections with precise alignment, while the duplex configuration ensures proper polarity for bidirectional data transmission.
- LC male connectors both ends
- Duplex configuration
- Secure connection with low insertion loss
Deployment / Use Cases
This fiber optic patch cable is ideal for connecting network equipment in data centers, enterprise networks, and telecommunications facilities. The 2-meter length provides flexible reach between adjacent racks or within the same equipment enclosure.
Common applications include connecting switches to servers, linking storage arrays to network infrastructure, establishing backbone connections between network closets, and patching fiber distribution panels. The OM3 rating makes it particularly suitable for 10-Gig Ethernet deployments in enterprise and data center environments.
What's in the Box
This product includes the complete fiber optic patch cable ready for immediate deployment in your network infrastructure.
Package contents include Fiber Optic Duplex Patch Cable 2 meter ( 6ft-7ft ) Duplex Multimode 50/125 Aqua Fiber Patch Cable, LC/LC, Fiber Optic Duplex Patch Cable. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- LC male to LC male duplex fiber patch cable
- 2-meter (6.6-foot) length for flexible deployment
- 50/125 µm multimode OM3 rated fiber
- Supports 10-Gig Ethernet up to 300 meters
- Aqua blue Low-Smoke, Zero Halogen (LSZH) jacket
- Backward compatible with existing 50/125 fiber
- Lifetime warranty for long-term reliability
- Duplex configuration for bidirectional data flow
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N820-02M |
| Brand Name | Tripp Lite series |
| Product Model | N820-02M |
| Product Name | Fiber Optic Duplex Patch Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Cable Length | 6.6 ft (2.01 m) |
| Connector Type on First End | LC - Male |
| Connector on First End Details | 2 x LC - Male |
| Connector Type on Second End | LC - Male |
| Connector on Second End Details | 2 x LC - Male |
| Physical Characteristics | |
| Color Family | Blue |
| Product Color | Aqua Blue |
| Miscellaneous | |
| Package Contents | Fiber Optic Duplex Patch Cable 2 meter ( 6ft-7ft ) Duplex Multimode 50/125 Aqua Fiber Patch Cable, LC/LC |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of connectors does this fiber patch cable use?
This cable features LC male connectors on both ends in a duplex configuration. Each end has two LC male connectors, providing a complete duplex connection for bidirectional data transmission over fiber optic lines.
What is the maximum distance for 10-Gig Ethernet with this cable?
The N820-02M supports 10-Gig Ethernet connections up to 300 meters when operating at 850nm wavelengths. This OM3-rated multimode fiber is optimized for high-speed data transmission over medium distances in data center and enterprise environments.
What does the LSZH jacket rating mean?
LSZH stands for Low-Smoke, Zero Halogen, indicating the jacket material produces minimal smoke and no halogen gases when exposed to fire. This enhances safety in enclosed spaces by reducing toxic emissions and improving visibility during emergency situations.
Is this cable backward compatible with existing fiber infrastructure?
Yes, this 50/125 µm multimode fiber patch cable maintains full backward compatibility with existing 50/125 fiber installations. It can integrate seamlessly with legacy fiber optic systems while providing enhanced performance for modern 10-Gig Ethernet applications.
What applications is this fiber patch cable designed for?
This cable is ideal for data center interconnects, server-to-switch connections, storage area network deployments, and enterprise network backbone links. The 2-meter length and LC connectors make it particularly suitable for rack-to-rack connections and equipment patching in high-density environments.
What warranty comes with this fiber optic patch cable?
Tripp Lite provides a lifetime warranty for this N820-02M fiber optic duplex patch cable, ensuring long-term reliability and performance for your network infrastructure investments.
