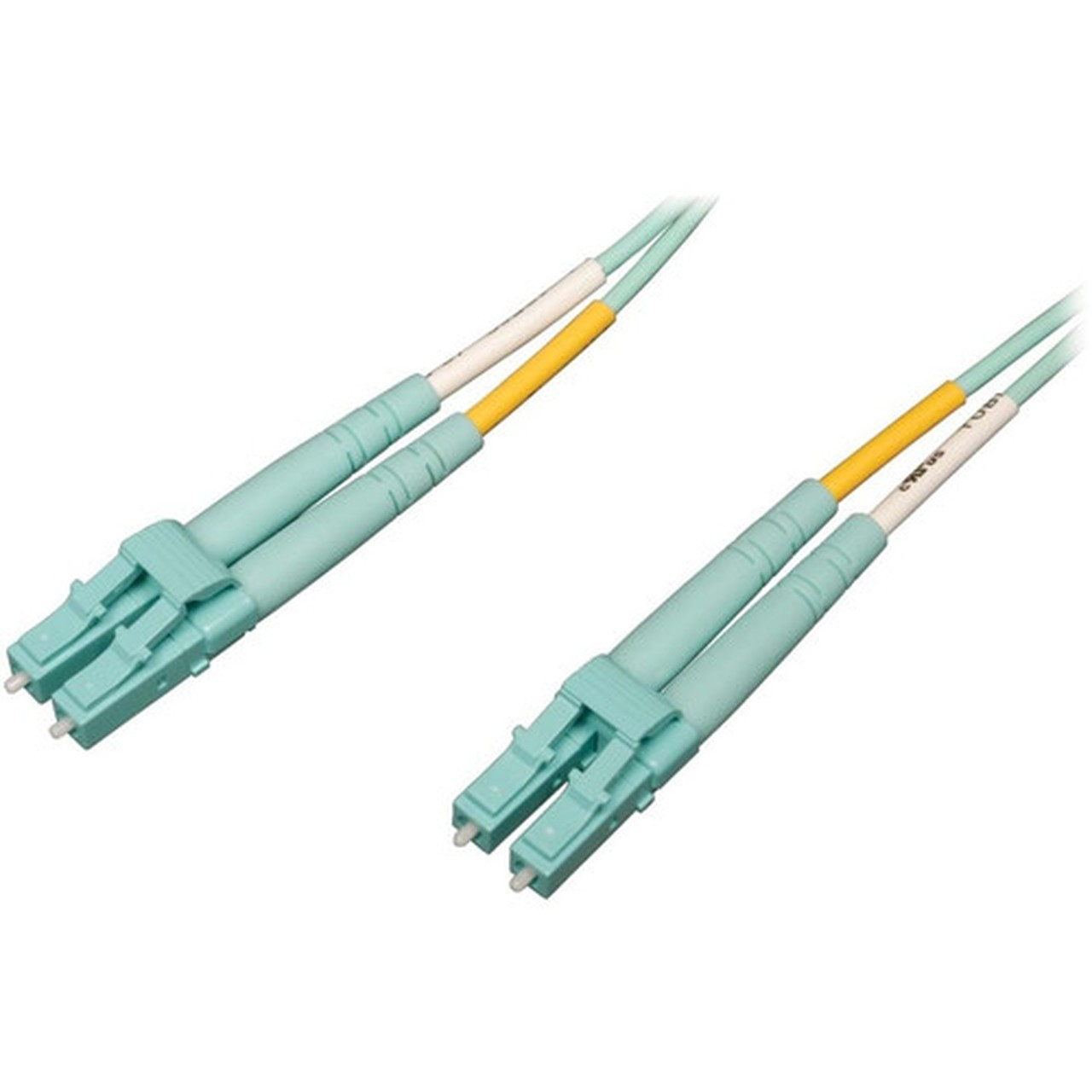

Tripp Lite by Eaton N820-01M-OM4 Tripp Lite Fiber Optic Duplex Patch Cable - 3. 3 ft (1. 01 m) LC to LC OM4 Multi-mode 50/125 µm LSZH Seawater
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber optic patch cable utilizes OM4 multi-mode fiber technology, which is backward compatible with existing 50/125 µm fiber infrastructure. The cable supports maximum distances of 300 meters at 850nm for 40/100Gb Ethernet applications, providing reliable performance for high-bandwidth networking needs.
The duplex LC connectors feature a male interface on both ends, with two connectors per end for transmitting and receiving data simultaneously. This configuration ensures full-duplex communication capabilities for efficient network operations.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This Tripp Lite patch cable offers several advantages for network infrastructure deployment. The OM4 rating ensures compatibility with high-speed Ethernet standards, while the quality construction provides reliable signal integrity for critical data transmission.
High-Speed Performance
Designed specifically for 40/100-Gig Ethernet applications, this cable delivers the bandwidth needed for modern network demands without compromising signal quality.
- OM4 multi-mode fiber
- 300m maximum distance @850nm
- Backward compatible with 50/125 fiber
Safety and Durability
The LSZH (Low-Smoke, Zero Halogen) jacket material minimizes toxic emissions in case of fire, making this cable suitable for use in enclosed spaces and data centers with strict safety requirements.
- RoHS compliant
- Environmentally friendly construction
- Durable seawater-colored jacket
Deployment / Use Cases
This fiber optic patch cable is ideal for connecting network equipment in data centers, server rooms, and enterprise networking environments. The 3.3 ft length makes it perfect for short inter-rack connections or device-to-patch panel installations.
Common applications include connecting switches to servers, linking network interface cards to patch panels, and establishing connections between storage area network (SAN) components. The LC connectors provide a secure, reliable interface that maintains signal integrity even in high-density installations.
Data Center Interconnects
Use for connecting top-of-rack switches to servers or storage devices within the same rack or adjacent racks in data center environments.
Network Infrastructure
Ideal for patching between network equipment in telecommunications rooms, wiring closets, and enterprise network distribution points.
Highlights
- OM4-rated multi-mode fiber optic patch cable
- 3.3 ft (1.01 m) length for short-distance connections
- LC to LC connectors with male interfaces on both ends
- Supports 40/100-Gig Ethernet applications
- Maximum distance of 300 meters at 850nm
- Backward compatible with existing 50/125 µm fiber
- Low-smoke, zero-halogen (LSZH) jacket for safety
- Seawater color for easy visual identification
- RoHS compliant and environmentally friendly
- Lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N820-01M-OM4 |
| Brand Name | Tripp Lite series |
| Product Model | N820-01M-OM4 |
| Product Name | N820-01M-OM4 Fiber Optic Duplex Patch Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Cable Length | 3.3 ft (1.01 m) |
| Connector Type on First End | LC Network - Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| Physical Characteristics | |
| Color Family | Other |
| Product Color | Seawater |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum distance this cable supports for 40/100-Gig Ethernet?
This OM4-rated fiber optic patch cable supports a maximum distance of 300 meters at 850nm wavelength for 40/100-Gig Ethernet applications. This makes it suitable for most data center and enterprise networking environments where high-speed connections are required over moderate distances.
What type of connectors does this cable have on both ends?
Both ends of this patch cable feature LC network connectors with male interfaces. Each end has two LC connectors (duplex configuration) for transmitting and receiving data simultaneously, providing full-duplex communication capabilities for efficient network operations.
Is this cable backward compatible with existing fiber infrastructure?
Yes, this multi-mode fiber optic cable is backward compatible with existing 50/125 µm fiber infrastructure. The OM4 rating ensures it can work with older multi-mode fiber systems while providing enhanced performance for newer high-speed Ethernet standards.
What does LSZH jacket mean and why is it important?
LSZH stands for Low-Smoke, Zero Halogen, which refers to the jacket material that minimizes toxic emissions in case of fire. This safety feature makes the cable suitable for use in enclosed spaces, data centers, and areas with strict fire safety requirements where reduced smoke and halogen-free materials are mandated.
What applications is this 3.3 ft fiber patch cable best suited for?
The 3.3 ft (1.01 m) length makes this cable ideal for short-distance connections in data centers, server rooms, and network closets. Common applications include connecting switches to servers within the same rack, linking network interface cards to patch panels, and establishing connections between adjacent network equipment in high-density installations.
What warranty does Tripp Lite provide for this fiber optic cable?
Tripp Lite provides a lifetime limited warranty for this N820-01M-OM4 fiber optic patch cable. This warranty covers defects in materials and workmanship for the life of the product, providing assurance of quality and reliability for your network infrastructure investment.
