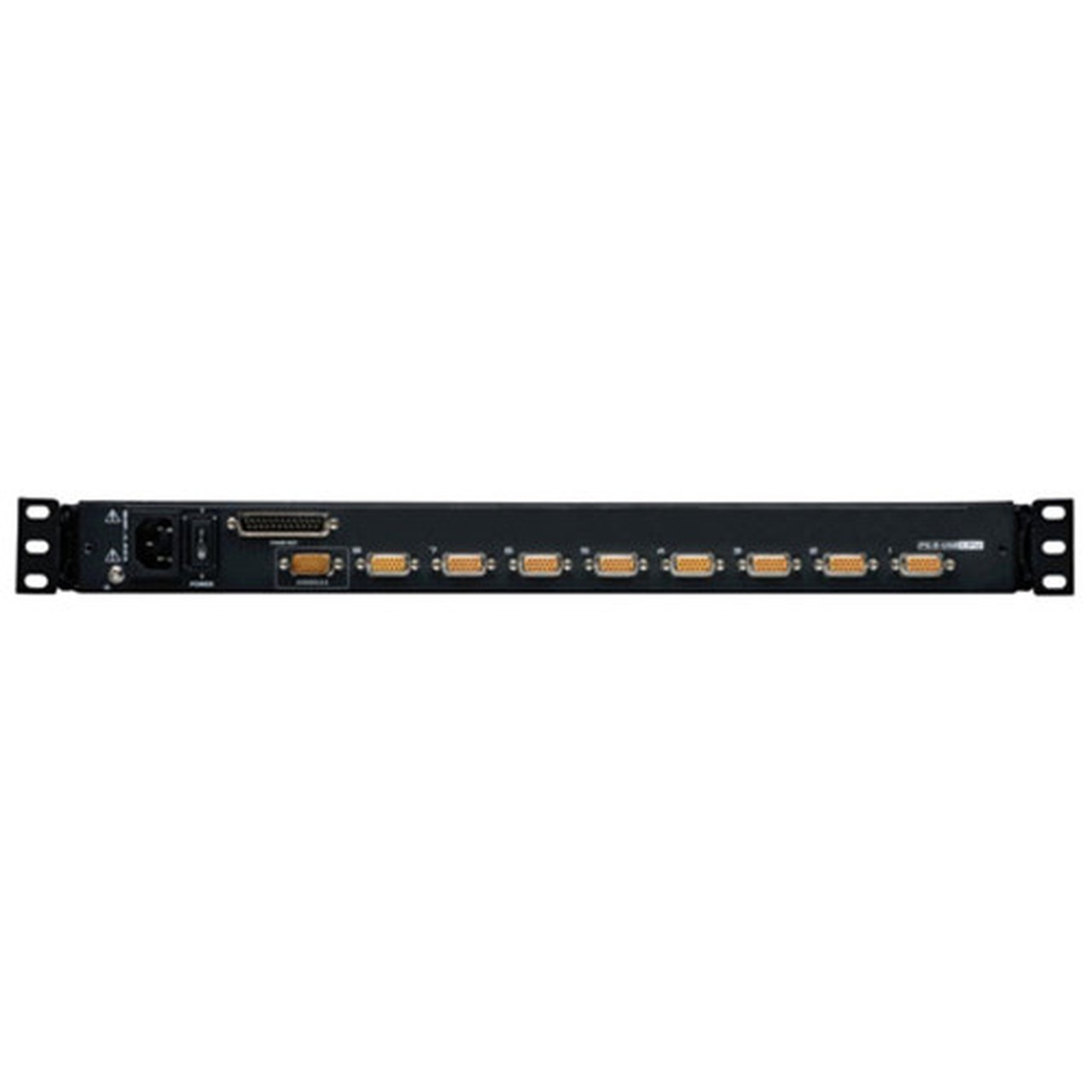

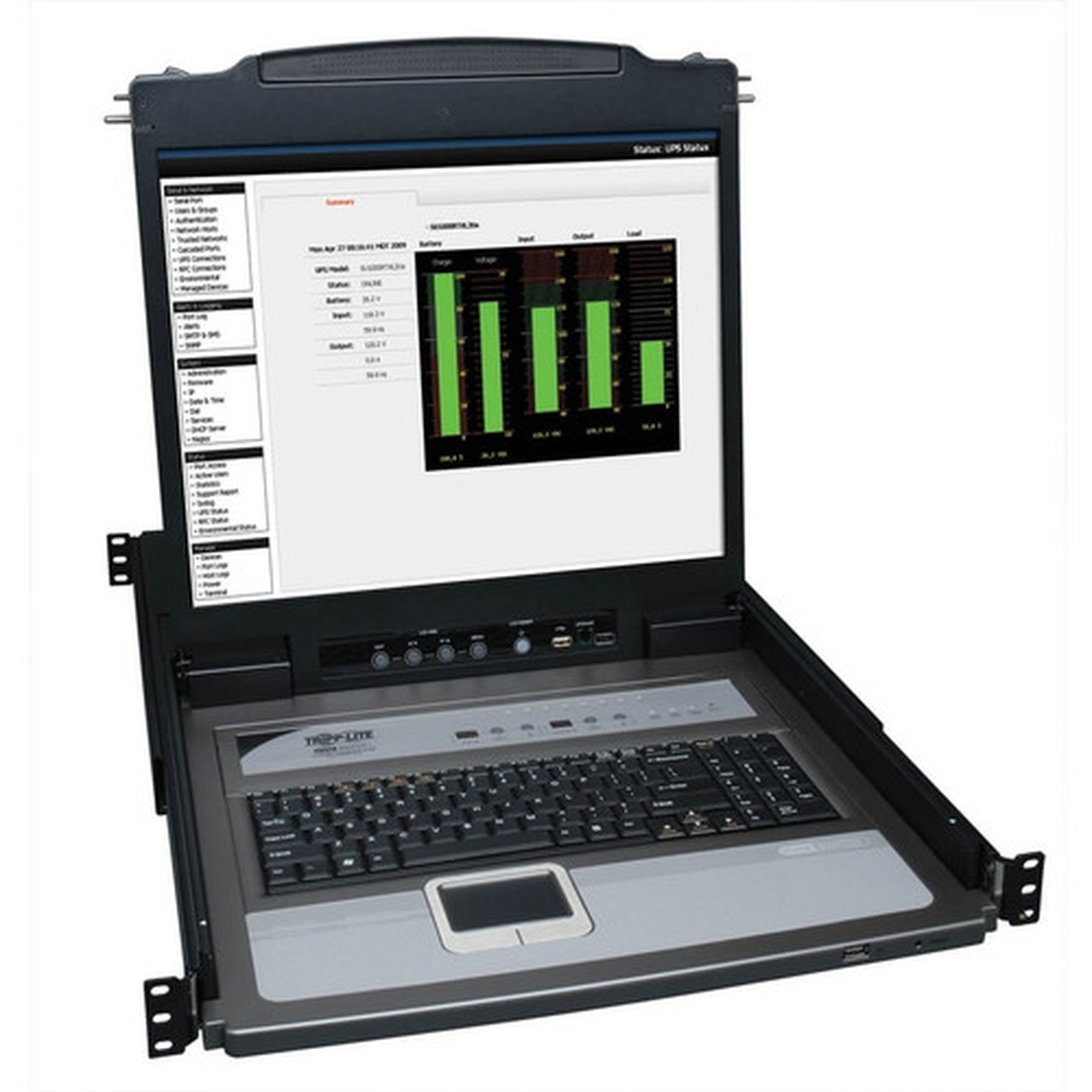

Tripp Lite NetDirector Console RM LCD KVM Switch with 8 Cables - Steel Housing - 8 Computer(s) - 19" - 8 x HD-18 Keyboard/Mouse/Video (B020-U08-19-K)

(No reviews) Write a Review
$2,074.54
$2,074.54
$1,946.65
(You save $127.89 )
SKU: B020-U08-19-K
UPC: 37332150776
Availability: In Canada. Usually ship same day.
Weight: 43.30 LBS

Pre-order! 🗨️📞

  • Occupies just 1U of space in a rack-mountable drawer
  • 19" LCD screen supports video resolutions up to 1280 x 1024
  • Simplifies IT tasks with easy switching between all 8 ports
  • Provides 2-level password security (administrator and user)
  • Combo cables (included) connect to PS/2 or USB servers
    Marketing Information:

    Tripp Lite's B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers.The B020-U08-19-K has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display(OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external m ouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.


    KVM Switch: Yes
    Number of Computers Supported: 8
    Daisy Chain: Yes
    Device Type: LCD Rack Console
    Screen Size: 19"
    Display Screen Type: LCD
    Screen Mode: SXGA
    Screen Resolution: 1280 x 1024
    Pointing Device Type: TouchPad
    USB: Yes
    Number of USB Ports: 2
    Height: 1.75" (44.45 mm)
    Width: 17" (431.80 mm)
    Depth: 27" (685.80 mm)
    Weight (Approximate): 13.88 kg
    Package Contents:
    • NetDirector Console RM LCD KVM Switch
    • 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits
    • RJ11 to DB9 Firmware Upgrade Cable
    • C13 to 5-15P Power Cord
    • CD with Owner's Manual
    • Quick Start Guide
    • Grounding Wire
    • Rackmount Hardware

    Environmentally Friendly: Yes
    Country of Origin: Taiwan
    TAA Compliant: Yes
    Limited Warranty: 1 Year

[custom-specifications]

Specifications
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: B020U0819K
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite by Eaton
Product Line: NetDirector
Product Model: B020-U08-19-K
Product Name: NetDirector B020-U08-19-K Rackmount LCD with KVM
Product Type: LCD Rack Console
Technical Information
KVM Switch: Yes
Number of Computers Supported: 8
Daisy Chain: Yes
Device Type: LCD Rack Console
Display & Graphics
Screen Size: 19"
Display Screen Type: LCD
Screen Mode: SXGA
Screen Resolution: 1280 x 1024
Input Devices
Pointing Device Type: TouchPad
Interfaces/Ports
USB: Yes
Number of USB Ports: 2
Physical Characteristics
Height: 1.75" (44.45 mm)
Width: 17" (431.80 mm)
Depth: 27" (685.80 mm)
Weight (Approximate): 13.88 kg
Miscellaneous
Package Contents:
  • NetDirector Console RM LCD KVM Switch
  • 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits
  • RJ11 to DB9 Firmware Upgrade Cable
  • C13 to 5-15P Power Cord
  • CD with Owner's Manual
  • Quick Start Guide
  • Grounding Wire
  • Rackmount Hardware

Environmentally Friendly: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year

[/custom-specifications]

[custom-options]









[/custom-options]

1 Year
