APC by Schneider Electric OMNI900LCD Tripp Lite OmniSmart 900VA/475W Tower UPS - Line-Interactive - 8 Outlets - LCD Display - 3-Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Tripp Lite OmniSmart OMNI900LCD is a 900VA/475W line-interactive tower UPS engineered to deliver reliable battery backup and surge protection for critical business equipment. This unit provides clean, regulated power to connected devices while offering comprehensive status monitoring through its front-panel LCD display with blue backlight. Designed for desktop and small office environments, the UPS corrects brownouts as low as 89V without consuming battery power, extending runtime during minor voltage fluctuations and preserving battery life for true power outages.
With eight NEMA 5-15R outlets, this UPS supports multiple devices simultaneously, ensuring organized power distribution for workstations, networking gear, and peripherals. The included PowerAlert software enables automated shutdown and remote management, protecting data integrity during extended outages. The hot-swappable battery design allows maintenance without interrupting connected equipment, while the 97% efficiency rating reduces energy costs. This black tower unit operates in temperatures up to 122°F (50°C) and complies with RoHS environmental standards, backed by a 3-year limited warranty.
Technical Overview
This line-interactive UPS employs automatic voltage regulation to correct brownouts and overvoltages without switching to battery power, maintaining output at 120V ± 8% and preserving runtime for true outages. The pulse-width modulated sine wave output ensures compatibility with active PFC power supplies found in modern computing equipment, delivering clean power that protects sensitive electronics. The front-panel LCD provides real-time monitoring of input voltage, battery charge level, UPS status, and voltage regulation activity, while an audible alarm alerts users to AC input failure.
Electrical specifications include 110V AC input voltage, 12A input current, and 120V AC output voltage, with a surge energy rating of 870 joules for robust protection against power spikes. The USB port enables communication with PowerAlert software for graceful shutdowns and remote management, while the NEMA 5-15P input plug connects seamlessly to standard wall outlets. Battery performance features a 6-year life expectancy, 20-hour typical recharge time, and hot-swappable design for uninterrupted operation during maintenance.
Key Product Advantages
With eight NEMA 5-15R outlets, this UPS provides ample connectivity for multiple devices while maintaining organized power distribution. The hot-swappable battery design allows for replacement without powering down connected equipment, ensuring continuous protection during maintenance.
Intelligent Voltage Regulation
Automatically corrects brownouts as low as 89V and overvoltages up to 147V without draining the battery, significantly extending runtime during common power quality issues.
- Maintains output at 120V ± 8%
- Preserves battery for true outages
- Reduces unnecessary battery cycles
Comprehensive Status Monitoring
The blue-backlit LCD display provides at-a-glance visibility into critical UPS parameters and power conditions.
- Real-time input voltage display
- Battery charge level indicator
- UPS status and load information
Deployment / Use Cases
The tower form factor makes this UPS ideal for placement beside or under desks, with compact dimensions of 11.8" H × 3.7" W × 7.2" D ensuring it fits comfortably in workspace configurations. Its 14.9 lb weight provides stable placement without excessive bulk, suitable for office environments where space optimization is key. The unit's eight outlets allow flexible power distribution for equipment clusters, while the LCD display offers immediate visibility into power conditions without requiring software access.
Additional deployment scenarios include protecting medical monitoring devices in clinics, securing network infrastructure in small server rooms, and safeguarding creative workstations in design studios. The 3-minute full load runtime provides adequate time for saving work and shutting down systems during outages, while the 10-minute half load runtime extends protection for lighter equipment loads. The included PowerAlert software adds enterprise-grade management capabilities for environments requiring automated responses to power events.
Small Office/Home Office
Protect critical workstations, networking equipment, and peripherals from power interruptions that could disrupt productivity and data integrity. The 900VA/475W capacity supports typical office loads with sufficient runtime for orderly shutdowns.
- Desktop computers and monitors
- Network routers and switches
- External storage devices and printers
Point-of-Sale Systems
Ensure transaction completion and data preservation for retail environments where power quality directly impacts business operations. The line-interactive design maintains stable power during voltage fluctuations.
- POS terminals and receipt printers
- Barcode scanners and payment processors
- Cash drawers and inventory systems
Physical Profile

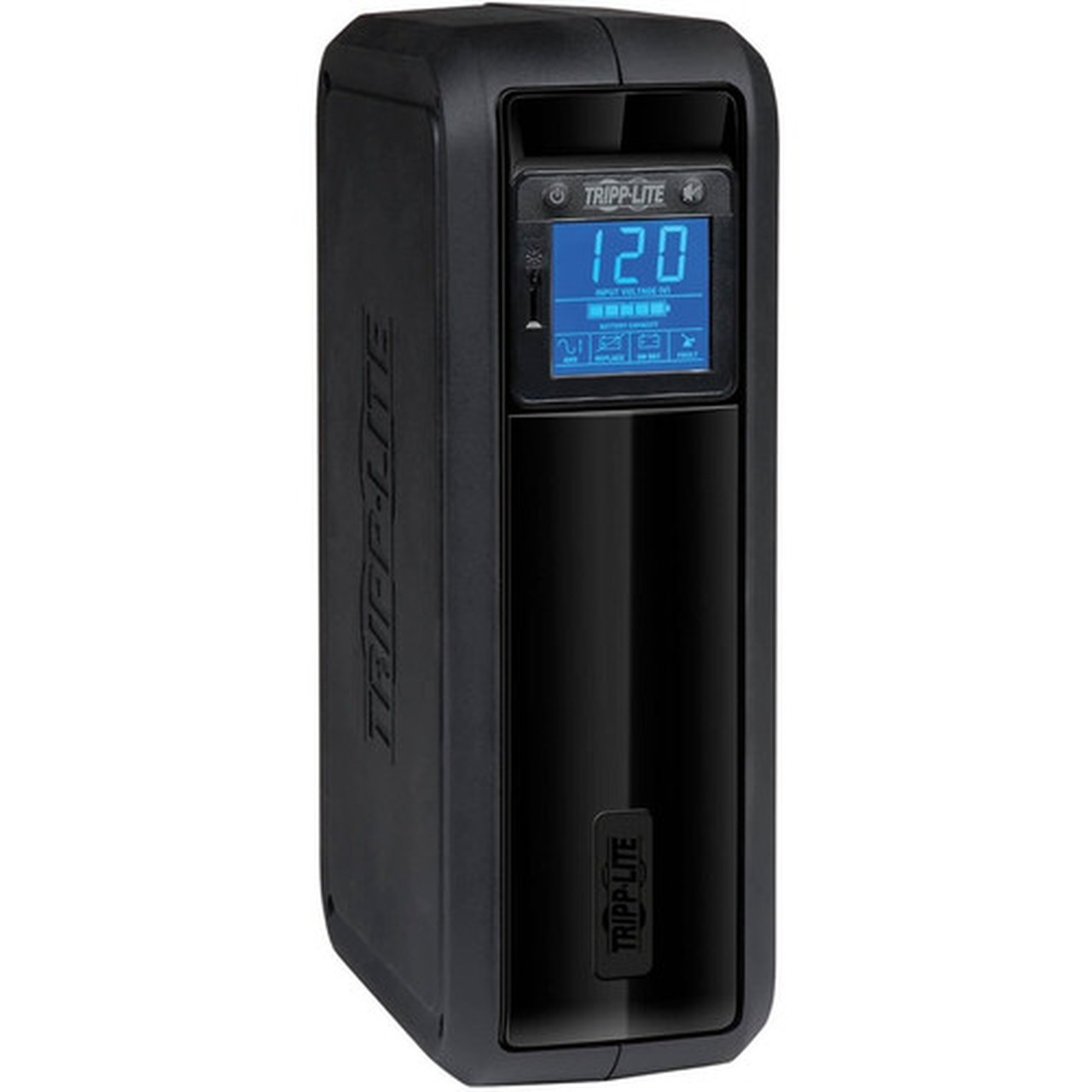

This black tower UPS measures 11.8" H × 3.7" W × 7.2" D (299.72 × 93.98 × 182.88 mm) and weighs approximately 14.9 lb (6.76 kg). The compact vertical design minimizes desktop footprint while providing stable placement for office environments. The unit operates in temperatures up to 122°F (50°C) and complies with RoHS environmental standards.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 11.80" (299.72 mm), 3.70" (93.98 mm), 7.20" (182.88 mm), 14.90 lb (6758.53 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.70" (93.98 mm)
- Depth
- 7.20" (182.88 mm)
- Height
- 11.80" (299.72 mm)
- Weight
- 14.90 lb (6758.53 g)
What's in the Box
The package includes the OmniSmart OMNI900LCD 900 VA Tower UPS unit, manual with warranty information, and PowerAlert software for system management and automated shutdown capabilities.
Highlights
- 900VA/475W line-interactive tower UPS with LCD status display
- Corrects brownouts as low as 89V without using battery power
- 8 NEMA 5-15R outlets for multiple device connectivity
- 3-minute full load runtime, 10-minute half load runtime
- Hot-swappable battery with 6-year life expectancy
- USB port with included PowerAlert management software
- 97% efficiency rating for reduced energy costs
- 3-year limited warranty with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | OMNI900LCD |
| Brand Name | Tripp Lite series |
| Product Line | OmniSmart |
| Product Model | OMNI900LCD |
| Product Name | OmniSmart OMNI900LCD 900 VA Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Transfer Time | 3 ms |
| Power Description | |
| Load Capacity (VA) | 900 VA |
| Load Capacity (Watt) | 475 W |
| Input Voltage | 110 V AC |
| Input Current | 12 A |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 870 J |
| Management | |
| Alarm | AC Input Failure |
| Controls/Indicators | |
| Status Indicators | Front panel LCD screen with blue backlight offers: Continuous input line voltage data UPS status information on line power status Battery power status Battery charge level Voltage regulation operation |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Battery Life | 6 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 20 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Physical Characteristics | |
| Product Color | Black |
| Height | 11.80" (299.72 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 7.20" (182.88 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 14.90 lb (6758.53 g) |
| Miscellaneous | |
| Package Contents | OmniSmart OMNI900LCD 900 VA Tower UPS Manual with Warranty Information |
| Software Included | PowerAlert software |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This Tripp Lite OmniSmart UPS delivers 900 VA and 475 watts of power capacity, suitable for protecting desktop computers, networking equipment, and peripherals in small office environments.
What runtime does this UPS provide?
At full load, the UPS provides 3 minutes of battery backup runtime. At half load, runtime extends to 10 minutes, giving users adequate time to save work and perform orderly shutdowns during power outages.
How many outlets are included?
The unit features eight NEMA 5-15R outlets, allowing multiple devices to connect simultaneously. This configuration supports organized power distribution for workstations and associated equipment.
What input and output voltages does this UPS support?
The UPS accepts 110V AC input and delivers regulated 120V AC output. This line-interactive design automatically corrects brownouts as low as 89V without switching to battery power, maintaining stable voltage for connected equipment.
Is this a rack-mount or tower UPS?
This is a tower-form-factor UPS designed for desktop or floor placement. Its compact dimensions of 11.8" H × 3.7" W × 7.2" D make it suitable for office environments where space optimization is important.
What management and monitoring features are available?
The front-panel LCD display provides real-time monitoring of input voltage, battery charge level, and UPS status. A USB port enables communication with the included PowerAlert software for automated shutdowns and remote management capabilities.
