APC by Schneider Electric PDUMH15AT Metered ATS PDU - 1.8kVA 120V 15A 8 Outlet - 1U Rack-mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This metered PDU operates at 120V AC input and output with 1.8kVA power rating, suitable for standard North American power infrastructure. The dual NEMA 5-15P input connectors support connection to separate power sources, while eight NEMA 5-15R outlets distribute power to connected equipment.

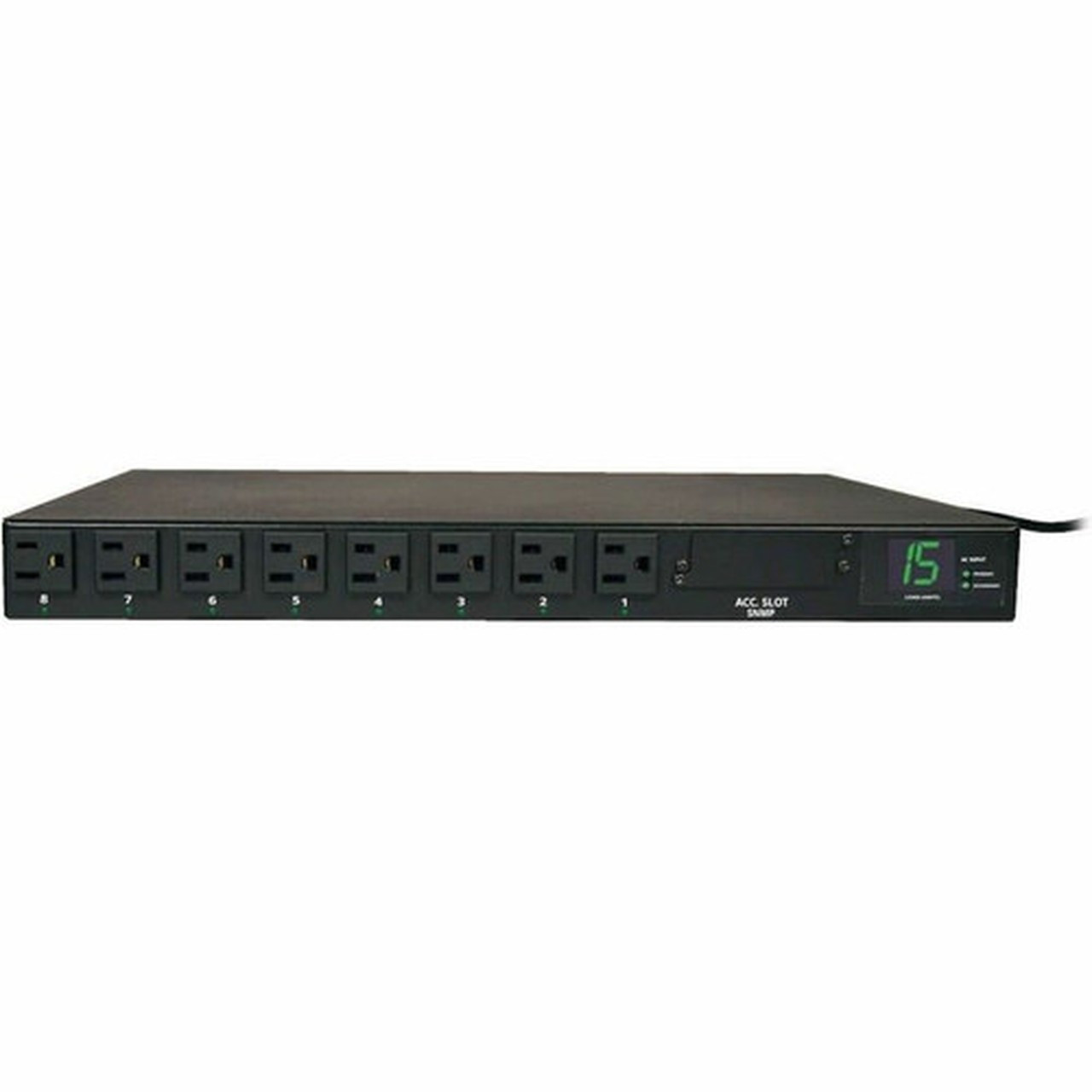

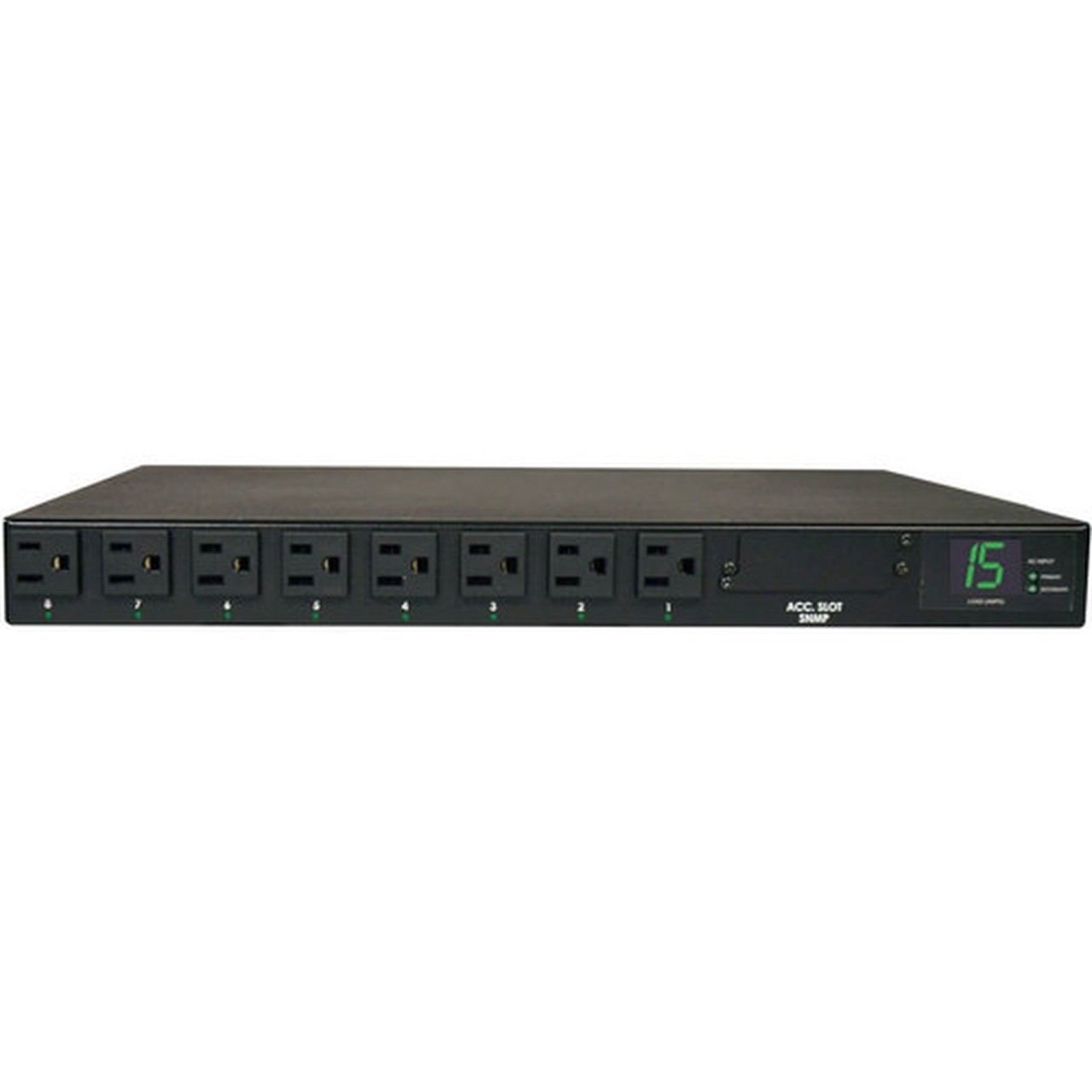

The two-digit visual current meter displays real-time amperage draw, providing immediate visibility into power consumption. Optional SNMPWEBCARD accessory compatibility enables remote IP-based outlet control and monitoring when enhanced management capabilities are required.
Relevant factors for this section include Plug/Connector Type, Plug/Connector Detail, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PDUMH15AT combines power distribution with redundancy features in a compact rack-mountable design. The automatic transfer switch capability provides critical protection for single-corded network hardware, enabling hot-swappable UPS maintenance bypass and dual power source redundancy.
Redundant Power Protection

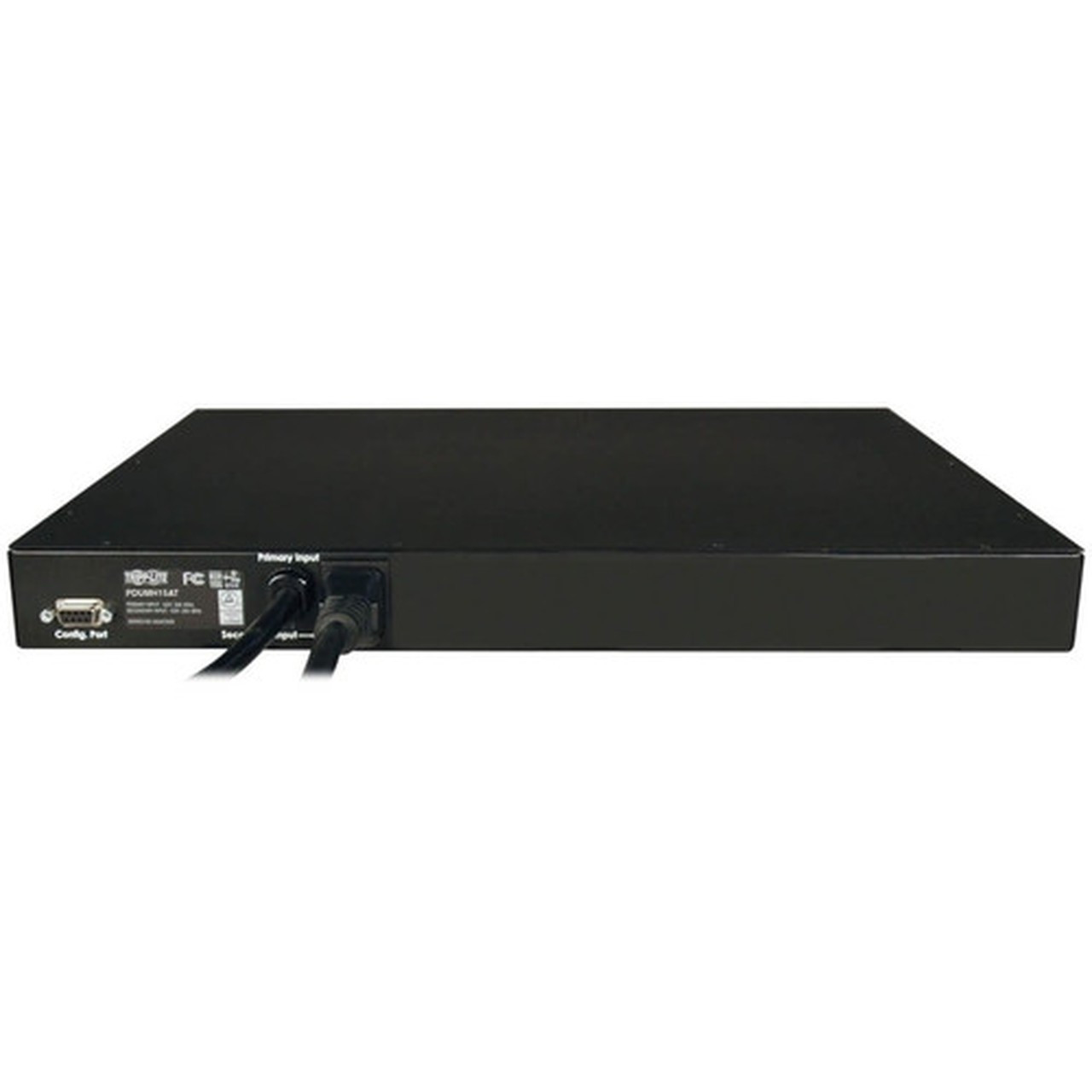

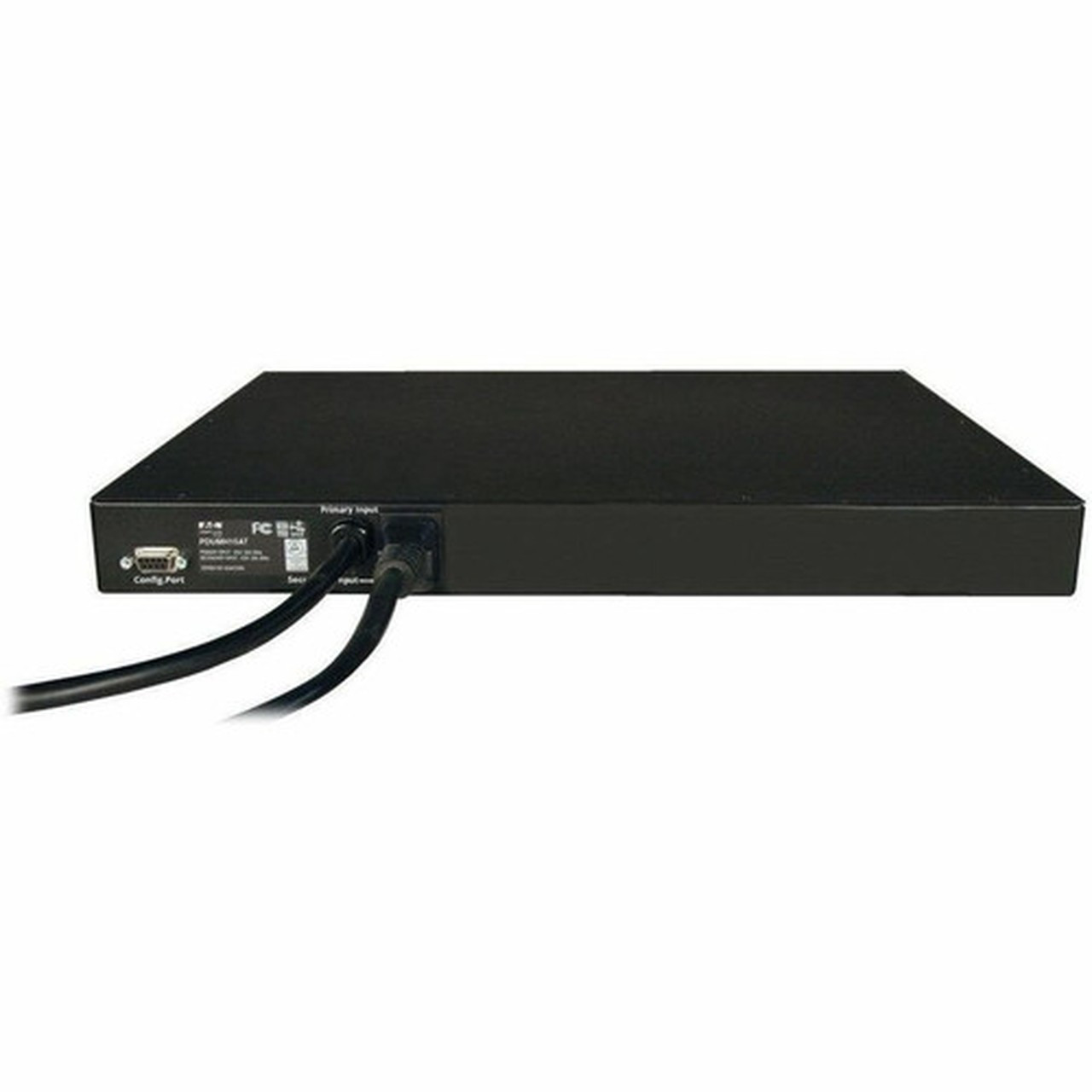

Separate primary and secondary inputs support connection to any two compatible power sources, creating A/B power options for critical equipment.
- Enables UPS maintenance without downtime
- Provides dual AC input redundancy
- Supports single-corded network devices
Space-Efficient Design
The 1U horizontal rackmount configuration maximizes rack space utilization while delivering full power distribution capabilities.
- 1.75" height fits standard racks
- 17.50" width for optimal mounting
- 14.50" depth for cable management
Management Flexibility
Built-in visual metering provides immediate load visibility, with optional SNMPWEBCARD expansion for advanced remote management.
- Two-digit current meter
- Individual outlet control capability
- IP-based management option
Deployment / Use Cases
This PDU is engineered for network closets, server rooms, and data center environments where reliable power distribution with redundancy is essential. The automatic transfer switch functionality makes it particularly valuable for critical infrastructure that cannot tolerate power interruptions.
Ideal applications include network switches, routers, servers, and storage systems that require continuous uptime. The compact 1U design suits both shallow and deep rack configurations, while the standard NEMA connectors ensure compatibility with existing power infrastructure.
Relevant factors for this section include Plug/Connector Type, Plug/Connector Detail, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Network Infrastructure
Provide redundant power to core networking equipment with automatic failover between power sources during maintenance or outages.
Server Room Deployment
Distribute power to multiple servers while maintaining the ability to perform UPS maintenance without disrupting connected equipment.
Physical Profile
The PDUMH15AT features a rugged steel construction with black finish, designed for standard 19-inch rack mounting. The 1U height (1.75") optimizes vertical space, while the 17.50" width and 14.50" depth provide stable mounting and adequate cable routing space. Front-panel mounting with included hardware ensures secure installation in rack environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.50" (444.50 mm), 14.50" (368.30 mm), 11 lb (4989.52 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Depth
- 14.50" (368.30 mm)
- Height
- 1U
- Weight
- 11 lb (4989.52 g)
What's in the Box
The PDUMH15AT PDU ships complete with all necessary components for immediate deployment.
Highlights
- 1.8kVA power capacity at 120V AC
- 8 NEMA 5-15R outlets for equipment connectivity
- Automatic transfer switch for redundant power protection
- 1U rack-mountable design for space efficiency
- Dual NEMA 5-15P inputs for A/B power sources
- Two-digit visual current meter for load monitoring
- Optional SNMPWEBCARD for remote IP management
- TAA compliant for government procurement
- 2-year limited warranty
- Environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMH15AT |
| Brand Name | Tripp Lite series |
| Product Model | PDUMH15AT |
| Product Name | PDUMH15AT PDU Metered ATS 120V 15A 8 Outlet |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Plug/Connector Detail | 2 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 1.80 kVA |
| Management | |
| Management | Optional Automatic Transfer Switch (ATS) function enables for hot-swappable UPS maintenance bypass Dual UPS protection or dual AC input redundancy for critical single-corded network hardware Slot for optional SNMPWEBCARD accessory to enable remote individual outlet control over IP |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 14.50" (368.30 mm) |
| Weight (Approximate) | 11 lb (4989.52 g) |
| Miscellaneous | |
| Package Contents | PDUMH15AT PDU Metered ATS 120V 15A 8 Outlet PDU with attached 5-15P input power cord Detachable C13 to NEMA 5-15P 12 ft/3.6m power cord for optional secondary input User manual with warranty information |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The PDUMH15AT delivers 1.8kVA (kilovolt-ampere) power capacity at 120V AC. This rating indicates the maximum apparent power the unit can distribute to connected equipment, supporting up to 15A current draw across all eight outlets simultaneously.
How does the automatic transfer switch work?
The optional automatic transfer switch (ATS) function enables seamless switching between primary and secondary power inputs. When the primary source becomes unavailable or during maintenance, the PDU automatically transfers to the secondary input without interrupting power to connected equipment, providing redundancy for critical single-corded network hardware.
What type of outlets does this PDU have?
This PDU features eight NEMA 5-15R outlets, which are standard North American 15A receptacles. These outlets accept standard NEMA 5-15P plugs commonly found on computers, networking equipment, and other IT devices operating at 120V AC.
Is this PDU rack-mountable?
Yes, the PDUMH15AT is designed for standard 19-inch rack mounting with a 1U height profile. The unit measures 1.75" high, 17.50" wide, and 14.50" deep, and includes all necessary mounting hardware for installation in rack cabinets or enclosures.
Can I monitor power usage with this PDU?
Yes, the PDUMH15AT includes a two-digit visual current meter that displays real-time amperage draw. This allows you to monitor equipment load directly from the PDU front panel. For advanced monitoring, an optional SNMPWEBCARD accessory enables remote individual outlet control and monitoring over IP networks.
What input power connections are required?
The PDU has two NEMA 5-15P input connectors that accept standard 120V AC power cords. These dual inputs support connection to separate power sources for redundancy. The unit includes one attached 5-15P input cord and one detachable C13 to NEMA 5-15P 12-foot cord for the secondary input.
