Tripp Lite by Eaton PDUMV30HVNETLX Eaton 24-Outlet Switched PDU - 5.80 kW - 230V AC - NEMA L6-30P - 4x C19 - 20x C13 - 0U Vertical Rack Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

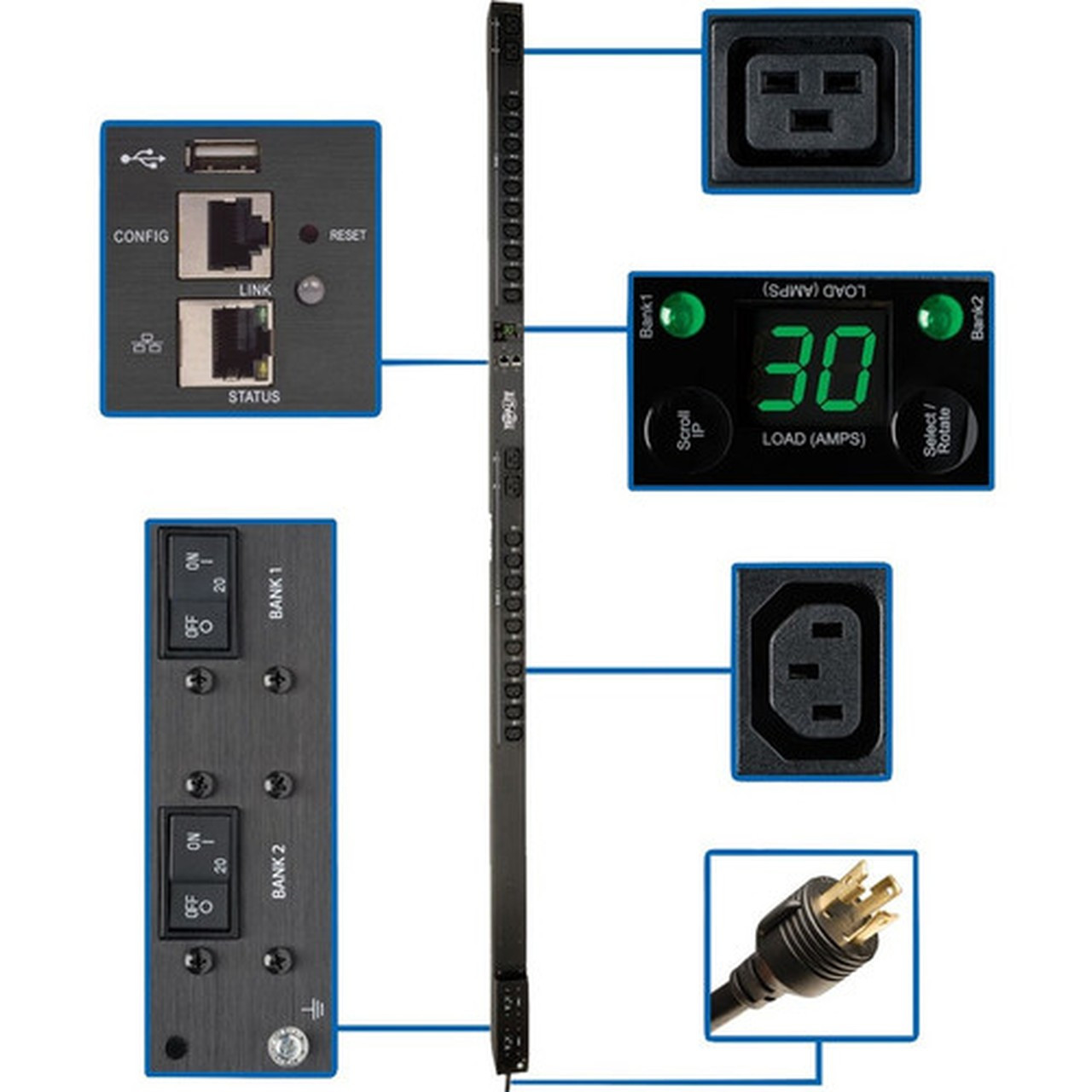

This switched PDU operates on single-phase power with a NEMA L6-30P input connector delivering 30A at 230V AC. The output configuration includes 4 IEC 60320 C19 outlets for high-power equipment and 20 IEC 60320 C13 outlets for standard server and networking devices, providing flexible connectivity options for diverse rack environments.

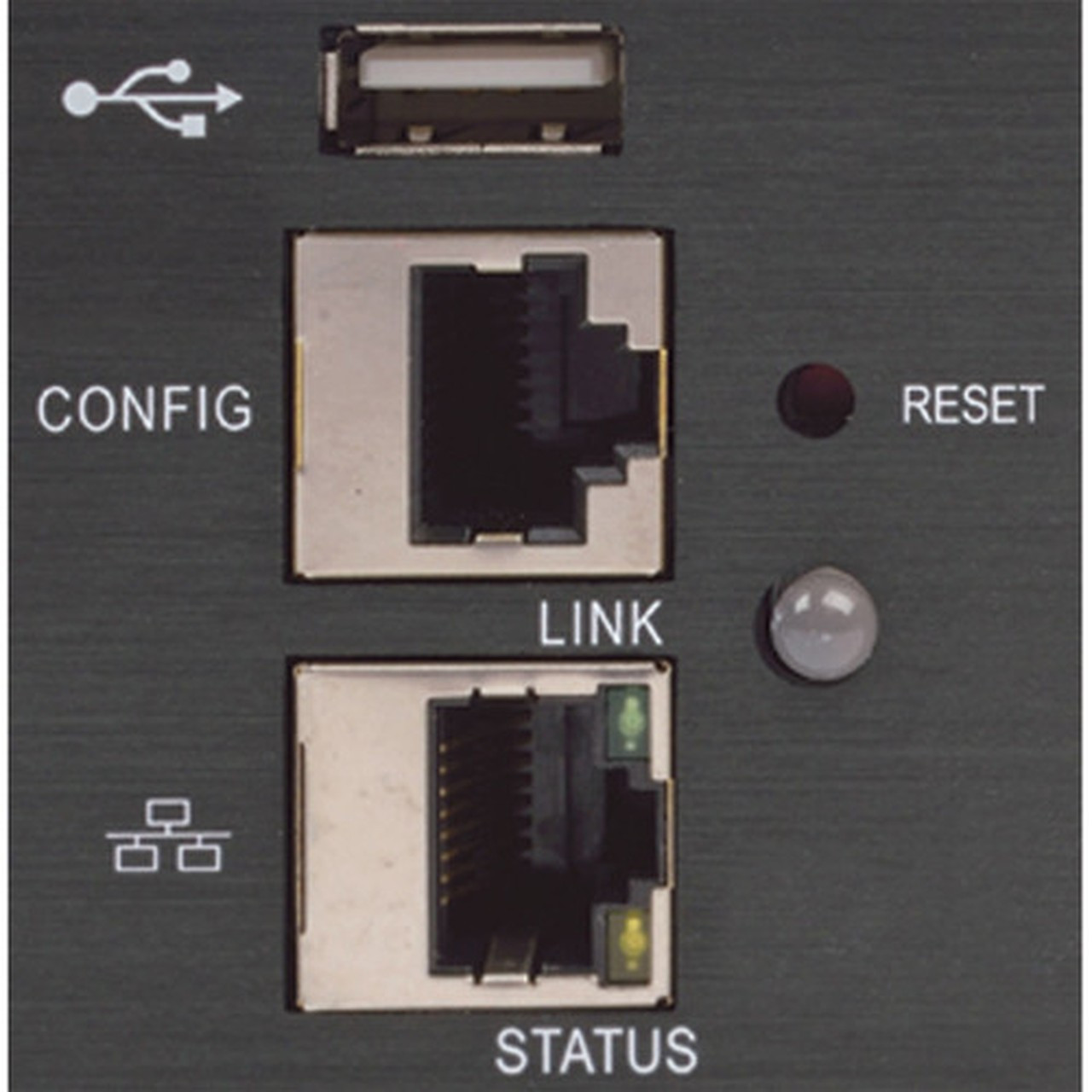

Network management capabilities are extensive, supporting HTTP, HTTPS, SMTP, SNMPv1/v2/v3, telnet, SSH, FTP, DHCP, and NTP protocols for integration with existing monitoring systems. The built-in digital current meter enables precise load monitoring to prevent overload conditions before they impact connected equipment.
Relevant factors for this section include PDU Type, Phase, Plug/Connector Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PDUMV30HVNETLX combines high power capacity with intelligent management features that distinguish it from basic power distribution solutions. Its switched design transforms simple power distribution into an actively managed component of your infrastructure.
Intelligent Power Management
Individual outlet control allows for remote power cycling of specific devices without affecting other equipment, reducing downtime during maintenance and troubleshooting.
- Remote relay control per outlet
- Real-time current monitoring
- Scheduled power operations
Space-Optimized Design
The vertical 0U mounting configuration preserves valuable rack space for equipment while providing full access to all outlets without obstructing airflow or cable management.
- Zero rack units consumed
- Vertical orientation
- Compact 2.19" width profile
Comprehensive Protection
Built-in overload protection safeguards connected equipment from power anomalies, while the robust construction ensures reliable operation in demanding data center environments.
- Overload protection circuitry
- Durable industrial design
- TAA compliant construction
Deployment / Use Cases
The Eaton PDUMV30HVNETLX switched PDU is engineered for environments where power management and monitoring are critical to operational continuity. Its 5.80 kW capacity and 24-outlet configuration make it ideal for medium-density server racks supporting virtualization hosts, storage arrays, and network infrastructure.
Telecommunications installations benefit from the vertical mounting design that maximizes space in crowded equipment racks while providing individual outlet control for remote troubleshooting. The comprehensive network management protocols enable integration with existing monitoring systems for centralized power management across distributed locations.
Data Center Server Racks
Support multiple servers, storage units, and networking equipment with individual outlet control for maintenance and load balancing across the 5.80 kW capacity.
Telecommunications Equipment
Vertical mounting optimizes space in telecom racks while providing reliable power distribution to switches, routers, and voice communication systems.
Physical Profile

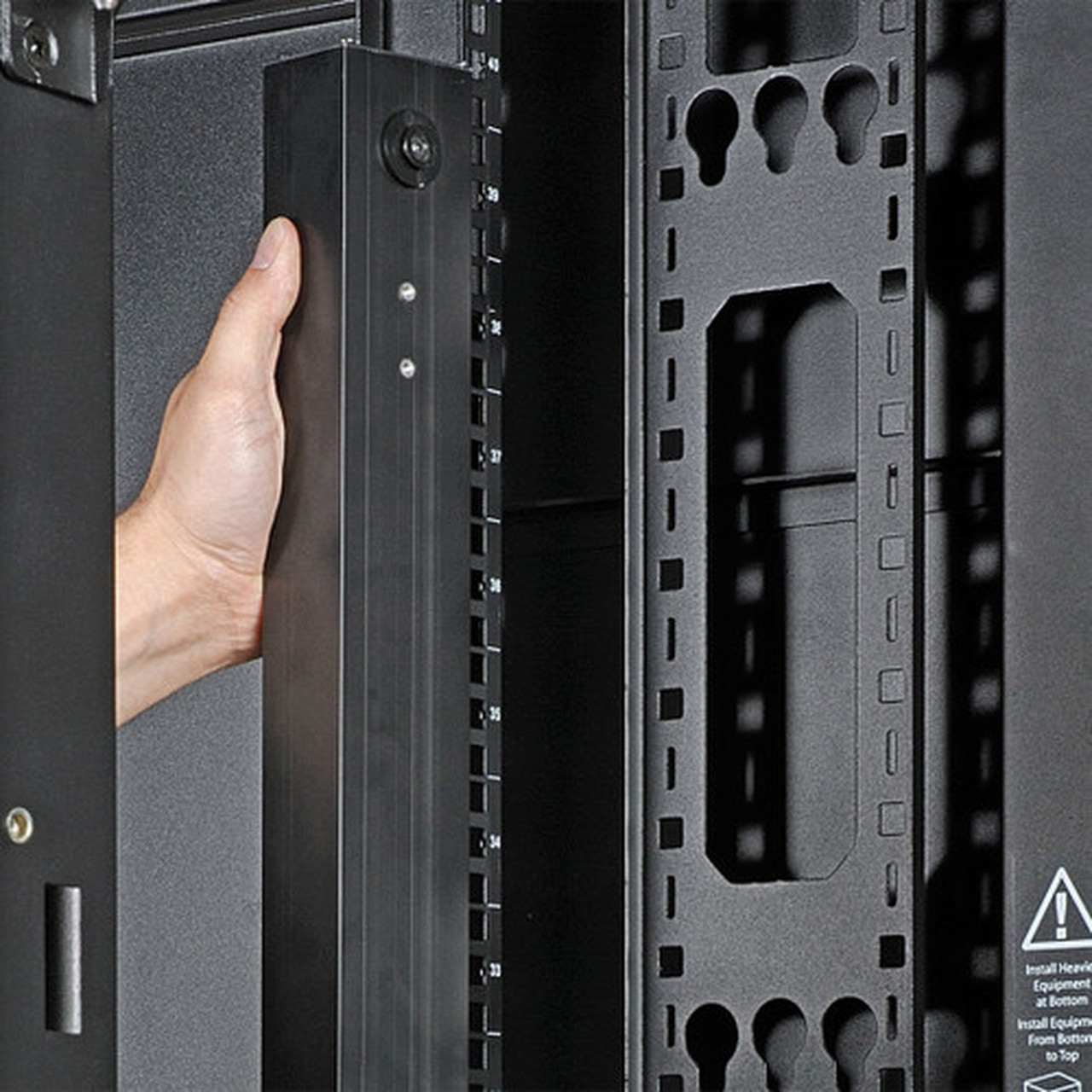

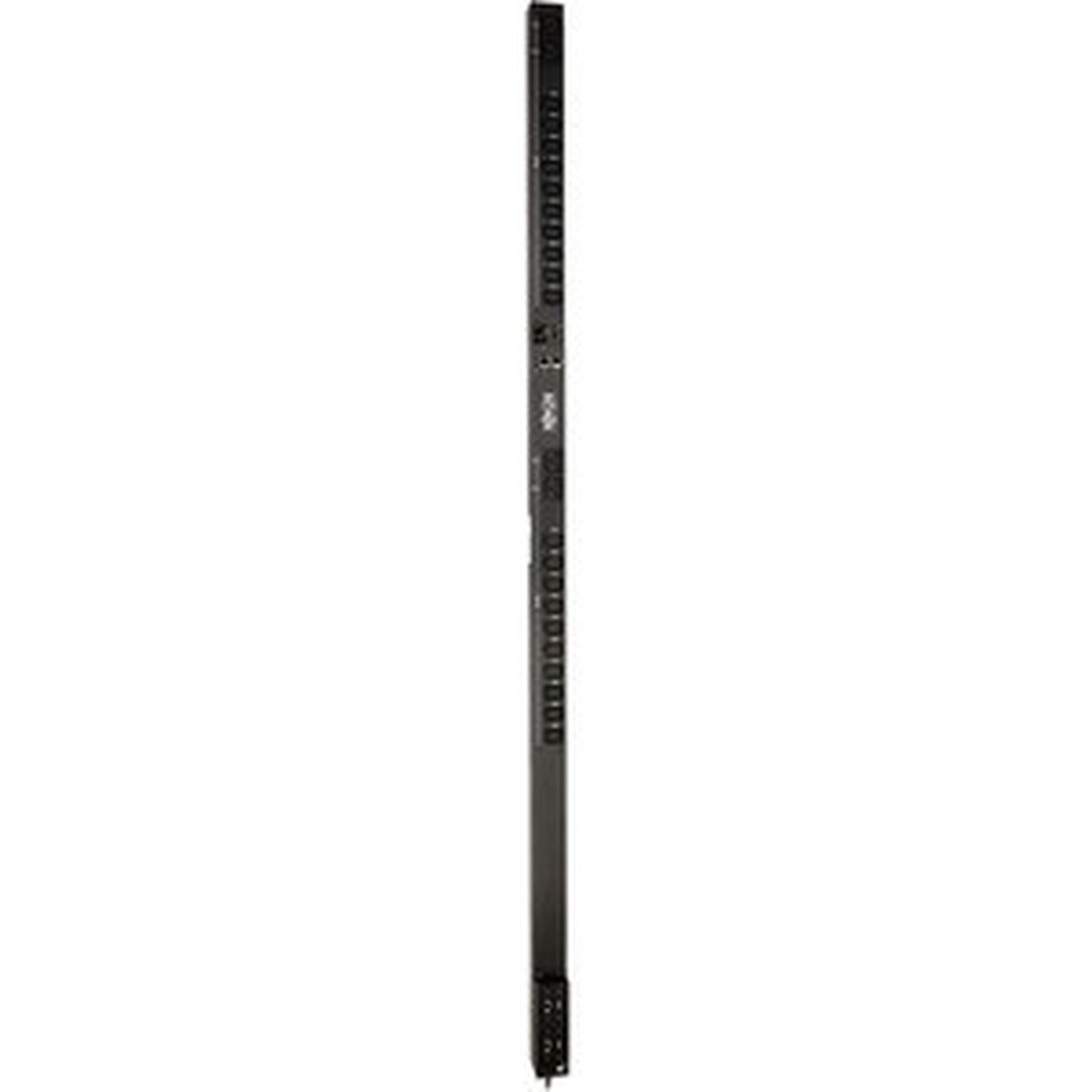

Designed for vertical rack mounting, the PDUMV30HVNETLX occupies zero rack units (0U) with dimensions of 70" in height, 2.19" in width, and 2.65" in depth. This slim profile fits neatly alongside equipment without consuming valuable rack space. The unit weighs approximately 11.50 pounds, making installation straightforward while maintaining structural integrity for long-term reliability. The vertical orientation provides excellent cable management opportunities and maintains optimal airflow within the rack environment.
- Width
- 2.19" (55.63 mm)
- Depth
- 2.65" (67.31 mm)
- Height
- 0U
- Weight
- 11.50 lb (5216.31 g)
What's in the Box
The PDUMV30HVNETLX arrives complete with all necessary components for immediate deployment in your rack environment.
Highlights
- 24-outlet switched PDU with 5.80 kW power capacity at 230V AC
- 4 IEC 60320 C19 and 20 IEC 60320 C13 outlets for flexible connectivity
- NEMA L6-30P input connector with 30A current rating
- Comprehensive network management via HTTP, HTTPS, SNMP, SSH, and more
- Vertical 0U rack mounting preserves valuable equipment space

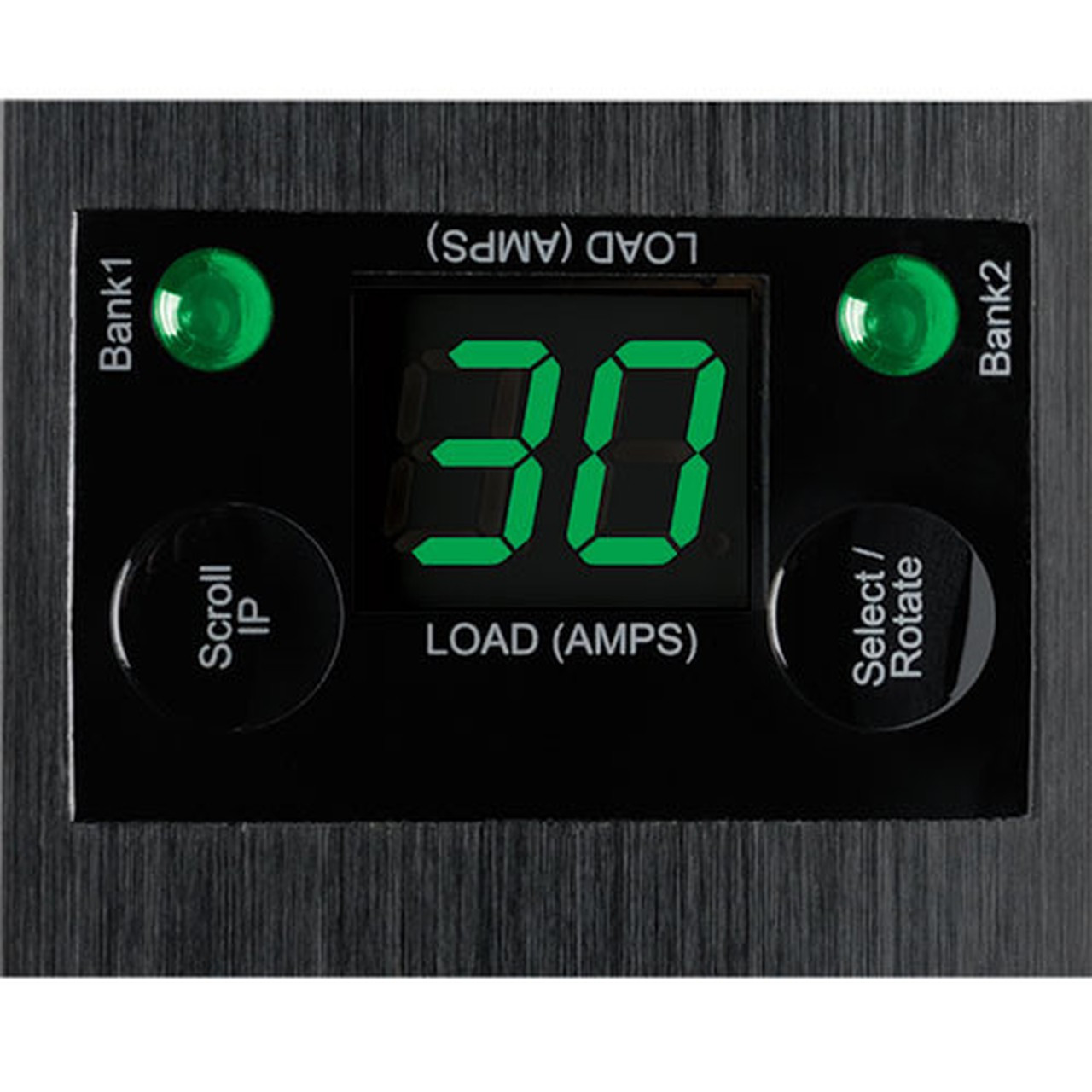

- Built-in digital current meter for real-time load monitoring
- Individual outlet control for remote power management
- Overload protection safeguards connected equipment
- TAA compliant and RoHS environmental compliance
- 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMV30HVNETLX |
| Brand Name | Eaton |
| Product Model | PDUMV30HVNETLX |
| Product Name | PDUMV30HVNETLX 24-Outlet PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 4 x IEC 60320 C19,20 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Power Rating (Watt) | 5.80 kW |
| Input Current | 30 A |
| Management | |
| Management | Protocols: HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.19" (55.63 mm) |
| Depth | 2.65" (67.31 mm) |
| Weight (Approximate) | 11.50 lb (5216.31 g) |
| Miscellaneous | |
| Package Contents | PDUMV30HVNETLX 24-Outlet PDU Configuration Cable 24 x Cable Ties 2 x Cord Retention Brackets Rack-mounting Hardware Mounting Bracket Accessory Owner's Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The Eaton PDUMV30HVNETLX delivers 5.80 kW (5800 watts) of power capacity at 230V AC with a 30A input current. This capacity supports medium-density server racks with multiple pieces of equipment while maintaining headroom for safe operation and future expansion.
How many outlets does this PDU have and what types?
This PDU features 24 total outlets: 4 IEC 60320 C19 outlets for high-power equipment and 20 IEC 60320 C13 outlets for standard server and networking devices. This configuration provides flexibility for connecting both high-wattage and standard equipment within the same rack.
What management capabilities does this switched PDU offer?
The PDUMV30HVNETLX supports comprehensive network management protocols including HTTP, HTTPS, SMTP, SNMPv1/v2/v3, telnet, SSH, FTP, DHCP, and NTP. This enables remote monitoring, individual outlet control, power scheduling, and integration with existing network management systems for centralized power administration.
How does this PDU mount in a rack?
This PDU uses a vertical 0U mounting configuration, meaning it mounts vertically on the side of the rack without consuming any rack units. The dimensions are 70" high x 2.19" wide x 2.65" deep, providing a space-efficient solution that preserves all rack space for equipment while maintaining full outlet accessibility.
What input connector does this PDU use?
The PDUMV30HVNETLX uses a NEMA L6-30P input connector, which is a locking 30-amp connector designed for 230V AC applications. This connector type provides secure electrical connections in professional environments and is commonly used in data center and telecommunications installations.
What protection features does this PDU include?
This PDU includes overload protection to safeguard connected equipment from excessive current draw. The built-in digital current meter provides real-time monitoring to help prevent overload conditions before they occur. The unit is also TAA compliant and meets RoHS environmental standards for responsible manufacturing.
