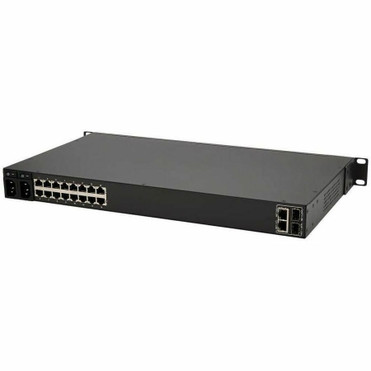

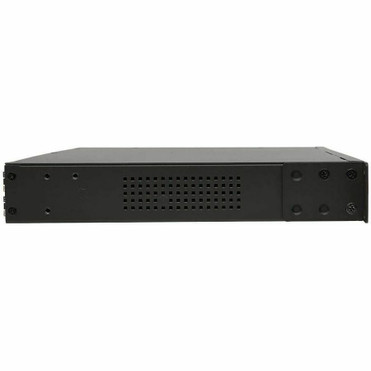

Tripp Lite series B098-016 16-Port Serial Console Server - Twisted Pair - 2 Total Expansion Slot(s) - 2 x Network (RJ-45) - 2 x USB - (B098-016)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- B098-016 16-Port Serial Console Server
- 2 x C13 to NEMA 5-15P Power Cords, 6 ft.
- 2 x Cat5e Patch Cables, 6 ft.
- 2.4 GHz SMA Wi-Fi Diversity Antenna
- Straight-through Serial Adapter, DB9 to RJ45 (F/F)
- Crossover Serial Adapter, DB9 to RJ45 (F/F)
- Modular Serial Adapter, DB9 to RJ45 (M/F)
- Cisco rolled Straight-through Serial Adapter, DB9 to RJ45 (F/F)
- Cisco rolled Crossover Serial Adapter, DB9 to RJ45 (F/F)
- Cisco rolled Modular Serial Adapter, DB9 to RJ45 (M/F)
- Cisco Straight Pinout (x2) Loopback, Black
- Cisco Rollover Pinout (x1) Loopback, Red
- Rack-mounting Hardware
- Quick Start Guide
Device Type: Console Server
Media Type Supported: Twisted Pair
Total Number of Expansion Slots: 2
Wireless LAN: Yes
Ethernet Technology: Gigabit Ethernet
Network Standard: 10/100/1000Base-T
Network (RJ-45): Yes
USB: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 2
Number of Serial Ports: 16
Input Voltage: 120 V AC,230 V AC
Color Family: Black
Product Color: Black
Form Factor: Desktop,Rack-mountable
Height: 17" (431.80 mm)
Width: 10" (254 mm)
Depth: 1.75" (44.45 mm)
Weight (Approximate): 10 lb (4535.92 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: United States
TAA Compliant: Yes
Limited Warranty: 4 Year
- 16-port serial console server lets you remotely access and control serial-based networking equipment through one highly secure gateway.
- Manage routers, UPS systems and other serial-based equipment from anywhere 24/7
- Validated to meet FIPS 140-2 standards to ensure utmost protection of private data
- Dual Gigabit Ethernet ports for primary network connection and automatic failover
- Designed for standard Cat5e/6 patch cable when connecting to Cisco devices
- 4-year limited warranty
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B098-016 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B098-016 |
| Product Name | B098-016 16-Port Serial Console Server |
| Product Type | Device Server |
| Technical Information | |
| Device Type | Console Server |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Wireless Specifications | |
| Wireless LAN | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of Serial Ports | 16 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Desktop,Rack-mountable |
| Height | 17" (431.80 mm) |
| Width | 10" (254 mm) |
| Depth | 1.75" (44.45 mm) |
| Weight (Approximate) | 10 lb (4535.92 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 4 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite series B090-A9F-X Modular Adapter - 1 x 9-pin DB-9 Serial Female - 1 x RJ-45 Network Female - Beige |
| SKU | B090-A9F-X |
| Sale Price | $4.95 |
| Product | Tripp Lite series B090-A9F Modular Adapter - 1 x 9-pin DB-9 Serial Female - 1 x RJ-45 Network Female - Beige |
| SKU | B090-A9F |
| Sale Price | $9.95 |
| Product | Tripp Lite Cat5e Patch Cable - 3ft - 1 x RJ-45 Male - 1 x RJ-45 Male - Black |
| SKU | N001-003-BK |
| Sale Price | $2.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
