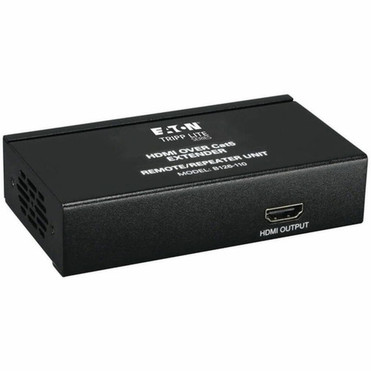

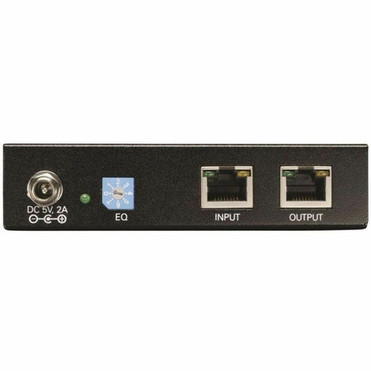

Tripp Lite series B126-110 Video Extender - 1 Input Device - 2 Output Device - 700 ft (213360 mm) Range - 2 x Network (RJ-45) - 1 x - (B126-110)

Marketing Information:

The B126-110 remote repeater unit can be added to your Tripp Lite B126-Series HDMI over Cat5 installation to increase the extension distance and/or add additional monitors. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple; just insert the B126-110 repeater into the middle of your installation. In the case of a B126-1A1 extender kit, the transmitter is connected to the HDMI source using a Tripp Lite P568-Series HDMI cable (not included). It is then connected via Cat5e/6 cable to the B126-110, which is connected via Cat5e/6 cable to the B126-1A1 receiver unit. Finally, a monitor is connected to each remote receiver and repeater unit using Tripp Lite P568-Series HDMI cable (not included). The B126-110 unit is TAA GSA Compliant.

More from the Manufacturer

Connectivity Technology: Wired

Number of Input Devices Supported: 1

Number of Output Devices Supported: 2

Maximum Operating Distance: 700 ft (213360 mm)

Network (RJ-45): Yes

HDMI Out: Yes

Number of Network (RJ-45) Ports: 2

Number of HDMI Outputs: 1

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 5

Color Family: Black

Product Color: Black

Transmitter Height: 1" (25.40 mm)

Transmitter Width: 4.50" (114.30 mm)

Transmitter Depth: 2.50" (63.50 mm)

Form Factor: Wall Mountable,Rack-mountable,Pole-mountable

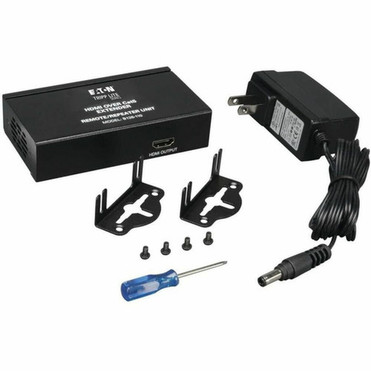

Package Contents:

• Video Extender
• External AC Power Adapter
• Mounting Hardware
• Screwdriver for Equalization Adjustment
• User Manual

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Limited Warranty: 1 Year
