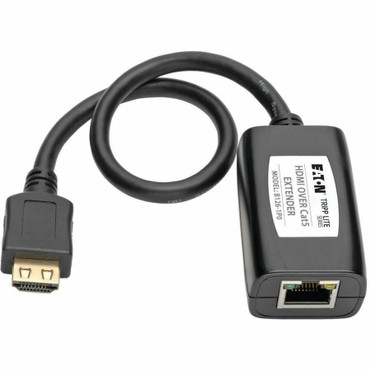

Tripp Lite series B126-1P0 Video Console - 1 Input Device - 1 Output Device - 100 ft (30480 mm) Range - 1 x Network (RJ-45) - 1 x HDMI (B126-1P0)

Marketing Information: The B126-1P0 HDMI over Cat5/Cat6 Passive Remote Receiver works with Tripp Lite's B126-002 and B126-004 transmitters to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The B126-1P0 can extend a 1080i (60 Hz) signal up to 100 feet (30.5 m) or a 1080p (60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series) between it and the transmitter. The built-in HDMI cable features a latching connector that helps prevent accidental disconnection. No external power is required.

In addition to crystal-clear video, the B126-1P0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install.

More from the Manufacturer

Connectivity Technology: Wired

Number of Input Devices Supported: 1

Number of Output Devices Supported: 1

Maximum Operating Distance: 100 ft (30480 mm)

Network (RJ-45): Yes

HDMI Out: Yes

Number of Network (RJ-45) Ports: 1

Number of HDMI Outputs: 1

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 6

Color Family: Black

Product Color: Black

Form Factor: Desktop

Package Contents:

• B126-1P0 Video Console
• Owner's Manual

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Limited Warranty: 1 Year
