Tripp Lite series SmartOnline SU3000XLCD 3000VA Tower UPS - Tower - 3 Hour Recharge - 5.70 Minute Stand-by - 120 V AC Input - 100 V V (SU3000XLCD)

Marketing Information: Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation isolates sensitive equipment from power problems on the AC line. The SmartOnline® SU3000XLCD provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP96V, sold separately).

Optional Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

NEMA Outlets Protect Your Connected Components
One L5-30R and four 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 5-20R outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Clear LCD Interface Keeps You Informed at a Glance
The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

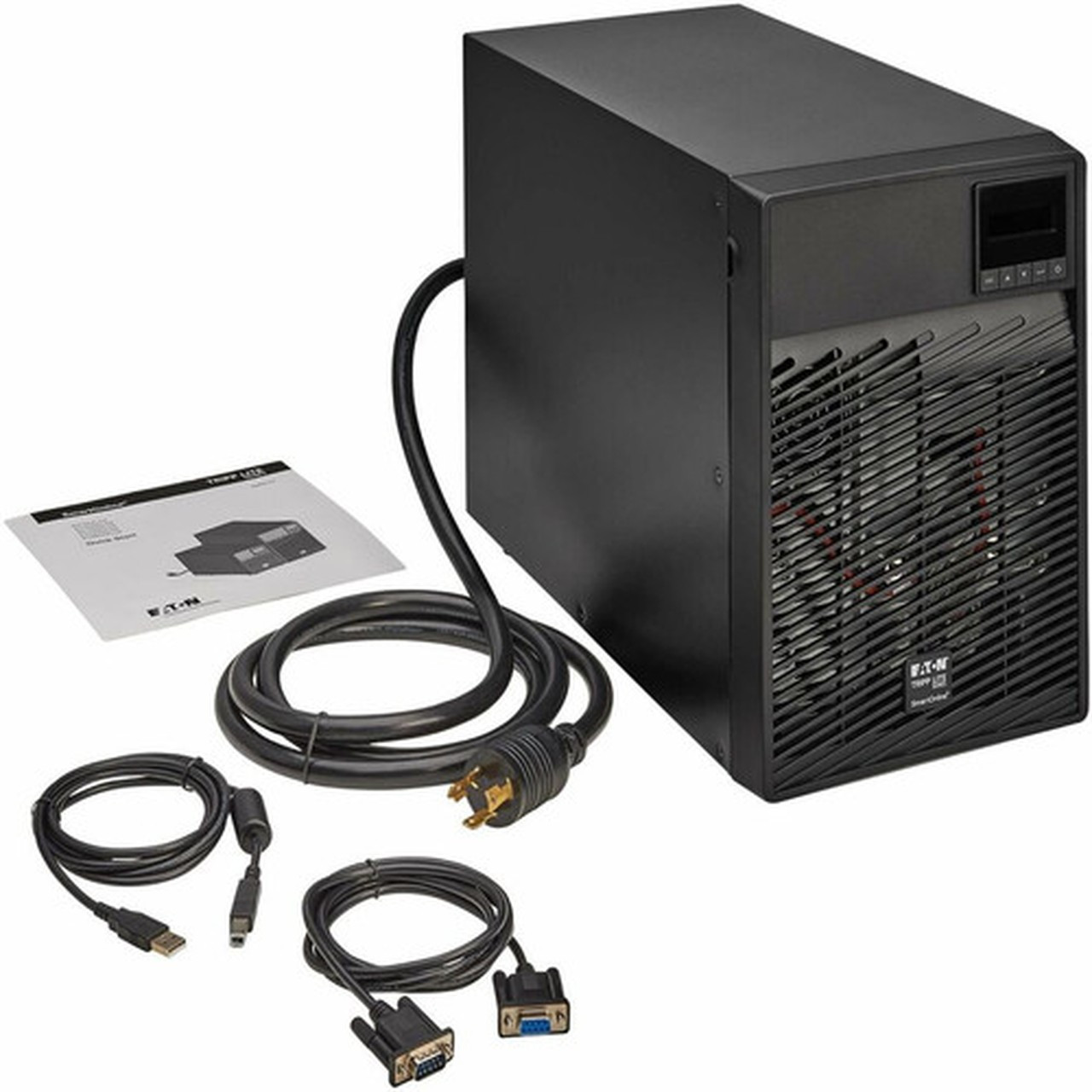

RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.

More from the Manufacturer

Plug/Connector Type: NEMA 5-15P

Receptacle Type: NEMA 5-20R,NEMA L5-30R

Receptacle Detail: 4 x NEMA 5-20R,1 x NEMA L5-30R

Overload Protection: Yes

Transfer Time: 0 ns

Phase: Single Phase

Application/Usage: IT Equipment,Mission Critical Equipment,Government,Healthcare,Education,Military

Load Capacity (VA): 3 kVA

Load Capacity (Watt): 2.70 kW

Input Voltage: 120 V AC

Output Voltage: 100 V AC,110 V AC,120 V AC

Output Frequency: 60 Hz

Waveform Type: Pure Sine Wave

Surge Energy Rating: 190 J

Input Power Factor: 0.99

Output Power Factor: 0.9

Display: LCD

Network Management: SNMP

Alarm: Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery

Status Indicators: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options

Serial Port: Yes

USB: Yes

DC System Voltage: 96 V DC

Battery Characteristics: Valve-regulated

Battery Chemistry: Lead Acid

Backup/Run Time (Full Load): 5.70 Minute

Backup/Run Time (Half Load): 16.70 Minute

Hot Swappable: Yes

Typical Battery Recharge Time: 3 Hour

Replaceable Battery: Yes

Maximum Operating Elevation: 9842.52 ft (3000000 mm)

Storage Temperature: 32°F (0°C) - 104°F (40°C)

Minimum Operating Temperature: 32°F (0°C)

Maximum Operating Temperature: 104°F (40°C)

Sound Emission: 52 dB

Height: 13.63" (346.20 mm)

Width: 8.43" (214.12 mm)

Depth: 16.23" (412.24 mm)

Form Factor: Tower

Weight (Approximate): 33.40 kg

Package Contents:

Software Included: PowerAlert Software

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
