Tripp Lite by Eaton SUINT1500LCD2U SmartOnline 1500VA 2U Rack-mountable UPS - 1. 50 kVA / 1. 35 kW - 200-240V AC - Double Conversion Online
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS maintains consistent power quality by continuously converting AC input to DC and back to AC, isolating connected equipment from grid disturbances. It accepts a wide input voltage range of 200-240V AC and delivers the same stable output voltage, supporting global power standards.
The unit provides 6 IEC 60320 C13 outlets for connecting servers, networking gear, and other IT equipment. Its 1.50 kVA/1.35 kW capacity handles substantial loads, while the 4.5-minute runtime at full load allows sufficient time for safe shutdown procedures during extended outages.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Load Capacity (VA), Load Capacity (Watt), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartOnline SUINT1500LCD2U combines enterprise-grade power protection with rack-optimized design for IT infrastructure deployment.
Zero Transfer Time
Continuous double conversion operation eliminates switching delays between power sources, ensuring uninterrupted performance during blackouts, brownouts, and transient surges.
- No break in power delivery
- Protects against all power disturbances
- Maintains equipment uptime
Rack-Ready Design
The 2U form factor fits standard 19-inch racks with included 4-post mounting hardware, optimizing data center space while providing front-panel LCD monitoring.
- 2U rack height
- Includes 4-post installation kit
- Front-accessible controls and display
Comprehensive Protection
Beyond backup power, this UPS filters line noise and suppresses voltage spikes, extending equipment lifespan and preventing data corruption in sensitive applications.
- Pure sine wave output
- Line noise filtering
- Transient surge protection
Deployment / Use Cases
This UPS is engineered for environments where power quality and uptime are critical. Its double conversion topology and rack-mount form factor make it ideal for server rooms, network closets, and telecommunications installations.
In healthcare settings, it protects medical imaging systems and patient records servers. Educational institutions use it for lab computers and network infrastructure. Government and military applications benefit from its robust protection against power anomalies in secure facilities.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Load Capacity (VA), Load Capacity (Watt), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Server Room Protection
Provides clean power to rack-mounted servers, storage arrays, and networking equipment, allowing safe shutdown during outages and preventing hardware damage from power fluctuations.
Network Infrastructure
Supports switches, routers, and communication equipment in small to mid-size networks, maintaining connectivity during power events that would otherwise cause service interruptions.
Physical Profile

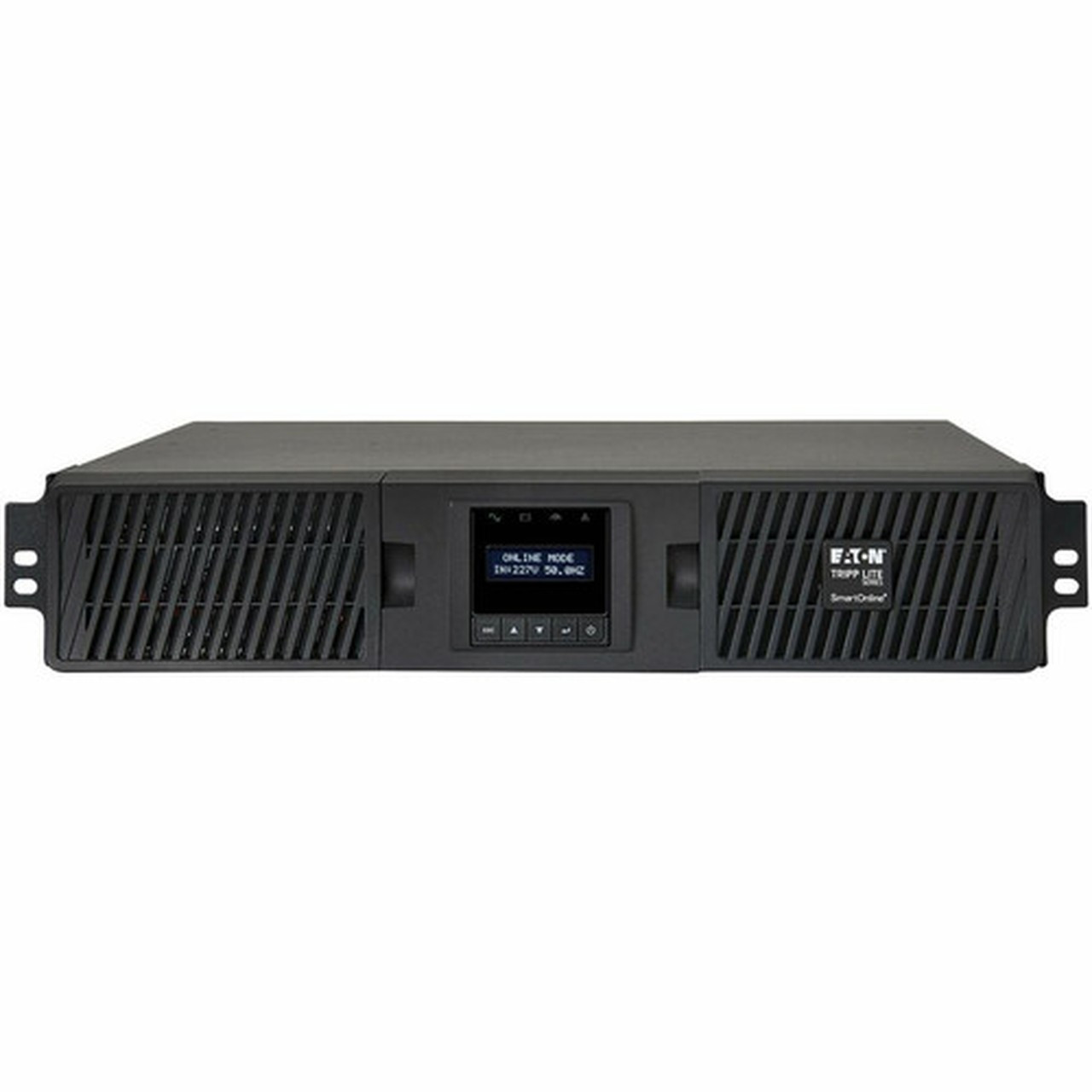

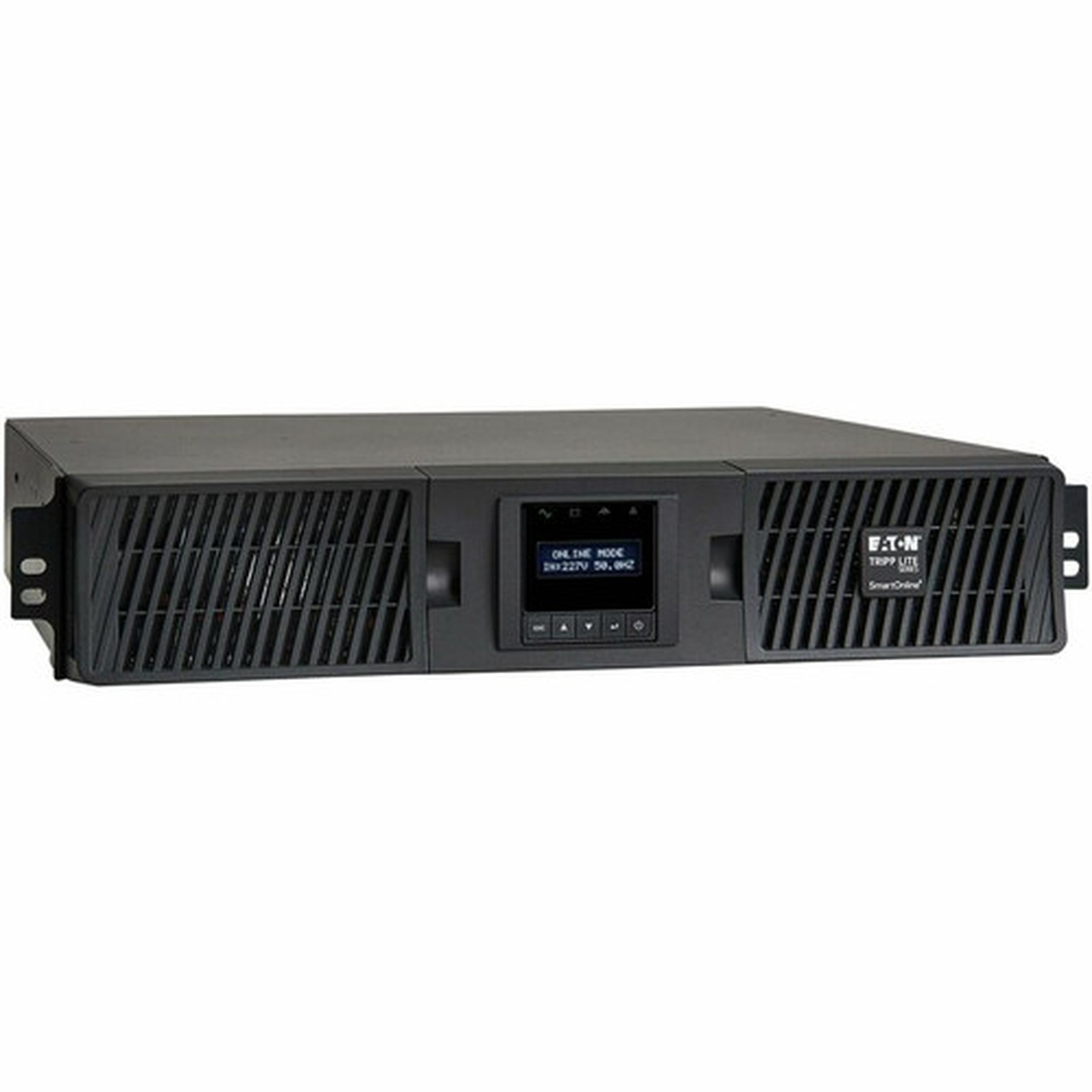

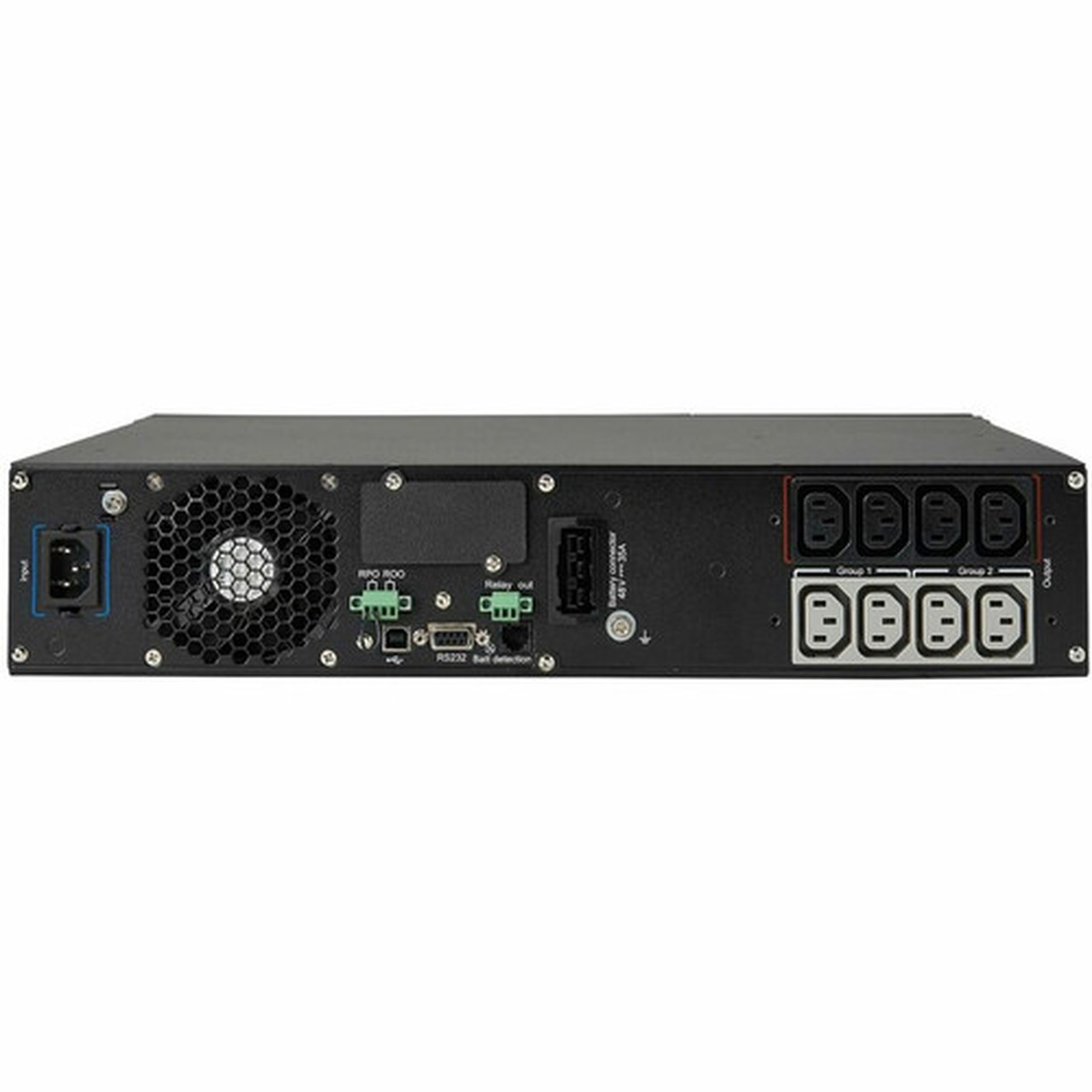

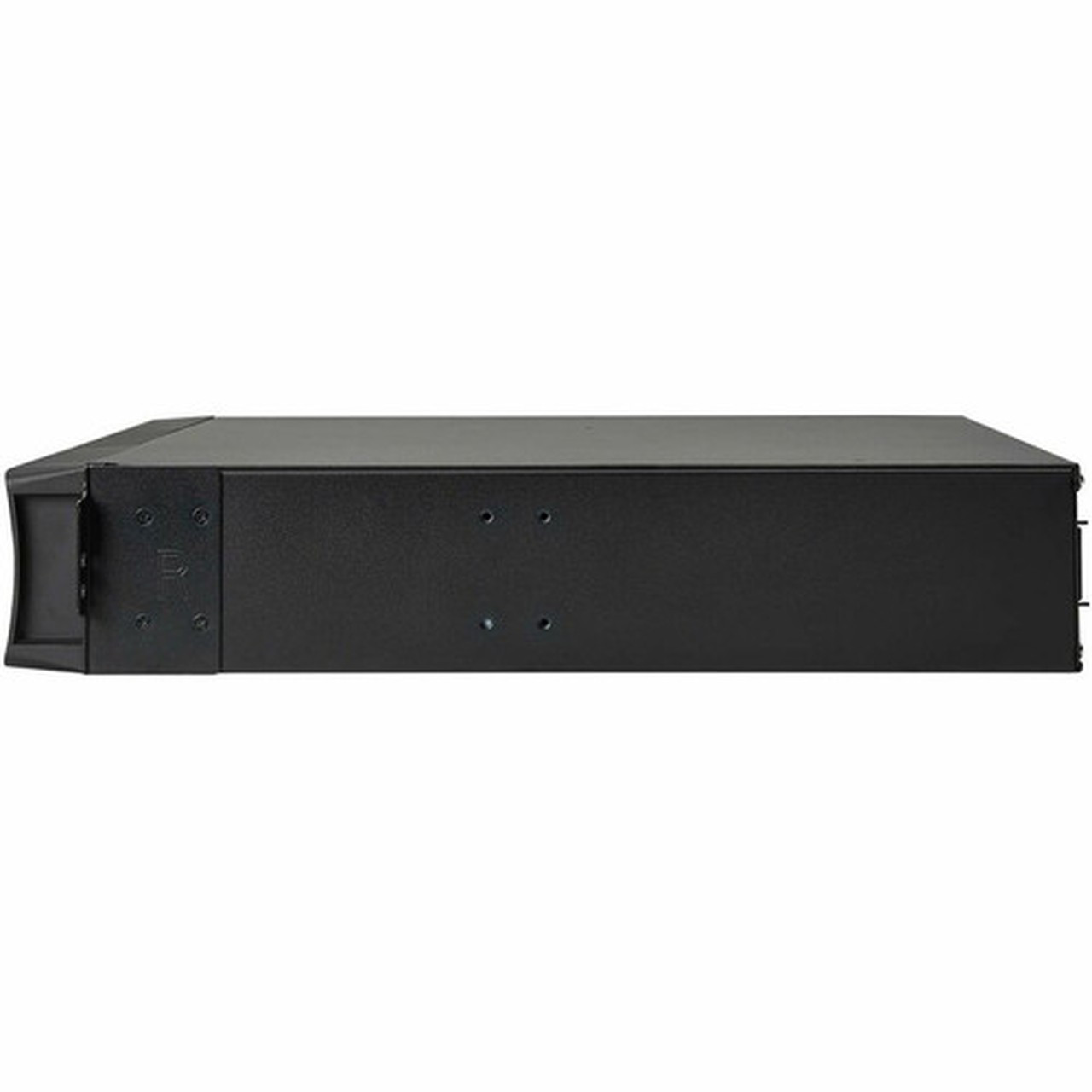

Designed for standard 19-inch rack installation, this UPS measures 3.46" (87.88 mm) in height (2U), 17.24" (437.90 mm) in width, and 19.53" (496.06 mm) in depth. The 44.88 lb (20.36 kg) weight reflects its robust construction with internal batteries. The front panel features an LCD display for status monitoring and configuration, while rear connections include 6 IEC C13 outlets and communication ports.
- Width
- 17.24" (437.90 mm)
- Depth
- 19.53" (496.06 mm)
- Height
- 3.46" (87.88 mm)
- Weight
- 44.88 lb (20357.23 g)
What's in the Box
The package includes all necessary components for immediate rack installation and operation.
Highlights
- 1500VA/1.50 kVA double conversion online UPS with pure sine wave output
- 2U rack-mountable form factor with included 4-post installation kit
- 1.35 kW wattage capacity supports substantial IT equipment loads
- 4.5-minute runtime at full load allows time for safe shutdown procedures
- 200-240V AC input and output voltage compatibility
- 6 IEC 60320 C13 outlets for connecting multiple devices
- Menu-driven LCD display for real-time status and analytics
- Optional WEBCARDLXE network card enables remote management
- 2-year limited warranty with 250,000 Ultimate Lifetime Insurance
- RoHS compliant and environmentally friendly manufacturing
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SUINT1500LCD2U |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SUINT1500LCD2U |
| Product Name | SmartOnline SUINT1500LCD2U 1500VA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Battery Information | |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Physical Characteristics | |
| Height | 3.46" (87.88 mm) |
| Width | 17.24" (437.90 mm) |
| Depth | 19.53" (496.06 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 44.88 lb (20357.23 g) |
| Miscellaneous | |
| Package Contents | 4-Post Rack-mount Installation Kit USB Cable DB9 Cable 2 x C13-to-C14 Power Cables Owner's Manual |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS in both VA and watts?
The Tripp Lite SmartOnline SUINT1500LCD2U provides 1500VA (1.50 kVA) of apparent power and 1350 watts (1.35 kW) of real power capacity. This dual rating helps match the UPS to both VA-rated and watt-rated equipment, ensuring proper load handling for servers, networking gear, and other IT infrastructure.
How long will this UPS run at full load during a power outage?
At full load (1.35 kW), this UPS provides 4.5 minutes of runtime. This duration allows sufficient time for connected systems to complete critical operations, save files, and perform orderly shutdowns. Runtime decreases with lighter loads, providing longer backup for partial equipment configurations.
What input voltage ranges does this UPS support?
This UPS accepts input voltages of 200V AC, 208V AC, 220V AC, 230V AC, and 240V AC. This wide range compatibility makes it suitable for various power standards across different regions and facilities, automatically adjusting to the available input voltage without manual configuration.
How many outlets does this UPS have and what type are they?
The unit features 6 IEC 60320 C13 outlets. These standard computer power connectors support servers, network equipment, and other IT devices. The outlets deliver clean, regulated power from the double conversion system, protecting connected equipment from power disturbances.
What rack space does this UPS require for installation?
This UPS occupies 2U of vertical space in a standard 19-inch rack. With dimensions of 3.46" height, 17.24" width, and 19.53" depth, it fits typical server rack configurations. The included 4-post rack-mount installation kit provides all necessary hardware for secure mounting.
What is included in the package with this UPS?
The package contains a 4-post rack-mount installation kit, USB cable for computer communication, DB9 cable for serial connectivity, two C13-to-C14 power cables for connecting to power sources, and an owner's manual. These components enable immediate installation and operation in rack environments.
What power capacity is listed for this UPS?
The listed power specification is 1.50 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
200 V AC,208 V AC,220 V AC,230 V AC,240 V AC.
