Tripp Lite by Eaton SUINT2200LCD2U SmartOnline 2200VA/1980W Double Conversion Online UPS - Rack-mountable - 1x C19 + 8x C13 Outlets - 4. 3 Min Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS continuously conditions incoming AC power, converting it to DC and then back to clean AC output, which isolates connected equipment from all common power problems. The 2.20 kVA/1.98 kW capacity supports medium-density server racks, networking gear, and storage arrays.
The battery system delivers 4.3 minutes of runtime at full load, providing sufficient time for graceful shutdowns or transition to generator power. A typical recharge cycle completes within 3 hours. Connectivity options include USB and RS-232 ports for local management, with an optional WEBCARDLXE network card slot for remote monitoring and control.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Load Capacity (VA), Load Capacity (Watt), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SmartOnline SUINT2200LCD2U combines high power density with advanced protection features, making it a reliable choice for business-critical infrastructure.
Complete Power Protection
Defends against blackouts, brownouts, surges, and line noise while maintaining zero transfer time between utility and battery power.
- Blackout & Brownout Protection
- Surge Suppression
- Noise Filtering
Rack-Optimized Design
The 2U form factor fits standard 19-inch racks, and the included 4-post installation kit simplifies deployment in data center environments.
- 2U Height
- 19" Rack Width
- 4-Post Kit Included
Enhanced Monitoring & Management
The front-panel LCD displays status, runtime, load, and input/output metrics. Remote management is possible via optional network card.
- Menu-Driven LCD
- USB & RS-232 Ports
- Optional WEBCARDLXE Slot
Deployment / Use Cases
This UPS is designed for environments where clean, uninterrupted power is non-negotiable. Its rack-mount format and substantial outlet count make it ideal for consolidating backup power within a single enclosure.
Typical deployments include server racks hosting virtualization hosts, network switches, routers, and storage arrays. The 4.3-minute runtime at full load allows administrators to execute controlled shutdown procedures or switch to alternate power sources without data loss or hardware stress. The unit also suits smaller telecom closets, edge computing nodes, and medical equipment racks where space is constrained but reliability is paramount.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Load Capacity (VA), Load Capacity (Watt), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile

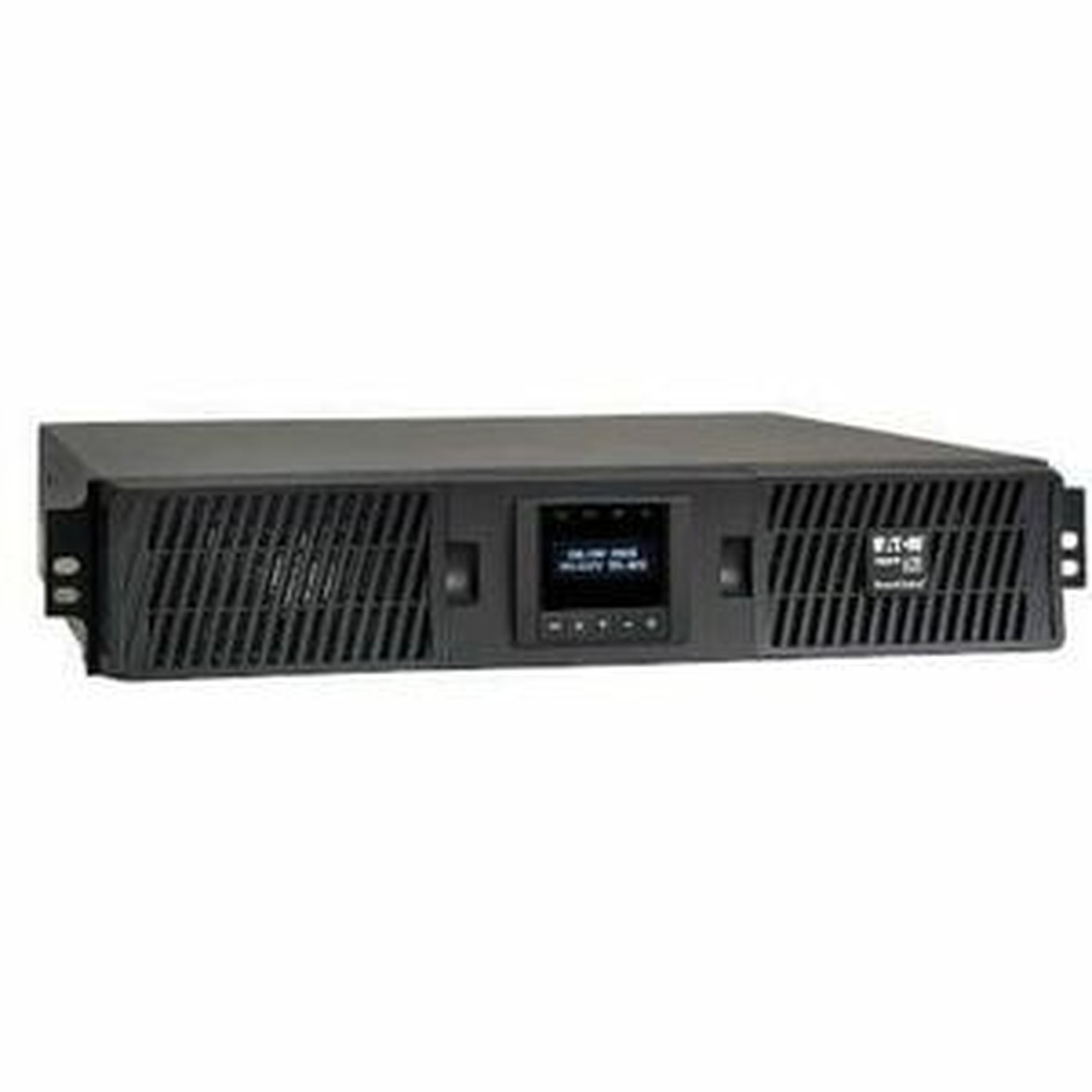

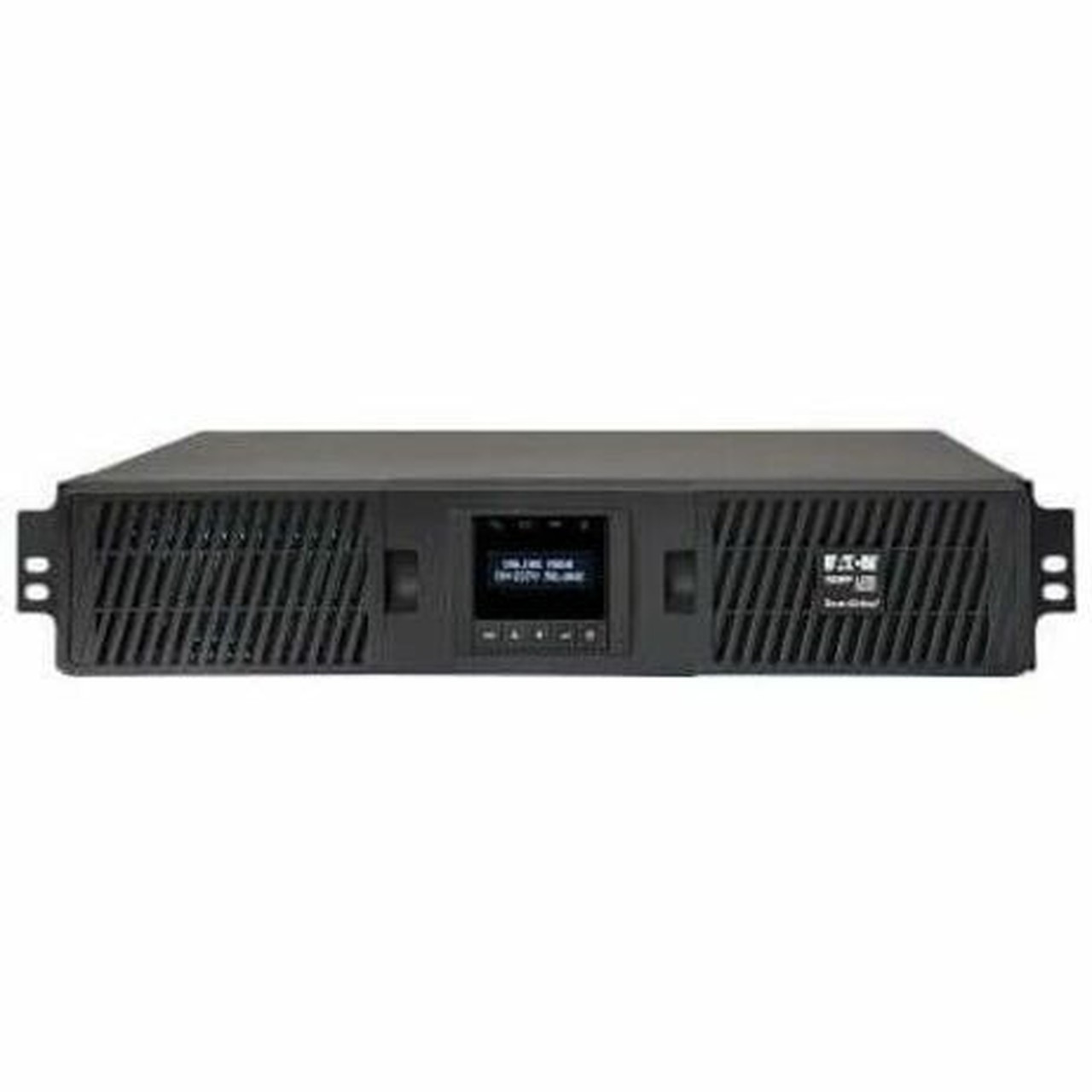

The UPS measures 3.46 inches high, 17.24 inches wide, and 19.53 inches deep, occupying 2U of rack space. Its weight of 50.94 pounds reflects the robust internal battery and transformer construction. The rack-mountable design includes integrated mounting ears and a 4-post installation kit for secure placement in standard 19-inch server racks or cabinets. The front panel features an LCD display, power button, and alert indicators for at-a-glance status monitoring.
- Width
- 17.24" (437.90 mm)
- Depth
- 19.53" (496.06 mm)
- Height
- 3.46" (87.88 mm)
- Weight
- 50.94 lb (23106 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- 2200VA/1980W double conversion online UPS with pure sine wave output
- Rack-mountable 2U form factor with included 4-post installation kit
- 1x C19 and 8x C13 outlets for flexible equipment connectivity
- 4.3-minute runtime at full load, 3-hour typical recharge time
- Wide input voltage range: 200-240V AC, auto-sensing
- Menu-driven LCD for real-time status and analytics
- Optional WEBCARDLXE network card slot for remote management
- 2-year limited warranty with 250,000 Ultimate Lifetime Insurance
- RoHS compliant, environmentally friendly design
- Zero transfer time between online and battery modes
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SUINT2200LCD2U |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SUINT2200LCD2U |
| Product Name | SmartOnline SUINT2200LCD2U 2200VA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 1 x IEC 60320 C19,8 x IEC 60320 C13 |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.98 kW |
| Input Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Battery Information | |
| Backup/Run Time (Full Load) | 4.30 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Height | 3.46" (87.88 mm) |
| Width | 17.24" (437.90 mm) |
| Depth | 19.53" (496.06 mm) |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 50.94 lb (23106 g) |
| Miscellaneous | |
| Package Contents | SmartOnline SUINT2200LCD2U 2200VA Rack-mountable UPS 4-Post Rack-mount Installation Kit USB Cable RS-232 Cable C19-to-C20 Power Cable 2 x C13-to-C14 Power Cables Owner's Manual |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Tripp Lite SmartOnline SUINT2200LCD2U provides 2200VA (2.20 kVA) and 1980W (1.98 kW) of power capacity. This supports medium-density server racks, networking equipment, and storage arrays, making it suitable for critical IT infrastructure requiring reliable backup power.
How long does the battery last at full load?
At full load, the UPS delivers 4.3 minutes of runtime. This provides sufficient time for administrators to save files, initiate graceful shutdowns, or transition to an alternate power source like a generator, preventing data loss and hardware damage during outages.
What types of outlets are included?
The unit features nine outlets: one IEC 60320 C19 outlet and eight IEC 60320 C13 outlets. This combination accommodates a mix of high-power devices (like servers) and standard IT equipment (like switches and routers), offering flexible connectivity in rack environments.
Is this UPS rack-mountable?
Yes, the SmartOnline SUINT2200LCD2U is designed for rack mounting with a 2U form factor. It includes a 4-post rack-mount installation kit for secure deployment in standard 19-inch server racks or cabinets, optimizing space in data centers and network closets.
What is the recharge time for the battery?
The typical battery recharge time is 3 hours. This ensures the UPS is ready to provide backup power again relatively quickly after an outage, minimizing downtime windows for subsequent power events.
Does this UPS support remote management?
Yes, the UPS includes USB and RS-232 ports for local management. Additionally, it has a slot for an optional WEBCARDLXE network card, which enables full remote access, monitoring, and control over a network, allowing administrators to manage power from anywhere.
What power capacity is listed for this UPS?
The listed power specification is 2.20 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
200 V AC,208 V AC,220 V AC,230 V AC,240 V AC.
