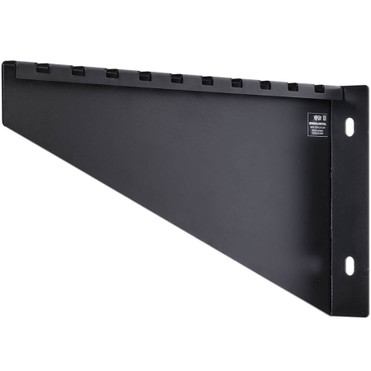

Tripp Lite by Eaton SRWBWALLBRKTHDL SmartRack Heavy-Duty Wall Bracket for 150-450mm Cable Trays - Black Metal
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This mounting bracket features precise dimensions of 9.84" (249.90 mm) in height, 20.87" (530 mm) in width, and 1.97" (50 mm) in depth, offering a compact profile that fits standard cable tray sizes. The design accommodates Tripp Lite wire mesh cable trays models SRWB12210STR, SRWB12410STR, SRWB18410STR, SRWB6210STR, and SRWB6410STR, ensuring compatibility across common tray widths.
The metal construction provides high load-bearing capacity and long-term durability, while the black color blends with typical rack and IT equipment aesthetics. The bracket is environmentally friendly and complies with RoHS standards, reflecting Tripp Lite's commitment to sustainable manufacturing practices.
This section brings together practical product details such as Device Supported, Color Family, Product Color, Product Material, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SRWBWALLBRKTHDL bracket delivers reliable performance for cable management needs, with features that enhance installation efficiency and system organization.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Robust Construction, Comprehensive Compatibility.
Robust Construction
Built from solid metal, this bracket withstands the weight of loaded cable trays and maintains stability in demanding environments.
- Durable metal material
- Black finish for corrosion resistance
- Integrated handle for easier mounting
Comprehensive Compatibility
Specifically designed for Tripp Lite wire mesh cable trays, ensuring a secure fit and optimal support for 150-450mm widths.
- Supports multiple tray models
- Fits standard tray sizes
- Includes installation guide
Deployment / Use Cases
This mounting bracket is ideal for data centers, network closets, and commercial facilities where organized cable routing is critical. It enables clean cable runs along walls or racks, reducing trip hazards and improving airflow for cooling efficiency.
Common applications include supporting cable trays above server racks, along corridor walls, or in telecommunications rooms. The bracket's heavy-duty design makes it suitable for environments with high cable density or where trays must bear significant weight over time.
Data Center Cable Management
Install this bracket to secure cable trays that route network, power, and fiber cables between racks, ensuring tidy and accessible infrastructure.
Commercial IT Installations
Use in office buildings or industrial settings to mount cable trays for structured cabling systems, supporting both new deployments and retrofits.
Physical Profile
The bracket has a slim depth of 1.97" (50 mm), minimizing its footprint while providing strong support. The black metal finish offers a professional appearance that matches typical IT hardware, and the approximate weight of 3.53 lb (1600 g) ensures it remains manageable during installation without sacrificing sturdiness.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 9.84" (249.90 mm), 20.87" (530 mm), 1.97" (50 mm), 3.53 lb (1600 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 20.87" (530 mm)
- Depth
- 1.97" (50 mm)
- Height
- 9.84" (249.90 mm)
- Weight
- 3.53 lb (1600 g)
What's in the Box
The package includes the large heavy-duty wall bracket and an installation guide, providing everything needed for setup.
Package contents include Large Heavy-Duty Wall Bracket for 150-450 mm Wire Mesh Cable Trays Installation Guide, Large Heavy-Duty Wall Bracket for 150-450 mm Wire Mesh Cable Trays. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Heavy-duty wall mounting bracket for 150-450mm wire mesh cable trays
- Compatible with Tripp Lite SmartRack cable tray models SRWB12210STR, SRWB12410STR, SRWB18410STR, SRWB6210STR, SRWB6410STR
- Constructed from durable black metal with an integrated handle
- Dimensions: 9.84" H x 20.87" W x 1.97" D (249.90 mm x 530 mm x 50 mm)
- Weight: approximately 3.53 lb (1600 g)
- Includes installation guide for proper mounting
- RoHS compliant and environmentally friendly
- Backed by a 5-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRWBWALLBRKTHDL |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRWBWALLBRKTHDL |
| Product Name | Large Heavy-Duty Wall Bracket for 150-450 mm Wire Mesh Cable Trays |
| Product Type | Mounting Bracket |
| Product Information | |
| Device Supported | Cable Tray |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Metal |
| Height | 9.84" (249.90 mm) |
| Width | 20.87" (530 mm) |
| Depth | 1.97" (50 mm) |
| Weight (Approximate) | 3.53 lb (1600 g) |
| Miscellaneous | |
| Package Contents | Large Heavy-Duty Wall Bracket for 150-450 mm Wire Mesh Cable Trays Installation Guide |
| Compatibility | Tripp Lite Wire Mesh Cable Trays: SRWB12210STR SRWB12410STR SRWB18410STR SRWB6210STR SRWB6410STR |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What cable tray sizes does the SRWBWALLBRKTHDL bracket support?
The bracket is designed for Tripp Lite wire mesh cable trays with widths ranging from 150mm to 450mm. It specifically supports models SRWB12210STR, SRWB12410STR, SRWB18410STR, SRWB6210STR, and SRWB6410STR, ensuring compatibility with common tray dimensions used in data centers and IT installations.
Is this bracket suitable for wall mounting only?
Yes, the SRWBWALLBRKTHDL is a heavy-duty wall mounting bracket. It is engineered to securely attach cable trays to vertical surfaces like walls in server rooms or corridors, providing stable support for cable runs. The integrated handle aids in positioning during installation.
What material is the bracket made from?
The bracket is constructed from metal, offering durability and strength to handle the weight of loaded cable trays. It features a black finish that resists corrosion and blends with standard IT equipment, making it suitable for long-term use in commercial environments.
Does the bracket come with installation instructions?
Yes, the package includes an installation guide that provides step-by-step instructions for mounting the bracket and attaching compatible cable trays. This ensures proper alignment and secure installation, helping to achieve optimal cable management and safety.
What warranty coverage does Tripp Lite offer for this bracket?
Tripp Lite provides a 5-year limited warranty for the SRWBWALLBRKTHDL bracket. This warranty covers defects in materials and workmanship, offering peace of mind for investments in cable management infrastructure. Always refer to the official warranty terms for detailed coverage information.
Is the bracket environmentally compliant?
Yes, the bracket is environmentally friendly and complies with the Restriction of Hazardous Substances (RoHS) standards. This means it is manufactured without certain hazardous materials, aligning with sustainability goals and regulatory requirements for electronic and mounting equipment.
