Tripp Lite SMART1000RMXL2U UPS System - 2U Rack/Tower - 4.50 Hour Recharge - 6.30 Minute Stand-by - 110 V AC Input - 120 V AC Output - (SMART1000RMXL2U)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Write a Review
Tripp Lite
Tripp Lite SMART1000RMXL2U UPS System - 2U Rack/Tower - 4.50 Hour Recharge - 6.30 Minute Stand-by - 110 V AC Input - 120 V AC Output - (SMART1000RMXL2U)
- SmartPro SMART1000RMXL2U 1000VA Rack/Tower UPS
- USB Cable
- DB9 Cable
- Rack-mounting Hardware
- Tower Support Stands
- Safety Instructions
- Advanced User Guide/li>
Software Included: PowerAlert Software
Energy Star: Yes
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
Marketing Information:
1kVA/1kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART1000RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.Reliable, Expandable Battery Backup Keeps You Operational Through Power Outage
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.NEMA 5-15R Outlets Protect Your Connected Components

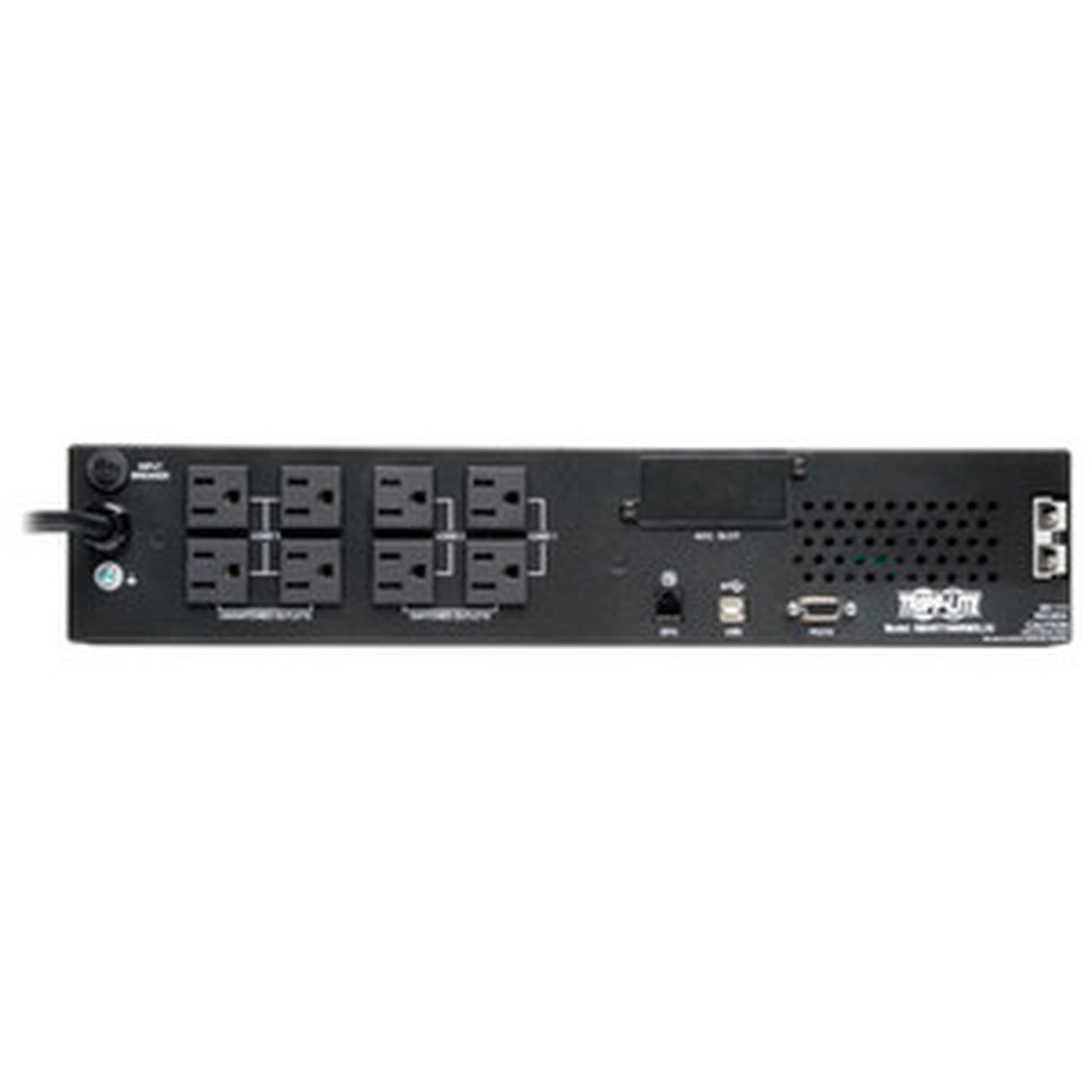

Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART1000RMXL2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
This ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Overload Protection: Yes
Transfer Time: 4 ms
Phase: Single Phase
Application/Usage: Data Storage,Server,Switch,IT Equipment,VoIP
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 1 kW
Input Voltage: 120 V AC
Output Voltage: 110 V AC,115 V AC,120 V AC
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 380 J
Network Management: SNMP Manageable
Serial Port: Yes
USB: Yes
Backup/Run Time (Full Load): 6.30 Minute
Backup/Run Time (Half Load): 18 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour
Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 17.60" (447.04 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 20.18 kg
Package Contents:
- Protects equipment against blackouts, brownouts, transient surges and line noise
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Unity power factor ensures maximum power possible at each power rating
- ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment

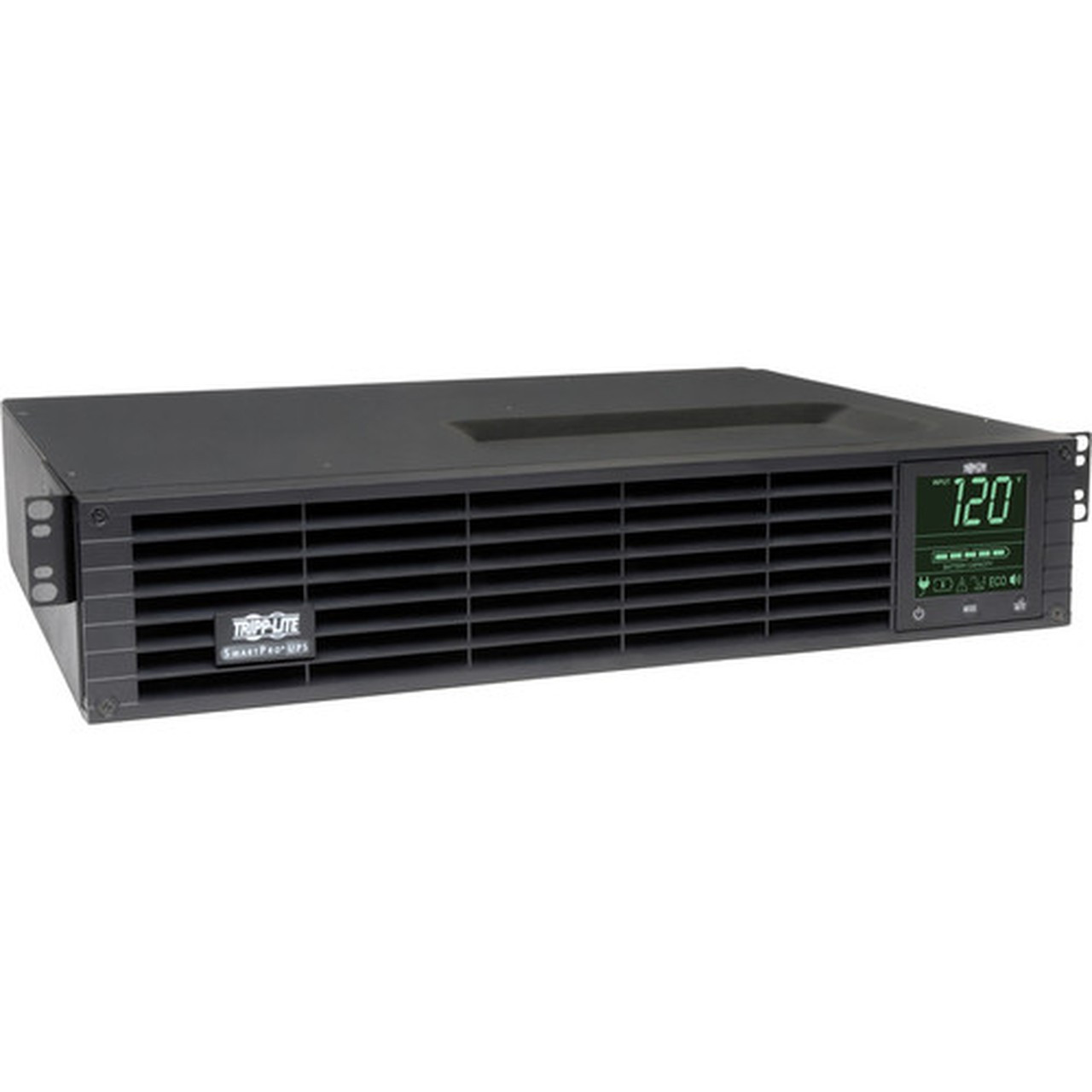

- 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
- For remote monitor and control, the WEBCARDLXE is required (sold separately). Not compatible with WEBCARDLX
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMART1000RMXL2U |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Series | SmartPro |
| Product Model | SMART1000RMXL2U |
| Product Name | SmartPro SMART1000RMXL2U 1000VA Rack/Tower UPS |
| Product Type | Line-interactive UPS | Technical Information |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Overload Protection | Yes |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Application/Usage | Data Storage,Server,Switch,IT Equipment,VoIP | Power Description |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 380 J | Management |
| Network Management | SNMP Manageable | Interfaces/Ports |
| Serial Port | Yes |
| USB | Yes | Battery Information |
| Backup/Run Time (Full Load) | 6.30 Minute |
| Backup/Run Time (Half Load) | 18 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4.50 Hour | Physical Characteristics |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 17.60" (447.04 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 20.18 kg | Miscellaneous |
| Package Contents | |
| Software Included | PowerAlert Software |
| Energy Star | Yes |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite by Eaton Warranty/Support - Extended Warranty - 2 Year - Warranty - Maintenance - Labor - Physical |
| SKU | WEXT2F |
| Sale Price | $175.65 |
| Product | Tripp Lite 6ft Computer Power Cord Cable 5-15P to C13 Heavy Duty 15A 14AWG 6' - 220V AC - 15A - 1.83m |
| SKU | P007-006 |
| Sale Price | $9.93 |
| Product | Tripp Lite 2-9U Stand - Plastic - Black |
| SKU | 2-9USTAND |
| Sale Price | $108.22 |
| Product | Tripp Lite by Eaton Web Management Accessory Card for SmartPro or SmartOnline UPS Systems - SmartSlot - 2 x Network (RJ-45) Port(s) |
| SKU | TLNETCARD |
| Sale Price | $537.72 |
| Product | Tripp Lite by Eaton Extended Battery Modules BP48VRM2U UPS Battery Pack - 48 V DC - Lead Acid - Valve-regulated/User Replaceable - Hot Swappable |
| SKU | BP48VRM2U |
| Sale Price | $846.37 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
