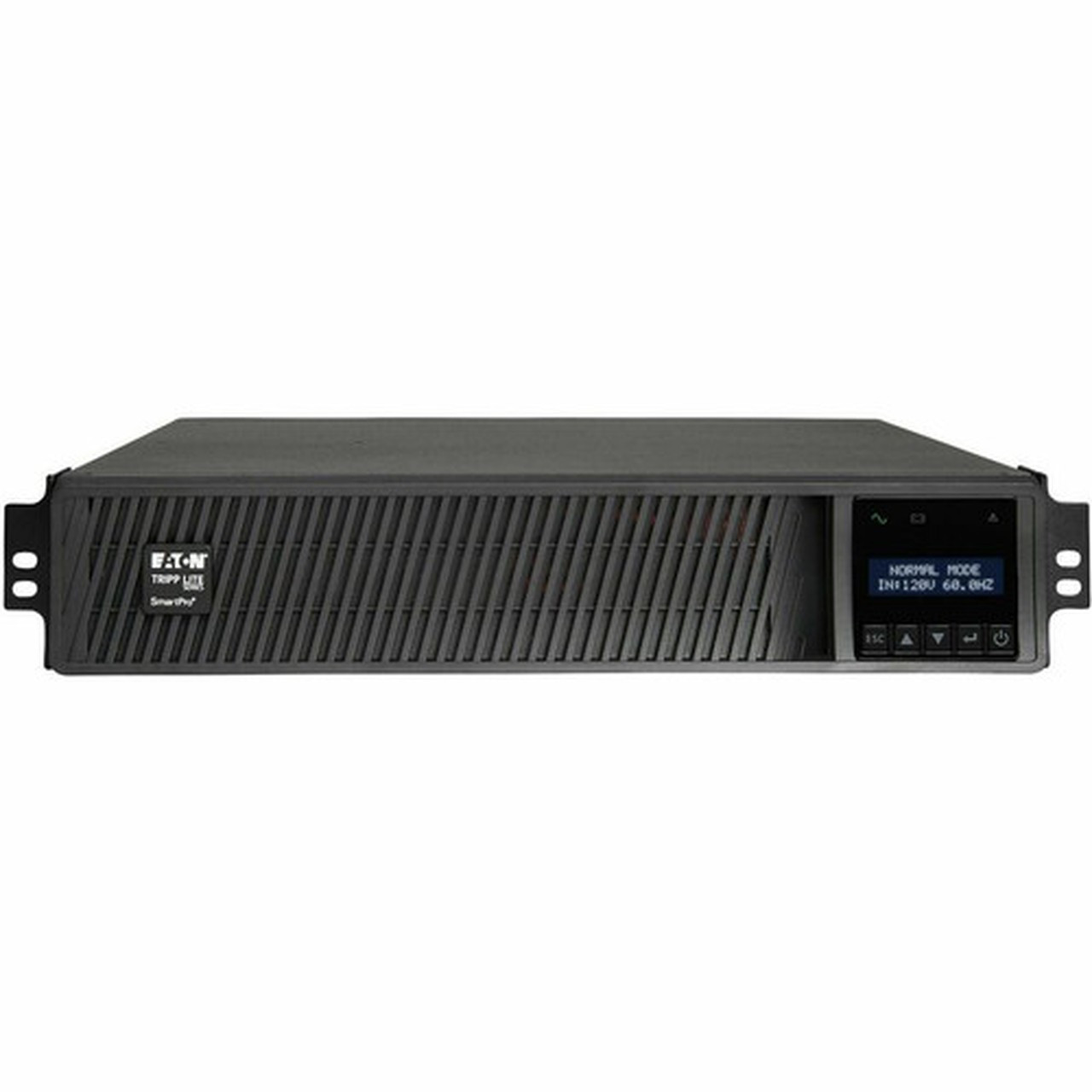

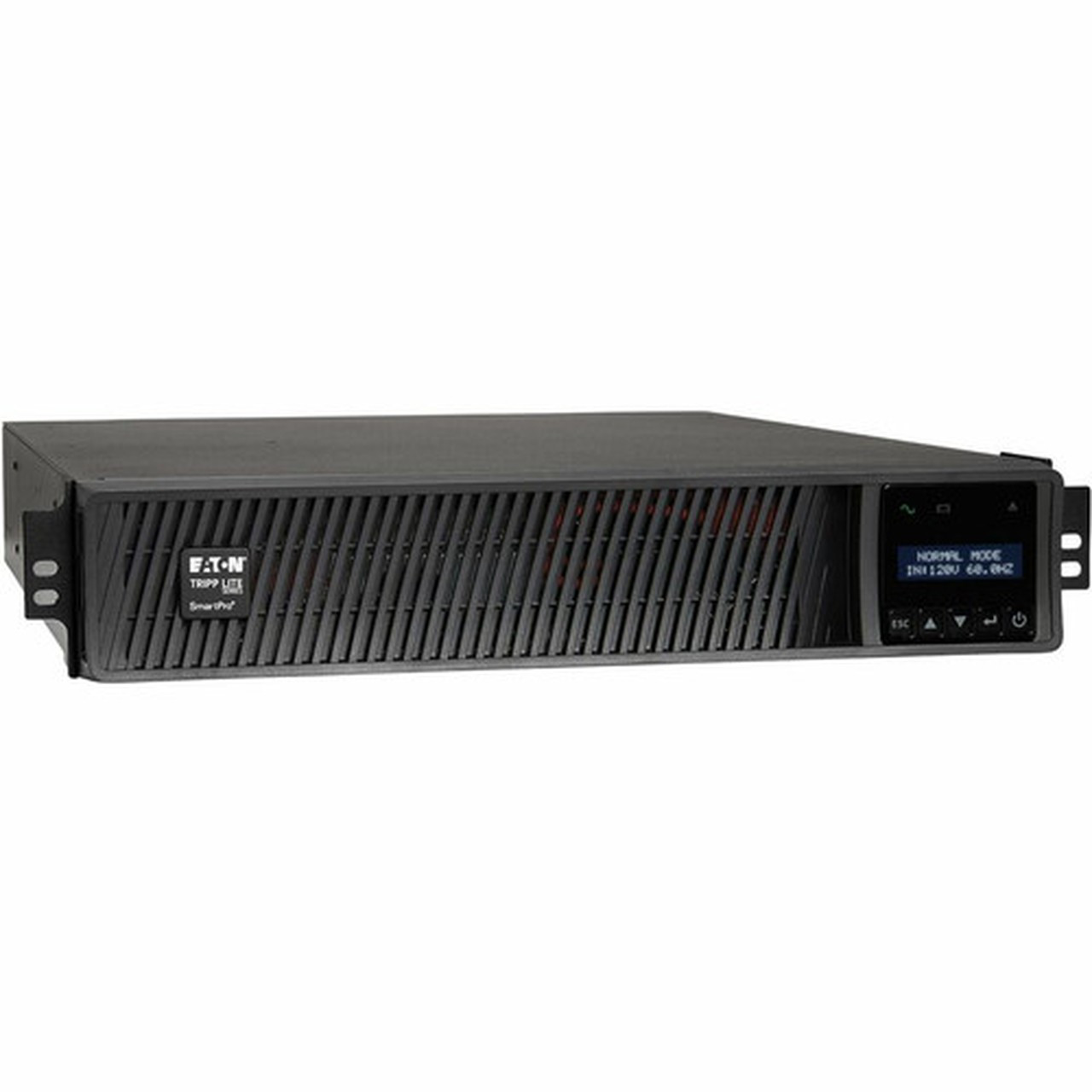

Tripp Lite SmartPro SMART2200RM2U 2200VA Rack-mountable UPS - 2200VA/1920W - 5 Minute Full Load - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R (SMART2200RM2U)

• Protects equipment against blackouts, brownouts, transient surges and line noise
• Keeps equipment running during outages to allow time for file saves and safe shutdown
• Unity power factor ensures maximum power possible at each power rating
• ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
• 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
• For remote monitor and control, the WEBCARDLXE is required (sold separately). Not compatible with WEBCARDLX.

Marketing Information:

1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your IT equipment or destroy data. The SMART2200RM2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72VRM2U, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

NEMA Outlets Protect Your Connected Components
One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split into two independently switchable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART2200RM2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.

More from the Manufacturer


AVR: Yes
Plug/Connector Type: NEMA 5-20P
Receptacle Type:
• NEMA 5-20R
• NEMA L5-20R

Receptacle Detail:
• 6 x NEMA 5-20R
• 1 x NEMA L5-20R

Overload Protection: Yes
Cord Length: 10 ft
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
Application/Usage:
• Data Storage
• Server
• Switch
• IT Equipment

Load Capacity (VA): 1.95 kVA
Load Capacity (Watt): 1.95 kW
Input Voltage: 120 V AC
Input Voltage Range: 70 V AC - 153 V AC
Input Current: 16.40 A
Output Voltage:
• 100 V AC
• 110 V AC
• 120 V AC
• 125 V AC

Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 380 J
Output Power Factor: 1
Display: LCD
Network Management: SNMP/Web
Alarm:
• Remote Shutdown
• UPS StartUp
• Power Failure
• Overload
• UPS Fault
• Low Battery

Status Indicators:

5 Front Panel Leds:

• Green Power Led
• Green Voltage Correction Led
• 3 Color Battery Charge Led
• 3 Color Output Load Led
• Red Battery Warning Led

Serial Port: Yes
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
DC System Voltage: 72 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4 Minute
Backup/Run Time (Half Load): 12 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour
Replaceable Battery: Yes
Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 32808 ft (9999878.40 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Height: 3.39" (86 mm)
Width: 17.20" (437 mm)
Depth: 23.70" (602 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 29.62 kg
Package Contents:
• SmartPro SMART2200RM2U 1950VA Rack/Tower UPS
• USB cable
• DB9 cable
• Rack-mounting hardware
• Tower support stands
• Safety instructions

Software Included: PowerAlert Software
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
• ENERGY STAR 2.0
• RoHS

Country of Origin: China
TAA Compliant: Yes
Limited Warranty: 3 Year
Additional Warranty Information: 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
