Tripp Lite by Eaton SMART750RMXL2U Tripp Lite SmartPro 750VA/600W Line-Interactive UPS - 2U Rack/Tower - 6 NEMA 5-15R Outlets - SNMP/USB Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Tripp Lite SmartPro SMART750RMXL2U is a line-interactive UPS system delivering 750VA/600W of reliable power protection for critical office and rack-mounted equipment. Engineered with a 2U rack/tower convertible design, it provides flexible deployment options in server rooms, network closets, and workstation environments where space optimization matters.
This UPS features six NEMA 5-15R outlets to support multiple devices simultaneously, with intelligent voltage correction that maintains stable output between 110-120V AC. The unit includes PowerAlert management software for automated shutdowns and monitoring, while its hot-swappable battery design ensures minimal downtime during maintenance. Built to RoHS environmental standards and backed by a 2-year warranty, it offers a balanced combination of capacity, runtime, and management features for small to medium business applications.
Relevant product facts for this section include Plug/Connector Type: NEMA 5-15P, Receptacle Type: NEMA 5-15R, Receptacle Detail: 6 x NEMA 5-15R, Load Capacity (VA): 750 VA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Technical Overview
The SMART750RMXL2U employs a line-interactive topology with pure sine wave output, ensuring compatibility with sensitive electronic equipment like servers and networking gear. It delivers 750VA/600W of power capacity with a 0.8 power factor, optimizing energy efficiency for connected loads. The unit features 95% line-mode efficiency and actively corrects voltage fluctuations, handling brownouts as low as 83V and overvoltages up to 147V without switching to battery, which extends battery life and reduces wear.

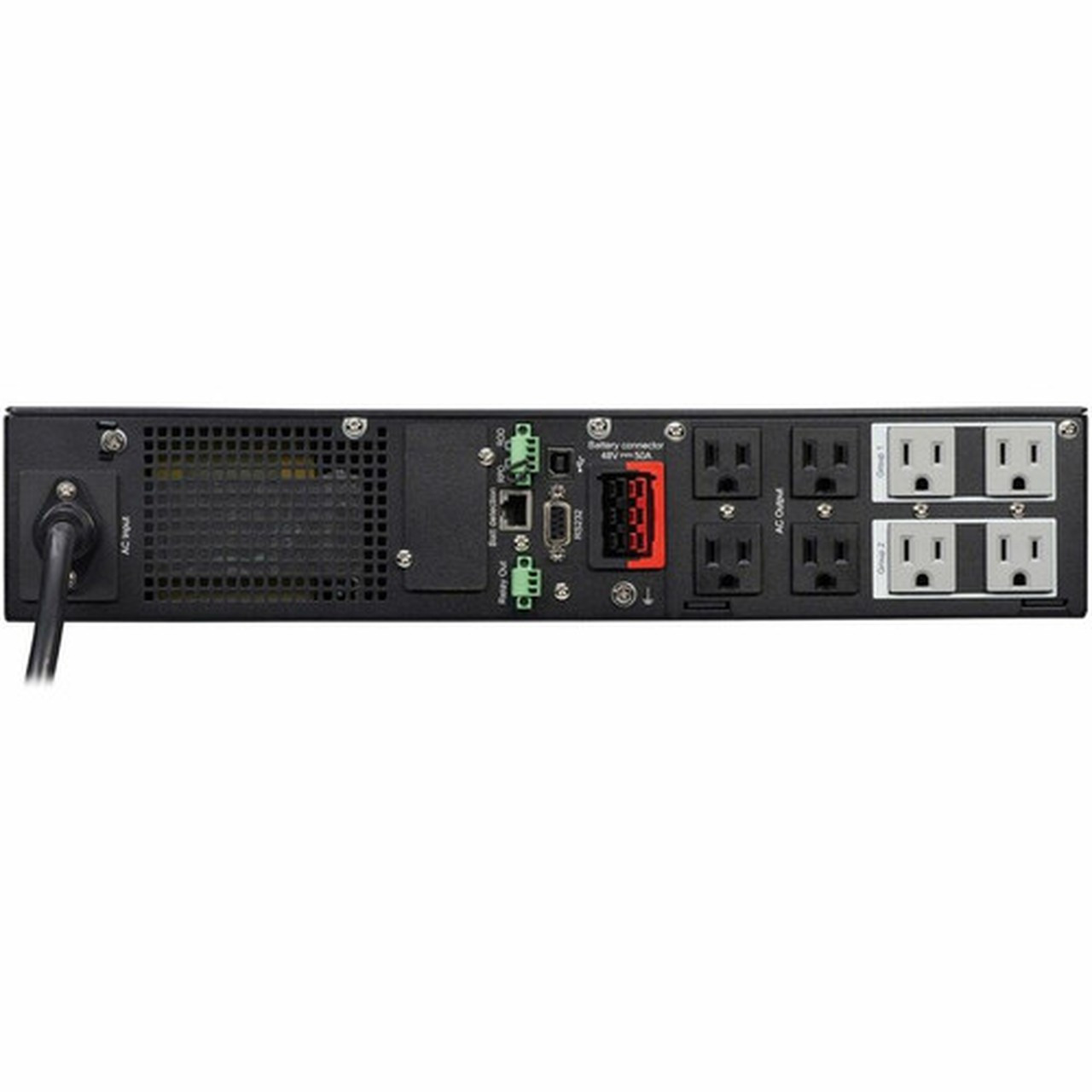

With a 4ms transfer time, this UPS provides seamless transition to battery power during outages, minimizing disruption to critical operations. It includes an interactive LCD interface for real-time monitoring of status, load, and battery health. The built-in slot supports an optional SNMPWEBCARD for advanced network management, while USB and RS232 ports facilitate local connectivity with the included PowerAlert software for automated shutdowns and configuration.
Key Product Advantages
This UPS combines rack-mount density with tower flexibility, featuring a 2U height that fits standard server racks while including four-post mounting accessories for secure installation. The six NEMA 5-15R outlets provide ample connectivity for servers, switches, and workstations, with switched banks enabling controlled power management.
Management Flexibility
Includes USB and RS232 interfaces for local management plus an expansion slot for optional SNMPWEBCARD, allowing integration into existing network monitoring systems.
- PowerAlert Software Included
- EPO (Emergency Power Off) Support
- Remote Monitoring Capable
Efficiency & Protection
Achieves 95% line-mode efficiency with active voltage regulation, protecting equipment from under-voltage and over-voltage conditions without switching to battery.
- Brownout Correction to 83V
- Overvoltage Protection to 147V
- Sine Wave Output Quality
Deployment / Use Cases
The SMART750RMXL2U is designed for environments requiring reliable power backup with rack-optimized form factors. Its 2U height and 17.35" width make it compatible with standard 19" server racks, while the included four-post kit ensures secure mounting in data center applications.
Typical deployments include network closets supporting switches and routers, small server rooms with 1-2 rack servers, and office workstations running point-of-sale systems or medical equipment. The extended runtime options support graceful shutdowns during prolonged outages, and the hot-swappable batteries allow maintenance without system interruption.
Server Room Applications
Protects rack-mounted servers and network equipment with SNMP management for automated shutdown sequences and remote monitoring.
- 2U Rack Space Efficient
- Compatible with Standard Rails
- Supports Multiple Devices
Office & Workstation Use

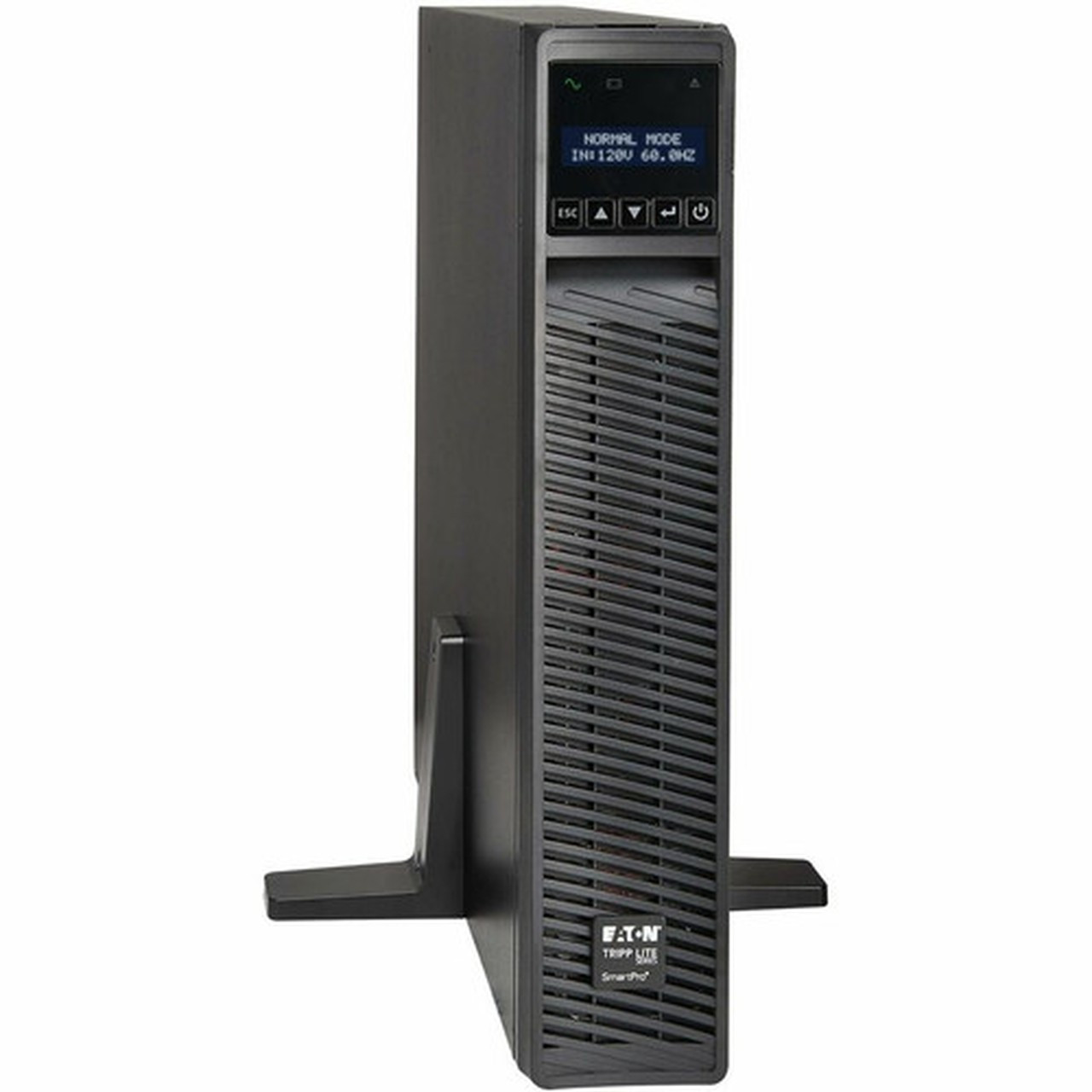

Provides tower-mode operation for desktop computers and peripherals, with six outlets accommodating complete workstation setups.
- Tower Configuration Ready
- Workstation Protection
- Multiple Outlet Coverage
Physical Profile

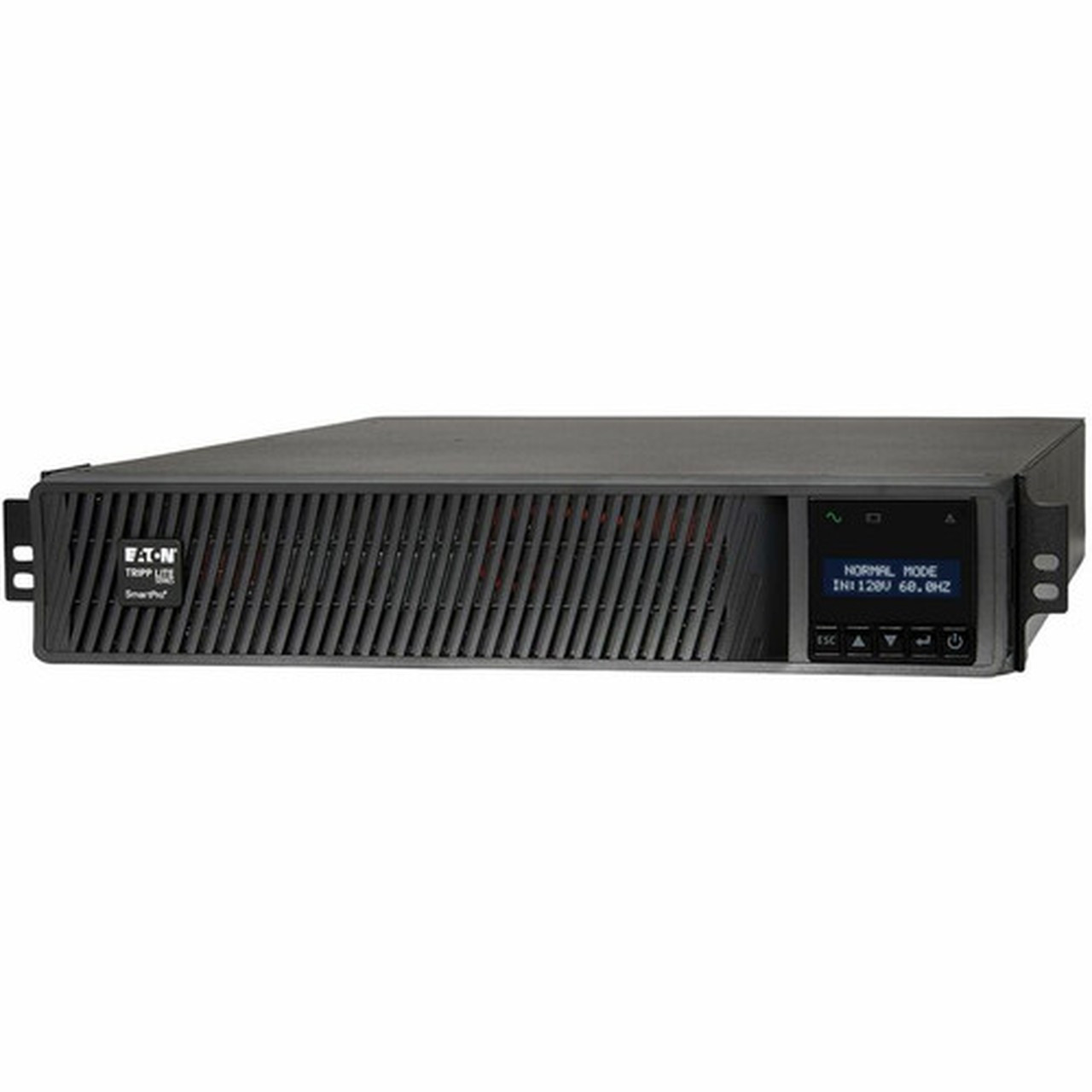

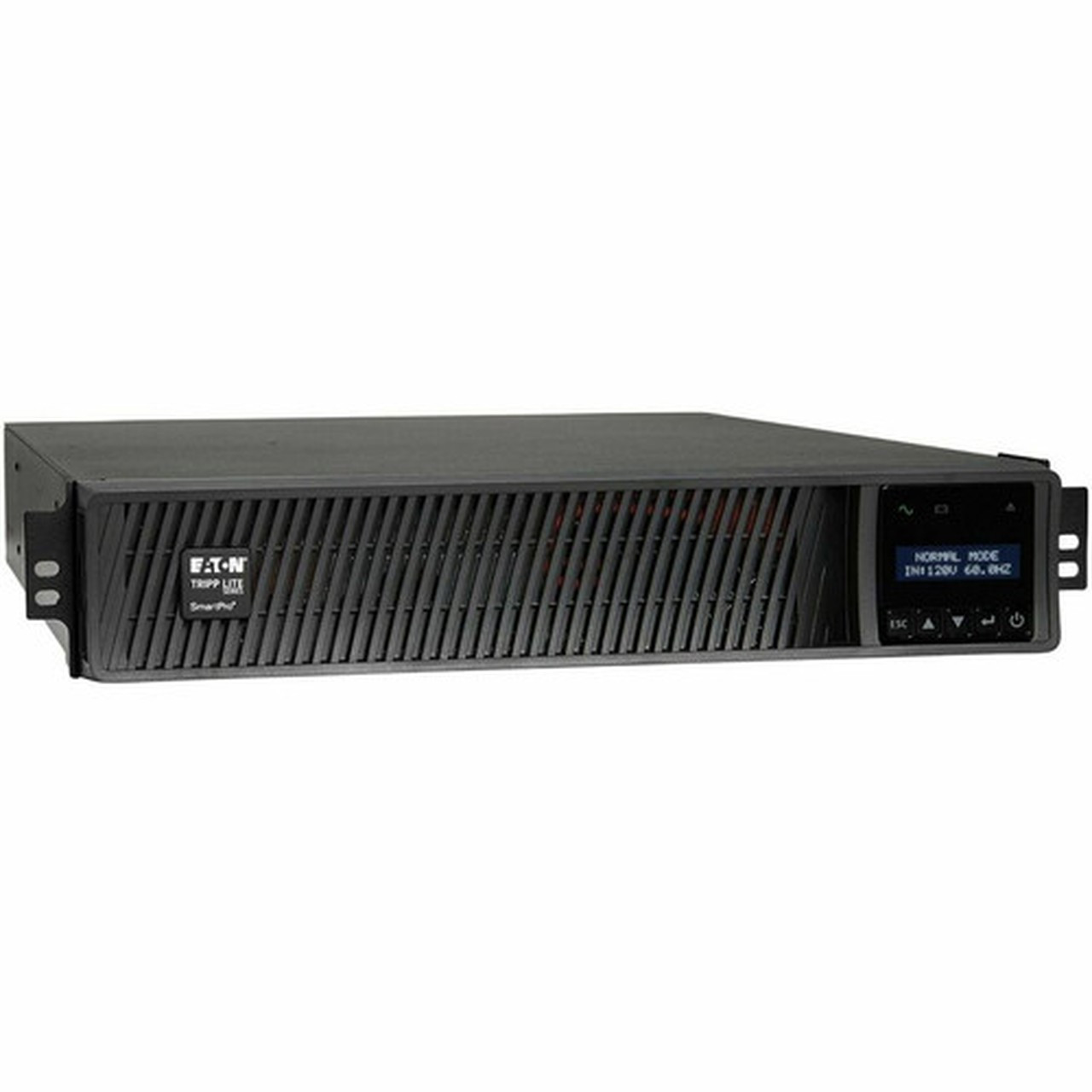

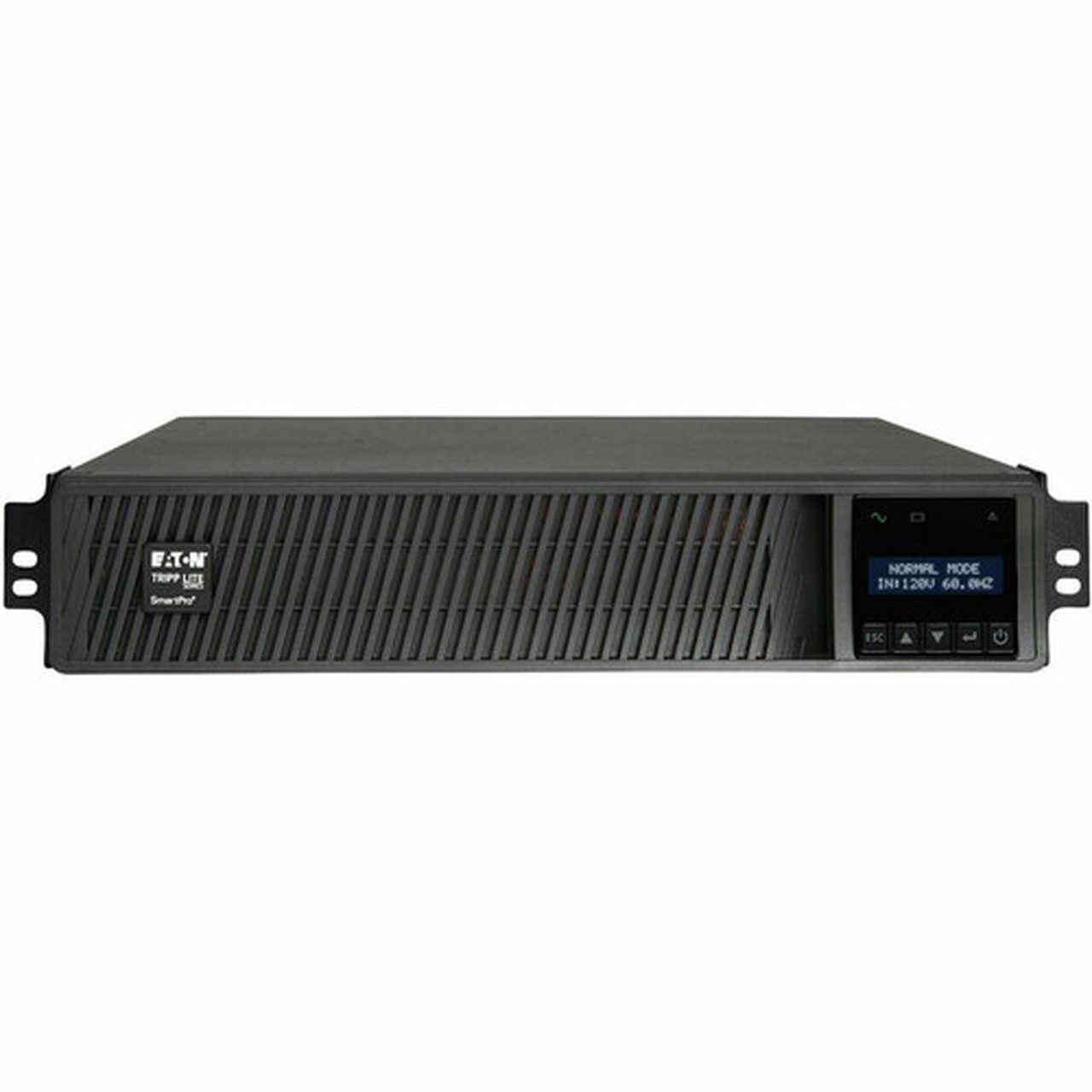

The UPS measures 3.45" (87.63 mm) in height, 17.35" (440.69 mm) in width, and 13.15" (334.01 mm) in depth, occupying a compact 2U rack space. Weighing 35.40 lb (16057.17 g), it features a robust steel construction suitable for both rack-mount and tower placement. The front panel includes an LCD display for status monitoring, while rear-panel connections provide clean cable management in rack installations.
- Width
- 17.35" (440.69 mm)
- Depth
- 13.15" (334.01 mm)
- Height
- 3.45" (87.63 mm)
- Weight
- 35.40 lb (16057.17 g)
What's in the Box
The package includes all components needed for immediate deployment and management.
Highlights
- 750VA/600W line-interactive UPS with sine wave output
- 2U rack/tower convertible form factor with four-post mounting kit
- 6 NEMA 5-15R outlets for multiple device protection
- 8.5-minute full load runtime, 21-minute half load runtime
- SNMP manageable with USB/RS232 interfaces and optional web card slot
- Hot-swappable battery for maintenance without downtime
- 95% line-mode efficiency with voltage correction (83V-147V)
- Includes PowerAlert management software for automated shutdowns
- RoHS compliant with 2-year limited warranty
- Interactive LCD interface with real-time status display
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART750RMXL2U |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART750RMXL2U |
| Product Name | SMART750RMXL2U UPS System |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Transfer Time | 4 ms |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Input Current | 6.80 A |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 8.50 Minute |
| Backup/Run Time (Half Load) | 21 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4.50 Hour |
| Physical Characteristics | |
| Height | 3.45" (87.63 mm) |
| Width | 17.35" (440.69 mm) |
| Depth | 13.15" (334.01 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 35.40 lb (16057.17 g) |
| Miscellaneous | |
| Package Contents | SMART750RMXL2U UPS System PowerAlert Software with USB Serial & EPO Cabling 4 Post Installation Kit Owner's Manual |
| Software Included | PowerAlert Software |
| Country of Origin | Taiwan |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of the Tripp Lite SMART750RMXL2U UPS?
This line-interactive UPS provides 750 VA / 600 W of power capacity, suitable for protecting critical equipment like servers, networking gear, and workstations. With a 0.8 power factor, it efficiently supports connected loads while maintaining stable power output.
What runtime can I expect at full and half load?
At full load (600W), the UPS delivers approximately 8.5 minutes of battery runtime. At half load (300W), runtime extends to about 21 minutes, providing sufficient time for graceful shutdowns during power outages in office or rack environments.
How many outlets does this UPS have and what type are they?
The unit features six NEMA 5-15R outlets, allowing multiple devices to be connected simultaneously. These standard North American outlets support equipment like servers, switches, routers, and desktop computers with proper battery backup protection.
What input and output voltage specifications does this UPS support?
The UPS accepts 120V AC input and provides output voltage ranging from 110V to 120V AC. It features intelligent voltage correction that handles brownouts as low as 83V and overvoltages up to 147V without switching to battery, protecting connected equipment from voltage fluctuations.
Is this UPS designed for rack or tower deployment?
This UPS offers flexible deployment with a 2U rack/tower convertible design. It includes a four-post installation kit for secure rack mounting in standard 19-inch server racks, while also functioning as a standalone tower unit for office workstation applications.
What management and connectivity options are available?
Management options include SNMP capability for network monitoring, USB and RS232 interfaces for local connectivity, and an expansion slot for an optional SNMPWEBCARD. The included PowerAlert software enables automated shutdowns, while the interactive LCD interface provides real-time status monitoring of load, battery health, and system conditions.
