Tripp Lite by Eaton SRW12USDPG Tripp Lite SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet - 19" Rack Width - 200 lb Capacity - Black/Clear
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This rack enclosure supports a maximum static weight capacity of 200 pounds, distributed across its 12U rack height. The internal rack dimensions are standardized at 19 inches wide and 24.5 inches deep, compatible with a wide range of UPS systems, servers, and networking gear. External cabinet dimensions measure 25.06 inches in height, 23.63 inches in width, and 25.50 inches in depth, with an approximate weight of 64 pounds for the empty enclosure.
The wall-mount design includes a swing-away hinge mechanism that allows the entire cabinet to pivot away from the wall, providing full rear access for cable management and equipment servicing. This feature eliminates the need for additional clearance behind the cabinet during maintenance, optimizing space utilization in tight installations.
Key Product Advantages
The SRW12USDPG combines secure equipment protection with practical accessibility features tailored for UPS and network deployments. Its design addresses common challenges in rack installation and maintenance, delivering a solution that enhances both equipment security and operational efficiency.
Secure Equipment Housing

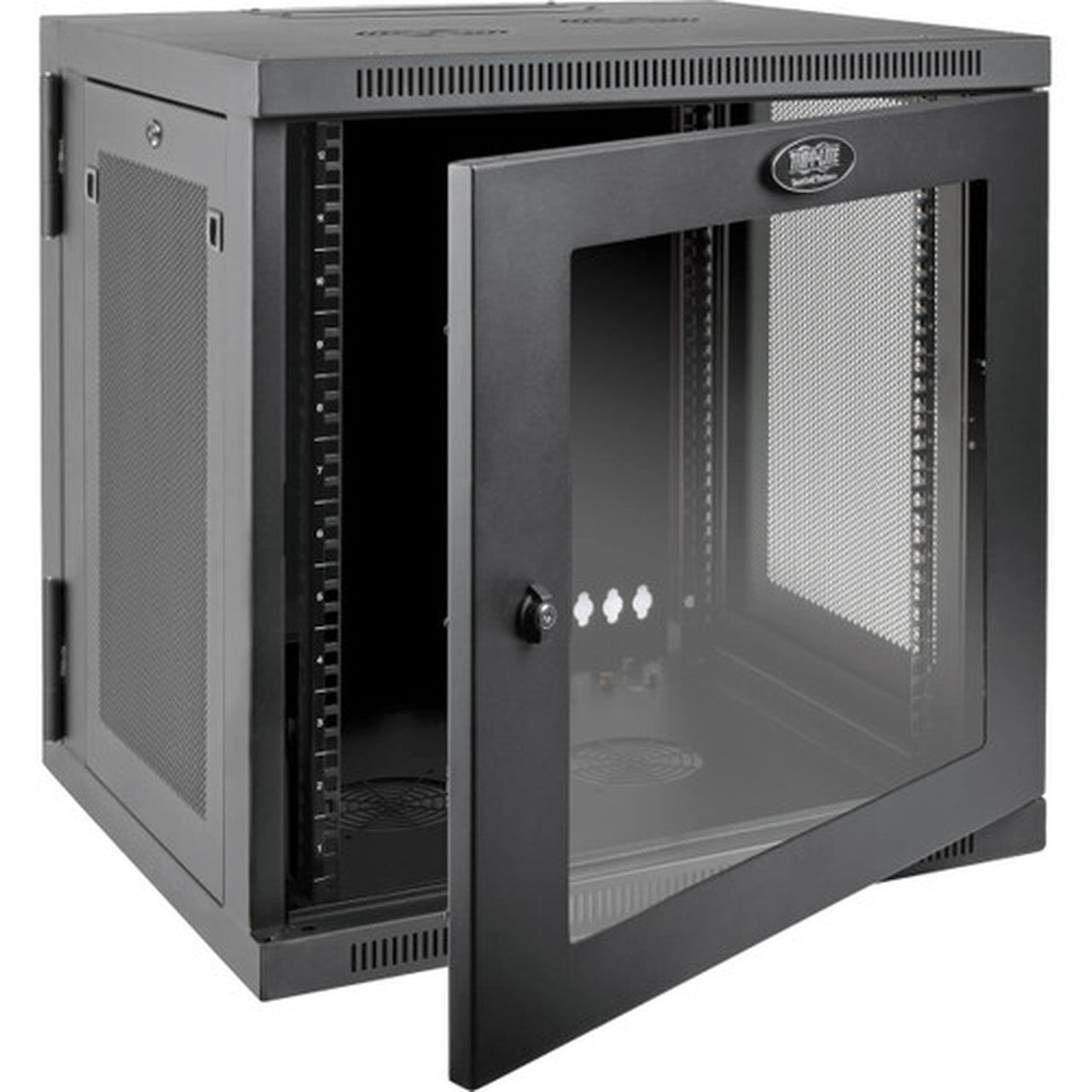

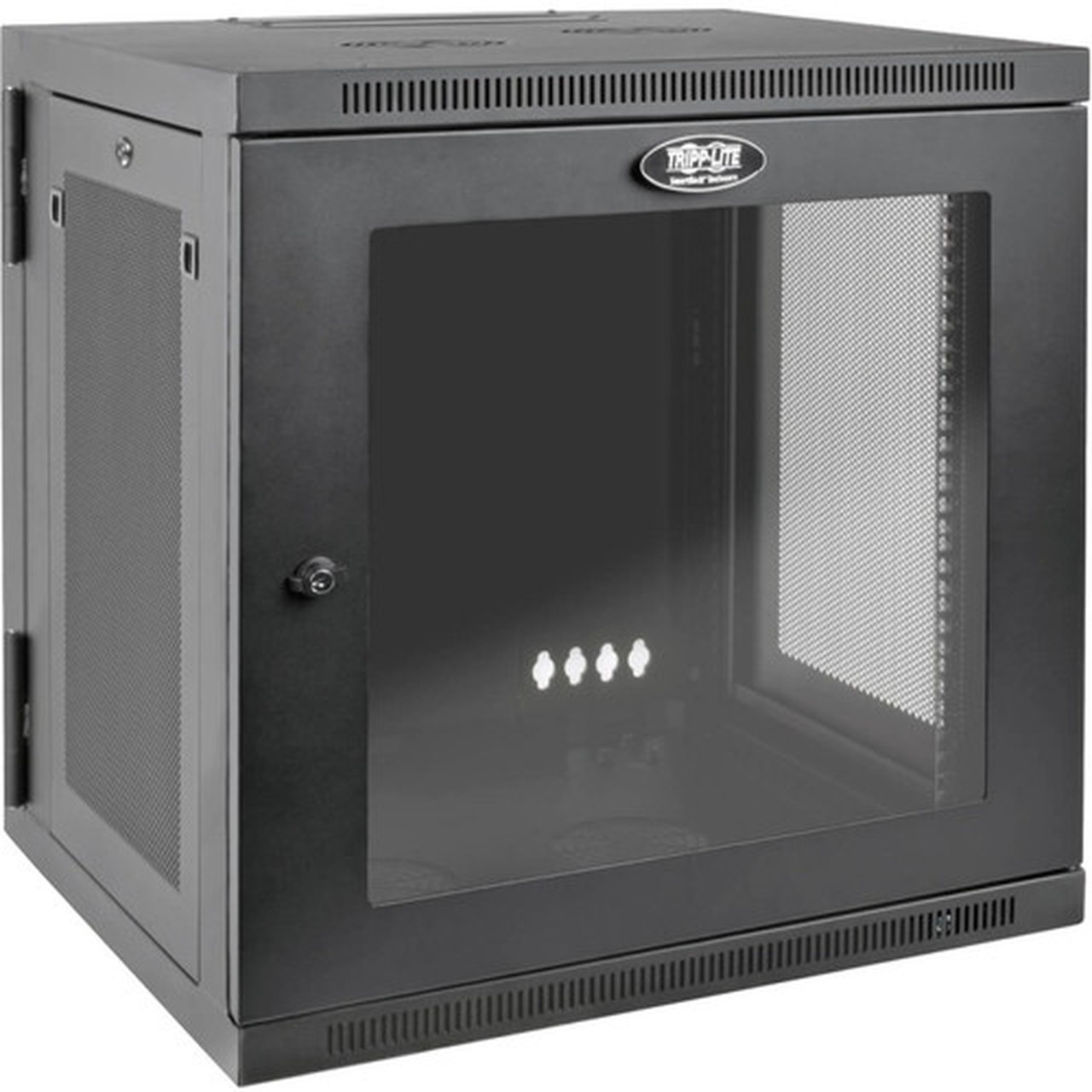

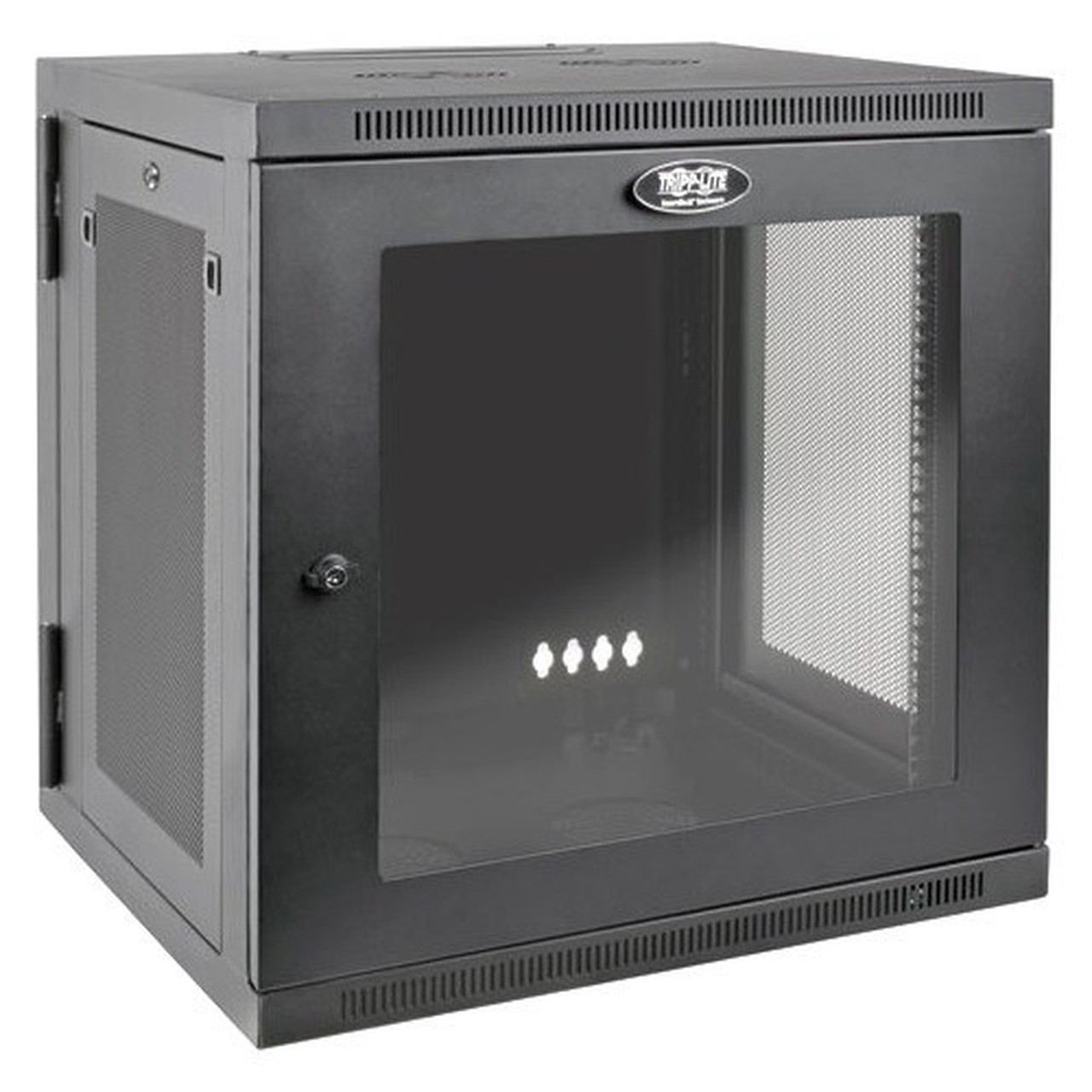

Locking steel cabinet doors provide physical security for sensitive equipment, while the clear acrylic front window allows visual status checks without unlocking.
- Locking steel construction
- Shatter-resistant acrylic window
- Vented panels for airflow
Space-Optimized Access
Swing-away hinge mechanism enables full rear access without requiring permanent rear clearance, ideal for wall-mounted installations in confined spaces.
- Swing-away hinge design
- Full rear access capability
- Wall-mount form factor
Deployment / Use Cases
This enclosure is specifically designed for UPS deployment scenarios where equipment depth, security, and accessibility are primary concerns. Its UPS-depth compatibility ensures proper fit for battery backup systems and related power distribution equipment that require deeper rack space than standard network gear.
Typical installations include server rooms, network closets, retail POS systems, and industrial control environments where wall mounting conserves floor space. The enclosure securely houses UPS units, power distribution units, network switches, and patch panels in a consolidated, organized footprint. The swing-away access feature proves particularly valuable in locations with limited rear clearance, such as corridors, utility rooms, or prefabricated enclosures where traditional rack access would be impractical.
Physical Profile
The enclosure features a dual-color aesthetic with black steel frame and clear acrylic front window, providing a professional appearance suitable for both technical and customer-facing environments. The wall-mount design includes integrated mounting hardware points and leveling adjustments for secure installation on various wall surfaces. The compact external dimensions minimize footprint while the vented construction maintains proper airflow for enclosed equipment thermal management.
- Width
- 23.63" (600.20 mm)
- Depth
- 25.50" (647.70 mm)
- Height
- 25.06" (636.52 mm)
- Weight
- 200 lb (90718.47 g)
What's in the Box
The enclosure ships fully assembled with all necessary hardware for immediate installation and equipment mounting.
Highlights
- 12U wall-mount rack enclosure designed specifically for UPS-depth equipment
- 200 lb maximum weight capacity for secure equipment housing
- Swing-away hinge provides full rear access without permanent rear clearance
- Locking steel cabinet with shatter-resistant clear acrylic front window
- Vented side, top, and bottom panels for optimal airflow
- Accommodates 19" rack equipment up to 24.5 inches deep
- RoHS compliant and environmentally friendly construction
- 5-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SRW12USDPG |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRW12USDPG |
| Product Name | SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | UPS |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Dual Color |
| Product Color | Black,Clear |
| Product Material | Steel,Acrylic |
| Maximum Weight Capacity | 200 lb (90718.47 g) |
| Static/Stationary Weight Capacity | 200 lb (90718.47 g) |
| Height | 25.06" (636.52 mm) |
| Width | 23.63" (600.20 mm) |
| Depth | 25.50" (647.70 mm) |
| Rack Height | 12U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 24.50" (622.30 mm) |
| Weight (Approximate) | 64 lb (29029.91 g) |
| Miscellaneous | |
| Package Contents | SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet 20 x M6 Screws 20 x M6 Cage Nuts 20 x M6 Washers 20 x 12-24 Screws 2 x Keys Owner's Manual |
| Assembly Required | No |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum equipment depth this rack enclosure supports?
The SRW12USDPG supports equipment up to 24.5 inches deep internally, which is specifically designed for UPS systems and other deeper rack-mounted equipment. This UPS-depth compatibility ensures proper fit for battery backup units and related power distribution gear that require more space than standard network equipment.
How does the swing-away hinge mechanism work?
The enclosure features a swing-away hinge that allows the entire cabinet to pivot away from the wall, providing full access to the rear of installed equipment. This design eliminates the need for permanent rear clearance, making it ideal for wall-mounted installations in confined spaces where traditional rear access would be impractical.
What is the weight capacity of this rack enclosure?
This enclosure supports a maximum static weight capacity of 200 pounds distributed across the 12U rack space. This capacity accommodates typical UPS systems, batteries, and associated networking equipment while maintaining structural integrity and secure mounting.
Does this enclosure require assembly?
No, the SRW12USDPG ships fully assembled and ready for installation. The package includes all necessary mounting hardware, screws, cage nuts, washers, and keys for immediate deployment without additional assembly steps.
What materials are used in the construction of this rack?
The enclosure is constructed from durable steel for the frame and cabinet body, providing robust equipment protection. The front door incorporates shatter-resistant clear acrylic for the window panel, allowing visual monitoring while maintaining security. This combination balances strength, visibility, and professional appearance.
What warranty coverage does this product include?
Tripp Lite provides a 5-year limited warranty for the SRW12USDPG rack enclosure. This warranty covers defects in materials and workmanship, offering long-term reliability assurance for your equipment housing investment. The product is also RoHS compliant and manufactured in Vietnam.
